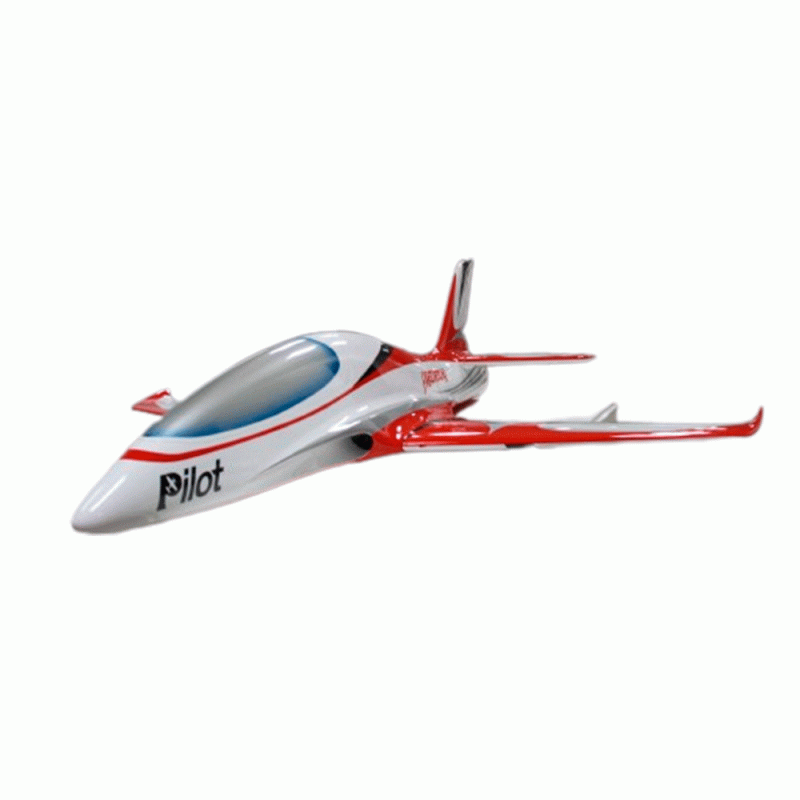

AVIAO PILOT RC PREDATOR JET 90" (2.2M) 14 WHITE/RED

Predator 2.2m (90?)

A whole new line of sport jet, designed from the ground up with performance in mind. Capable of both high and low speed flying and maneuvers and even options for converting to full 3D no maneuver is out of reach for the Predator.

Select one of the several aggressive colour schemes and really stand out from the crowd at your next event.

Colour scheme 14 – Red, White, Black

SPECIFICATIONS:

• Model: Predator 2.2
• Wingspan: 81.7? (2,076mm)
• Length: 90? (2,286mm)
• Wing area: 1,292 “² (8,332 cm²)
• Weight: 23.7lbs (10.8kg)

FEATURES:

• Full composite construction, lightweight and strong
• Two piece wing and two piece stabiliser all for easy transport
• Painted outside the mold so no seam lines
• Pre-installed tubes for servo extension leads
• Optional 3D vector thrust pipe

INCLUDED HARDWARE:

• Complete air frame (including aluminium wing-tubes and fibreglass control horns)
• Pilot-RC electric retracts and electric brakes
• Servo extension leads
• Dual wall tail pipe (105mm diameter – for 80-300N turbines)
• 3.000ml Fuel tank + 240ml UAT
• Pre-prepared pushrods with ball links



REQUIRED HARDWARE:

Turbine size:

• 80-160N for normal sport flying
• 180-260N for 3D vector flight – Avoid high speed high G flying

Servos: 8 high torque (minimum 20kg) // Uses x1 per aileron, x1 per flap, x1 per elevator, x1 on rudder and x1 for steering

Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.

PILOT-RC RECOMMENDED HARDWARE:

Servos: Pilot-Rc PW28AH (28Kg – 0,056s at 8.4v)
Servo arms: Pilot-Rc 1,2? Aluminium arms (included with Pilot-Rc servos)
