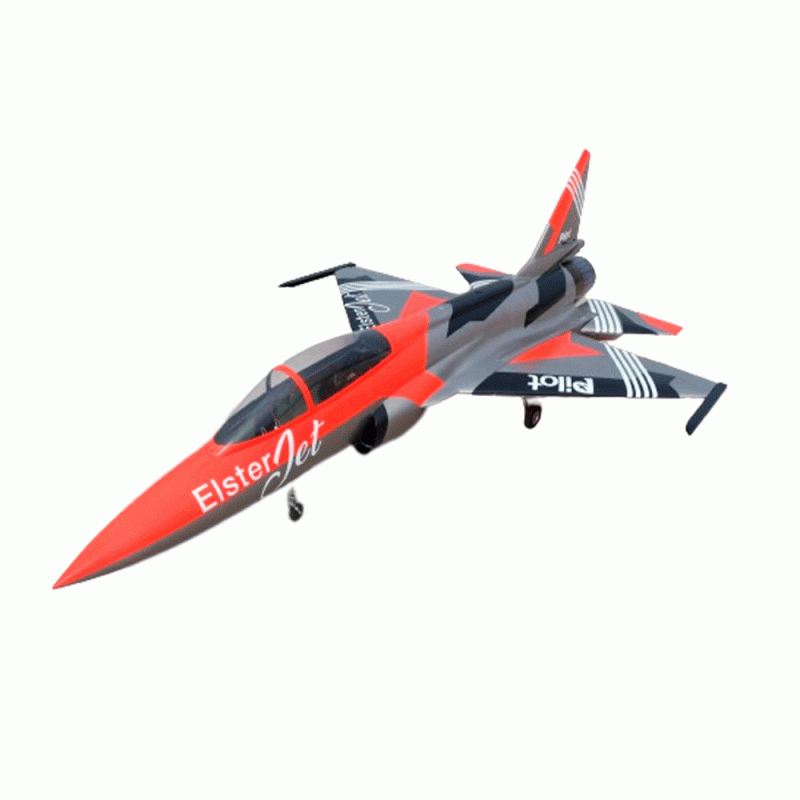

AVIAO PILOT RC ELSTER JET FC1 3D (2.2M) 01 FLUORESCENT RED

Ref: 386906
Estoque: Disponível
R$ 26.432,92
Comprar

Elster Jet: FC1 3D – 2.2m

Following the great success and feedback from our large FC1, we have continued our collaboration with Ralph & Enrico from Elster Jet to produce a smaller, more everyday and easy to transport version, sized around the most popular turbines and without compromising on performance.



SPECIFICATIONS:

  • Model: FC1
  • Wingspan: 52.3″ (1,329mm)
  • Length: 85.4″ (2,169mm)
  • Weight: 19.6lbs (8.9kg) with JetCat P130Rxi turbine and fuel bag



FEATURES:

  • German design, by Ralph and Enrico from Elster Jet
  • Extremely lightweight full composite construction especially designed for outstanding 3D performance
  • Painted outside the mold so no seam lines
  • Ultra strong and light weight landing gear mounts, with factory installed blind nuts so mounting is just plug and play
  • Specially designed easy access to turbine for speedy installation
  • Field setup can be done in seconds, thanks to the quick releases on the wings without the need for any tools, and the single elevator bolt accessed from the side
  • Removable wing and elevator for easy transport
  • Please note that the FC1 is designed specifically for aerobatics and 3D vectored flight, with light weight being key. It is not designed to be used as a full power, high speed race plane.



INCLUDED HARDWARE:

  • Complete air frame (including carbon wing-tubes and preinstalled and painted fibreglass control horns)
  • Servo extension leads
  • Vector thrust pipe
  • 3.600ml fuel tank (optional upgrade to fuel bag)
  • 250ml UAT tank
  • Pre-prepared pushrods with ball links



REQUIRED HARDWARE:

Turbine size:

80-140N for normal sport flying
160-180N for 3D vector flight – Avoid high speed, high G flying
Servos: Total x10 (x5 standard size + x5 medium size)

x3 standard size high torque
x2 for flaps (minimum 40kg)
x1 for rudder (minimum 40kg)

x7 medium size servo for steering (size: 35x15x30mm)
x2 for ailerons (minimum 16kg)
x2 for elevators (minimum 16kg)
x1 for vector elevator (minimum 16kg)
x1 for vector rudder (minimum 16kg)
x1 for steering (minimum 10kg)

Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.
