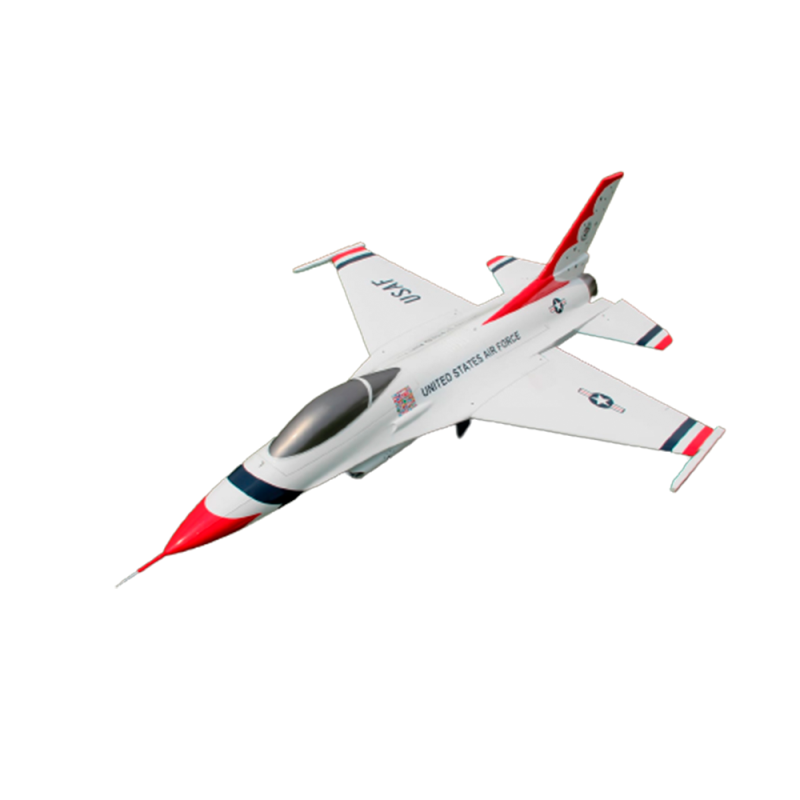

AVIAO PILOT RC JET 1/5 F16 120.5" (3.06M) 02 WHITE/RED

1/5 F16 3.06m (120.5?)

Pilot-RC is very pleased to announce the production of what is one of aviations most epic aircraft ever, the General Dynamics F16 Fighting Falcon.

We wanted this one to go above and beyond as a beautiful scale model. We found ways to make it reliable and tough enough to actually be flown on a regular basis, and not a problem to transport or put together, all in a package that fly’s brilliantly well.

SPECIFICATIONS:

• Model: 1/5 F16
• Wingspan: 83.3? (2,115mm)
• Length: 120.5? (3.060mm)
• Wing area:
• Weight: 46.8lbs (22.1kg) with Vector Thrust pipe

SPLIT FUSELAGE FOR EASY TRANSPORT

The entire fuselage can be split, strategically placed between turbine and thrust tube, allowing for the entire fuselage to come apart with just five screws and two connectors for easy transport to and from the field.

Front nose cone can also be removed by unscrewing the pitot tube

FEATURES:

• Full composite construction, lightweight and strong
• Two piece wing and two piece full flying stabiliser, both fully removeable
• Easily detachable rudder for easy transport
• Two piece fuselage, with the split strategically placed to allow daily removal of tail section for easy transport to and from the flying field
• Easily detachable ventral fins, held in place with just two screws
• Painted outside the mold so no seam lines

INCLUDED HARDWARE:

• Complete air frame (including fibreglass control horns)
• Carbon fibre wing-tubes, integrated into each wing
• Servo extension leads
• Fixed Dual wall thrust pipe (for 200-320N turbines)
• Fuel tank (6600ml) and UAT (250ml)
• Pre-prepared pushrods with ball links
• Pre-glued control horns
• Pilot-RC electric landing gear
• Vector thrust pipe (Elevator and Rudder axis)

REQUIRED HARDWARE:

Turbine: 200-320N

Servos: (x9 + 2 optional)

x5 super high torque (minimum 35kg) // Uses x1 per aileron, x1 per elevator, x1 on rudder

x2 middle size servo, 35 x 15 x 30mm (minimum 16kg) // Uses x1 for nose gear door and x1 for steering

x2 standard size servo // Uses x2 for main gear doors

+2 super high torque (minimum 35kg) if installing vector thrust pipe

Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.

PILOT-RC RECOMMENDED HARDWARE:

• Servos: Pilot-Rc PW48AH (48Kg – 0,10s at 8,4v)
• Servos: Pilot-Rc PW16AH (16Kg – 0,057s at 8,4v)
