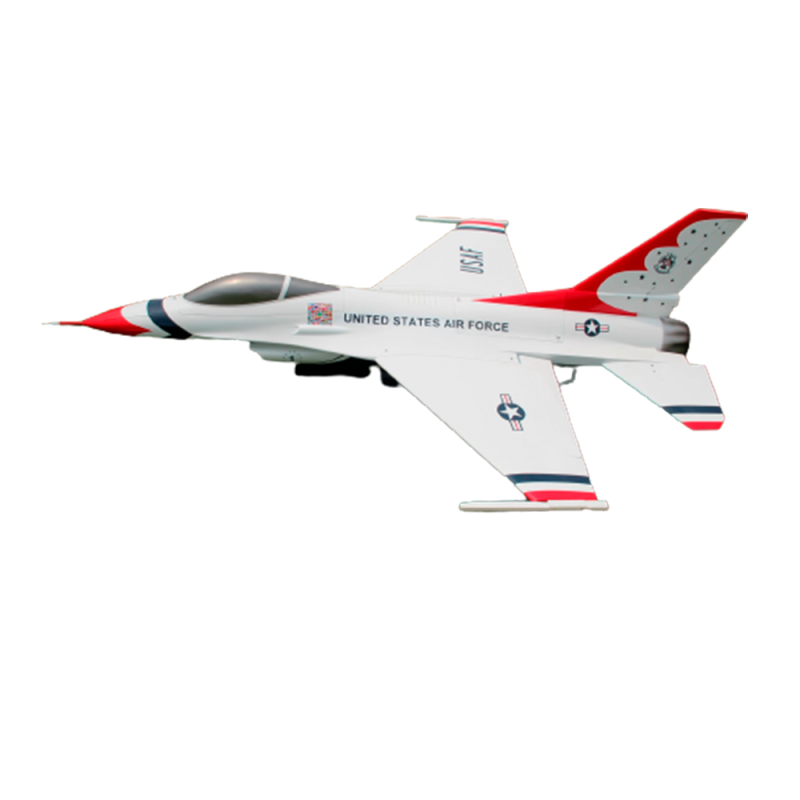

AVIAO PILOT RC 1/8 F16 JET 71.3" (1.81M) SCHEME 02

1/8 F16 1.81m (71.3?)

Pilot-RC is very pleased to announce the production of what is one of aviations most epic aircraft ever, the General Dynamics F16 Fighting Falcon.

We wanted this one to go above and beyond as a beautiful scale model. We found ways to make it reliable and tough enough to actually be flown on a regular basis, and not a problem to transport or put together, all in a package that fly’s brilliantly well.

This 1/8 scale version has been designed with an improved wing area, to provide better performance and flight characteristics.

SPECIFICATIONS:

• Model: 1/8 F16
• Wingspan: 52.9? (1,344mm)
• Length: 71.3? (1.81mm) – Plus pitot tube
• Weight: 17.8lbs (7.85kg)

FEATURES:

• Full composite construction, lightweight and strong
• Two piece wing and two piece full flying stabiliser, both fully removeable
• Painted outside the mold so no seam lines
• Easily detachable ventral fins, helps in place with just two screws

INCLUDED HARDWARE:

• Complete air frame (including fibreglass control horns)
• Carbon fibre wing-tubes
• Servo extension leads
• Fixed Dual wall thrust pipe (for 60-100N turbines)
• Fuel tank (2000ml) and UAT (250ml)
• Pre-prepared pushrods with ball links
• Pre-glued control horns
• Pilot-RC electric landing gear

REQUIRED HARDWARE:

Turbine: 60-100N

Servos: x9

x5 middle size servo, 35 x 15 x 30mm (minimum 16kg) // Uses x1 per aileron, x1 per elevator, x1 on rudder

x4 middle size servo, 35 x 15 x 30mm (minimum 10kg) // Uses x3 for gear doors and x1 for steering

Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.

PILOT-RC RECOMMENDED HARDWARE:

• Servos: Pilot-Rc PW16AH (16Kg – 0,057s at 8,4v)
• Servos: Pilot-Rc PW10AH (13Kg – 0,19s at 7,4v)
