AVIAO PILOT RC BAE HAWK JET 70.9" (1.8M) SCHEME 01

Ref: 386784
Estoque: Indisponível
R$ 16.019,92
Comprar

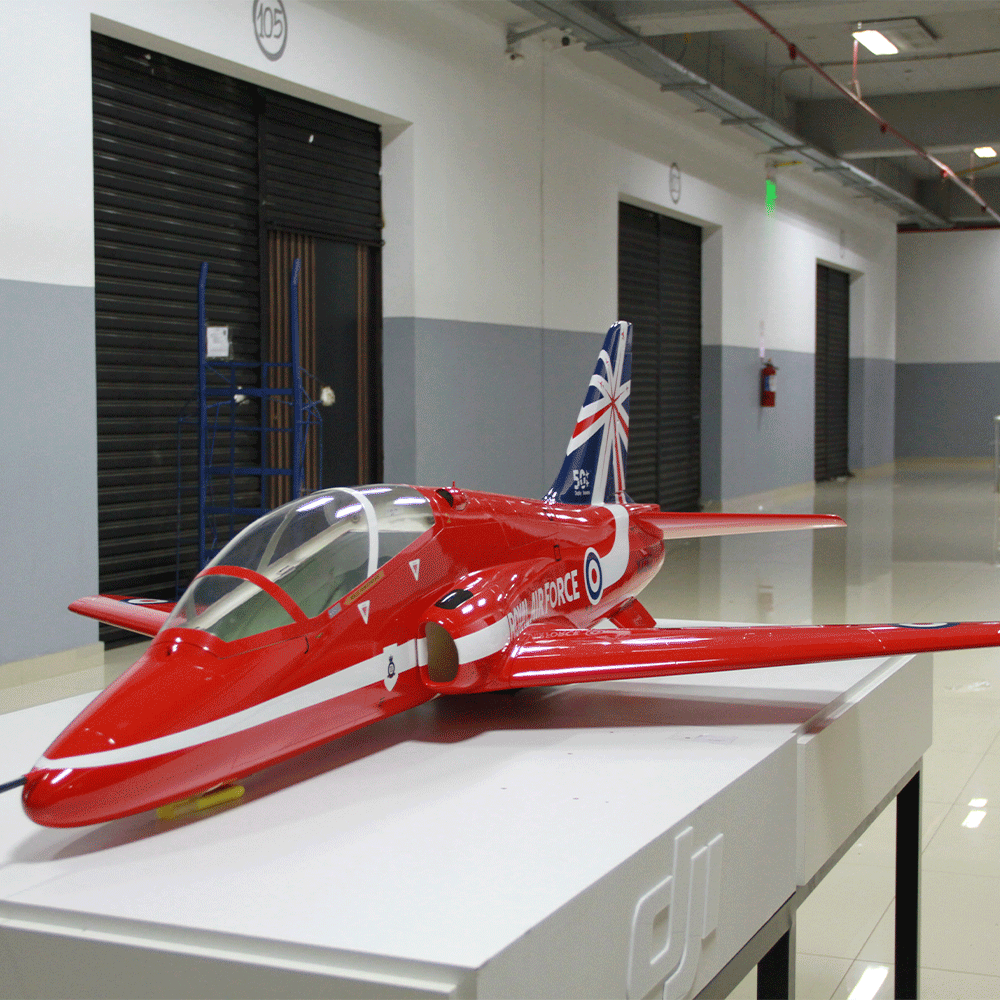

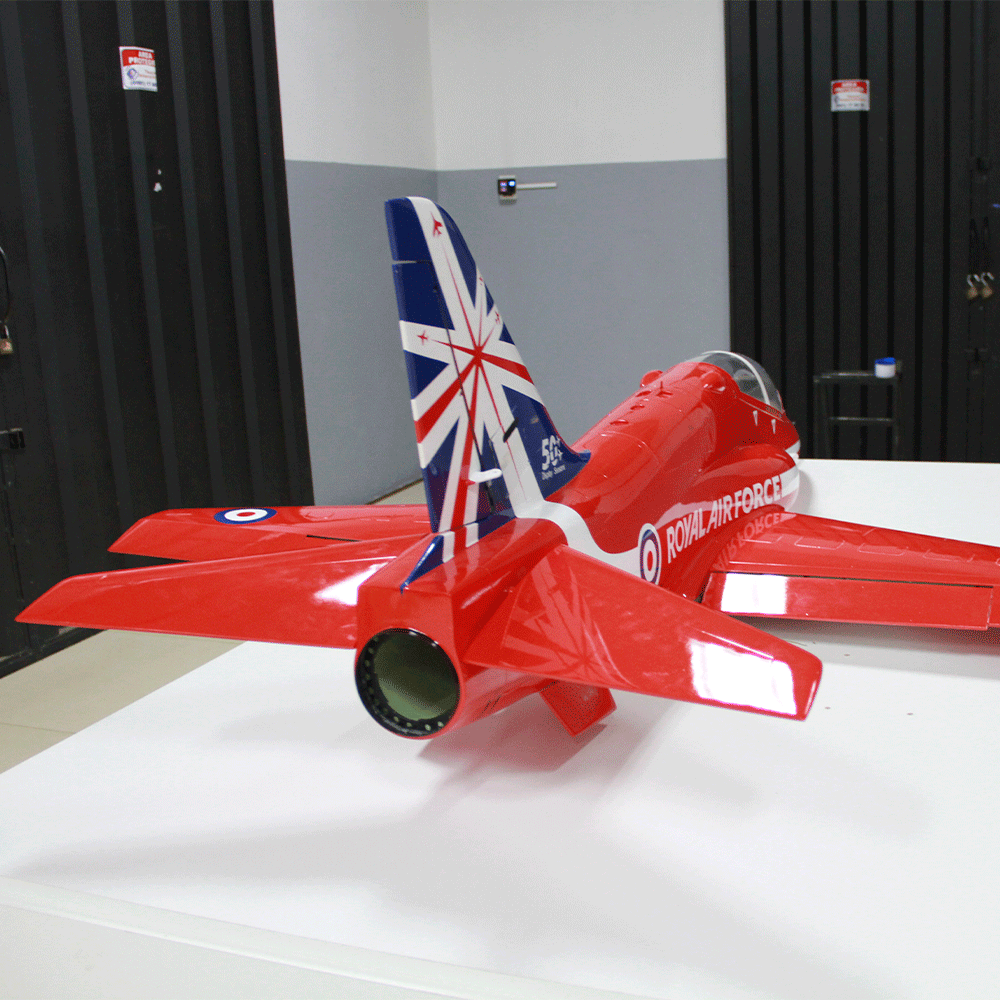

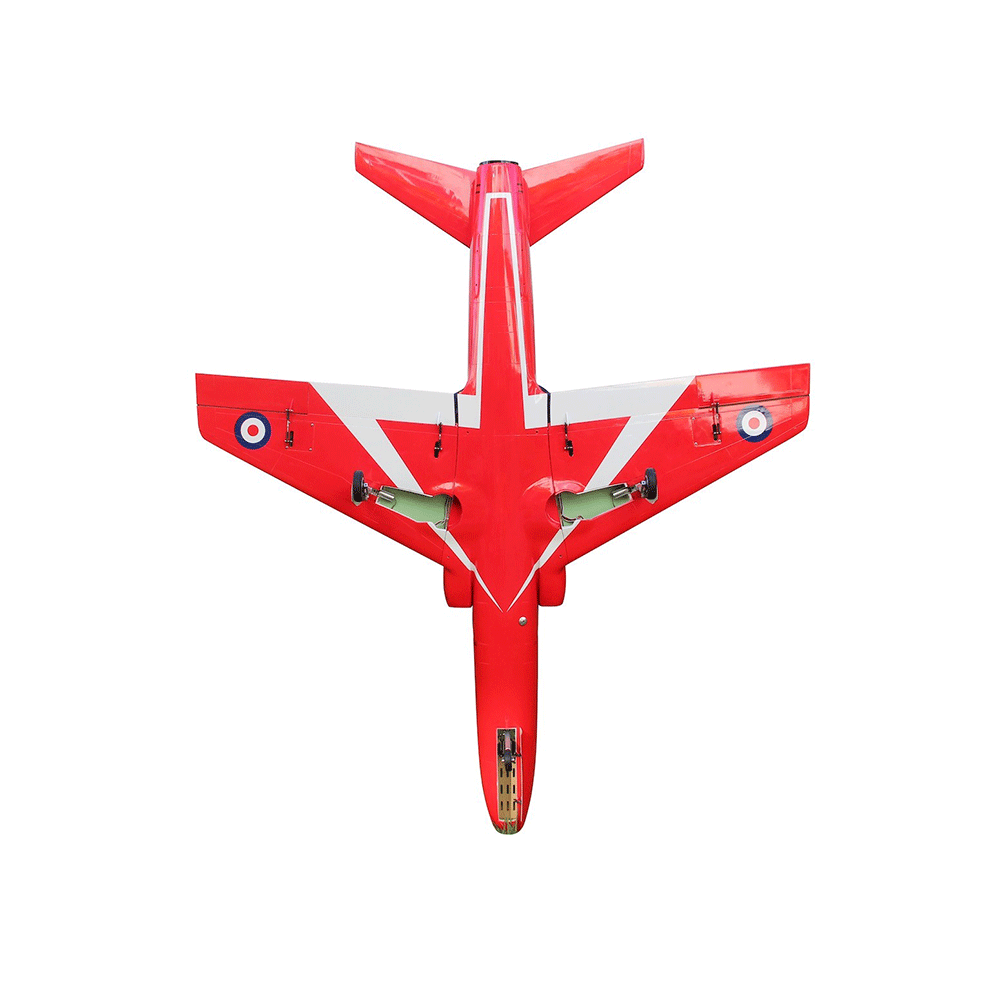

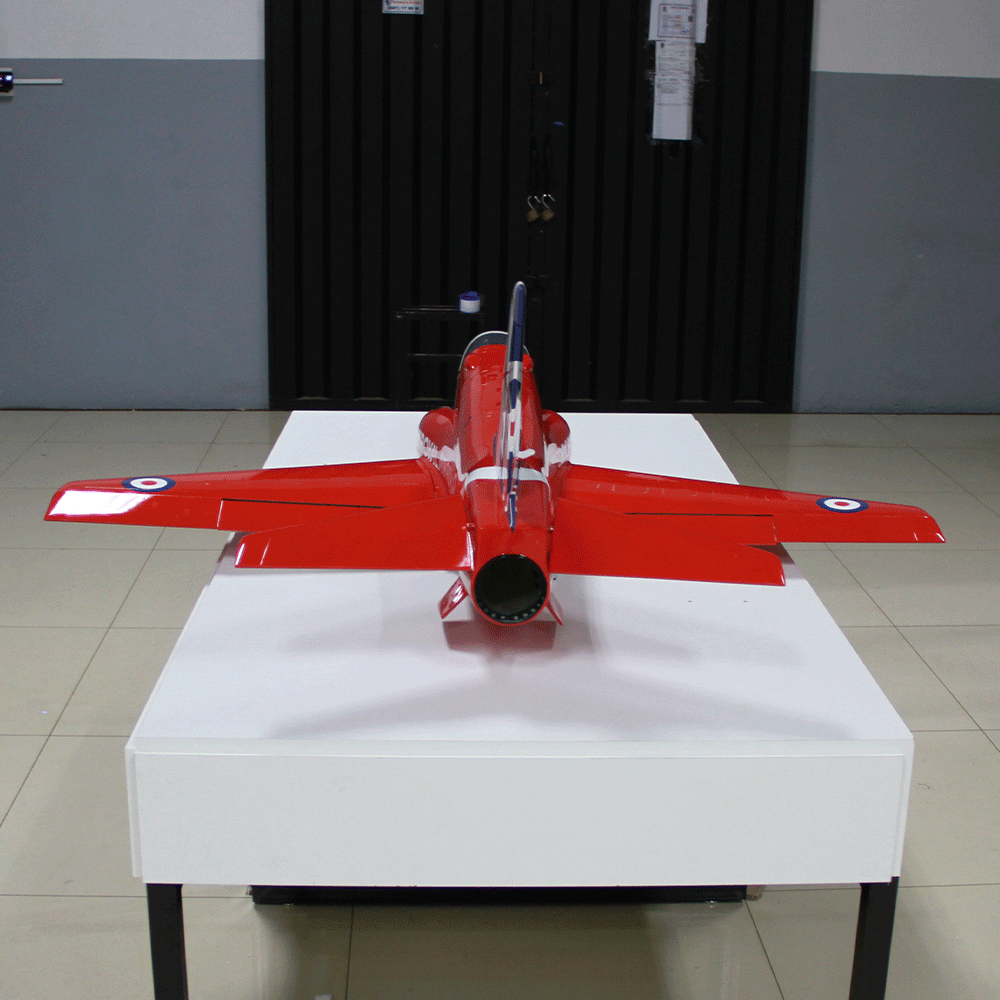

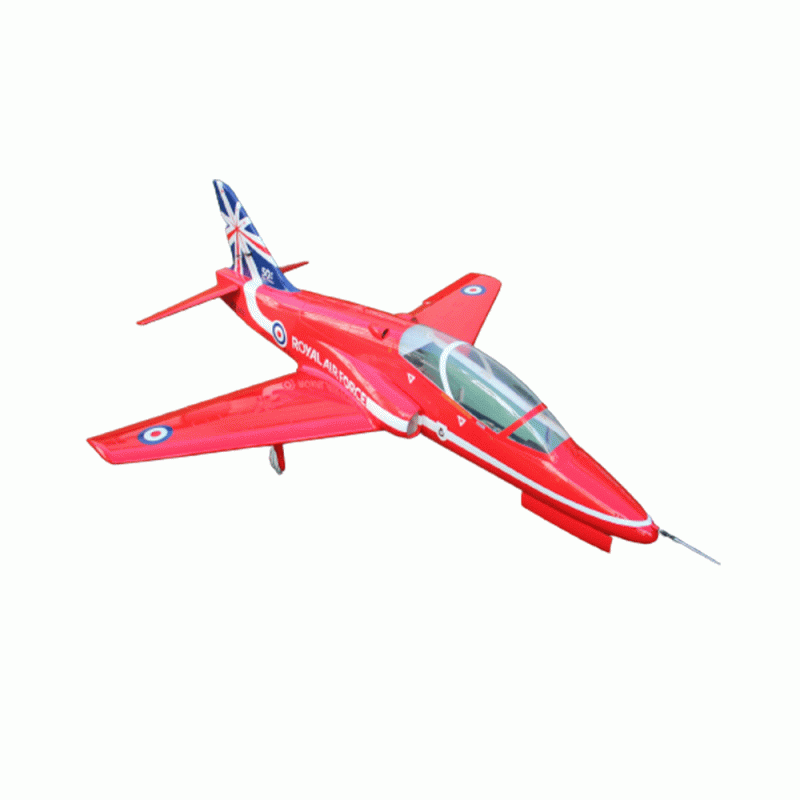

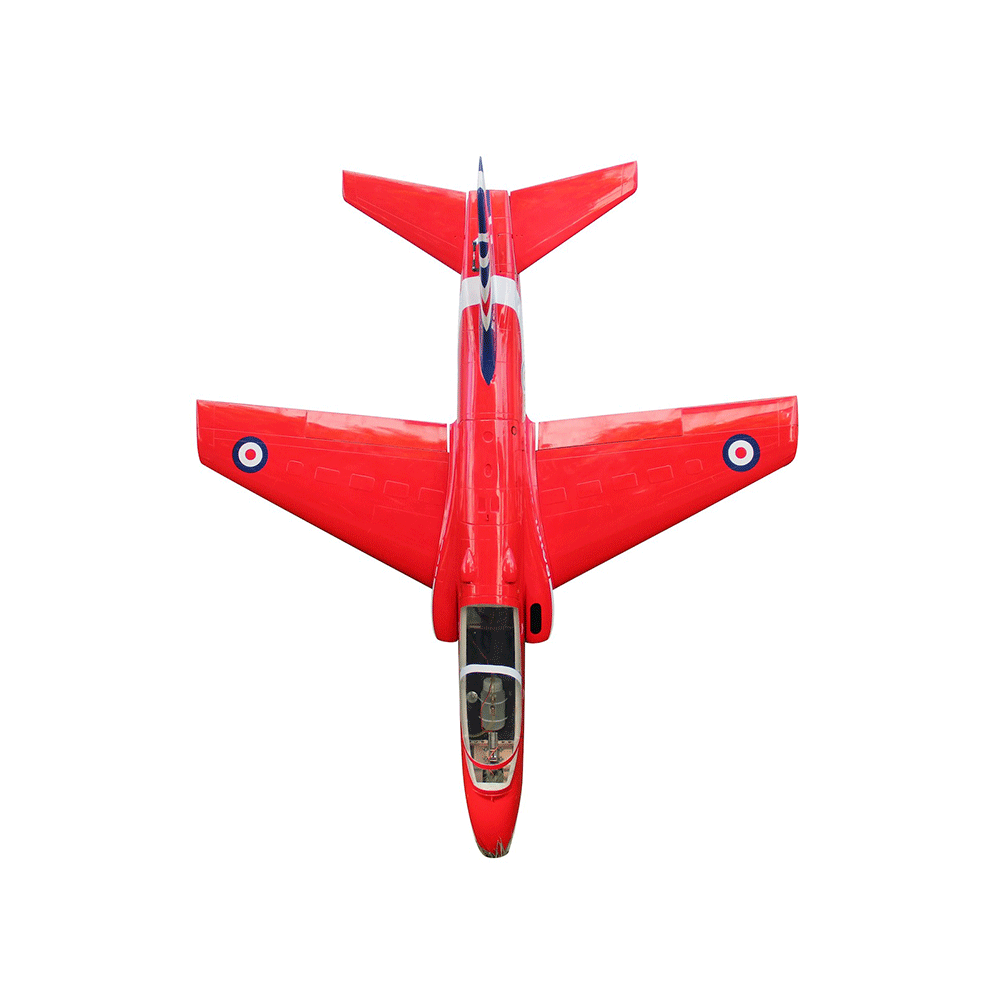

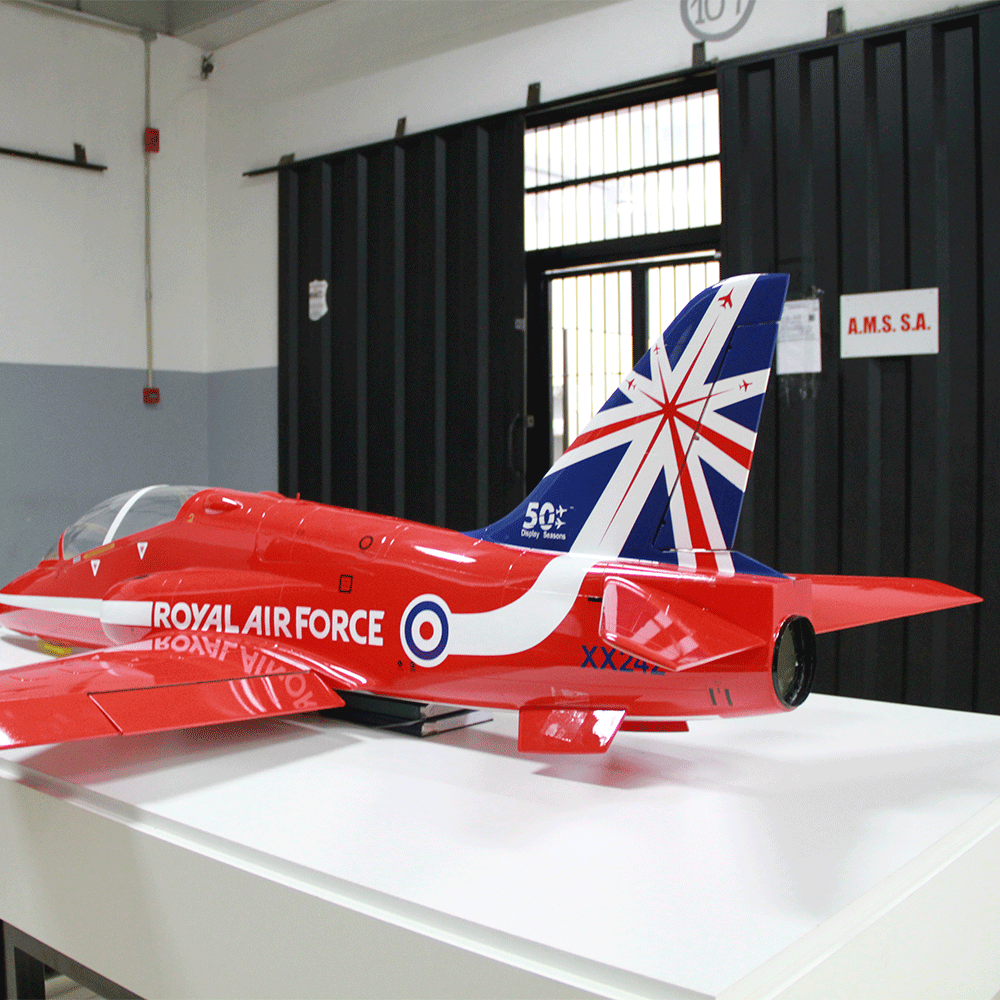

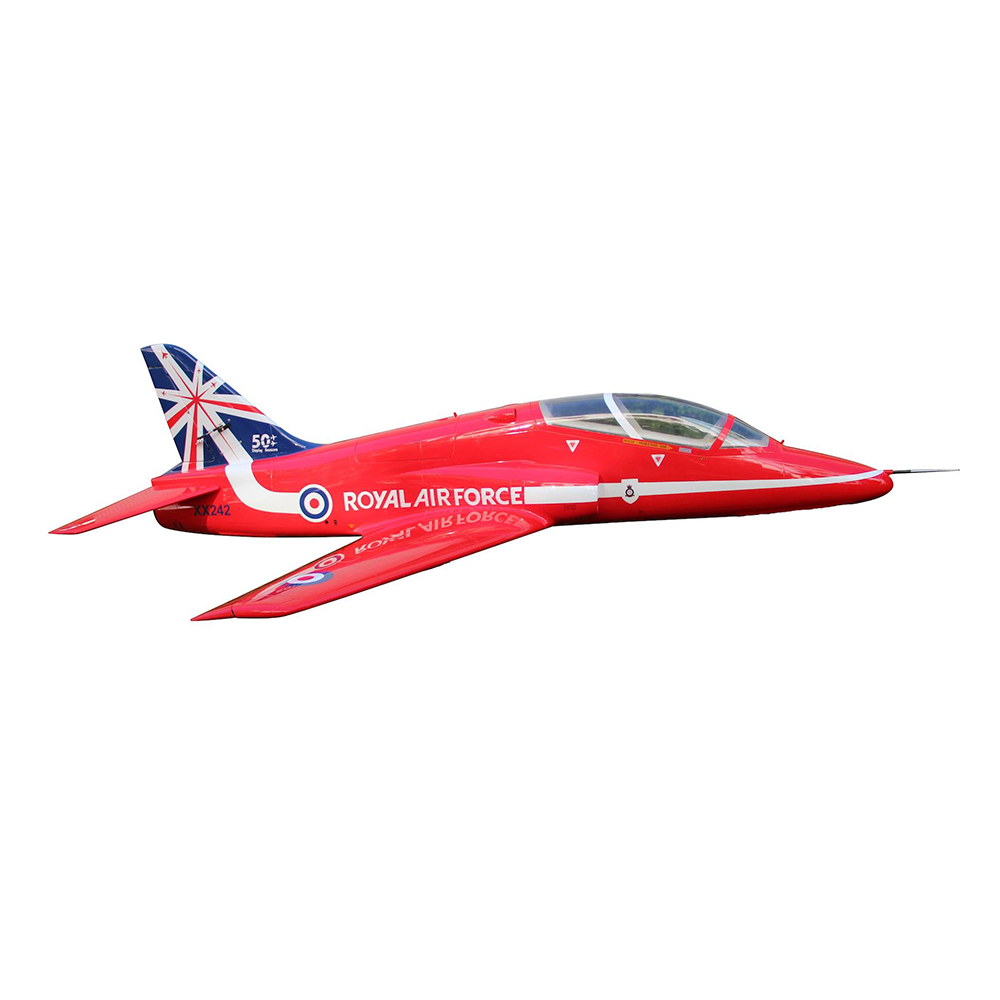

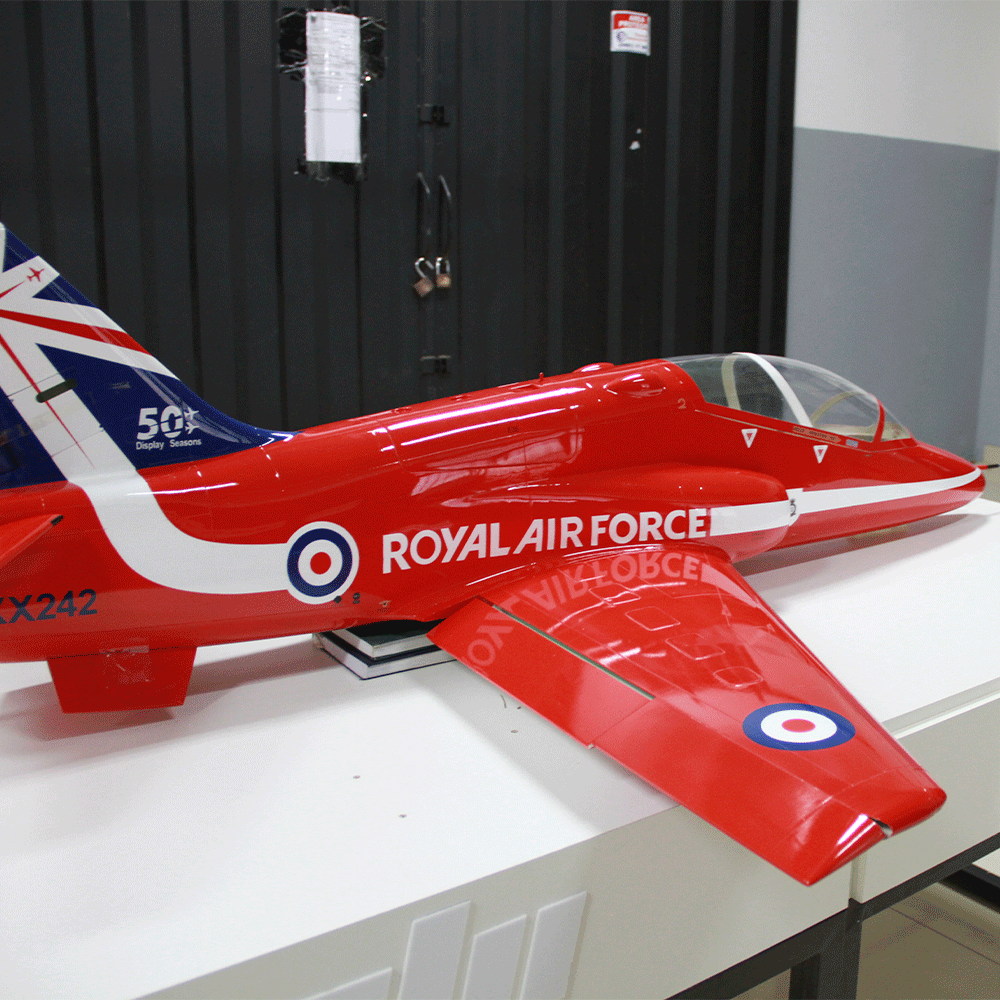

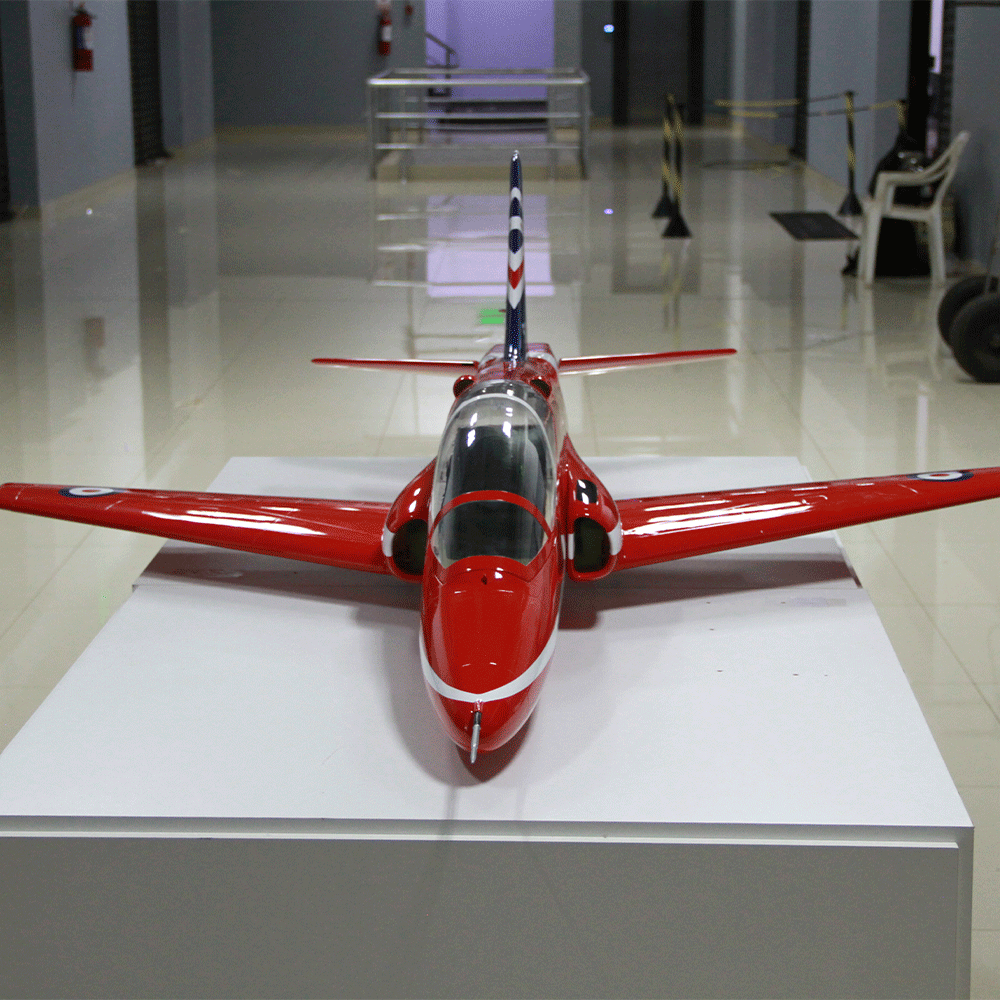

BAE Hawk 1.8m (70.9″)

Everyone has a soft spot for the BAE Hawk, and this feeling will only develop further once you feel the gentle and smooth yet agile capabilities of our Pilot-RC version.



SPECIFICATIONS:

  • Model: BAE Hawk
  • Wingspan: 60.2″ (1,530mm) – without pitot tube
  • Length: 70.9″ (1,800mm)
  • Weight: 17.8lbs (8.05kg)



FEATURES:

Full composite construction, lightweight and strong
Two piece wing and two piece full flying stabiliser, both fully removable
Painted outside the mold so no seam lines

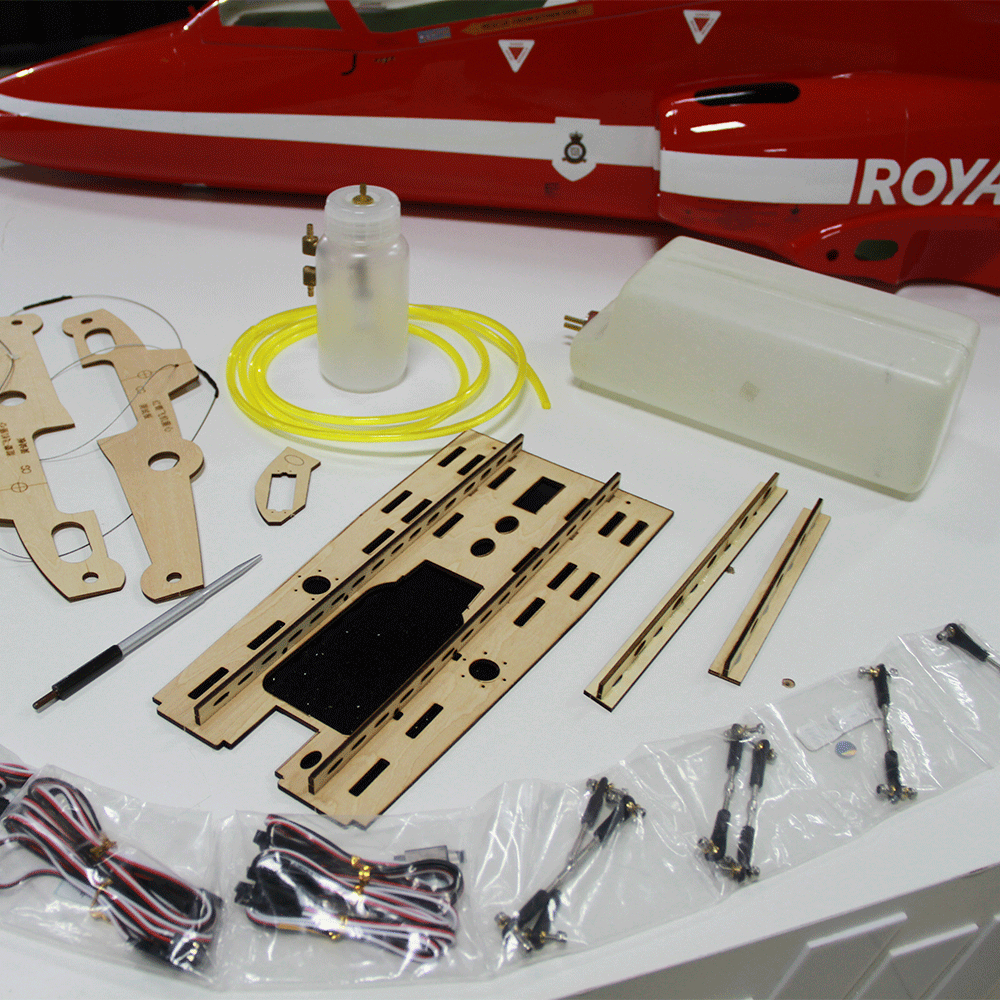

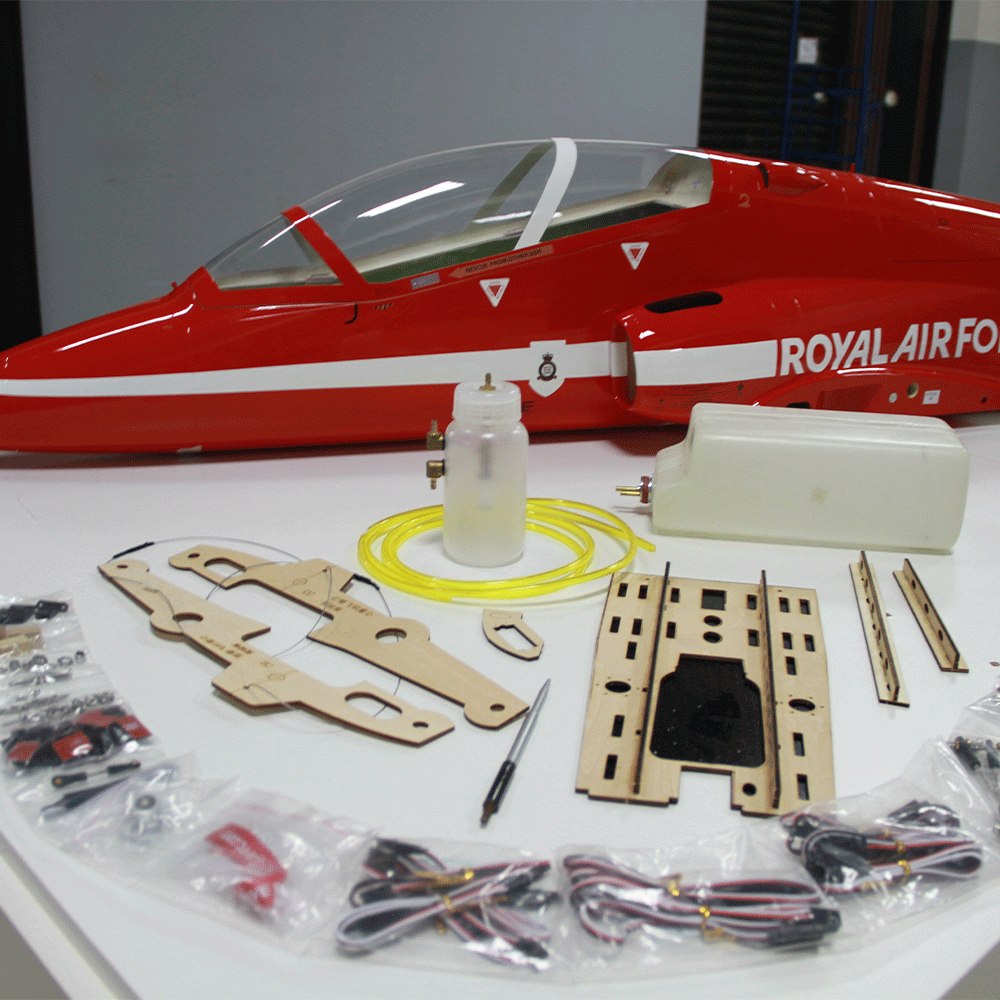

INCLUDED HARDWARE:

  • Complete air frame (including fibreglass control horns)
  • Carbon fibre wing-tubes
  • Servo extension leads
  • Pilot-RC electric retracts and electric brakes

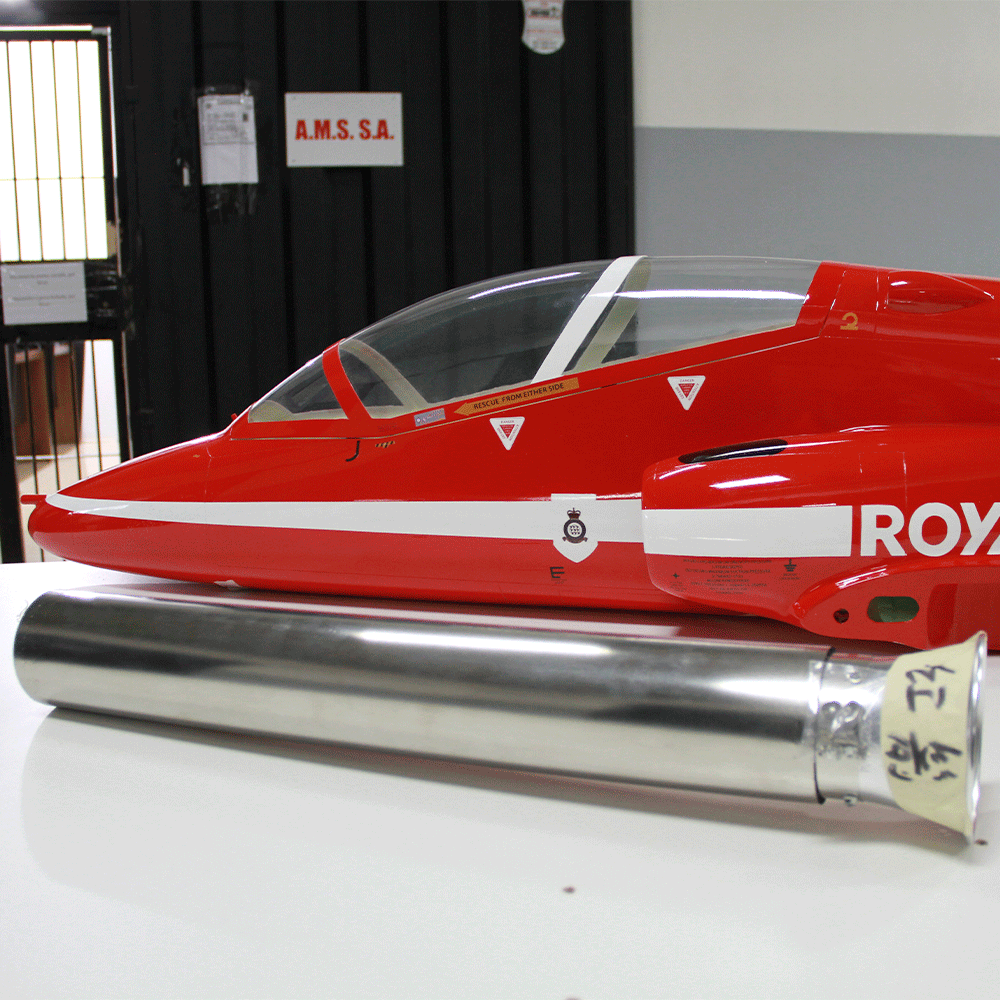

  • Dual wall tail pipe (for 60-100N turbines)
  • Fuel tank (2000ml) and UAT (250ml)
  • Pre-prepared pushrods with ball links
  • Pre-glued control horns

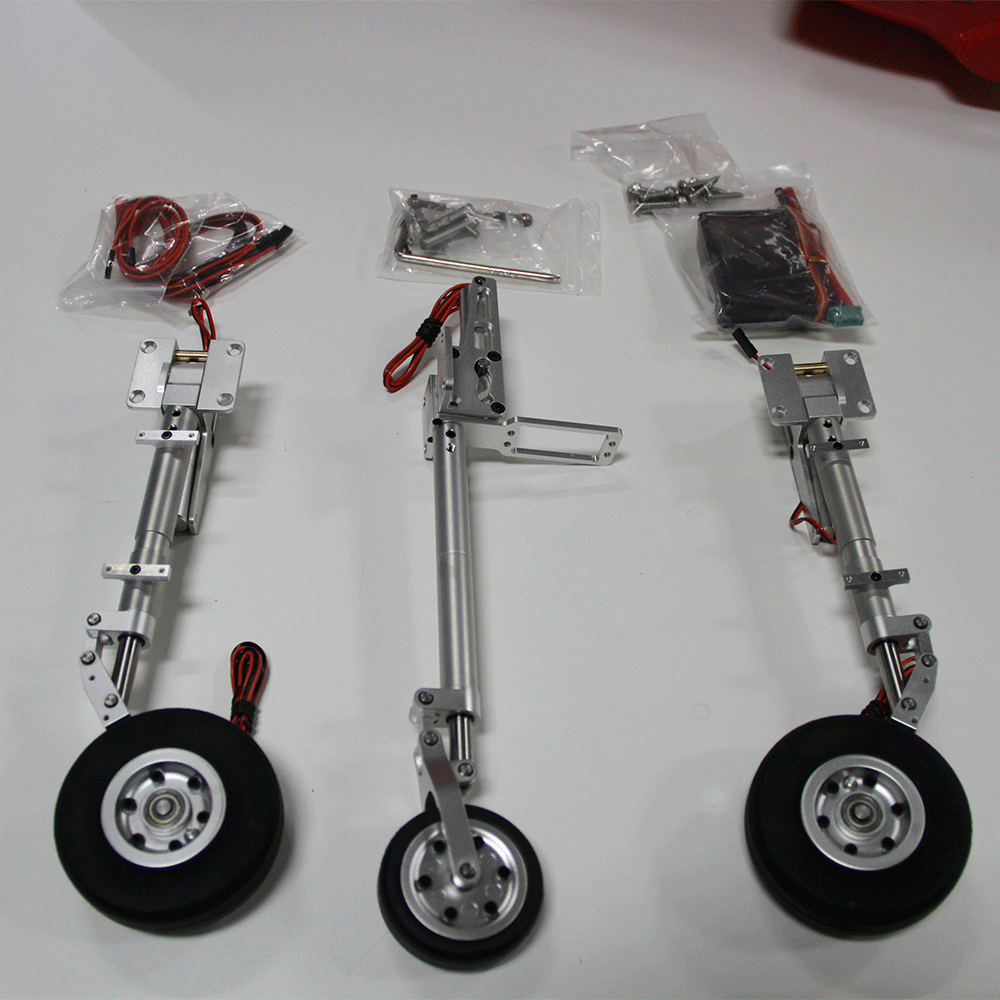

  • Pilot-RC electric landing gear



REQUIRED HARDWARE:

Turbine: 60-100N

Servos: Total x8 servos

x1 standard size high torque (important: minimum 28kg)
x1 for elevator

x5 medium size servo (size: 35x15x30mm)
x2 for aileron (minimum 10kg)
x2 for flaps (minimum 10kg)
x1 for rudder (minimum 20kg)
The above five servos slots are also easily adaptable to fit standard size servo if preferred.

x2 medium size servo (size: 35x15x30mm, minimum 10kg)
x1 for steering
x1 for nose gear door

Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.



PILOT-RC RECOMMENDED HARDWARE:

  • Servos: Pilot-Rc PW28AH (28Kg – 0,056s at 8,4v)
  • Servos: Pilot-Rc PW10AH (13Kg – 0,19s at 8,4v)
  • Servo arms: Pilot-Rc 1,2″ Aluminium arms (included with Pilot-Rc servos)
