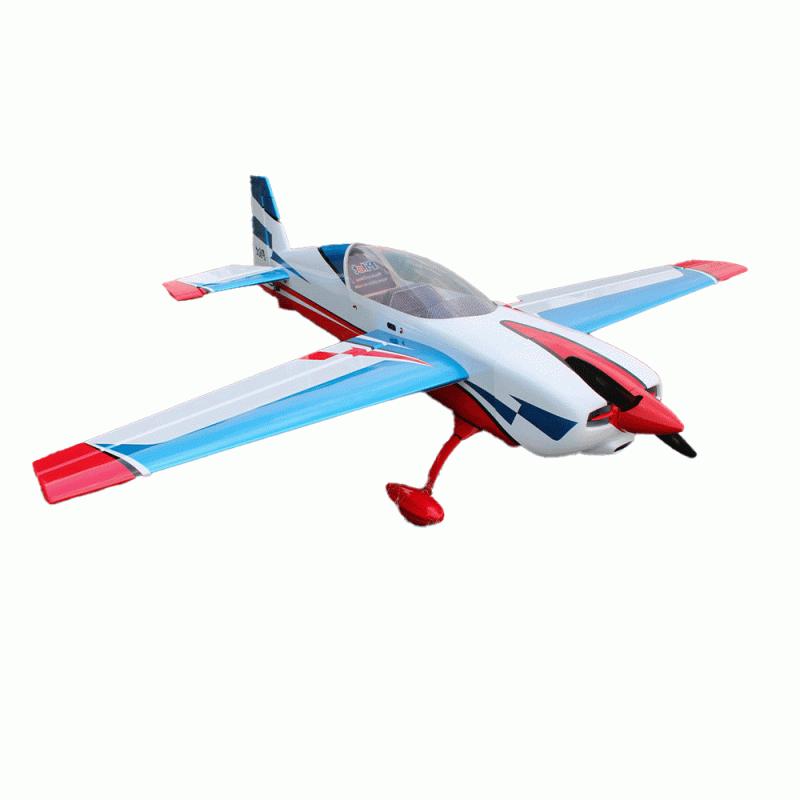

AVIAO PILOT RC EXTRA NG 115" (2.92M) 01 WHITE/BLUE/RED

Extra NG – 115? (2.92m)

A brand new design, built from a classic. In 2019 Extra Acrobatic Aircraft unveiled their latest masterpiece, and now in 2020 Pilot-RC is unveiling ours.

The Extra NG is the latest iteration of the Extra family, each version becoming more precise and more agile than ever before, and this feeds down all the way through our models.

This new design, combined with all of Pilot-RC’s latest build innovations and methods provide a high quality kit that can be built within minutes upon arrival at the flying field and relied upon for strength, agility and all round fun.

this Pilot-RC Extra NG 115? is a completely unlimited high performance airframe capable of 150-170cc Class. Ryu Sintuphrom Team pilot say this plane can be perform like 120cc

this NG has a good combination of floaty in low and slow fly but still agile precise in high speed flight XA as you want fast rolling rate as 120cc plane

Colour scheme Extra NG 01:

References: Oracover 21-010, 21-023, Metal blue / Ultracote HANU870, HANU866, Metal blue

SPECIFICATIONS:

• Model: Extra NG
• Wingspan: 115? (2.920mm)
• Length: 107.5? (2.730mm)
• Wing area: 2,182?² (14,082cm²)
• Weight: 38.2lbs (17.4kg)

FEATURES:

• NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
• NEW! Patented quick assembly system for wings and stabilizer
• NEW! Patented quick assembly system for canopy.
• Film covering applied over a Genuine German Oracover (Ultracote) base
• Highly prefabricated, experienced builders can have air ready in under a day
• Pre-installed hinges (glued and sealed)
• Internally mounted cowling – so no visible external screws exposed (two exposed screws underneath for easy mounting)
• Removable wings and stabs
• Laser engraved motor mounting position
• Easy canister/tuned pipe installation due to open construction
• Pull push system for Rudder servo

INCLUDED HARDWARE:

• Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
• “Spare” lower section cowl from transparent plastic – used to mark out correct location to cut the cowl for perfect fitting every time
• Pre-installed hinges and pre-mounted canopy
• Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
• Wheels, axels and wheel pants
• Pre-prepared pushrods with ball links
• Matching carbon spinner, 5?

REQUIRED HARDWARE:

• Motor: 150-180cc or equivalent electric
• Servos: 8 high torque plus throttle // Uses x2 per aileron, x1 per elevator half and x1 or x2 on rudder using push-pull
• Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

PILOT-RC RECOMMENDED HARDWARE:

• Servos: Pilot-Rc PW48AH (48Kg – 0,10s at 8,4v)
• Servo arms: Pilot-Rc 1,6? Aluminium arms (included with Pilot-Rc servos)
• Wingbags: Pilot-RC wingbags
• Suncover: Acrobatic Suncover
