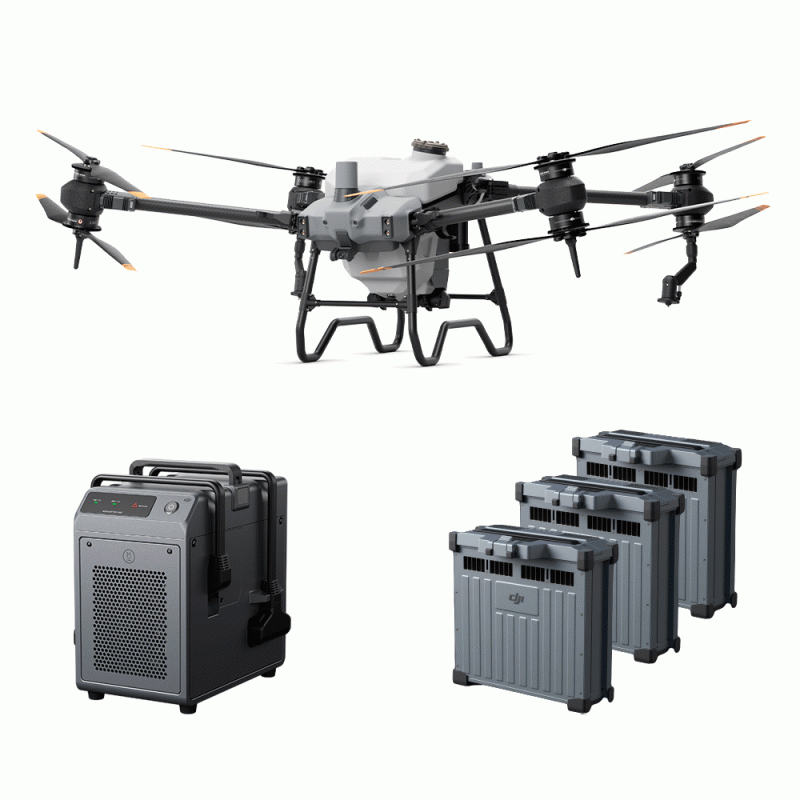

DRONE DJI AGRAS T40 AGRICOLA KIT (3 BATERIAS+ 1 CARREGADOR T30)

DRONE DJI AGRAS T40 AGRICOLA KIT (3 BATERIAS+ 1 CARREGADOR T30)

Ref: 384551

Estoque: Indisponível

R$ 246.645,00

Comprar

DJI T40

One for All

*CARREGADOR É O MESMO DO DJI T30 : DJI AGRAS CHARGER T-30

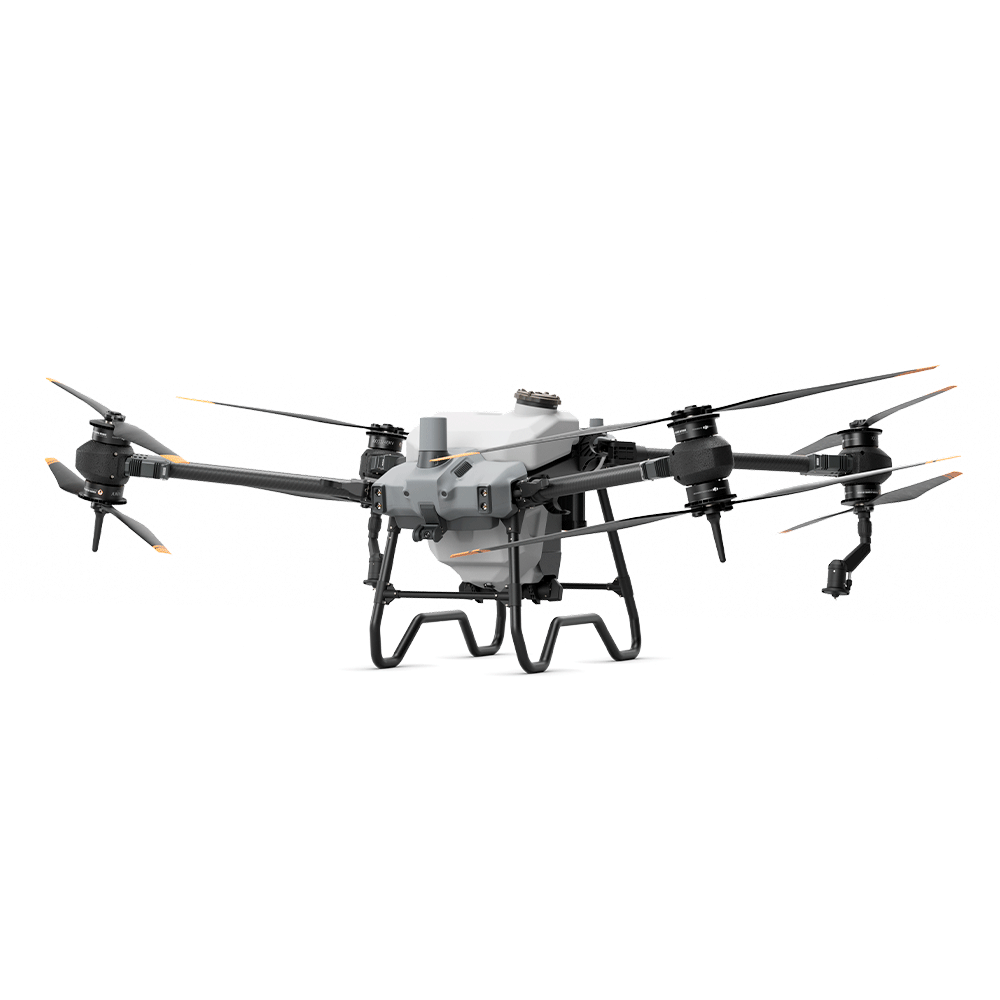

The AGRAS T40 is equipped with the revolutionary Coaxial Twin Rotor design, enabling it to carry a spray load of 40 kg and a spread load of 50 kg (70 L). The aircraft is built in with a Dual Atomized Spraying System, DJI Terra, Active Phased array Radar and Binocular Vision. It supports multiple missions from surveying, mapping, to spraying and spreading, helping you achieve ultimate precision in your agricultural operations.

50kg spreading payload

40kg spraying payload

Active Phased Array Radar + Binocular Vision

Dual Atomized Spraying System

Supports flight spraying/spreading and RC mapping

Core Modules IPX6K

per hour21.3hectare (farmland)

per hour4hectare (orchards)

per hour1.5tonnes of fertilizer (spreading)

Massive payload increase thanks to the coaxial twin rotor

The AGRAS T40 features a coaxial twin rotor design that increases the payload capacity by 30% with a maximum payload of 50 kg. Its foldable design reduces the aircraft size by 70% for greater portability.

Spraying System

Dual atomization for even spraying

12 L/min

Magnetic Drive Impeller Pump

The new magnetic transmission design completely isolates the pesticide from the motor, making the aircraft corrosion-proof and ultra-durable. Quick disassembly by hand for easy cleaning

Dual Atomized Centrifugal Sprinkler

The dual atomized spray disc ensures even droplets and more efficient pesticide usage.
The proprietary centrifugal valve prevents leakage, avoids over-fertilization, and reduces pesticide use while protecting the environment.

T40 spreading system (50kg payload)

Enhanced spreading efficiency for superior performance

Real-time weighing

The aircraft is equipped with a weighing sensor that monitors the spread quantity and remaining payload

Fast disassembly and cleaning

The spreading device can be dismantled in 3 minutes and washed with water.

Active Phased Array Radar + Binocular Vision

Omnidirectional Obstacle Sensing

The Active Phased Array Radar is incorporated with a binocular vision sensor system to provide 360-degree horizontal omnidirectional obstacle sensing, offering optimal security. The detection distance of up to 50 m allows for intelligent terrain following, smooth scaling and bypassing of multiple obstacles.

Mapping, spraying and spreading, all in one

The AGRAS T40 combines mapping, spraying and spreading functions, while its UHD camera and adjustable gimbal enable easy capture of your desired view. Farmland and orchard images can be captured in real time, and local maps can be generated using the remote controller with the D-RTK 2 Mobile Station. The system detects land boundaries and obstacles automatically, for quicker planning of flight routes over farmland and hilly orchards.

Fully enhanced remote controller for smoother, faster mapping

The 8-core processor makes mapping of 6.67 hectares possible in 10 minutes. Minimizes wasted journeys with intelligent route planning, for greater efficiency. The large 7-inch high brightness screen offers a broader view with refined detail. A wide range of custom physical buttons provides flexible control.

Robustly tested for ultimate reliability

The core components are designed to withstand complex and harsh farmland environments. They have passed a host of rigorous tests such as corrosion prevention, high and low temperature, and aging tests, to ensure peace of mind for the user.

T40 Intelligent Flight Battery

Capacity up to 30000 mAh
11.5C while discharging, 6C while charging
warranty coverage of 1,500 charging cycles

DJI Agras Intelligent Cloud

By pairing AGRAS T40 with the Phantom 4 Multispectral, the platform allows you to perform variable spraying/spreading operations with precision based on the farmland’s prescription map. The feature is useful for the spraying of fertilizers on rice, fertilizers and defoliants on cotton crops, and nutrient solutions on soybeans and corn.

Precise variable spraying on rice crops, for lower pesticide usage and increased productivity

In 2021, Jiangsu Farming Group reduced its fertilizer consumption by 10% and increased its rice and wheat yield by 5% by spraying fertilizers in variable quantities on its crop fields.
