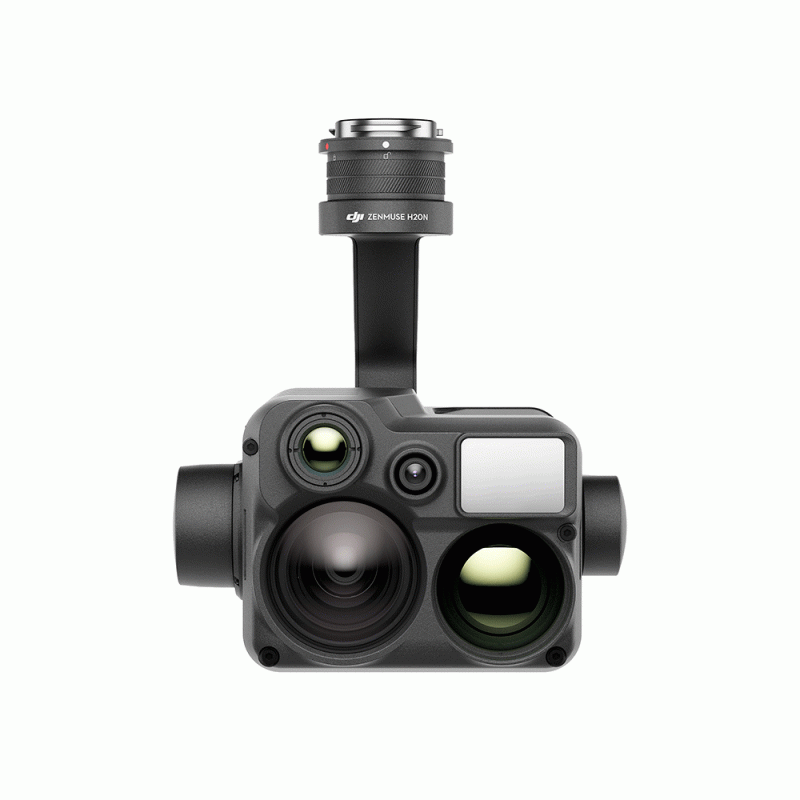

CAMERA DJI ZENMUSE H20N INFRARED THERMAL VISION BEYOND DARKNESS

Ref: 384414
Estoque: Indisponível
R$ 84.105,00
Comprar

Zenmuse H20N

Vision Beyond Darkness

In the Box

  • Gimbal and Camera

    Gimbal and Camera

    × 1

  • MicroSD card（32GB）

    MicroSD card（32GB）

    × 1

  • Storage Case

    Storage Case

    × 1

  • Lens Cleaning Cloth

    Lens Cleaning Cloth

    × 1



"N" for Night Vision

The Zenmuse H20N integrates starlight sensors1 into its zoom and wide-angle cameras. Pair this with dual zoom thermal cameras and a laser rangefinder, and you have a versatile hybrid payload that rises to the occasion.

  • Starlight Night Vision
  • 640×512 Dual Thermal Cameras 2×, 8× Optical Zoom
  • 20× Hybrid Optical Zoom
  • Laser Rangefinder 1200 m Max Range
  • Synchronized Split-screen Zoom
  • Intelligent Night Scene Enhancement
  • IP44 Rating
  • -20°C to 50°C Operating Temperature


Sensors Upgraded Across Multiple Dimensions


Infrared Zoom

Dual Thermal Cameras
Resolution: 640×512
2x Zoom (Equivalent Focal Length: 53 mm)
8x Zoom (Equivalent Focal Length: 196 mm)

See the Big Picture

Night Vision Wide Camera
Starlight Sensor: 2MP
Stronger Low-Light Performance

Pierce Through the Veil

Night Vision Zoom Camera
Starlight Sensor: 4MP
20× Optical Zoom, 128× Max Zoom
Low-Light Details

Precise Distance Data

Laser Rangefinder
Range: 3 m to 1200 m
Accuracy: ± (0.2 m + D×0.15%)2

See Through the Night

The zoom and wide-angle cameras are equipped with starlight sensors that are tailor-made for low-light environments.

Infrared Zoom

Two thermal cameras respectively provide 2× and 8× zoom, together enabling up to 32× zoom. Find hotspots and inspect in close detail after zoom-in.

Synchronized Split-screen Zoom

H20N supports synchronized zoom between thermal and starlight night vision cameras. Users can scale both images at the same time. This doubles efficiency and makes it easier to compare details side by side.



Thermal Features


Color Palettes

Adjust the colors applied to the thermal data based on the mission requirements.

Isotherms

Visualize a specific band of temperatures to highlight your targets.

Temp. Alarm

Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.

Gain Modes

Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.

R-JPEG Images

Images captured by the Zenmuse H20N are in R-JPEG format with embedded temperature information. By importing these images into the DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.
