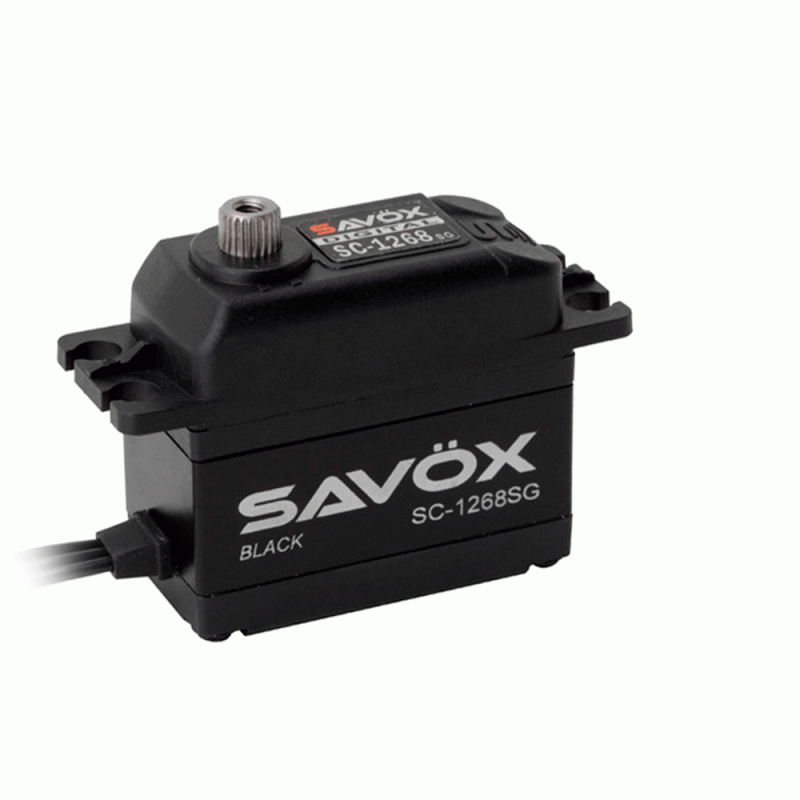

SAVOX SERVO SC-1268SG BLACK EDITION HV 26KG .11S

SAVOX SERVO SC-1268SG BLACK EDITION HV 26KG .11S

Ref: 379182

Estoque: Indisponível

R$ 660,57

Comprar

The SC-1268SG-BE is a high torque servo that delivers combining leading edge technology with super high 12 bit (4096) resolution along with it's strong output and durable gear train.

Features:

High Voltage

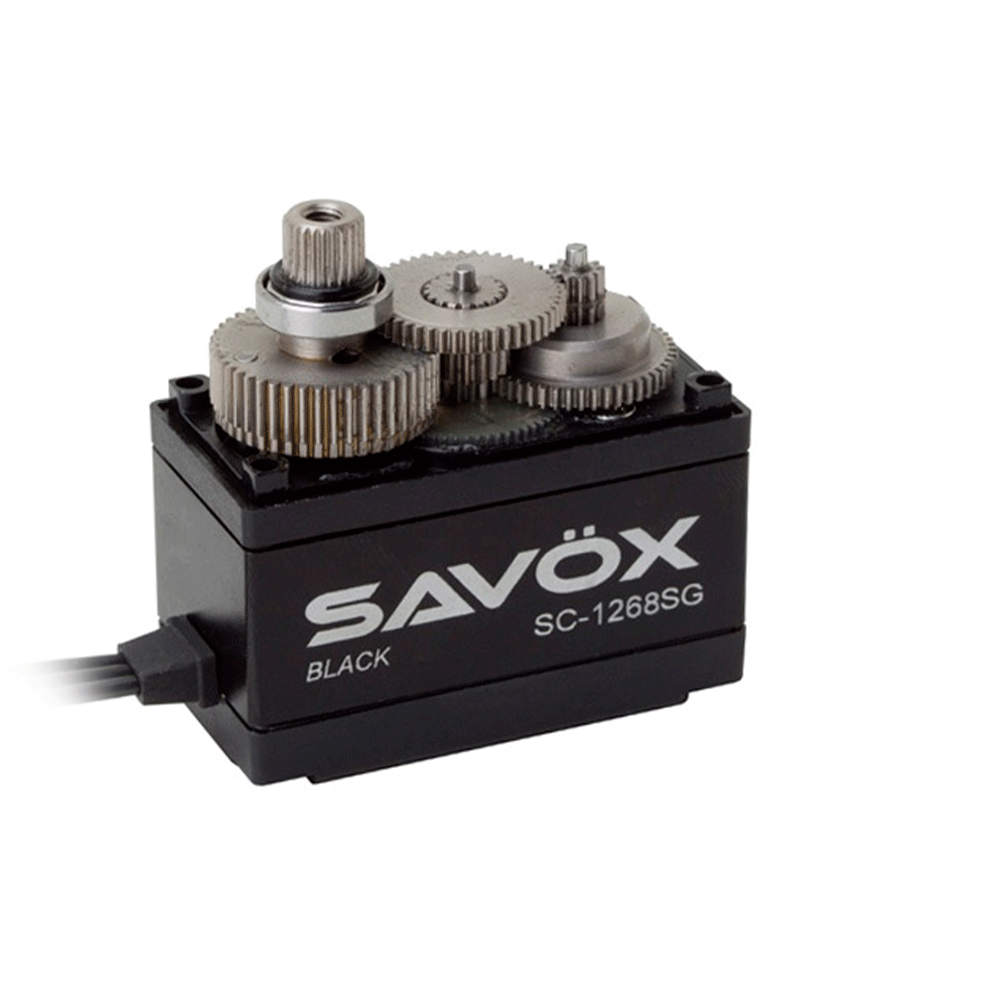

Super strong and precision unique steel gears provide durability and survive heavy use

Sleek black design with laser etching and a shorter 200mm black lead wire

Ideal for 1/8 buggies, and other applications desiring high amounts of power

Specifications:

Torque @6V: 15kg/cm

Torque @7.4V: 25kg/cm

Speed @6V: 0.13 sec/60 deg

Speed @7.4V: 0.11 sec/60 deg

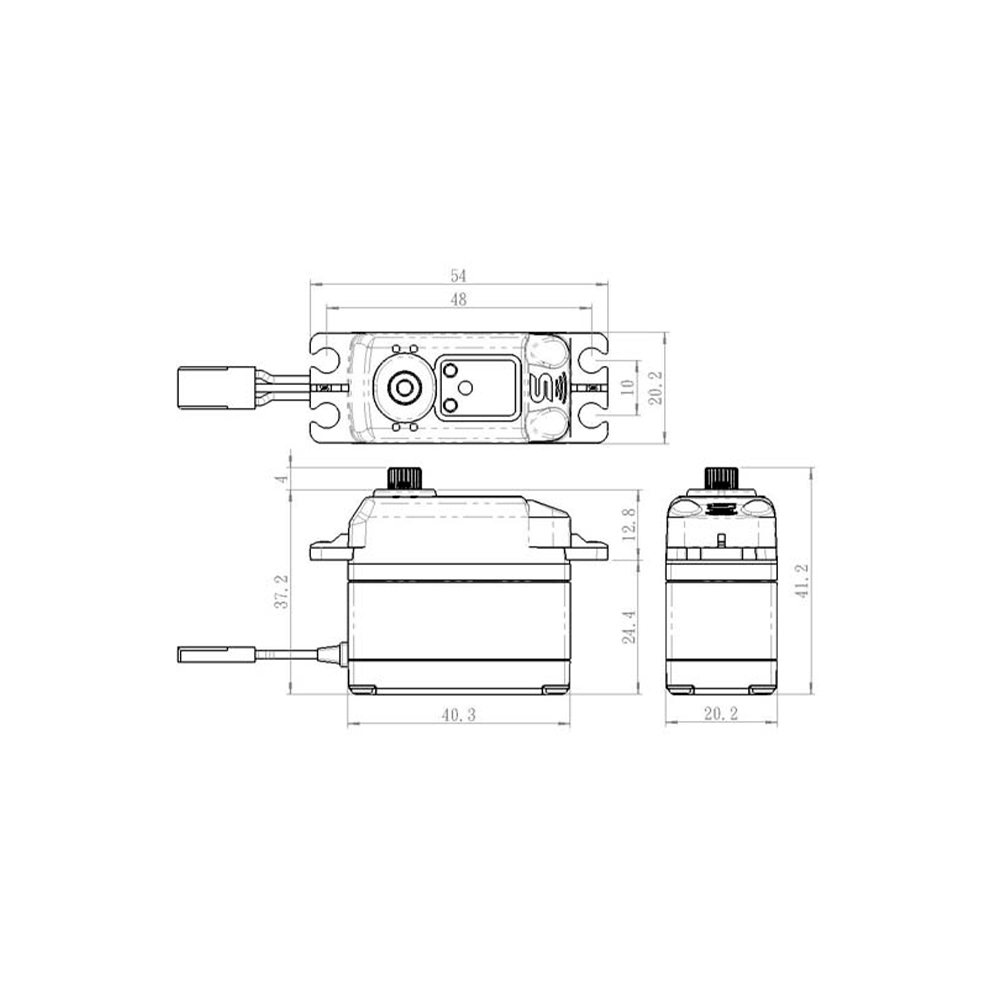

Dimensions L x W x H: 40.3 x 20.2 x 37.2mm

Weight: 62g

Technical Details:

Operating Temperature: -10° to 50°C

Running Current (no load): 100mA @4.8V, 120mA @6.0V, 150mA @7.4V

Stall Current (at locked): 2500mA @4.8V, 3000mA @6.0V, 3500mA @7.4V

Idle Current: 5mA @4.8V, 5mA @6.0V, 5mA @7.4V

Wire Length: 200 ± 5mm
