SAVOX SERVO SC-0251MG 6V 16KG .18S

SAVOX SERVO SC-0251MG 6V 16KG .18S

Ref: 379175

Estoque: Indisponível

R$ 280,27

Comprar

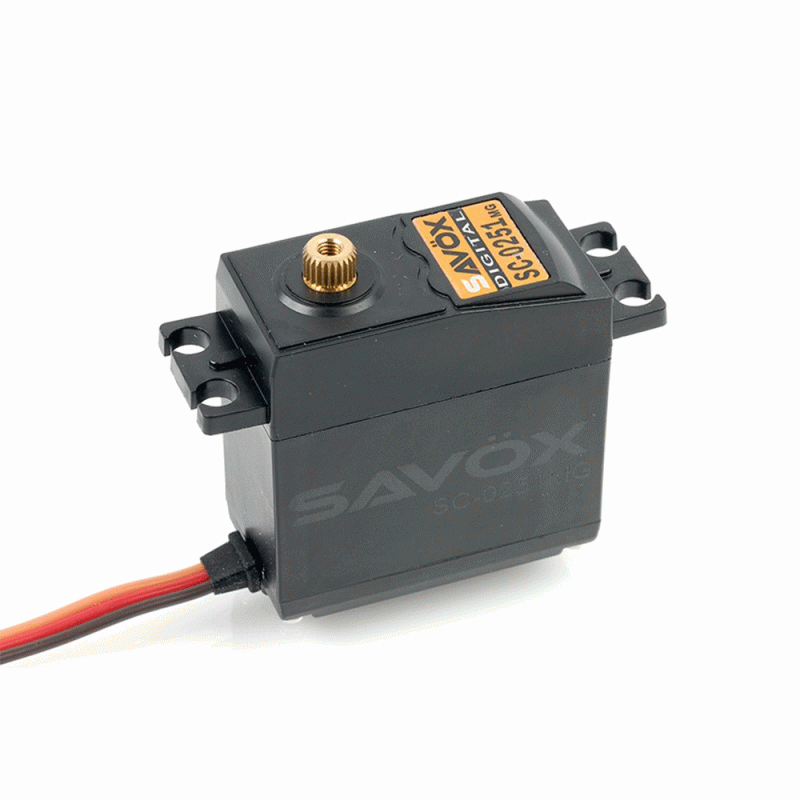

The Savox SC-0251MG is a high torque, metal-geared, digital servo which is suitable for many applications.

Features:

Metal gear train ensures durability under harsh situations

Slightly taller case design

Ideal for aircraft and some 1/8 off road car applications

Specifications:

Torque @ 4.8V: 13kg/cm

Torque @ 6V: 16kg/cm

Speed @ 4.8V: 0.20 sec/60 deg

Speed @ 6V: 0.18 sec/60 deg

Dimensions L x W x H: 40.7 x 19.6 x 42.4mm

Weight: 61g

Technical Details:

Operating Temperature: -10° to 50°C

Running Current (no load): 300mA @4.8V, 350mA @6.0V

Stall Current (at locked): 2600mA @4.8V, 3200mA @6.0V

Idle Current: 5mA @4.8V, 6mA @6.0V

Wire Length: 300 +/- 5mm

Output Gear Spline: 25 Tooth

Bearings: 2BB

Operating Travel: 120° (1000 → 2000 µ second)

Neutral Position: 1500 µ second

Pulse Width Range: 800 → 2200 µ second

Maximum Travel: Appx 164° (800 → 2200 µ second)

Refresh Rate: 240 Hz

Motor Type: Brushed
