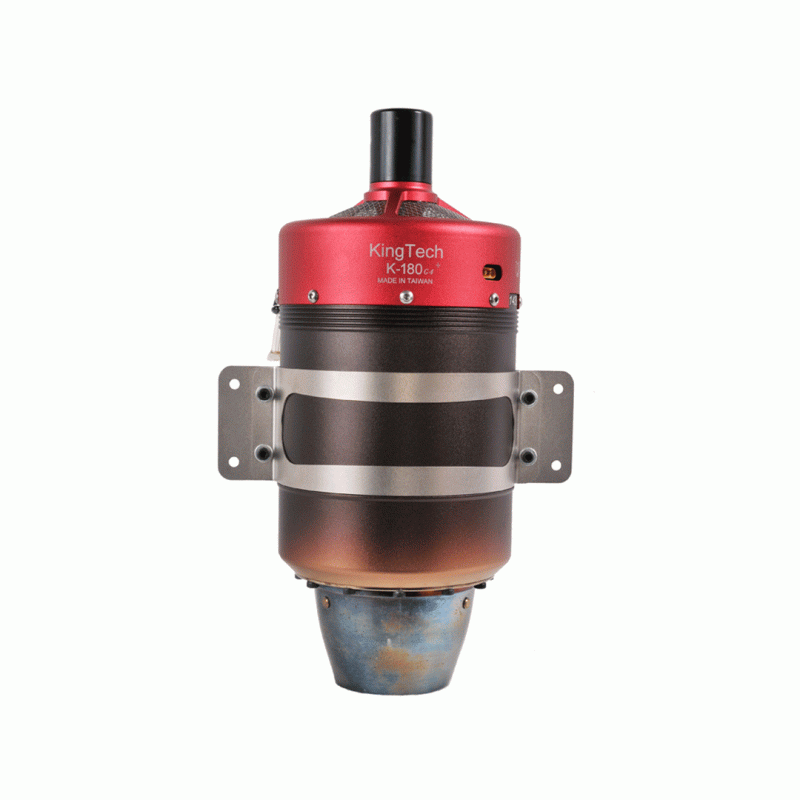

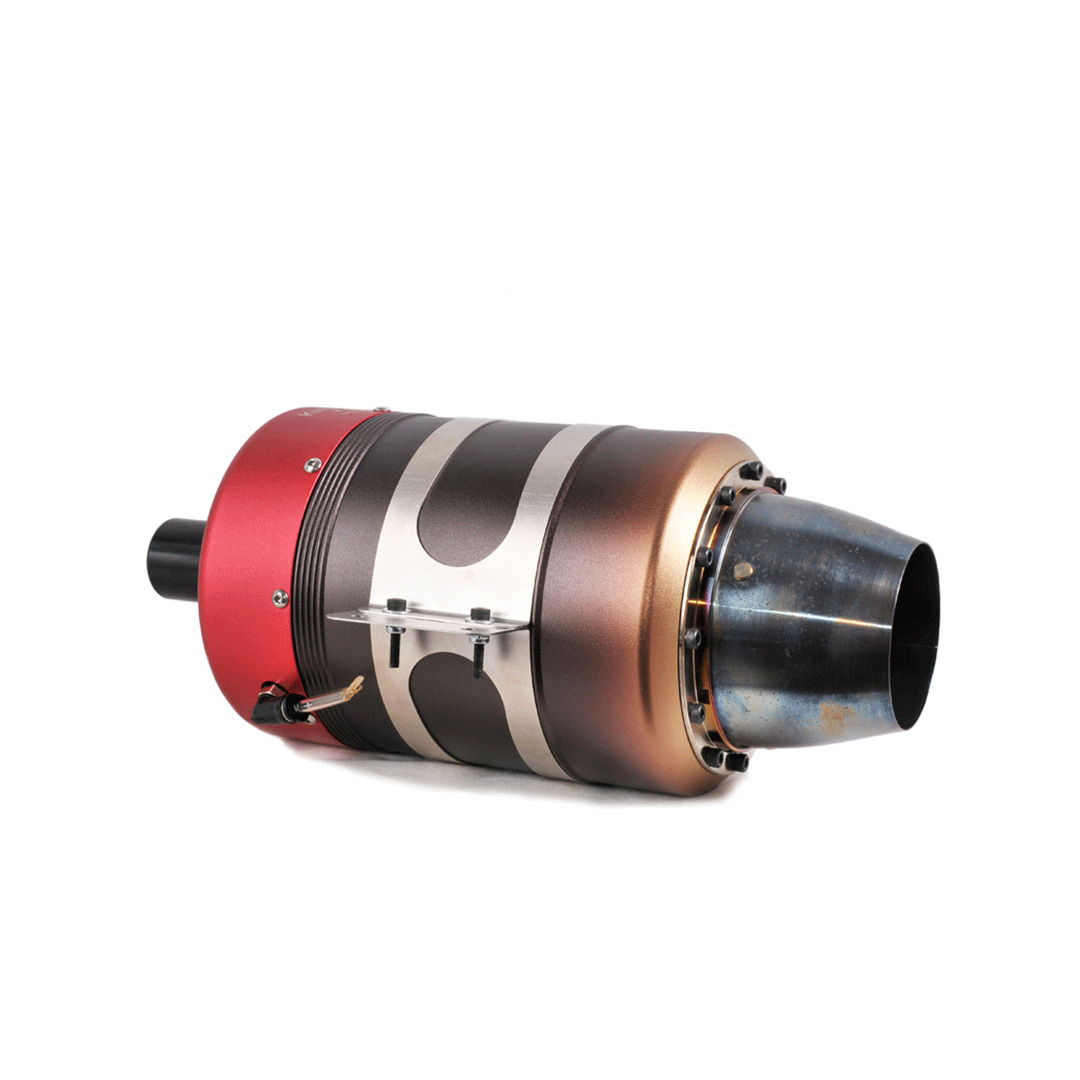

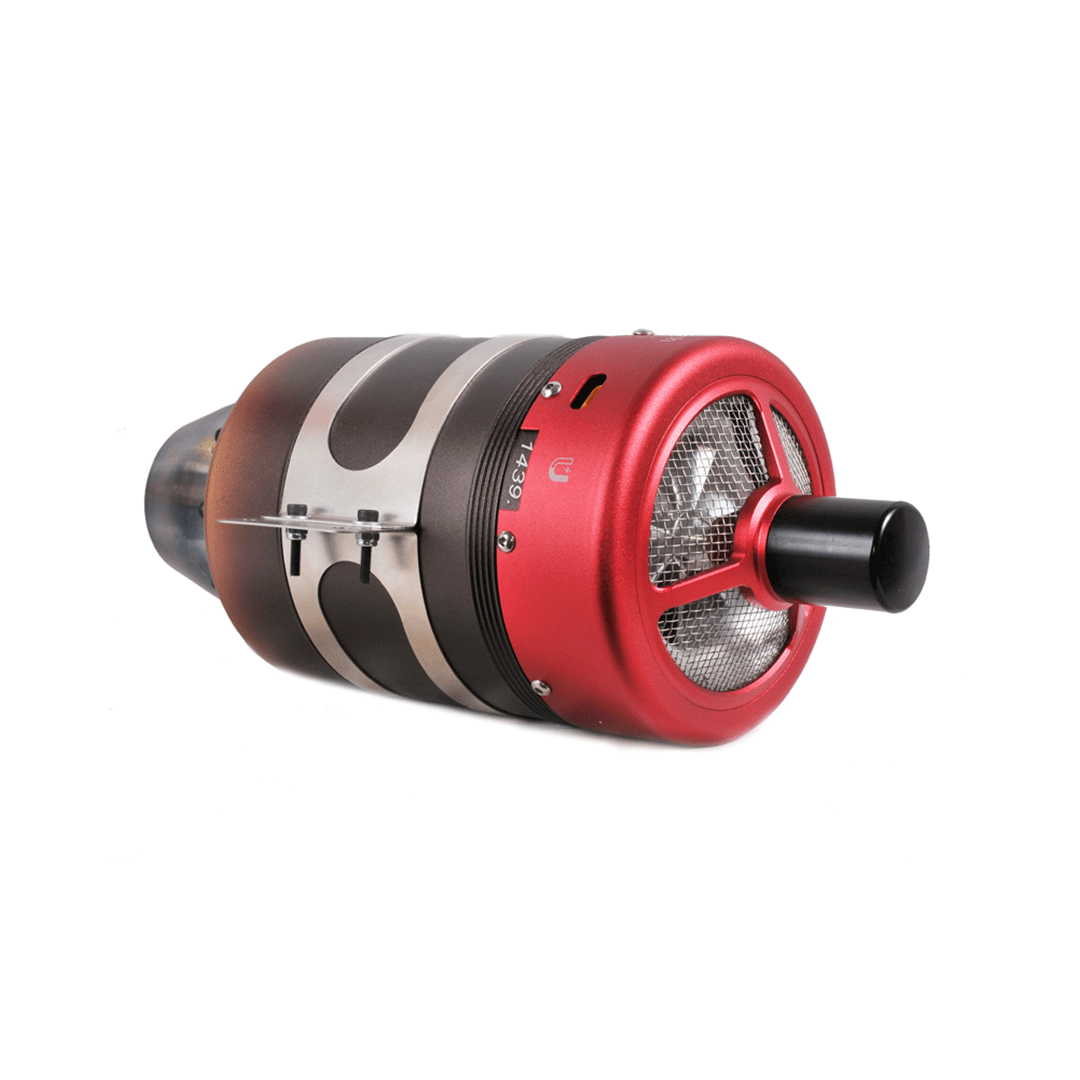

TURBINA KINGTECH K-180G4+ KERO START

TURBINA KINGTECH K-180G4+ KERO START

TURBINA KINGTECH K-180G4+ KERO START

TURBINA KINGTECH K-180G4+ KERO START

Ref: 377911

Estoque: Indisponível

R$ 25.514,92

Comprar

KingTech G4 utilizes SBus data transmission.

Engine/ECU integration, all operating parameters including total run time are all recorded into the engine.

The smaller and lighter external Data Relay Module (DRM) is responsible for all data, signal and power transmission.

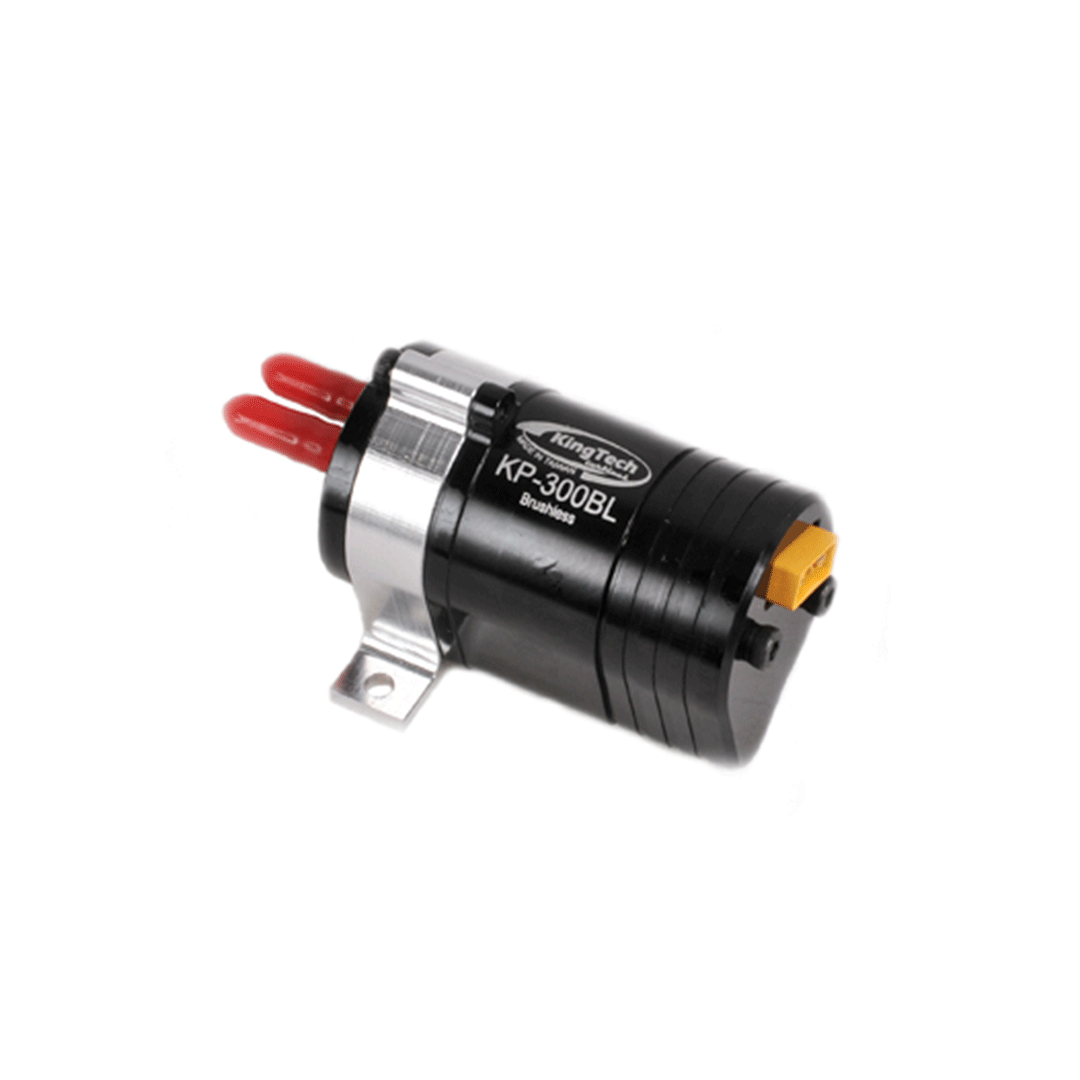

Pump: digital sbus brushless pump

A micro USB connector is present for a future connectivity of wireless mobile apps.

The G4 features a brushless starter motor for reliability and durability, built-in FOD screen is also integrated.

After a run cycle and receiver switched off, GSU will remain on only until cool down completes.

K-180G4 SPECIFICATIONS

Diameter: 103mm

Length: 251 mm

Weight: 1540 g

Maximum RPM: up to 130000

Thrust: 18 KG @ 15°C (40lb @ 59°F )

EGT: 700°C max

Fuel consumption: 560g / min ( 17.28oz / min )

Fuel: Diesel, Jet A1, Kerosene

Lubrication: 5%

G4 MODEL COMPONENTS LIST

Engine

Data Relay Module (DRM)

Ground Support Unit (GSU)

Wire Harness and Tubing Set

Fuel Pump, Filter and Shout-off Valve

Fuel Inlet Attachments

Instruction Manual
