DRONE DJI MATRICE 30T

Ref: 377775
Estoque: Indisponível
R$ 72.081,99
Comprar

DRONE DJI MATRICE 30T - Inclui a opção com a Câmera Thermal.

Na configuração do DJI MATRICE 30T, a câmera fornecida é do tipo Thermal;

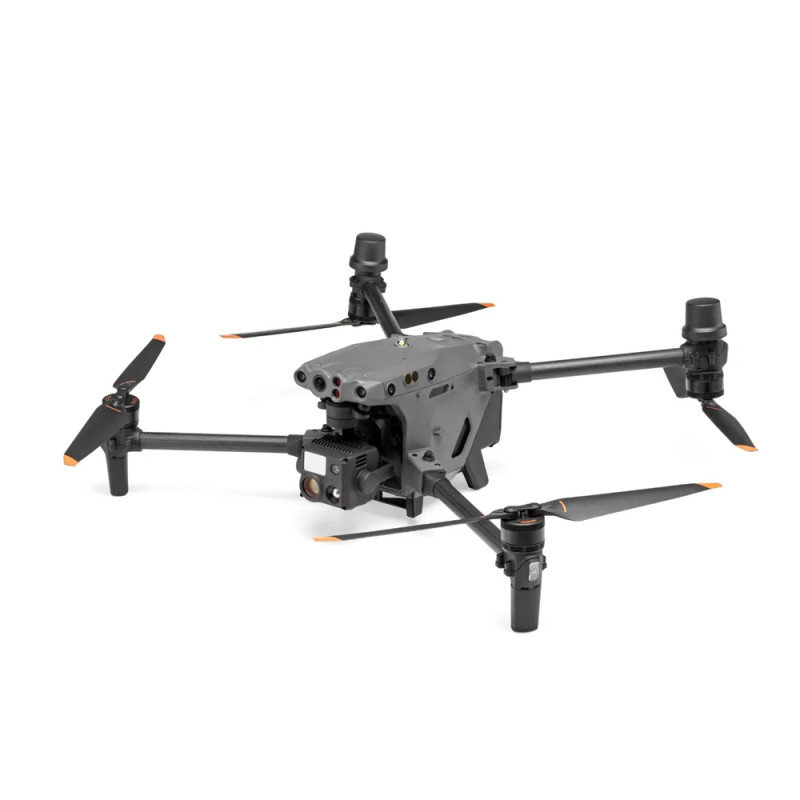

DJI Matrice 30T Drone


The DJI M30T drone is equipped with a variety of high-performance sensors, are lightweight and portable, and are resistant to the effects of weather. The DJI RC PLUS enterprise remote control, as well as the newly enhanced DJI Pilot 2 flight app, are included to improve piloting efficiency and flight safety. The Matrice 30 Series (M30 or M30T) comes with a DJI RC Plus, two TB30 Intelligent Flight Batteries, one BS30 Intelligent Battery Station, and the aircraft storage case.


In the Box

  • Telaio del drone

    DJI Matrice 30T

    × 1

  • Remote Controller DJI RC Plus

    Remote Controller DJI RC Plus

    × 1

  • Eliche 1671 (CW/senso orario)

    Propellers 1671 (CW/clockwise)

    × 1

  • Eliche 1671 (CCW/senso antiorario)

    Propellers 1671 (CCW/counterclockwise)

    × 1

  • Cavo USB-C

    USB-C Cable

    × 1

  • Cavo dati da USB-C a USB-C

    Cavo dati from USB-C to USB-C

    × 1

  • Custodia da trasporto

    Transport case

    × 1

  • Viti e strumenti

    Screws and tools

    × 1

  • Stazione di ricarica BS30

    Charging Station BS30

    × 1

  • Batteria TB30

    Battery TB30

    × 2


Unrivaled aerial intelligence captures everything

The DJI M30T combines a laser rangefinder with wide-angle, zoom, and thermal cameras (M30T only), allowing you to collect aerial data as needed.Safe and Reliable

On all six sides of the aircraft, reliable and secure Dual-vision and ToF sensors are mounted, ensuring the aircraft's and your mission's safety. Any oncoming crewed aircraft in the area will be detected by the built-in ADS-B receiver.


Enhanced Transmission

Thanks to four built-in antennae, OcuSync 3 Enterprise offers triple-channel 1080p video transmission and faultless switching between input sources, even in tough settings. Your connection will be strengthened by the DJI Cellular Module, an optional 4G dongle that enables for stable video transmission in tough or remote business circumstances.


Lightweight and portable

Because of its compact and collapsible design, the M30 Series is easy to pack, transport, and deploy.


BS30 Intelligent Battery Station

A smart, portable solution with many charging choices is offered to meet your mission requirements. The charger can simultaneously charge four pairs of TB30 Intelligent Flight Batteries and one pair of RC Plus batteries, with each pair taking under 30 minutes to charge from 20% to 90%.


Intelligent Flight Battery TB30

Each battery has self-heating for cold circumstances, hot-swapping for quick turnarounds, and 400 charge cycles for increased operational efficiency.


DJI Cellular Mobile

The DJI Cellular Module establishes a 4G-based communication link between the drone and the controller, as well as allowing the controller to connect to the internet.


Aircraft

  • Dimensions (unfolded, excl. propellers): 470×585×215 mm (L×W×H)
  • Dimensions (folded): 365×215×195 mm (L×W×H)
  • Diagonal Wheelbase: 668 mm
  • Weight (incl. two batteries): 3770 ± 10 g
  • Max Takeoff Weight: 4000 g
  • Operation Frequency[1]: 2.4000-2.4835 GHz; 5.725-5.850 GHz
  • Transmitter Power (EIRP): 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC) | 5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE)
  • Hovering Accuracy (windless or breezy): Vertical: ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK) | Horizontal: ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK)
  • RTK Positioning Accuracy (fixed RTK enabled): 1 cm+1 ppm (horizontal) | 1.5 cm+1 ppm (vertical)
  • Max Angular Velocity: Pitch: 150°/sec.; Yaw: 100°/sec.
  • Max Tilt Angle: 35° (N-mode and Forward Vision System enabled: 25°)
  • Max Ascent/Descent Speed: 6 m/s, 5 m/s
  • Max Tilt Descent Speed: 7 m/s
  • Max Horizontal Speed: 23 m/s
  • Max Service Ceiling Above Sea Level (without other payload): 5,000 m (with 1671 propellers) | 7,000 m (with 1676 propellers)
  • Max Wind Resistance: 15 m/s | 12 m/s during taking off and landing
  • Max Hover Time [2]: 36 min
  • Max Flight Time[2]: 41 min
  • Motor Model: 3511
  • Propeller Model: 1671 | 1676 High Altitude (not included)
  • Ingress Protection Rating[3]: IP55
  • GNSS: GPS+Galileo+BeiDou+GLONASS(GLONASS is supported only when RTK module is enabled)
  • Operating Temperature: -20° to 50° C (-4° to 122° F)


Gimbal

  •  Angular Vibration Range: ±0.01°
  • Controllable Range: Pan: ±90° | Tilt: -120° to +45°
  • Mechanical Range: Pan: ±105° | Tilt: -135° to +60° | Roll: ±45°


Zoom Camera

  • Sensor: 1/2" CMOS, Effective pixels: 48M
  • Lens: Focal length: 21-75 mm (equivalent: 113-405 mm) | Aperture: f/2.8-f/4.2 | Focus: 5 m to ∞


Wide Camera

  • Sensor: 1/2" CMOS, Effective pixels: 12M
  • Lens: DFOV: 84° | Focal length: 4.5 mm (equivalent: 24 mm) | Aperture: f/2.8 | Focus: 1 m to ∞


Thermal Camera

  • Thermal Imager: Uncooled VOx Microbolometer
  • Lens: DFOV: 64° | Focal length: 9.1 mm (equivalent: 40 mm) | Aperture: f/1.0 | Focus: 5 m to ∞
  • Infrared Temperature Measurement Accuracy[4]: ±2°C or ±2% (using the larger value)


FPV Camera

  • Resolution: 1920×1080
  • DFOV: 161°
  • Frame Rate: 30 fps


Laser Module

  • Wavelength: 905 nm
  • Max Laser Power: 3.5 mW
  • Single Pulse Width: 6 ns
  • Measurement Accuracy: ± (0.2 m + D×0.15%)D is the distance to a vertical surface
  • Measuring Range: 3-1,200 m (0.5×12 m vertical surface with 20% reflectivity)


Vision Systems

  • Obstacle Sensing Range: Forward: 0.6-38 m | Upward/Downward/Backward/Sideward: 0.5-33 m
  • FOV: 65° (H), 50° (V)
  • Operating Environment: Surfaces with clear patterns and adequate lighting (> 15 lux)


Infrared Sensing Systems

  • Obstacle Sensing Range: 0.1 to 10 m
  • FOV: 30°
  • Operating Environment: Large, diffuse, and reflective obstacles (reflectivity >10%)


TB30 Intelligent Flight Battery

  • Capacity: 5880 mAh
  • Voltage: 26.1 V
  • Battery Type: LiPo 6S
  • Energy: 131.6 Wh
  • Net Weight: Approx. 685 g
  • Operating Temperature: -20° to 50° C (-4° to 122° F)
  • Storage Temperature: 20° to 30° C (68° to 86° F)
  • Charging Temperature: -20° to 40° C (-4° to 104° F)(When the temperature is lower than 10° C (50° F), the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
  • Chemical System: LiNiMnCoO2


Auxiliary Lights

  • Effective Illumination Distance: 5 m
  • Illumination Type: 60 Hz, solid glow


Remote Controller

  • Screen: 7.02 inch LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2
  • Internal Battery: Type: Li-ion (6500 mAh @ 7.2 V) | Charge Type: Supports battery station or USB-C charger maximum rated power 65W (max voltage of 20V) | Charge Time: 2 hours | Chemical System: LiNiCoAIO2
  • External Battery (WB37 Intelligent Battery): Capacity: 4920 mAh | Voltage: 7.6 V | Battery Type: Li-ion | Energy: 37.39 Wh | Chemical System: LiCoO2
  • Operating Time[5]: Internal Battery: Approx. 3 hours 18 minInternal Battery + External Battery: Approx. 6 hours
  • Ingress Protection Rating[3]: IP54
  • GNSS: GPS+Galileo+BeiDou
  • Operating Temperature: -20° to 50° C (-4° to 122° F)


O3 Enterprise

  • Operating Frequency[1]: 2.4000-2.4835 GHz, 5.725-5.850 GHz
  • Max Transmission Distance (unobstructed, free of interference): 2.4000-2.4835 GHz: 15 km (FCC); 8 km (CE/SRRC/MIC)
  • Max Transmission Distance (with interference): Strong Interference (urban landscape, limited line of sight, many competing signals): 1.5-3 km (FCC/CE/SRRC/MIC) | Medium Interference (suburban landscape, open line of sight, some competing signals): 3-9 km (FCC); 3-6 km (CE/SRRC/ MIC) | Weak Interference (open landscape abundant line of sight, few competing signals): 9-15 km (FCC); 6-8 km (CE/ SRRC/MIC)
  • Transmitter Power (EIRP): 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/ SRRC/MIC) | 5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)


Wi-Fi

  • Protocol: Wi-Fi 6
  • Operating Frequency[1]: 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz
  • Transmitter Power (EIRP): 2.4 GHz: <26 dBm (FCC); <20 dBm (CE/ SRRC/MIC) | 5.1 GHz: <26 dBm (FCC); <23 dBm (CE/ SRRC/MIC) | 5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm(CE)


Bluetooth

  • Protocol: Bluetooth 5.1
  • Operating Frequency: 2.4000-2.4835 GHz
  • Transmitter Power (EIRP): <10 dBm


BS30 Intelligent Battery Station

  • Dimensions: 353×267×148 mm
  • Net Weight: 3.95 kg
  • Compatible Battery Type: TB30 Intelligent Flight Battery | WB37 Intelligent Battery
  • Input: 100-240 VAC, 50/60 Hz
  • Output: TB30 Battery Port: 26.1 V, 8.9 A (supported up to two outputs simultaneously) | WB37 Intelligent Battery: 8.7 V, 6 A
  • Output Power: 525 W
  • USB-C port: Max. output power of 65 W
  • USB-A port: Max. output power of 10 W (5 V, 2 A)
  • Power Consumption (when not charging battery): < 8 W
  • Output Power (when warming up battery): Approx. 30 W
  • Operating Temperature: -20° to 40° C (-4° to 104° F)
  • Ingress Protection Rating[3]: IP55 (with the cover closed properly)
  • Charging Time[6]: Approx. 30 min (charging two TB30 batteries from 20%-90%) | Approx. 50 min (charging two TB30 batteries from 0%-100%)
  • Protection Features: Anti-Backflow Protection | Short Circuit Protection | Over Voltage Protection | Over Current Protection | Temperature Protection
