AVMAP A2 ADAHRS MODULE UX01M000AM

Ref: 377454
Estoque: Disponível
R$ 7.969,55
Comprar

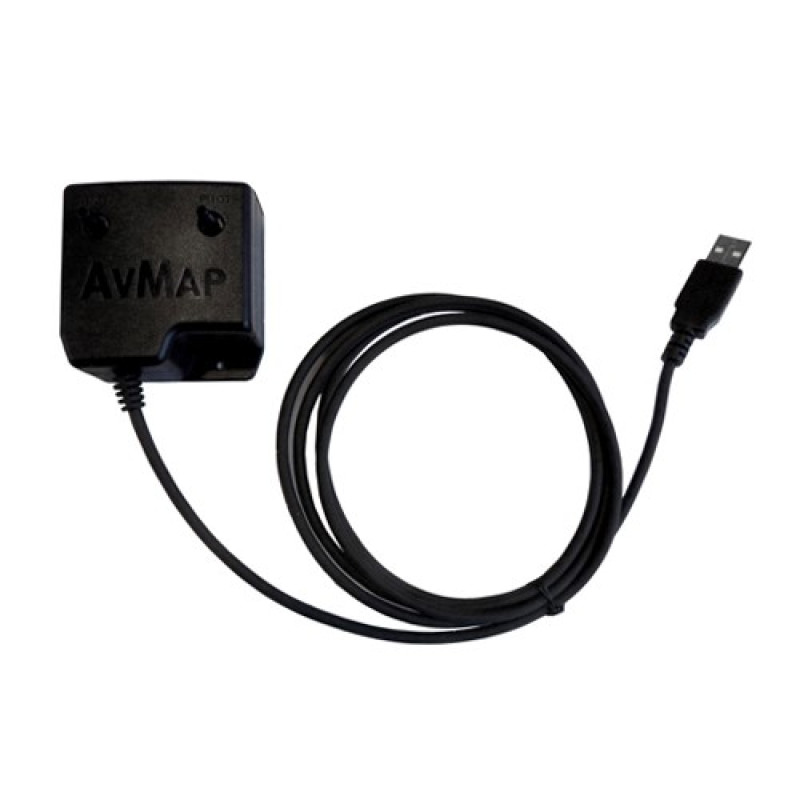

AVMAP A2 ADAHRS MODULE UX01M000AM

Overview

The AvMap A2 ADAHRS is a compact fixed-install module providing Air Data, Attitude and Heading Reference. It connects to the docking station via USB and provides information that are displayed on the EKP V LCD.

The module contains solid-state gyros, accelerometers, magnetic field sensors and air data sensors; it should be connected to the aircraft pitot-static system, in order to take full advantage of its functionality.

Designed for light-sport, ultra light and experimental aircrafts, the small and light weighted module can be installed in any orientation (thereafter a proper calibration procedure must be performed).

Features

When the A2 ADAHRS module is connected to EKP V, the Primary Flight Display mode becomes available on the 7” display.

Airspeed and Altitude from pitot-static system.

Attitude (roll, pitch and heading angle), side slip and heading information.

Integration of TAWS into the PFD with AGL Altitude indication.

Wind indicator with wind components.

Clear HSI display linked with EKP V flight planning function.

Customizable data fields.

PFD settings: Altimeter reference, Heading reference, Aircraft specific V-speed reference value (aircraft profiles).

Specifications

3-axis gyros, accelerometers and magnetometers

Acceleration range (3 axis) +/- 8 g

Rotation range +/- 1600 deg/s

Air data sensors: range 10 to 250 kts, -1000 to 40000 ft

Advanced data fusion capability

Guided Calibration Procedure

USB Interface

UAV Navigation® technology inside
