ALUMIN SERVO ARM FT DBL FSHTD3S FUTM2100

Add style and strength to your model with Aluminum Servo horns from Futaba.

FEATURES: Sturdy aluminum construction (silver in color) Double sided arm with 3 pre-drilled starter holes on each arm Splined mounting hole for easy repositioning Designed to fit Futaba standard size servos with approx. 6mm output shaft. Many larger (1/4 scale) servos have approx. 7-1/2mm shaft.

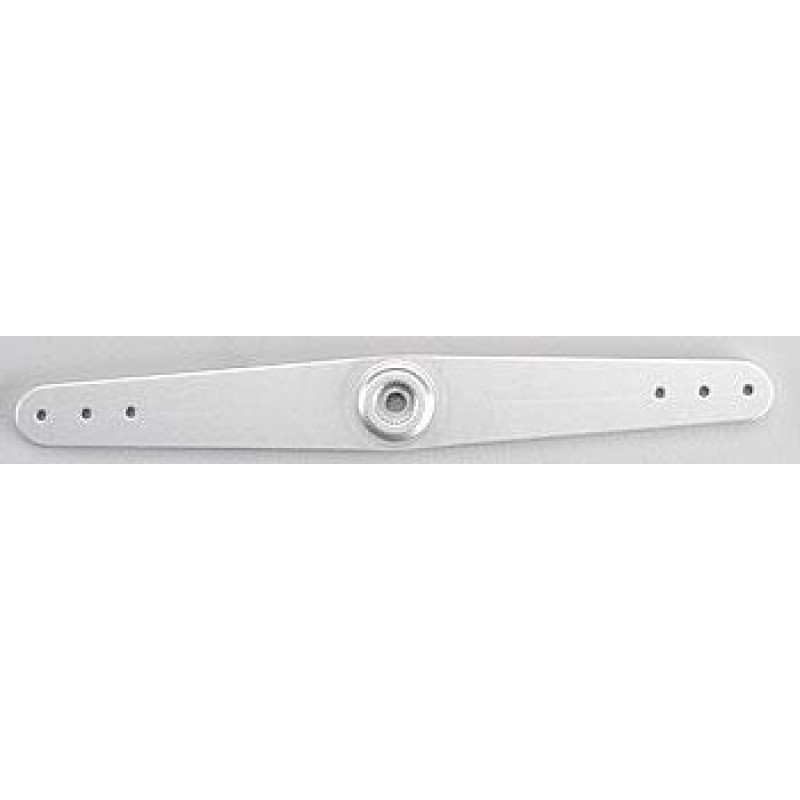

INCLUDES: One 2"(50mm) long silver aluminum servo horn (total length of the arm is 4" (100mm) )

REQUIRES: Servo with 6mm diameter output shaft Servo horn screw - FUTM2260

SPECS: Length: 2" (50mm) (from center of mounting hole to center of first starter hole on each arms) Total length: 4" (100mm) Thickness: .122" (3.10mm) Diameter of the three starter holes: .078" (2mm) COMMENTS: A notice from Futaba reguarding this servo horn: As a rod hole you use becomes increasingly far from the axis of a servo horn, the torque generated by external forces such as shocks also increases. As a result, the gear combined with such a servo horn will become susceptible to breakage.

If servo is operated for more than three minutes with its current flowing while the servo horn is locked, the electronic parts of the servo may possibly heat up. In the worst case, it may cause damage or smoke.

This servo horn should be used with high torque servos. kpm02/10/2004 ir/jxs
