HEX POWER DISTRIBUTION BOARD HS011

HEX POWER DISTRIBUTION BOARD HS011

Ref: 366885

Estoque: Disponível

R$ 160,12

Comprar

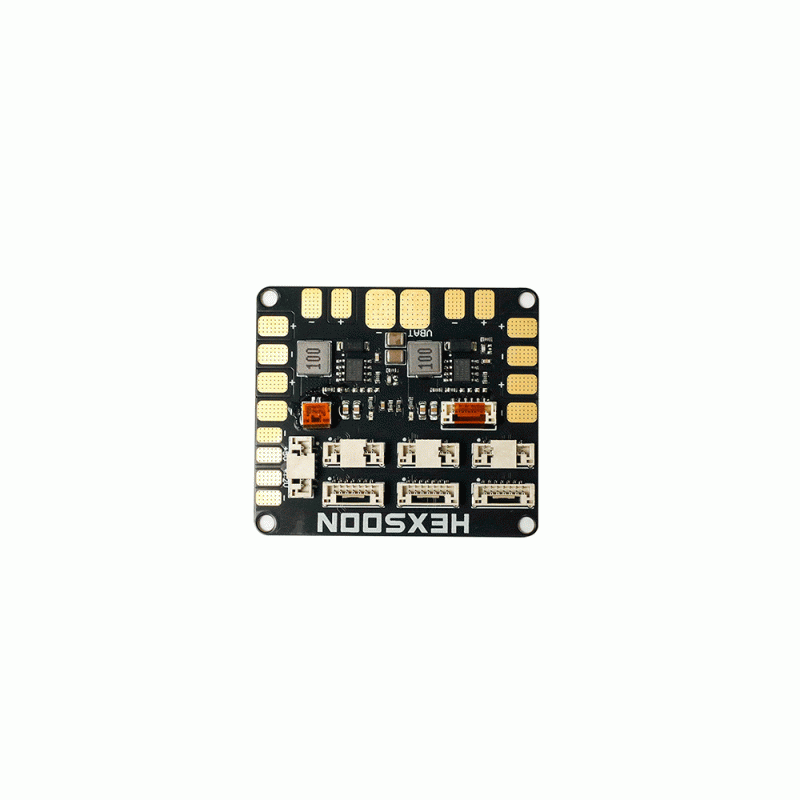

Product information "Hex Technology Hexsoon 40A PDB inkl. 5V und 12V BEC"

Hex Technology Hexsoon 40A PDB incl. 5V and 12V BEC

Compact PDB with 2x integrated BECs.

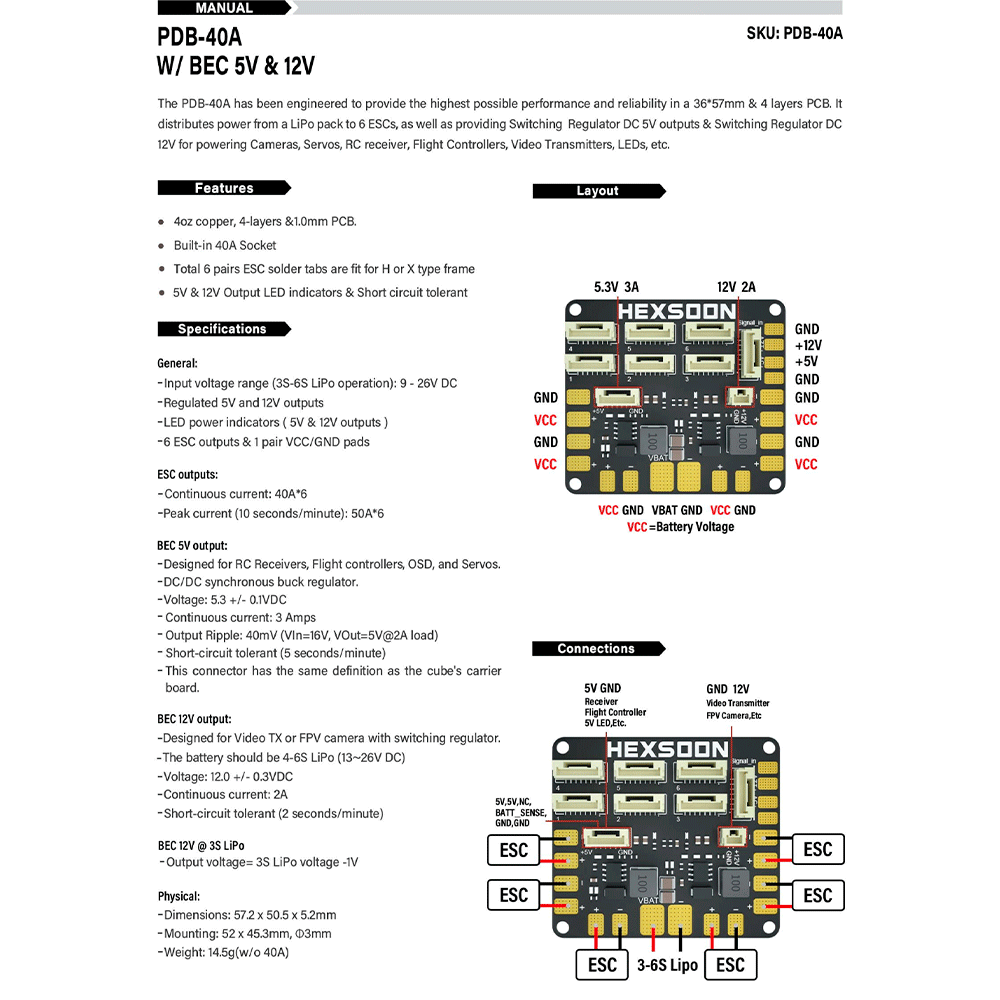

The full technical data can also be found in the figure below.

Technical Data PDB:

Dimensions: 57.2 x 50.5 x 5.2mm

Weight: 14.5g

Continuous load PDB: 6x25A (6x40A peak)

BEC 5V, max 3A

BEC 12V, max 2A

Scope of delivery:

1x HS011 PDB (no cables or connectors are included)
