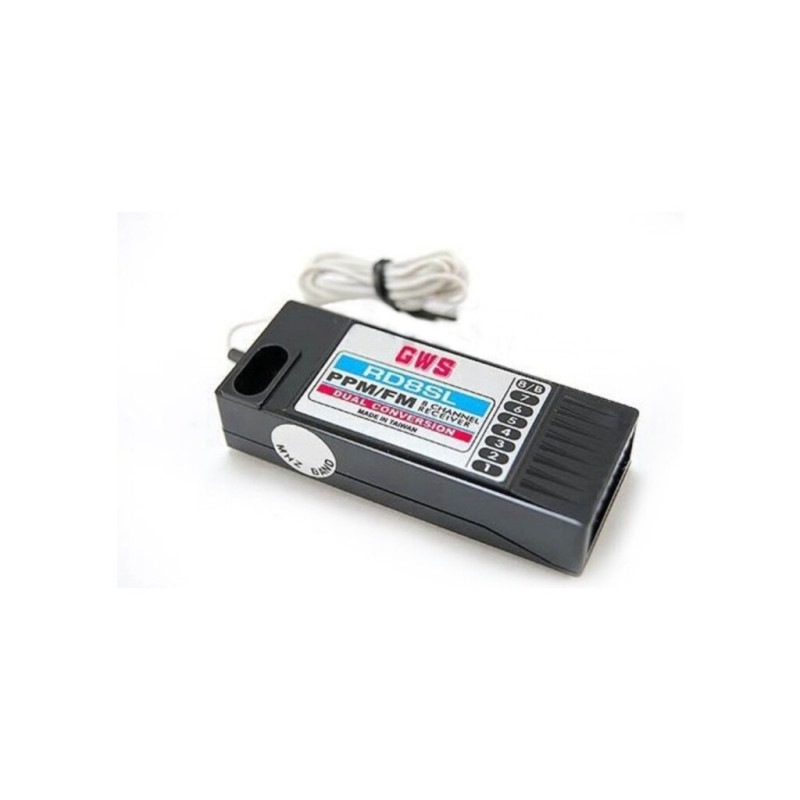

RD8SL REC.DUAL 8CH FM 75MHZ GWS

Ref: 36580

Estoque: Disponível

R$ 120,15

Comprar

The compact, lightweight and slim design make the 8-channel dual conversion FM receiver especially suitable for narrow fuselages.

Whole new designed, active front end with dual gate MOS-FET to improve the inter-modulation and interference suppression. The AGC (Automatic Gain Control) stage features a broad regulatory range and ensures optimum reception both at close and long range.

The Multi-stage band passed filter and crystal filter are for narrow-band reception, high adjacent channel selectivity and interference rejection.

The JR. Futaba (75MHZ only) selection switch installed on the side of case for phase shift selection.

Sensitivity : 1μV

Adjacent channel rejection : better than 65dB at ± 10k Hz

Image rejection : better than 65dB

Spurious rejection : better than 80dB

Inter modulation : better than 65dB
