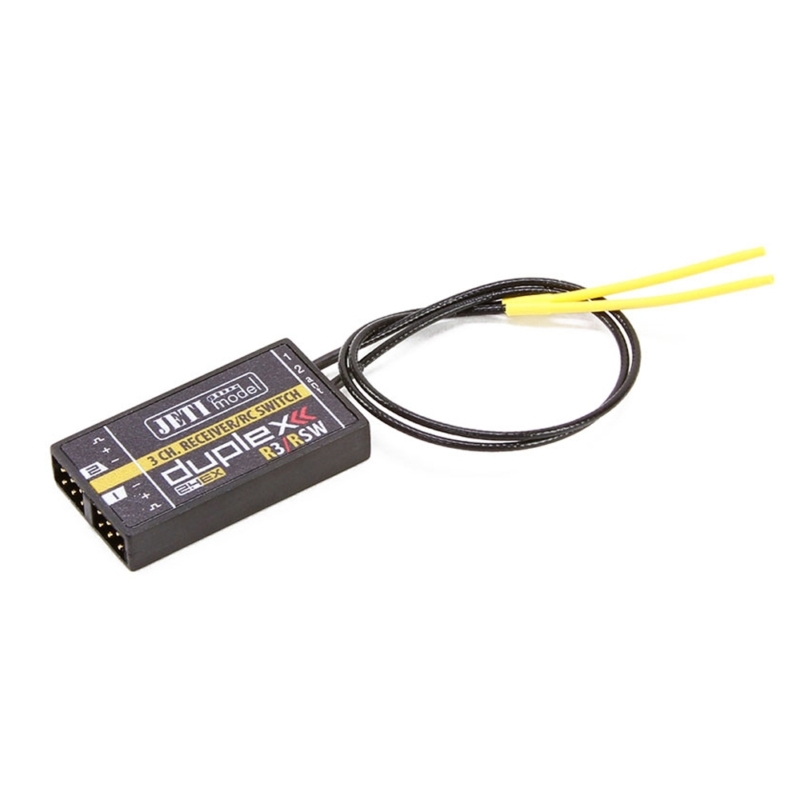

RECEPTOR JETI 3CH DUPLEX R3/RSW RC SWITCH JETIR3SWUS



Receiver	Duplex EX R3/RSW
Manufacturer	Jeti Model
Special Features	Wireless Programming
Modulation	2.4GHz w/Telemetry Data
Upgradeable	Via USB or JetiBox
Satellite Rx Support	-
Channels	3
Range	Full Range
Voltage	3.2-8.4V (2S Li-poly)
Dimensions	40mm x 22mm x 7mm
Weight	6g

The Jeti R3/RSW receiver was developed as mini 3-Channel, full range receiver with a multitude of additional software capabilities. The Jeti R3/RSW receiver is also our answer for sat/remote/auxiliary installations to further enhance of the reception capabilities of the system. With the R3/RSW you have two devices in one.

For the first time ever, your models receiver system can be turned ON/OFF with a simple flip of the switch, wirelessly from the Jeti DC/DS transmitters. The R3/RSW receiver fully replaces Jetis Magnetic Switch which is widely used with Jeti Voltage Regulators as well as their Electronic Switches. Simply cut off the existing switch, install a Male JR type connector and plug it to the #3 port of the R3/RSW receiver.

Wireless Switch R3/RSW
State-of-the-art device that positions Jeti as a leading designer and manufacturer of radio control systems. The wireless power switch is fully integrated into the Jeti Duplex EX 2.4GHz radio system. For the first time your receiver can be turned ON/OFF wirelessly with a simple flipping of the switch on the Jeti DC/DS transmitters.

The R3 is the latest receiver developed for the revolutionary Jeti Duplex EX, fully digital 2.4GHz, frequency hopping radio system designed and manufactured by Jeti Model in the Czech Republic. The full line of Duplex EX receivers are part of the most advanced radio system on today's market. Every receiver incorporates programmable failsafes and digital telemetry.

One of the most attractive features of the Duplex EX 2.4GHz line of products is the full integration with all Duplex telemetry sensors. You can easily observe up to 40 different parameters in real-time directly on the transmitter. Or, by using the JetiBox Profi (sold separately) you can see your data in monitor mode giving you and your copilot valuable real time information (see video).

With any of the Duplex 2.4GHz receivers you can simultaneously monitor all of your sensor data using the Duplex JetiBox Profi or Jeti 2.4GHz Transmitters.


Port Configurations (Rx Firmware 3.20):
Standard: 1-3 Servo, 4/Ext Telemetry/USB Programming
PPM/Servo: 1-2 Servo, 3 PPM, 4/Ext Telemetry/USB Programming
EX Bus/Servo: 1-3 Servo, 4/Ext EX Bus/USB Programming
UDI/Servo: 1-2 Servo, 3 UDI, 4/Ext Telemetry/USB Programming
Wireless Switch: 3 Switch
