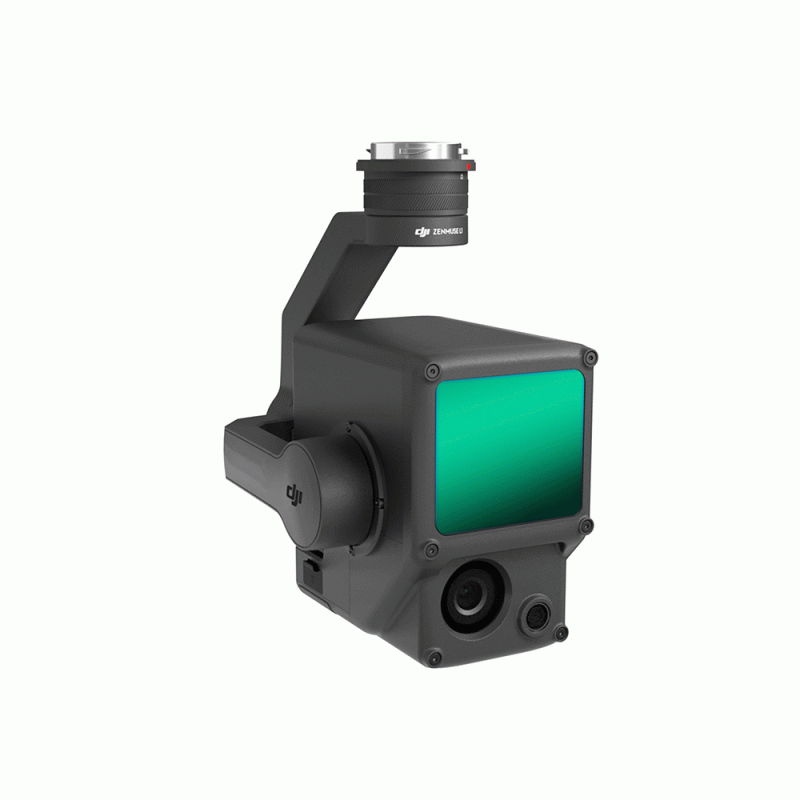

CAMERA DJI ZENMUSE L1 LIDAR (REFURBISHED)

Ref: 361996

Estoque: Indisponível

R$ 48.059,92

Comprar

Zenmuse L1

Instant Clarity. Superior Accuracy.

Integrates a Lidar module,an RGB camera, and a high-accuracy IMU

2 km2 covered in a single flight

Vertical Accuracy: 5 cm /Horizontal Accuracy: 10 cm

Point Rate: 240,000 pts/s

Supports 3 Returns

Detection Range: 450 m@80% reflectivity, 0 klx

Point Cloud LiveView

Includes a 6 months license for DJI Terra Electricity Version

In the Box

Gimbal and Camera
× 1
MicroSD card （64GB）
× 1
Storage Case
× 1
Lens Cleaning Cloth
× 1
DJI Terra Activation Code
× 1

A Lidar + RGB Solution for Aerial Surveying

The Zenmuse L1 integrates a Livox Lidar module, a high-accuracy IMU, and a camera with a 1-inch CMOS on a 3-axis stabilized gimbal. When used with Matrice 300 RTK and DJI Terra, the L1 forms a complete solution that gives you real-time 3D data throughout the day, efficiently capturing the details of complex structures and delivering highly accurate reconstructed models.

Integrates a Lidar module, an RGB camera, and a high-accuracy IMU

High Efficiency 2 km²covered in a single flight

High Accuracy Vertical Accuracy: 5 cm / Horizontal Accuracy: 10 cm^[2]

Point Rate: 240,000 pts/s

Supports 3 Returns^[3]

Detection Range: 450 m (80% reflectivity, 0 klx)

IP54 Ingress Protection Level

Point Cloud LiveView

Digitize without Compromise

Exceptional Efficiency

Generate true-color point cloud models in real-time, or acquire 2 km² of point cloud data in a single flight^[1] using the Livox frame Lidar module with a 70° FOV and a visible light camera with a 1-inch sensor.

Unparalleled Accuracy

Render centimeter-accurate reconstructions thanks to the high-accuracy IMU, a vision sensor for positioning accuracy, and the incorporation of GNSS data.

Ready When You Are

The IP54 rating allows the L1 to be operated in rainy or foggy environments. The Lidar module’s active scanning method enables you to fly at night.

Visualize Data as You Fly

Livox Lidar Module

Frame Lidar with up to 100% effective point cloud results

Detection Range: 450m (80% reflectivity, 0 klx) / 190 m (10% reflectivity, 100 klx)

Effective Point Rate: 240,000 pts/s

Supports 3 Returns

Non-repetitive scanning pattern, Repetitive scanning pattern

Everything in View

RGB Camera

20MP

1-inch CMOS

Mechanical Shutter

Accurate Details at Your Disposal

High-accuracy IMU

Vision Sensor for Positioning Accuracy

GNSS, IMU, RGB Data Fusion

Point Cloud LiveView

Real-time point clouds provide immediate insights onsite, so operators are informed to make critical decisions quickly.
You can also verify fieldwork quality by checking point cloud data immediately after each flight.

Measurement and Annotation

Acquire and communicate critical dimensions on the point cloud model using measurements and annotations.^[4]

One-stop Post-processing

DJI Terra fuses the IMU and GNSS data for point cloud and visible light calculations, in addition to conducting POS data calculations so you can effortlessly generate reconstructed models and accuracy reports.

CAMERA DJI ZENMUSE L1 LIDAR (REFURBISHED)

In the Box

Gimbal and Camera× 1MicroSD card （64GB）× 1Storage Case× 1Lens Cleaning Cloth× 1DJI Terra Activation Code× 1
