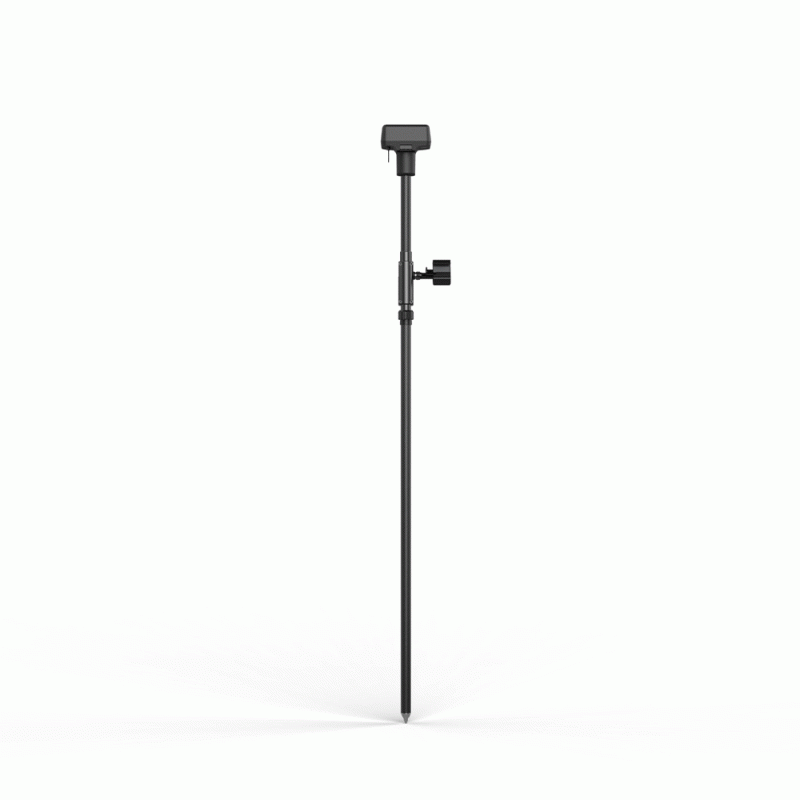

DJI D-RTK 2 HIGH PRECISION GNSS MOBILE STATION

Ref: 355810
Estoque: Indisponível
R$ 31.745,91
Comprar
Overview

Gain improved relative accuracy with centimeter-level precision positioning data using the D-RTK 2 High Precision GNSS Mobile Station, which supports all major global satellite navigation systems and provides real-time differential corrections.


Highlights
  • Supports: GPS: L1 C/A, L2, L5; BEIDOU: B1, B2, B3; GLONASS: F1, F2; Galileo: E1, E5A, E5B
  • Connect multiple drones to conduct coordinated operations
  • IP65 Ingress Protection

In The Box
  • D-RTK 2 Body × 1
  • Extension Rod × 1
  • Charging Hub × 1
  • AC Power Adapter × 1
  • Intelligent Battery (WB37) × 2
  • Battery Cover × 1
  • AC Power Cable × 1
  • USB-C Cable × 1
  • USB-C OTG Cable × 1
  • Hex Key × 1

Specifications

Simultaneously receives: GPS: L1 C/A, L2, L5; BEIDOU: B1, B2, B3; GLONASS: F1, F2; Galileo: E1, E5A, E5B

Positioning Accuracy:

  • Single Point
  • Horizontal: 1.5 m(RMS)
  • Vertical: 3.0 m(RMS)
  • RTK
  • Horizontal: 1 cm+ 1 ppm(RMS)
  • Vertical: 2 cm+ 1 ppm(RMS)
  • 1 ppm: For every 1 km increase in distance, the accuracy will be 1 mm less. For example, the horizontal accuracy is 1.1 cm when the receiving end is 1 km away from the base station.
  • Ingress Protection Rating: IP65
  • Operating Temperature: -20° to 55° C (4° to 131° F )

Compatibility
  • Matrice 300 RTK
  • Phantom 4 RTK
