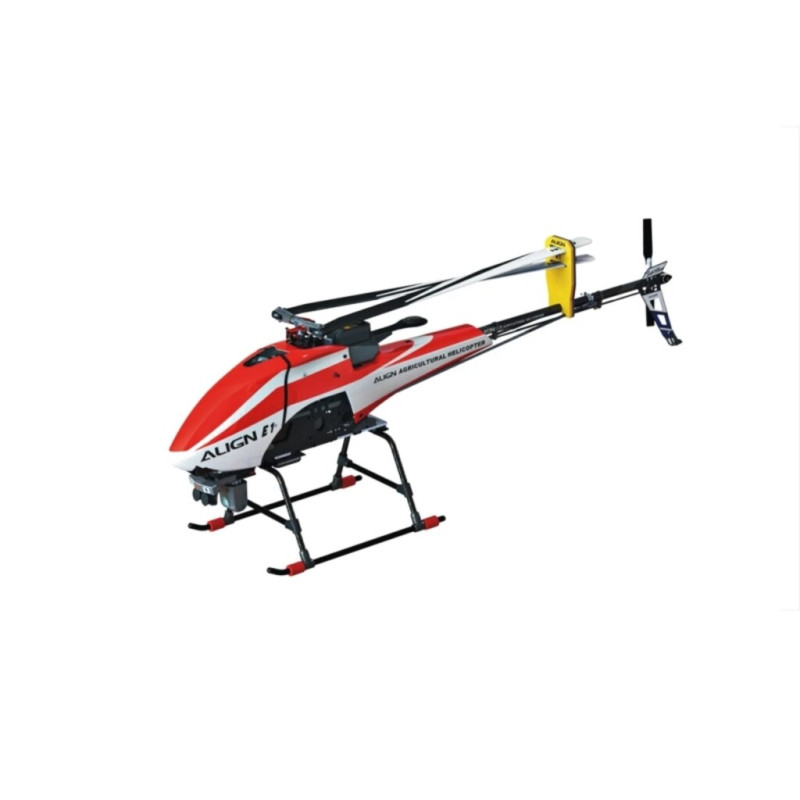

ALIGN E1 900 ARTF HELICOPTER COMBO MULTI FUNCAO COM TABLET RHE1E26XT

ALIGN E1 900 ARTF HELICOPTER COMBO MULTI FUNCAO COM TABLET RHE1E26XT

Ref: 354141

Estoque: Disponível

R$ 51.479,91

Comprar

* ACOMPANHA TABLET SAMSUNG GALAXY TAB A 8 *

BRAND NEW ALIGN E1 900 ARTF MULTIFUNCTIONAL HELICOPTER!

Win the 26th Taiwan Excellence Silver Award! ALIGN E1 Agricultural Helicopter is revolutionizing the way agriculture is done. It’s an advanced helicopter for modern green farming. On the other hand, the ALIGN E1 900 ARTF inherits E1 excellent flight performance allowing users to apply on several other purpose, such as field survey, aerial photography, aerial reconnaissance, and carrier…etc. The standard obstacle avoidance radar and millimeter wave radar are able to adjust flight altitude to keep the same flying distance from all kinds of terrain to provide heli well protection. Specially inherit “Helicopter” body design, the capability of carry payload, flight time and wind-resistance is superior to other multicopters.

The battery compartment accommodate 80mm x 70mm large-capacity batteries, so the flight time(without payload) can be reached up to 25 mins with 12S 44.4V 16000mAh (6S1Px2) battery, which provides stability for high-load operations , sufficient power performance, and improve work efficiency. In addition, the three-section canopy design can make easy for battery replacement and provides better protection for the body. In terms of function, it has also improved to a higher level. The body structure is designed with composite material and 3K Carbon Fiber that is lightweight but extremely durable. Besides, it features well water proof, rust proof and oxidation proof also high quality finish. Also it adopts sonar altimeter to detect the terrain height so the helicopter can adjust to maintain the same distance from the terrain. Also it has built-in triple sensor positioning module with GPS, Glonass and BDS system providing precise, stable and real-time positioning. Moreover, it’s compatible with P2 PCU (Power Control Unit) allow to distribute and integrate the power supply safely.

Align AP2 intelligent flight controller has built-in ARM Cortex-M4 32 bits 180MHz processor supports multiple flight modes (such as Attitude/GPS/Intelligent), Auto Return Home and Rescue Return Home, Low Voltage Protection, OSD output and Gimbal Control. Moreover, in our highly integrated ground station, the automated mapping function will compute the best flying route for you or allow you to map preferred pattern; also can effectively monitor flying status, do mission management, record flying trace, that achieve advanced capacity for safe, efficient and convenient working quality.

ALIGN E1 900 ARTF HELICOPTER COMBO MULTI FUNCAO COM TABLET RHE1E26XT

* ACOMPANHA TABLET SAMSUNG GALAXY TAB A 8 *

BRAND NEW ALIGN E1 900 ARTF MULTIFUNCTIONAL HELICOPTER!

STANDARD EQUIPMENT

ALIGN E1 900 PRODUCT SPECIFICATION

EQUIPMENT REQUIRED FOR ASSEMBLY

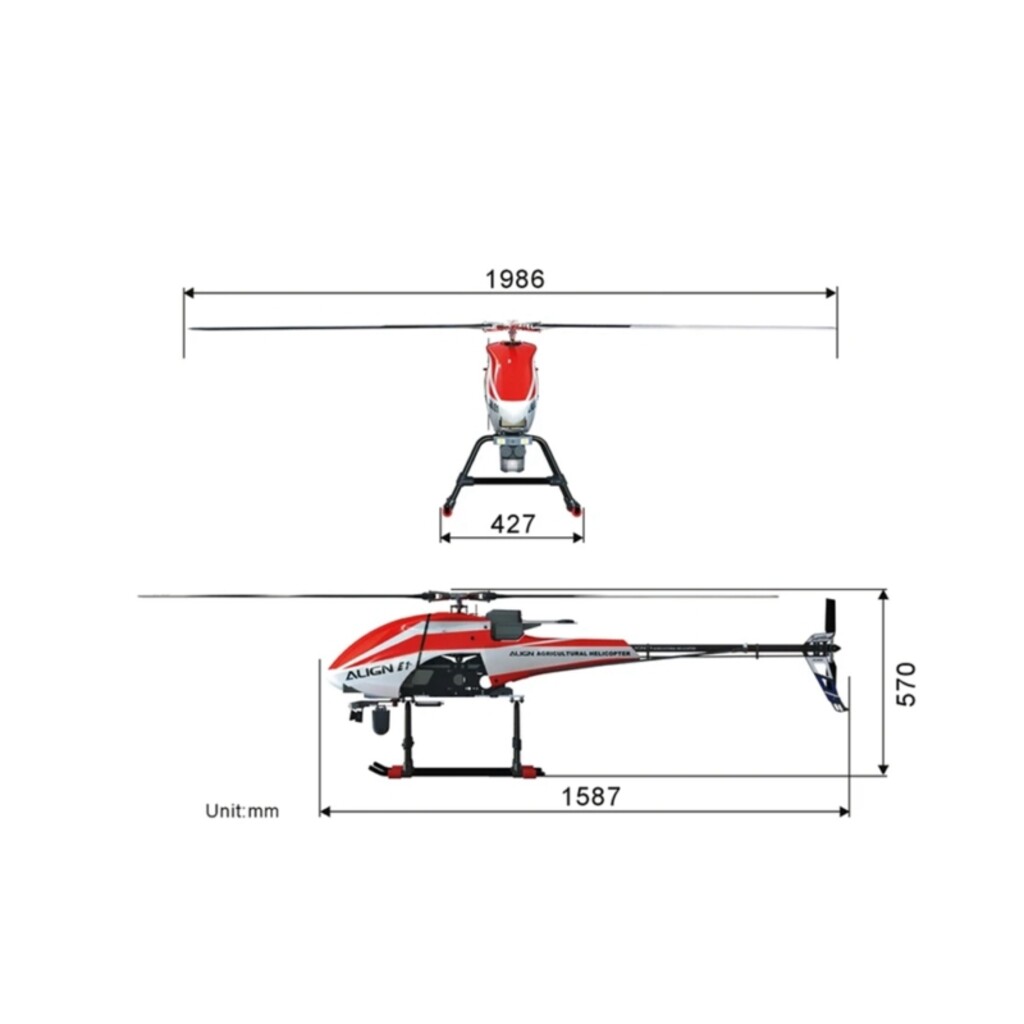

ALIGN E1 900 SPECIFICATION

A13 GST TRANSMITTER

A6B RECEIVER

AP2 FLIGHT CONTROL SYSTEM

VTD1 1080 HD DIGITAL VIDEO TRANSMITTER

900MX BRUSHLESS MOTOR

MILLIMETER WAVE RADAR

P2 PCU POWER CONTROL UNIT

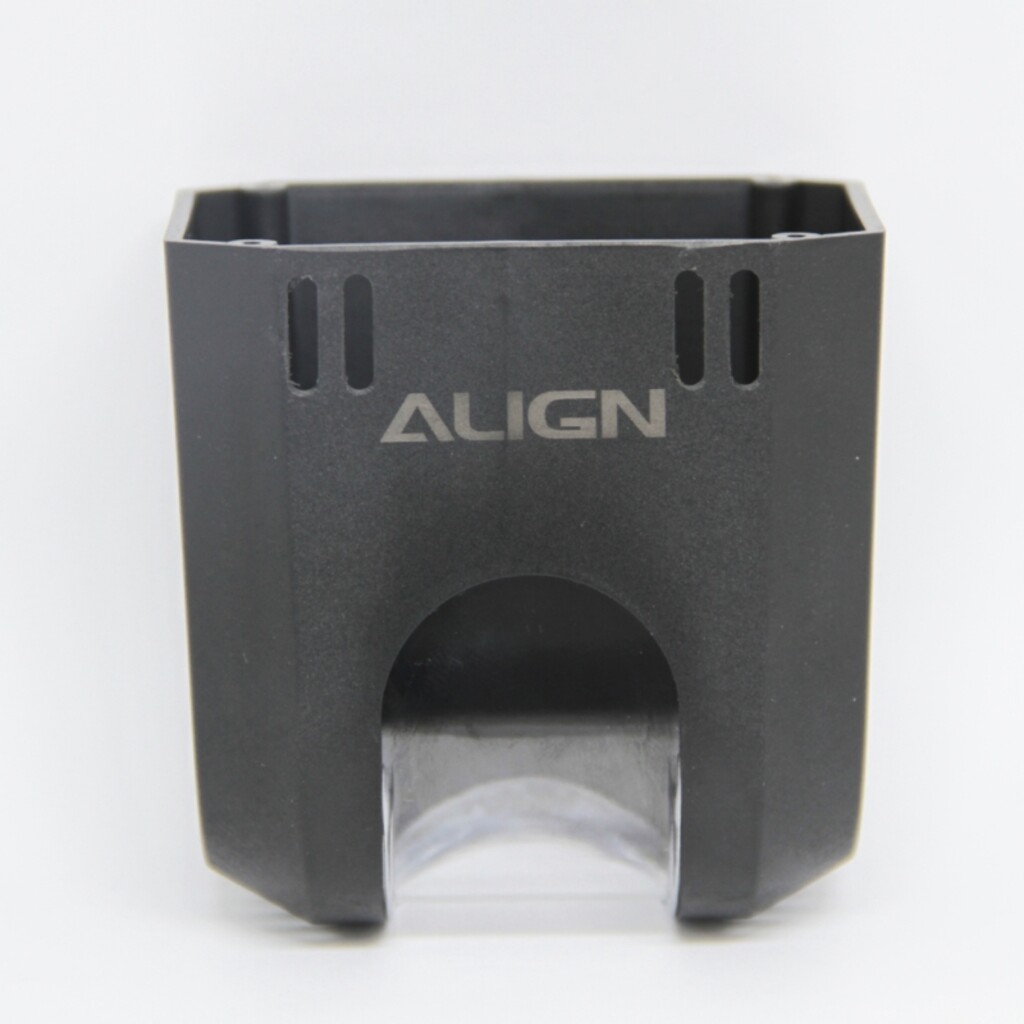

1080 DV TWO-AXIS GIMBAL

OBSTACLE AVOIDANCE RADAR SYSTEM
