CARREGADOR SKYRC D400 ULTIMATE DUO 400W SK-100123-08

Ref: 352901
Estoque: Disponível
R$ 1.458,51
Comprar

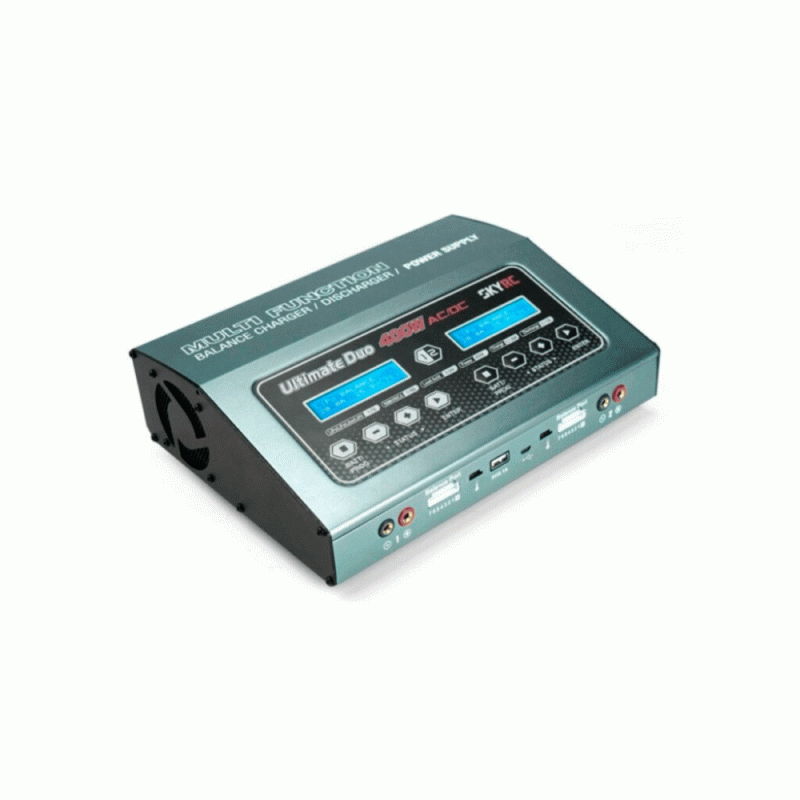

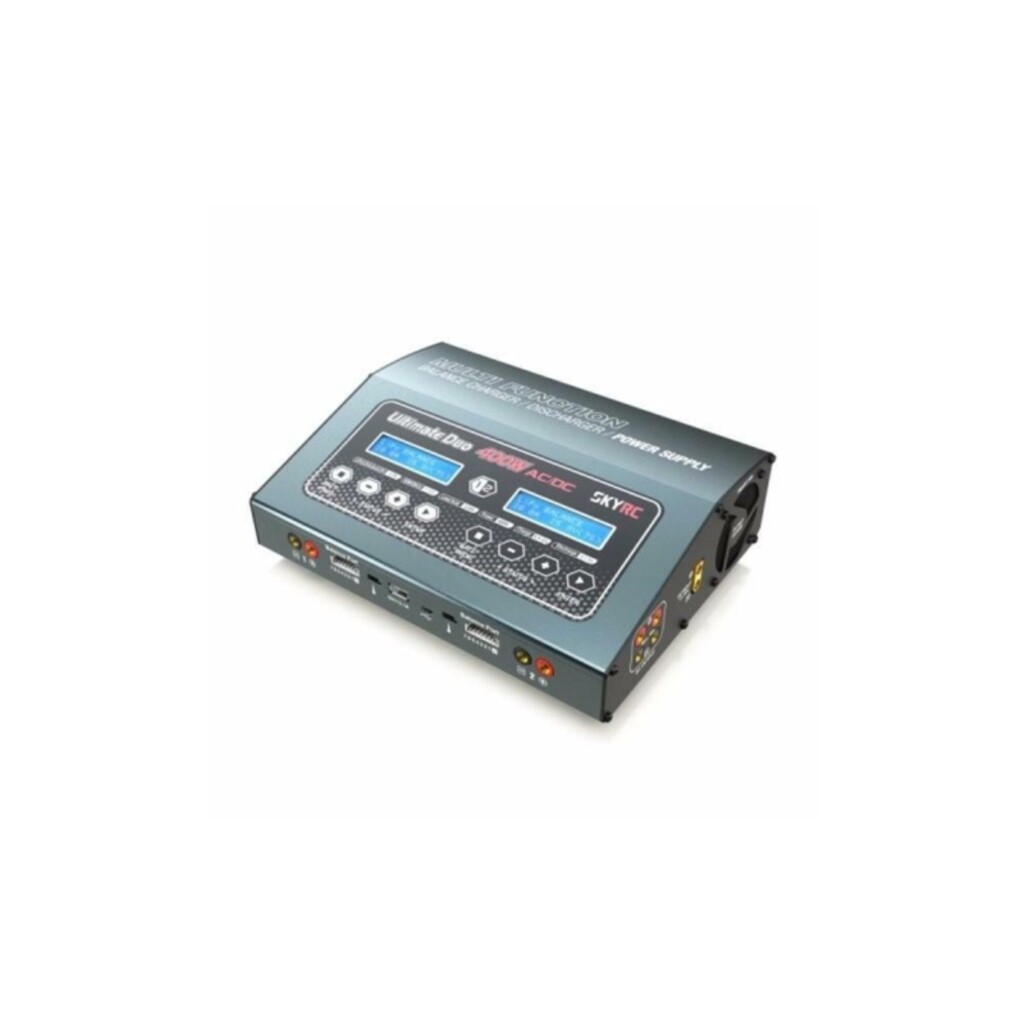

Ultimate Duo 400W Balance Charger / Discharger / Power SupplySupport 1-7S Lithium Batteries

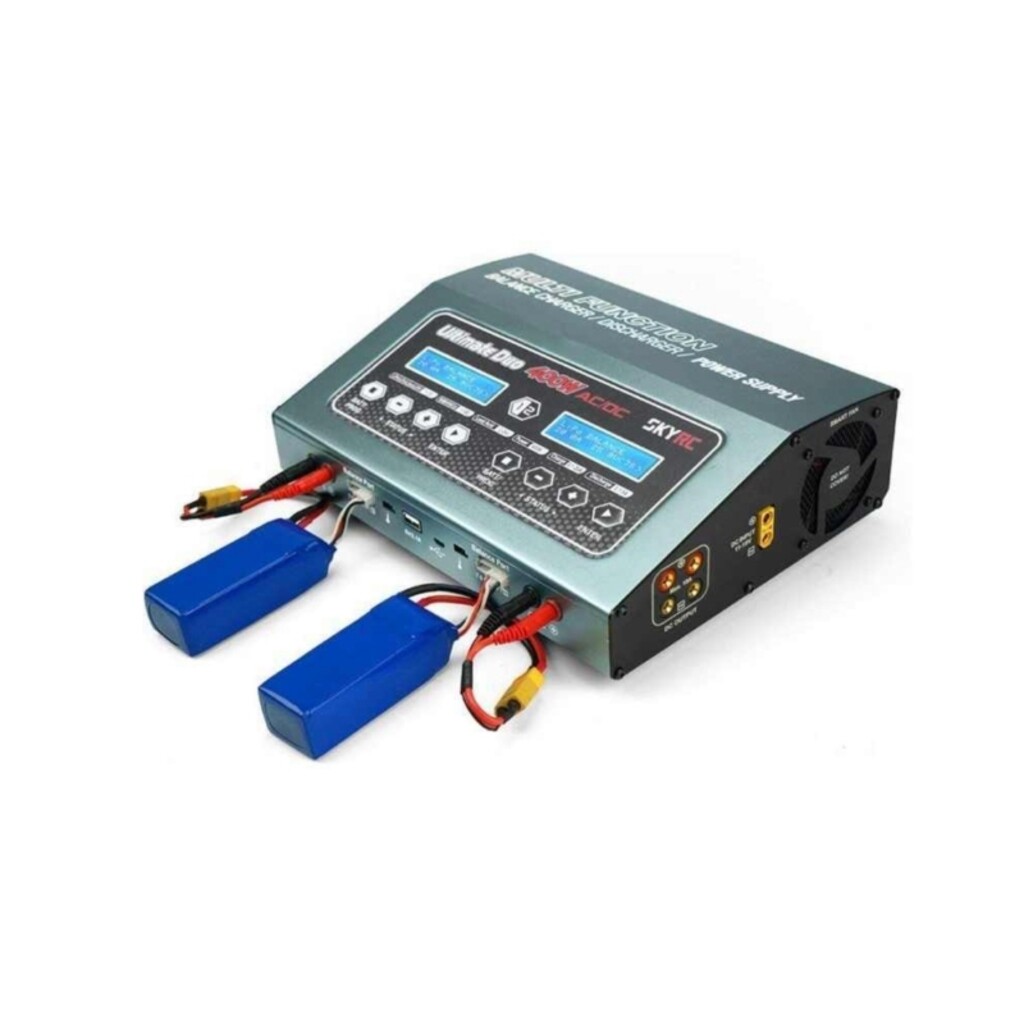

SKYRC D400 is a twin-channel charger with two independent circuits which can charge two different kinds of batteries simultaneously. It also supports power distribution in both AC and DC modes to get max charging power to shorten charging time. Moreover, it is not just a charger, but also a power supply which gives maximum 150 watts DC power on channel 2 for users to power their DC devices.
What’s more, the synchronization mode is available, in which users could perform synchronous settings for charging same batteries simultaneously to offer time-saving benefits

Power Distribution
  • It supports power distribution, for example,Channel 1-300w, then channel 2-100W, the total power is 400W. Please note the Max power of channel 2 is 200w, but that of channel 1 is 400W.

400w

  • Channel 1

200w

  • Channel 2
DC Power Supply
  • SkyRC D400 can supply 150 watts DC Power on channel 2. User can use it to power equipments that require DC Power. It converts standard 100-240V AC mains to 6-15V DC output.
Synchronization Mode
  • Employ this function, user can set both channel by channel 1, that saves much time.
PC Software for Data Analysis and Firmware Upgrade
  • Charge Master can start/stop charging process, and view real-time graphs of current, voltage, capacity and monitor single cell voltage.

Specifications

  • Input Voltage - AC 100-240V/DC 11-18V
  • Charge Circuit Power - 400W
  • Discharge Circuit Power - 36W
  • Charger Current Range - 0.1-20A
  • Discharge Circuit Power - 0.1-5A
  • Current Drian for Balancing Port - Max 500mA/cell
  • Trickle Charging Current - 50mA-300mA & OFF
  • DC Power Supply Output - 6-15V/Max.10A
  • LiPo/LiFe/Lilon/LiHV Battery Cell Count - 1-7S
  • NiMH/NiCd Battery Cell Count - 1-18S
  • Pb Battery Voltage - 2-24V
  • Weight - 2510g
  • Length : 258mm
  • Width  : 194mm
  • Height : 82.5mm
