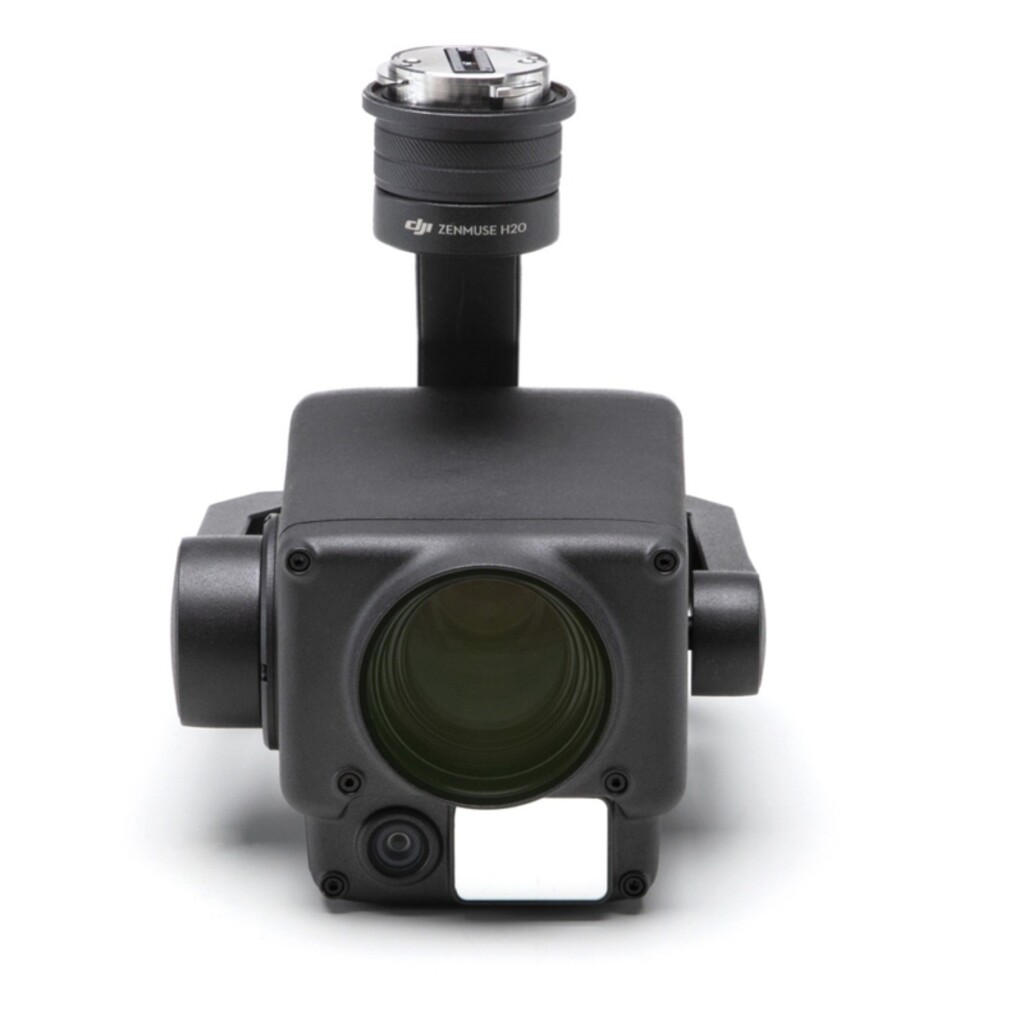

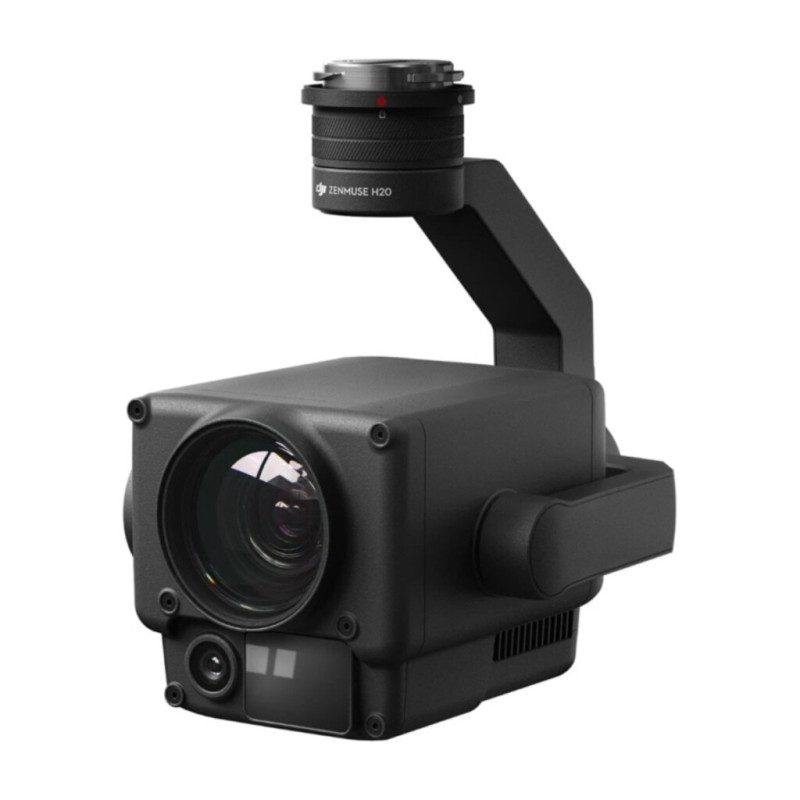

CAMERA DJI ZENMUSE H20

Ref: 352673

Estoque: Indisponível

R$ 32.039,92

Comprar

ZENMUSE H20 SERIES

Unleash the Power of One

“H” For Hybrid

Multi-sensor payloads that bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications.
Welcome to DJI’s first hybrid sensor solution – the Zenmuse H20 Series.

12 MP Wide Camera

82.9° DFOV

20 MP Zoom Camera
23× Hybrid Optical Zoom

Radiometric Thermal Camera
640×512 px

Laser RangeFinder
1200 m Max Range

IP44 Rating

-20°C to 50°C Operating Temperature

Active Image Stabilization and EIS

Night Scene Mode

All The Sensors You Need – In One

Capture everything. Up close or from a distance. In true living color or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful, integrated payload that unleashes advanced intelligent capabilities for DJI’s industrial drone platforms.

H20 – Triple-Sensor Solution

20 MP Zoom Camera

12 MP Wide Camera

1200 m LRF

Closing the Distance

Powerful Zoom Camera

23× Hybrid Optical Zoom, 200× Max Zoom
20 MP 1/1.7” CMOS Sensor
Video Resolution: 4K/30fps

Everything in View

Wide Camera

Equivalent Focal Length: 24mm, DFOV: 82.9°
12 MP 1/2.3” CMOS Sensor

Precise Distance Data

Laser Rangefinder

Range: 3 m – 1200 m
Accuracy: ± (0.2 m + D×0.15%)

See the Unseen

Radiometric Thermal Camera

DFOV: 40.6°
Resolution: 640×512, Frame Rate: 30fps
Thermal Sensitivity: ≤ [email protected] (NEDT)

Multi-Sensor Payloads

See the full picture without missing any details wherever, whenever your mission takes place.

Seamless User Interface

A new integrated user interface lets you quickly switch between wide, zoom, and thermal camera views, and preview the zoom FOV while in wide or thermal camera view.

AI Spot-Check

Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.

High-Res Grid Photo

Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.

PinPoint

A quick tap marks an object in view, advanced sensor fusion algorithms immediately deliver its coordinates.

AI Spot-Check

Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.

High-Res Grid Photo

PinPoint

A quick tap marks an object in view, advanced sensor fusion algorithms immediately deliver its coordinates.

Smart Track

Identify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location.

Accurate Temperature Measurement

Monitor the temperature of a site or an asset to eliminate any risks by acquiring a precise temperature reading from the air.

Intelligent Features

Temp Alarm

Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.

Isotherms

Visualize a specific band of temperatures to find what is important.

Color Palettes

Adjust the colors applied to the thermal data based on the needs of specific scenarios.

Gain Modes

Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.

R-JPEG Images

Images captured by the Zenmuse H20T are in the R-JPEG format with embedded temperature information. By importing these images into DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.

CAMERA DJI ZENMUSE H20

ZENMUSE H20 SERIES

Unleash the Power of One

“H” For Hybrid

All The Sensors You Need – In One

H20 – Triple-Sensor Solution

Closing the Distance

Powerful Zoom Camera

Wide Camera

Laser Rangefinder

See the Unseen

Radiometric Thermal Camera

Multi-Sensor Payloads

Seamless User Interface

AI Spot-Check

High-Res Grid Photo

PinPoint

AI Spot-Check

High-Res Grid Photo

PinPoint

Smart Track

Accurate Temperature Measurement

Intelligent Features
