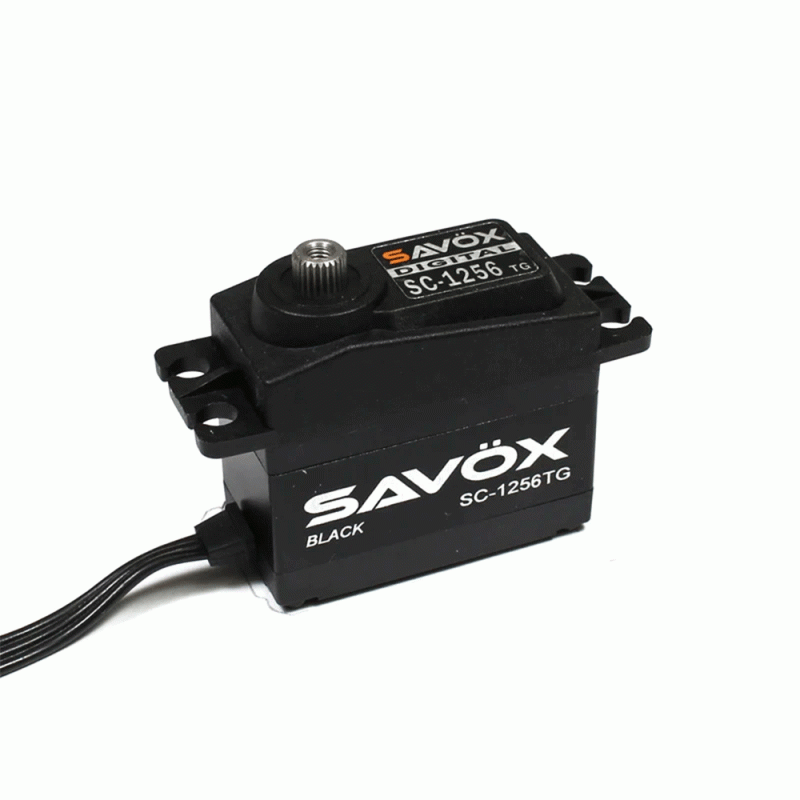

SAVOX SERVO SC-1256TG BLACK EDITION 6V 20KG .15S

Ref: 352598
Estoque: Disponível
R$ 592,02
Comprar
The SC-1256TG-BE is a high torque standard servo that provides great output for those looking for more than their standard servo can provide. With an all black color design, the SC-1256TG-BE provides a stealth look in RC cars.

Features:

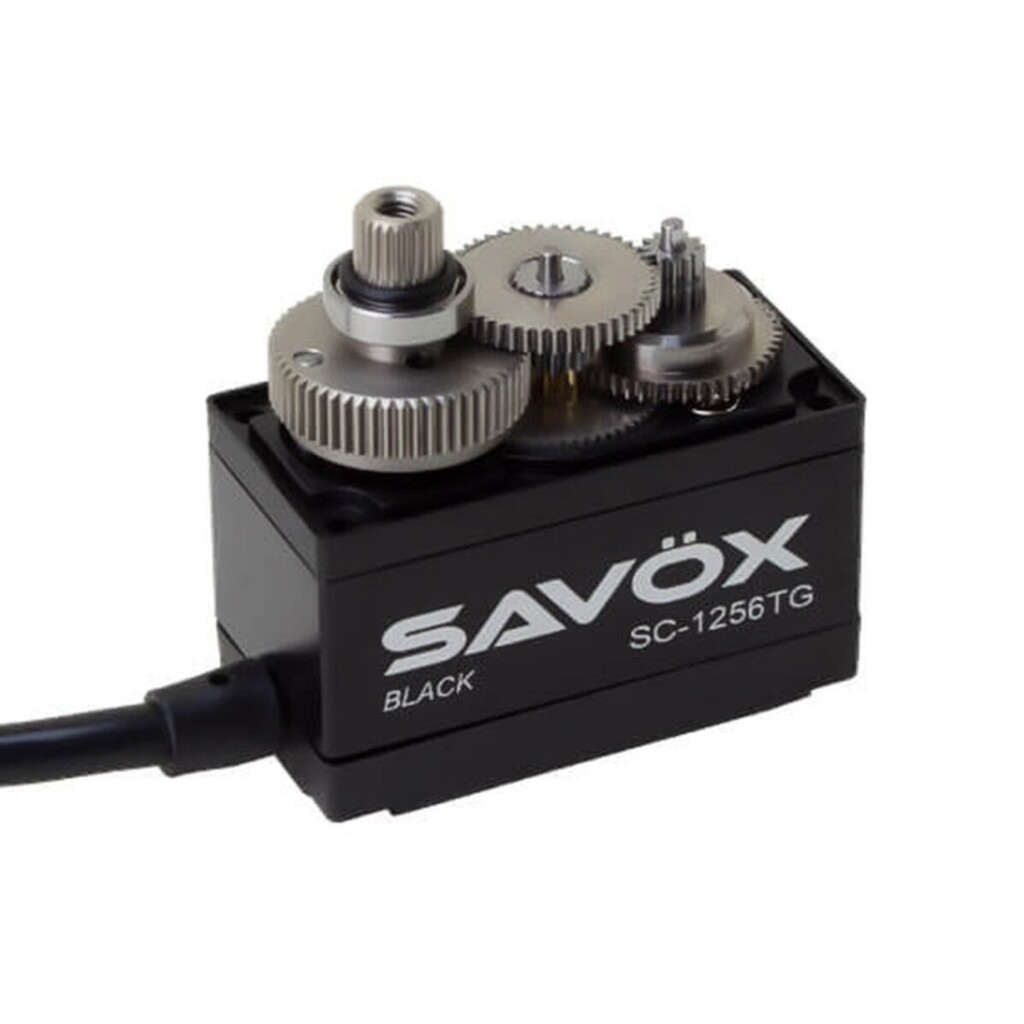

  • Titanium gears ensure long life,durability, and lighter weight.
  • Aluminum middle case to help with cooler operating temperatures.
  • Great replacement for RTR servos and other 1/10 off road vehicles.
  • Sleek black design with laser etching and a shorter 200mm black lead wire.


Specifications:
  • Torque @ 4.8v - 16.0kg/222.2oz-in
  • Torque @ 6v - 20.0kg/277.7oz-in
  • Speed @ 4.8v - 0.18 sec/60 deg
  • Speed @ 6v - 0.15 sec/60 deg

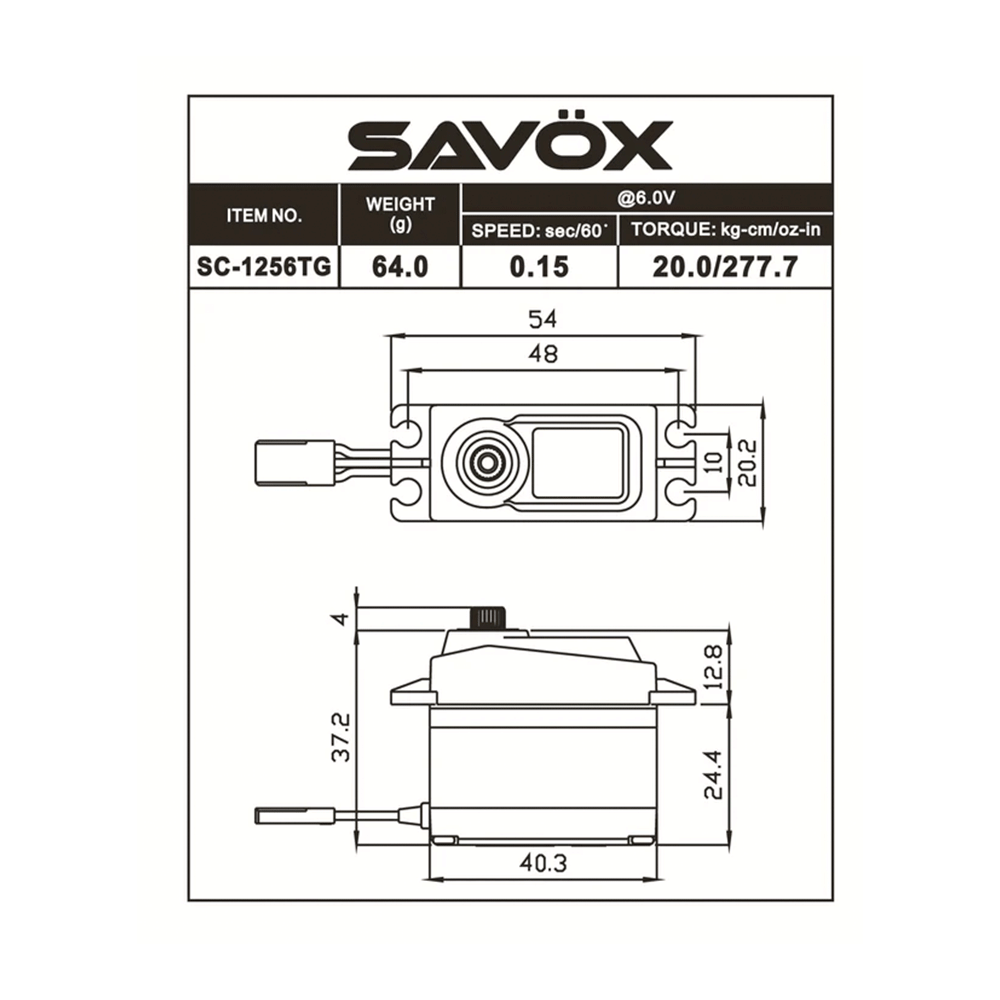

  • Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
  • Weight: 52.4g


Technical Details

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 100mA @4.8V, 120mA @6.0V
  • Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 130° (900 → 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless
