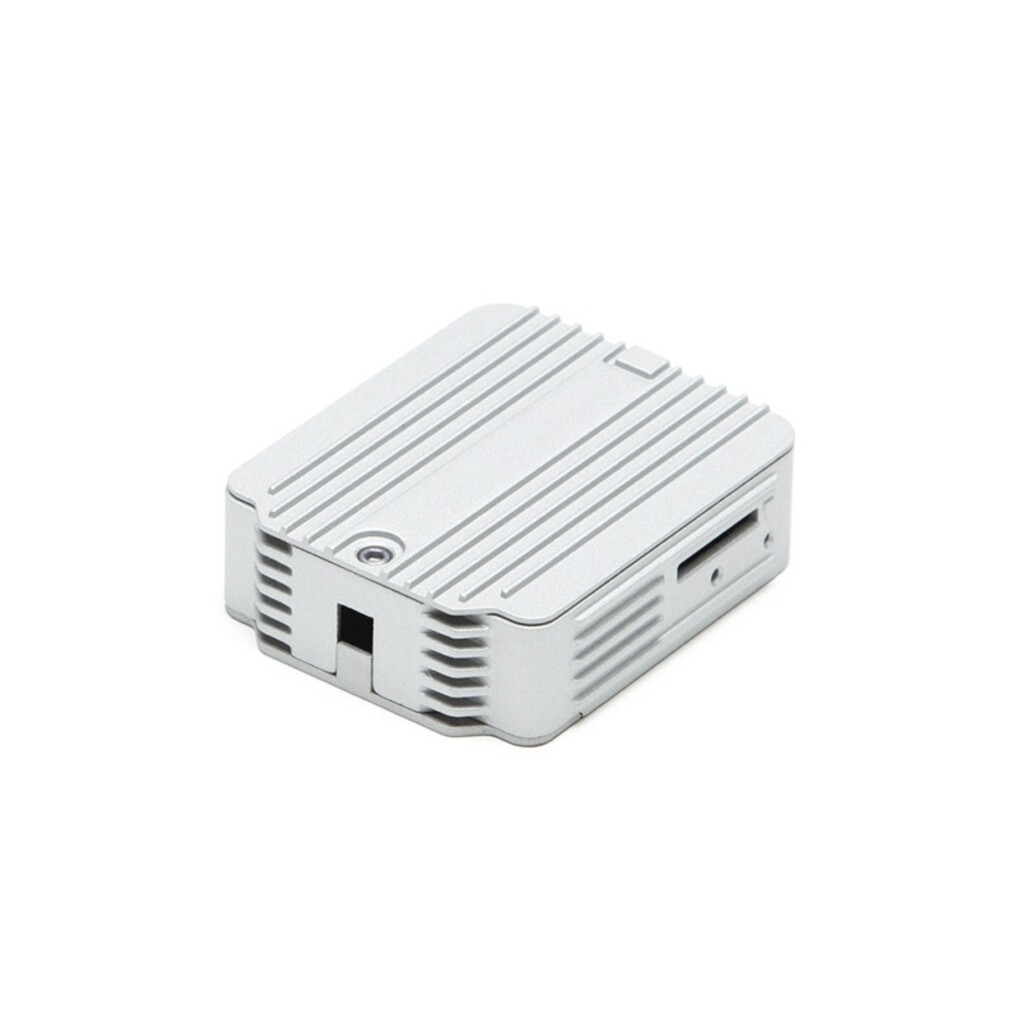

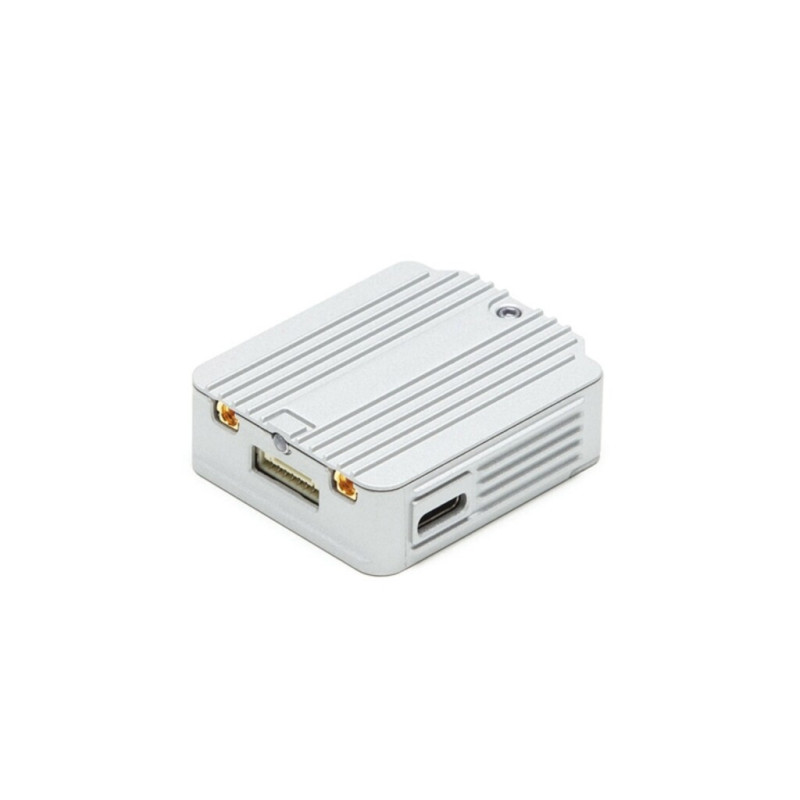

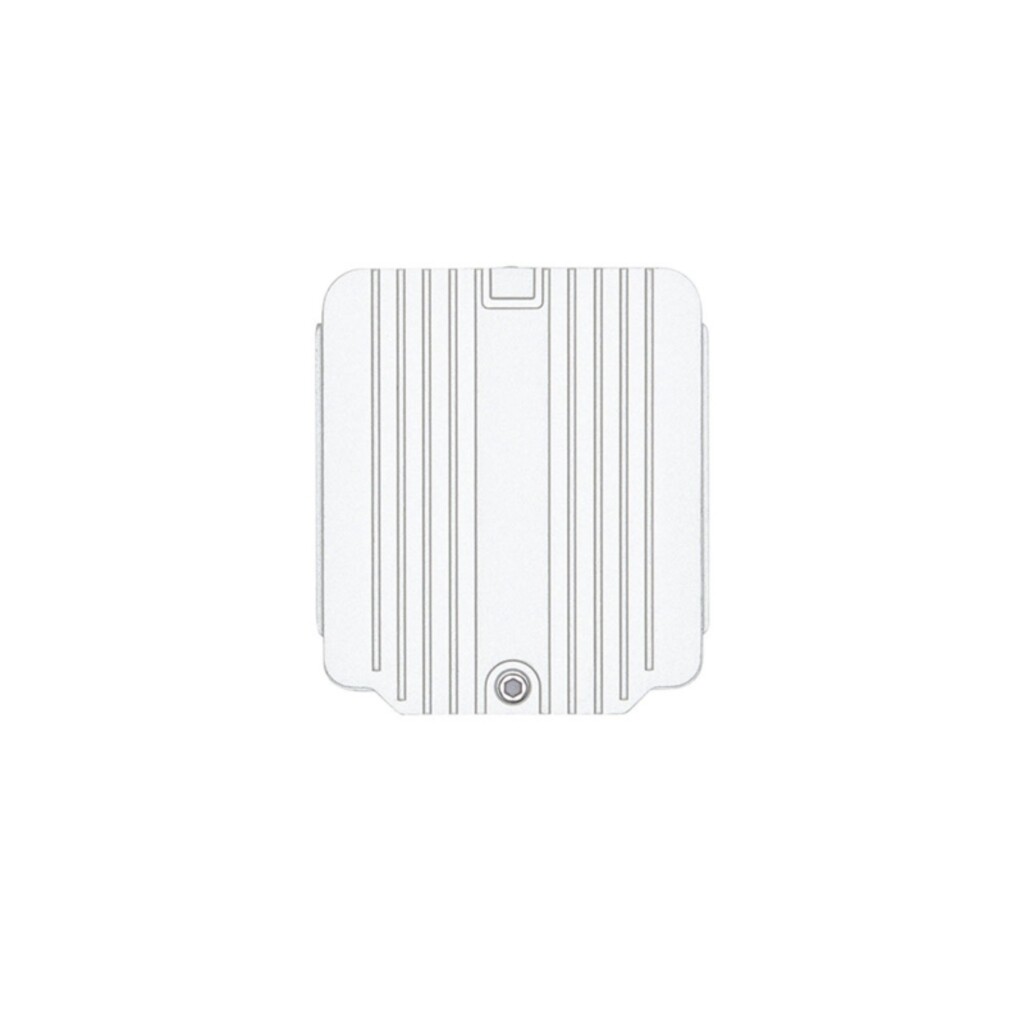

DJI PART FPV AIR UNIT MODULE PART 2

Ref: 347815
Estoque: Indisponível
R$ 1.115,31
Comprar

A modular with a quick-release design, making replacement easier and cost-efficient for users. Also features an ultra-low-latency high-definition digital image transmission, 1080p/60fps video recording, and eight frequency channels, allowing eight pilots to fly simultaneously.



Overview
The FPV Air Unit Module features an ultra-low-latency high-definition digital image transmission, 1080p/60fps video recording, and eight frequency channels, allowing eight pilots to fly simultaneously.
Highlights
A modular with a quick-release design, making replacement easier and cost-efficient for users. Also features an ultra-low-latency high-definition digital image transmission, 1080p/60fps video recording, and eight frequency channels, allowing eight pilots to fly simultaneously.
In The Box
DJI FPV Air Unit Module × 1
Specifications
Dimensions
Air Unit: 44 × 37.8 × 14.4 mm

Operating Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP): FCC/SRRC: <30 dBm; CE: <14 dBm

Min. Latency (end-to-end)
Low Latency Mode (720p/120fps): <28 ms
High-Quality Mode (720p/60fps): <40 ms

Max. Transmission Distance: FCC/SRRC: <4 km; CE: <0.7 km
Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)
I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slot
Operating Temperature Range: 32°to 104°F (0° to 40°C)
Input Power: 7.4-17.6 V, about 4-9 W

Channels: 8
Channels Info
FCC
Channel 1: 5660
Channel 2: 5695
Channel 3: 5735
Channel 4: 5770
Channel 5: 5805
Channel 6: 5878
Channel 7: 5914
Channel 8: 5839

CE/SRRC
Channel 1: 5735
Channel 2: 5770
Channel 3: 5805
Channel 8: 5839

MIC
Channel 1: 5660
Channel 2: 5700
Channel 8: 5745
Compatibility
DJI FPV Camera
