DJI FPV AIR UNIT

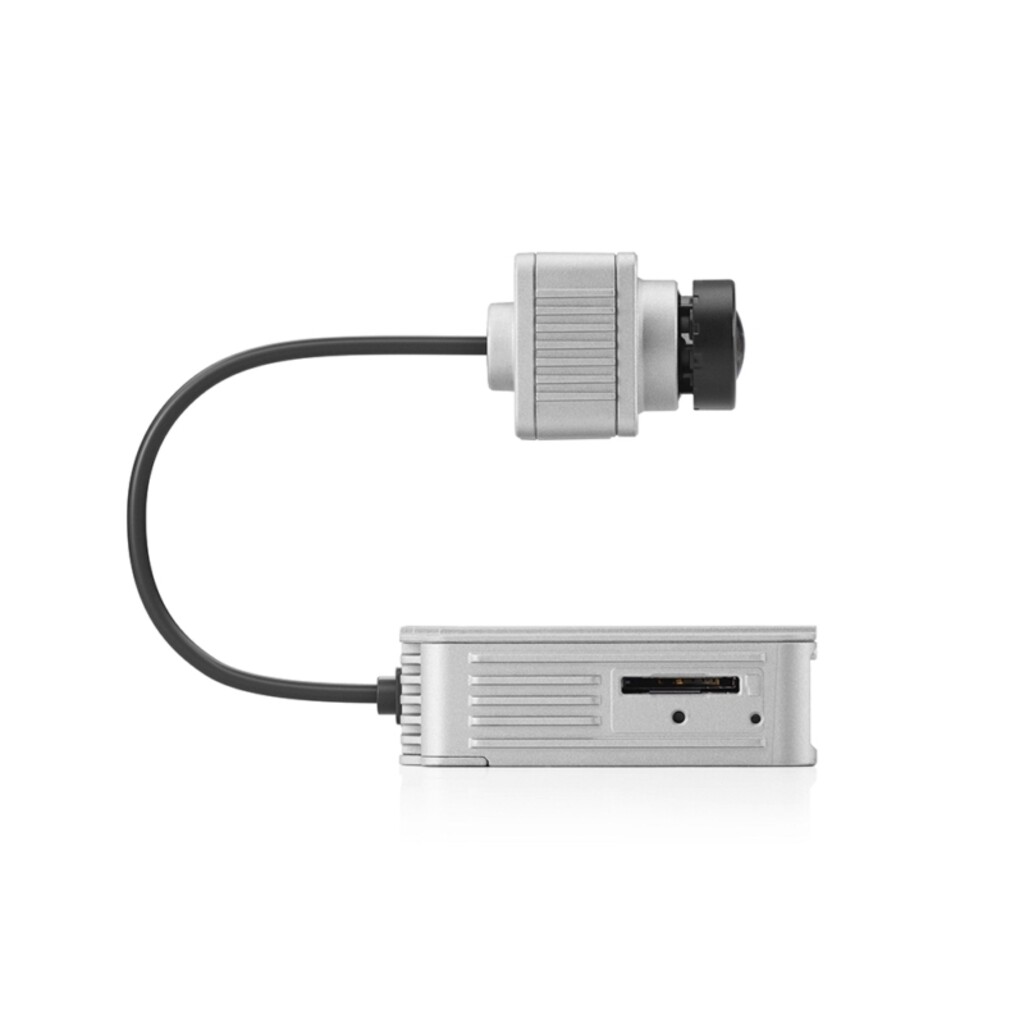

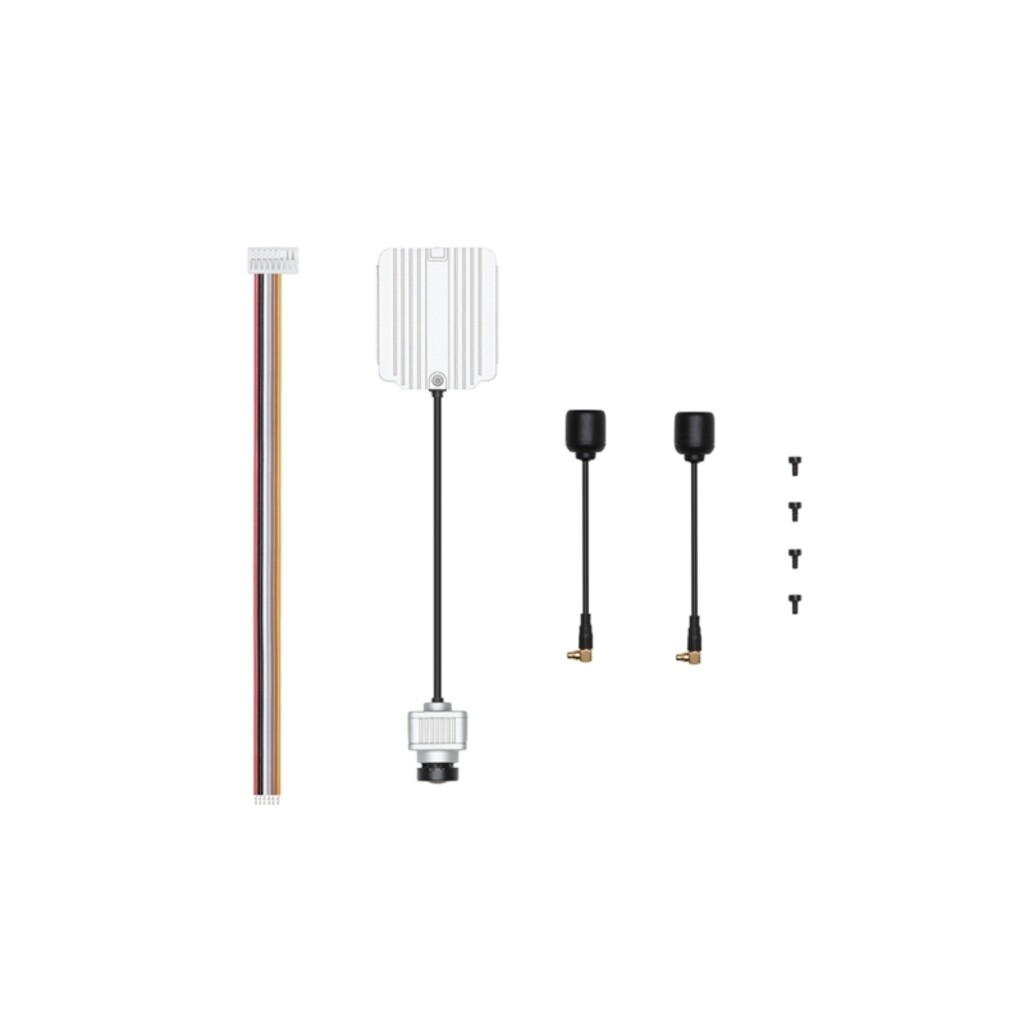

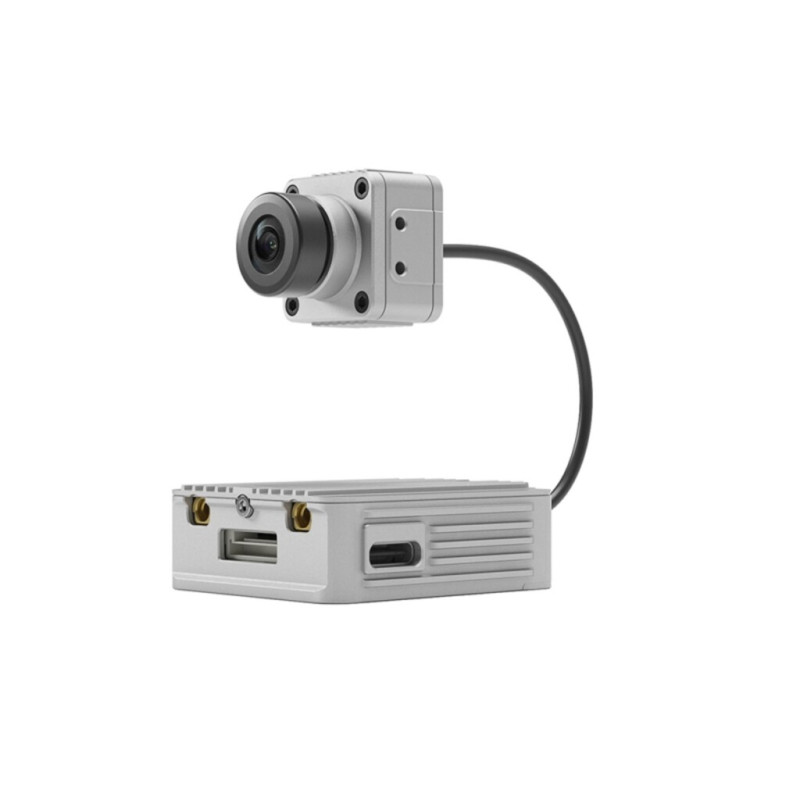

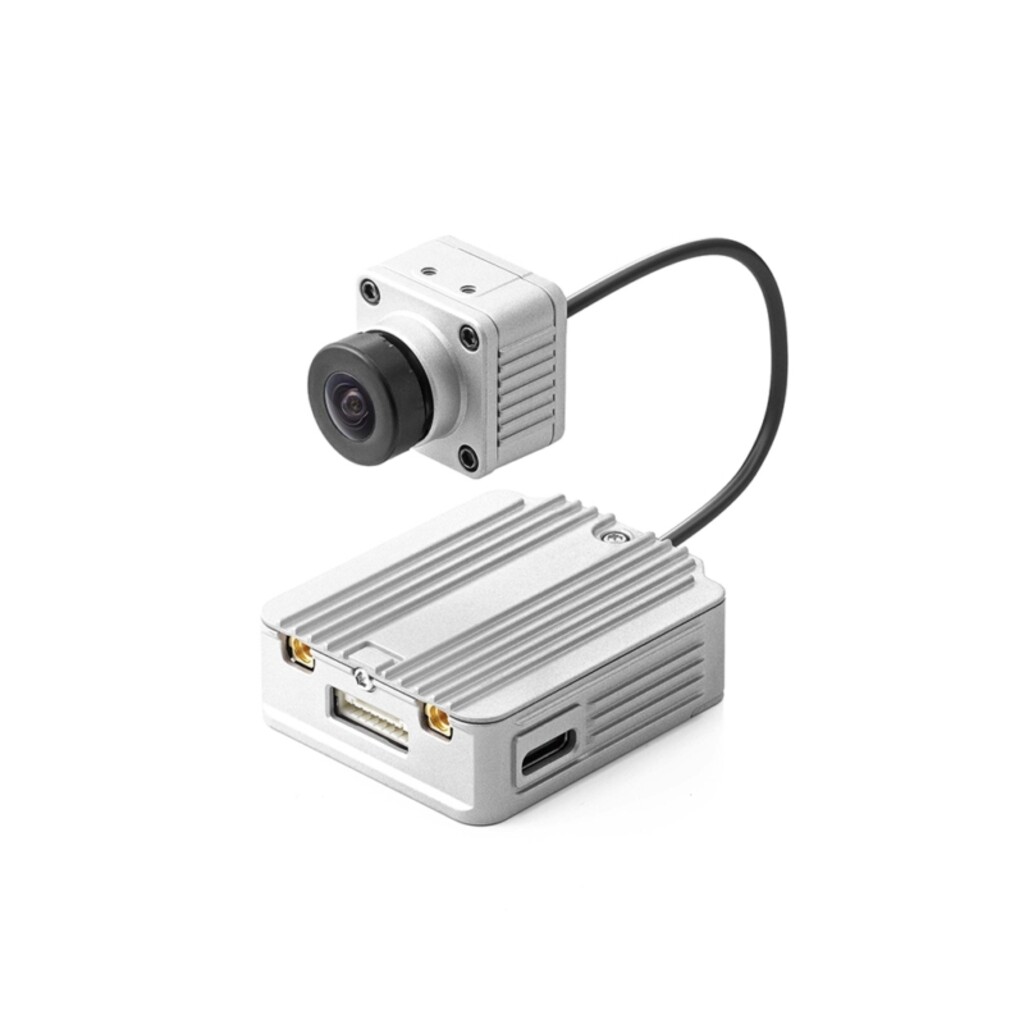

Overview The FPV Air Unit features an ultra-low-latency high-definition digital image transmission, 1080p/60fps video recording, and eight frequency channels, allowing eight pilots to fly simultaneously. Tips The air unit may become hot during or after operation. DO NOT touch the air unit before it cools down. DO NOT use the air unit for an extended period when there is no external cooling equipment. Otherwise, the air unit may overheat and enter overheat protection mode. Keep the antennas of the air unit at least 40 mm apart. Keep the air unit away from metal objects or carbon fiber frames. Make sure to choose a position where the transmission will not be blocked during flight. In The Box DJI FPV Air Unit (with camera and four M2 screws) × 1 Three-in-one cable × 1 Antenna (MMCX elbow) × 2 Specifications Weight Air Unit (Camera included): 45.8 g 3.9 g (MMCX elbow each) Dimensions Air Unit: 44 × 37.8 × 14.4 mm Camera: 27.4 × 21.1 × 20.1 mm Coaxial Cable: 100 mm Operating Frequency: 5.725-5.850 GHz Transmitter Power (EIRP): FCC/SRRC: <30 dBm; CE: <14 dBm Min. Latency (end-to-end) Low Latency Mode (720p/120fps): <28 ms High-Quality Mode (720p/60fps): <40 ms Max. Transmission Distance: FCC/SRRC: <4 km; CE: <0.7 km Video Format: MP4 (Video format: H.264; Audio format: ACC-LC) I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slot Operating Temperature Range: 32° to 104°F (0° to 40°C) Input Power: 7.4-17.6 V, about 4-9 W Sensor: 1/3.2'' CMOS; Effective Pixels: 4 M Lens: 2.1 mm, f/2.1 Shutter: Rolling shutter ISO: 100-25600 FOV: 150°(D); 122°(H); 93°(V) Dimension: 22.1 × 21.1 × 20.1 mm Weight: 8.2 g Channels: 8 Channels Info FCC Channel 1: 5660 Channel 2: 5695 Channel 3: 5735 Channel 4: 5770 Channel 5: 5805 Channel 6: 5878 Channel 7: 5914 Channel 8: 5839 CE/SRRC Channel 1: 5735 Channel 2: 5770 Channel 3: 5805 Channel 8: 5839 MIC Channel 1: 5660 Channel 2: 5700 Channel 8: 5745 Compatibility DJI FPV Goggles DJI FPV Remote Controller
