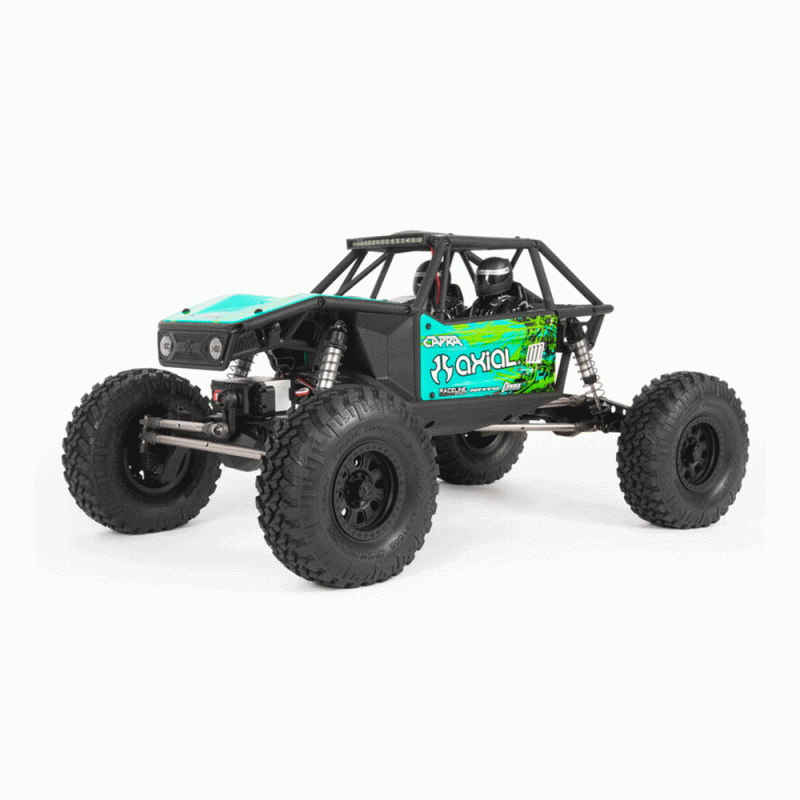

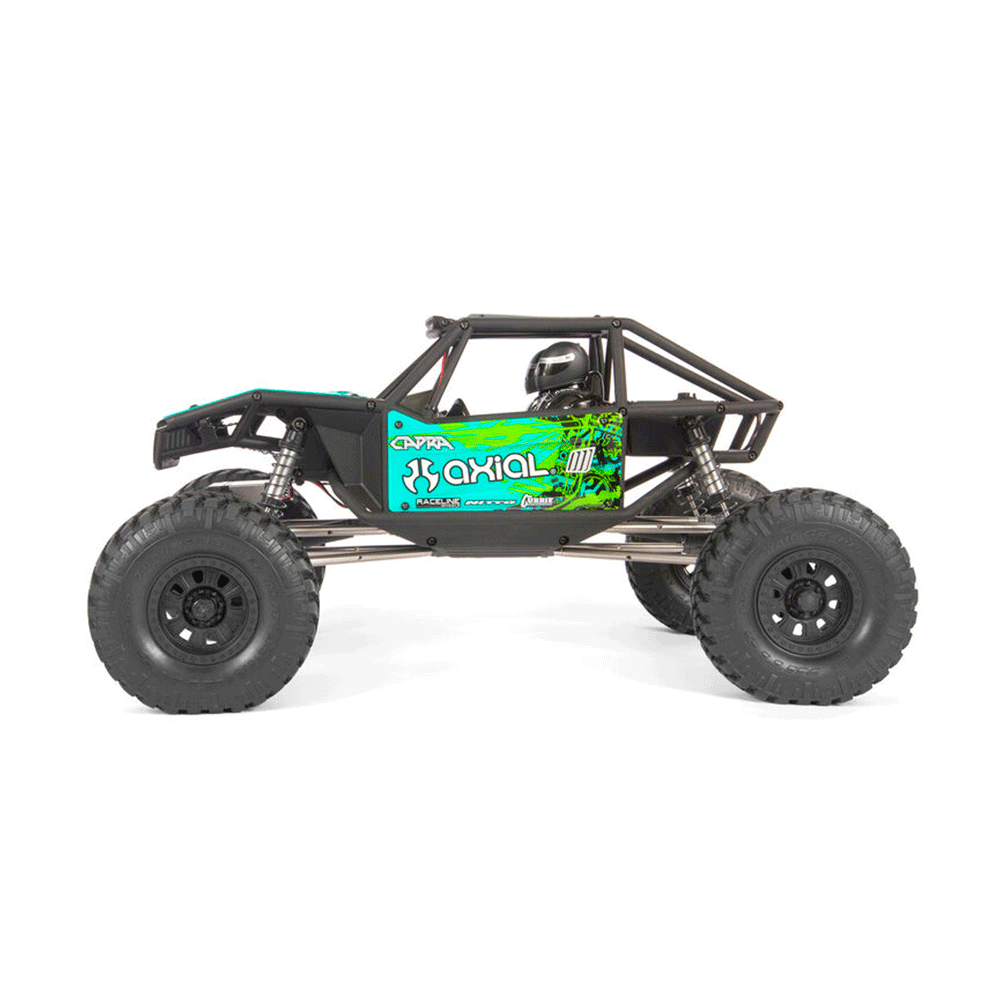

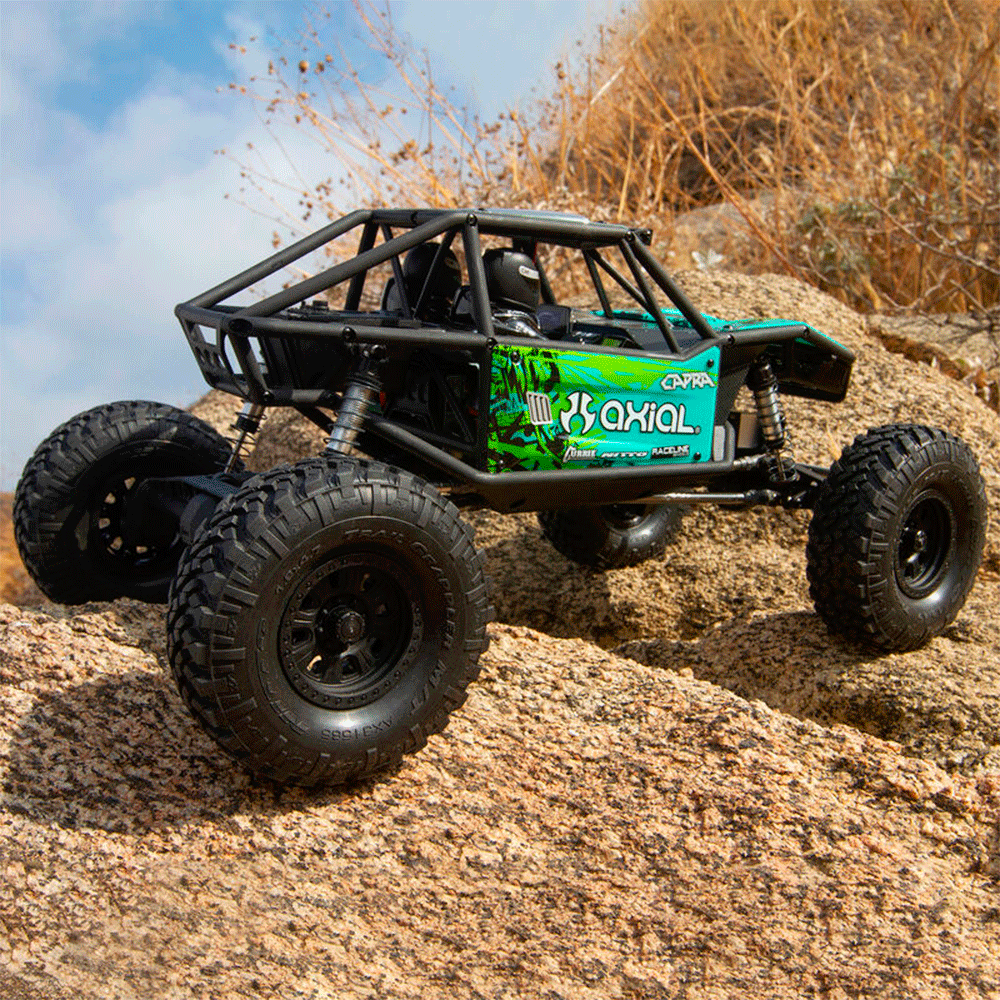

CARRO AXIAL 1/10 CAPRA UNLIMITED 1.9 TRAIL BUGGY RTR GREEN AXI03000T2

CARRO AXIAL 1/10 CAPRA UNLIMITED 1.9 TRAIL BUGGY RTR GREEN AXI03000T2

Ref: 345941

Estoque: Indisponível

R$ 3.431,91

Comprar

In The Box

(1) Axial® Capra™ 1.9 Unlimited Trail Buggy 4WD RTR

(1) Spektrum™ STX3 2.4GHz 3-Channel Radio System

(1) Dynamite® AE-5L Brushed ESC (installed)

(1) 540-Size 35T Brushed Motor (installed)

(1) Product Manual

Needed to Complete

(1) 2-3S Shorty LiPo Battery with EC3™ or IC3™ connector

(1) Compatible Battery Charger

(4) AA batteries for Transmitter

Features

Transmission with DIG function enables a tighter turning radius by locking the rear axle for FWD power only.

Currie F9 Portal Axles increase ground clearance at the diff pumpkin for the best crawling performance.

Includes all-metal gears, from the center transmission to the lockers and portal axles.

Tube chassis design offers optimum clearance plus realistic scale looks.

All pivot points are on stainless steel balls for a durable, long-lasting suspension point.

Includes Nitto Trail Grapplers 1.9 Monster tires mounted on injection-molded, 3-piece, licensed Raceline beadlock wheels.

Adjustable oil-filled shocks feature hard anodized, threaded shock bodies and a single coilover spring.

All-metal front universal axles provide smooth action and 45 degrees of steering angle for an efficient, high-performance drivetrain.

Durable, machined aluminum universal.

540-size, 35T brushed motor with enlarged cooling ports delivers an even balance of speed and technical crawling.

Spektrum™ STX3 3-channel, 2.4GHz radio system and receiver operate the DIG feature along with other functions.

Axle-mounted servo improves steering control in full articulation.

Finely tuned suspension geometry delivers the best crawling capabilities.

Overview

The ready-to-run Axial® Capra™ 1.9 Unlimited Trail Buggy is a “new from the ground up” design that any RC enthusiast eager for cutting-edge crawling will appreciate. Its Currie F9 Portal Axles provide extra ground clearance at the diff pumpkin for the best crawling performance. With the included Spektrum™ STX3 3-channel transmitter and DIG transmission, you can also switch on the fly between 4WD and FWD — locking the rear axle whenever you need the tighter turning radius of front drive power. The Capra features a realistic tube chassis design and metal gears everywhere, from the center transmission to the lockers and portal axles. It rides on real-world inspired Nitto Trail Grappler 1.9 tires mounted to licensed Raceline 3-piece molded beadlock wheels. For pioneering performance in an RC trail buggy with factory-assembled ease, choose the Capra 1.9 Unlimited RTR. Then just add batteries and get crawling!

CURRIE F9 PORTAL AXLES

The Currie F9 Portal Axles add substantially more ground clearance at the diff pumpkin while also providing an excellent 7.39:1 gear ratio. Completely ball bearing driven, and metal gears throughout for durability.

HI-PINION GEARS

The ring and pinion gears are machined steel, including the locker. The design utilizes a six bolt design for durability.

DIG TRANSMISSION

The ground up designed transmission features a "Dig" function. With the new STX3 transmitter, the user can "switch" between 4WD and locking the rear axle while powering with front drive only, allowing for tighter turning radius on the rocks. The transmission also includes a full set of ball bearings and all metal internal gears for strength and durability. Micro Dig Servo SPMSSX107 included!

UNIVERSAL AXLE SET

Universal joint axles allow up to 45 degrees of steering and provide smoother action for a higher performing, efficient drivetrain.

Up to 45 degrees of steering

Smooth action for an efficient drivetrain

Compact yet durable design

Hardened steel construction

WB8 HD WILDBOAR™ DRIVESHAFTS

WB8 HD Wildboar™ front and rear driveshafts feature a larger diameter cross pin (2x11mm) along with an M4 Screw Shaft (2mm hex drive) for greater strength. A center splined slider floats between each end and has added material to reduce flex and fatigue.

6MM STAINLESS STEEL LINKS

Strong 6mm stainless steel links with high grade plastic rod ends for durability. All links are metal including the steering.

STAINLESS STEEL PIVOT BALLS

All pivot points are on stainless steel balls that provide a durable, long-lasting suspension point.

SKIDPLATE WITH BOAT SIDES

The Capra features a small skidplate footprint with boat sides to help maneuver and slide over rough, challenging obstacles.

STAINLESS STEEL STEERING LINKS

The steering links are also made from 6mm stainless steel, offering precise steering and durability.

LARGE BORE ALUMINUM SHOCKS

The oil-filled shocks are an all-new design with hard anodized, threaded shock bodies and a single coilover spring. Their increased bore size creates more fluid volume for better performance. A bleed screw helps to bleed air from the shock during assembly for greater consistency. The shocks are also tunable so you can achieve the best dampening rate.

Springs included:

AXI233006 Spring 13x70mm 1.72lbs/in Red (2) Soft

AXI233008 Spring 13x70mm 2.4lbs/in Green (2) Firm

4-LINK SUSPENSION

Fine-tuned suspension geometry with multiple mounting locations for the upper link mounts to provide the best crawling capabilities.

NITTO TRAIL GRAPPLER TIRES

Get a secure grip on dirt, rocks, and all other off-road trails from the S30 compound Nitto Trail Grappler 1.9 tires.

3-PIECE BEADLOCK WHEELS

For striking scale looks and serious trail performance, Axial® has outfitted the Capra™ with 3-piece licensed Raceline beadlock wheels.

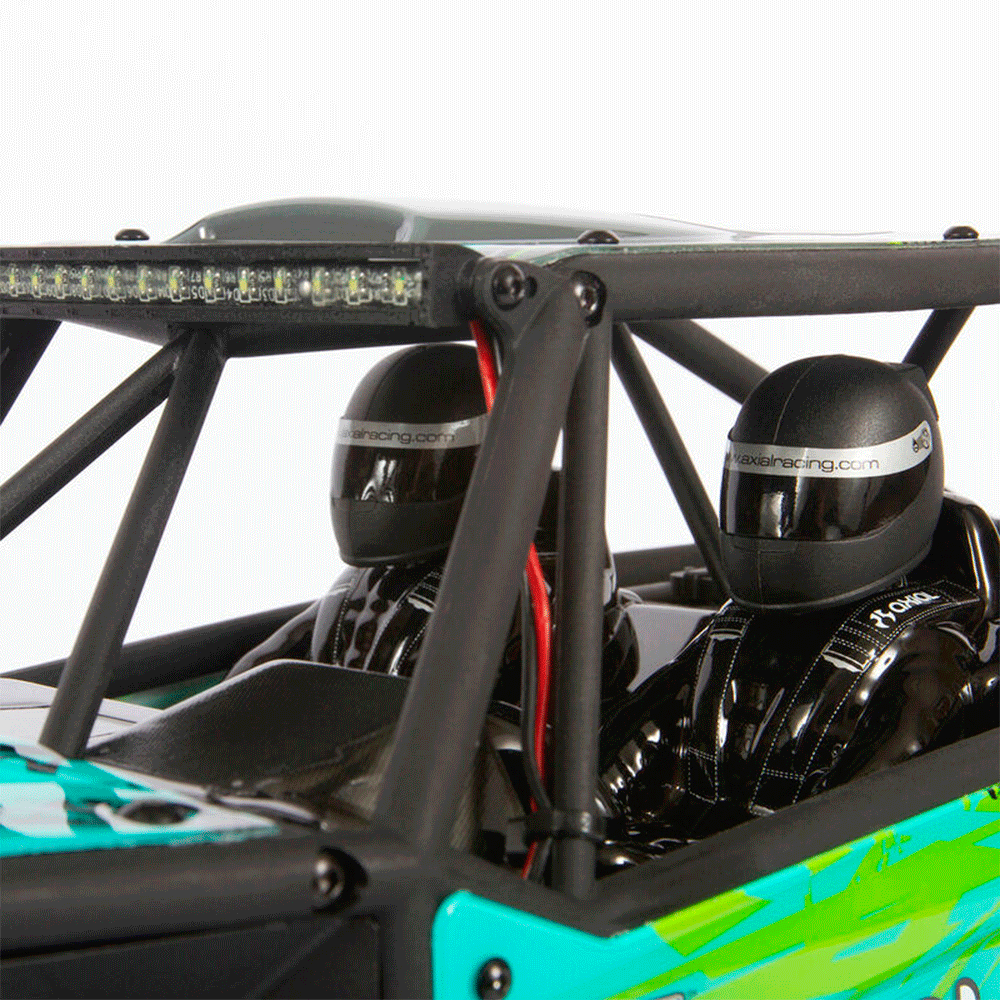

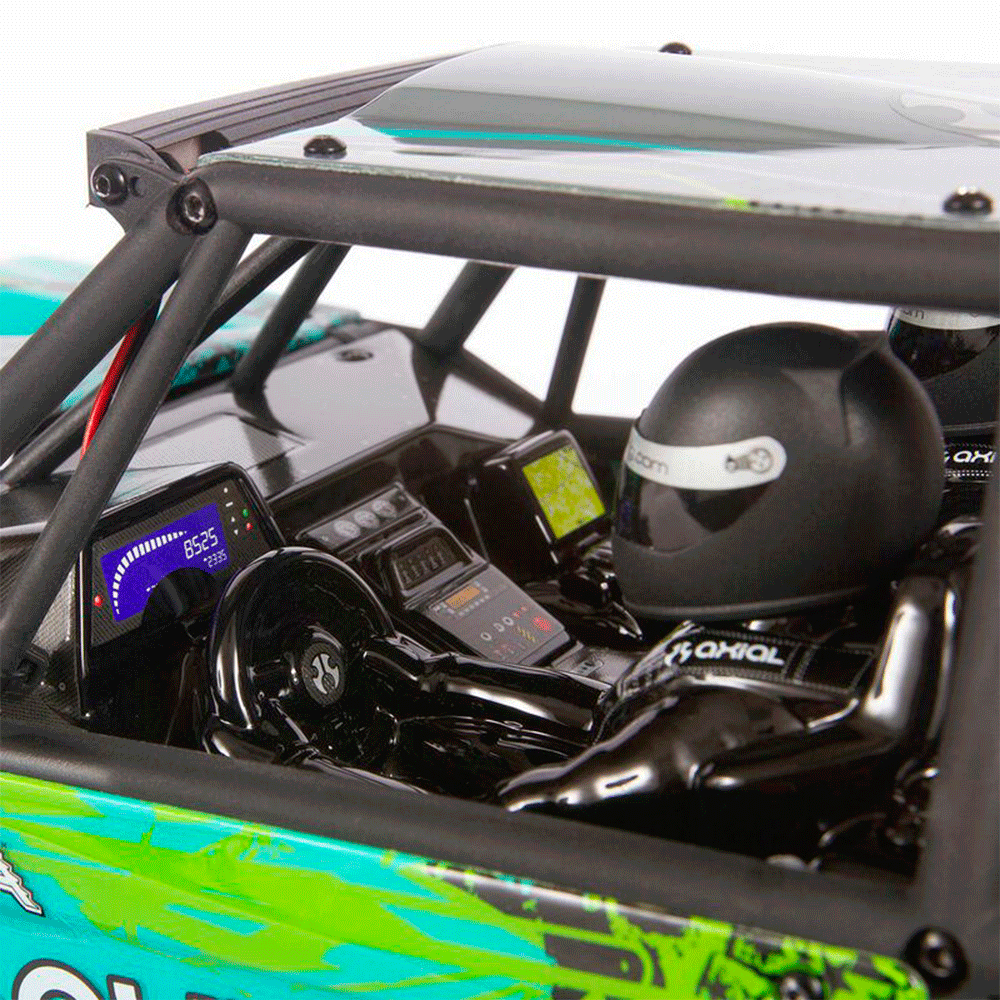

REALISTIC INTERIOR

Realistic scale details include: polycarbonate interior tray with molded driver figures, full color pre-cut decals with simulated carbon fiber panels, mock GPS navigation gauges and switches, two black styrene helmets with visor decals, and more!

GRILLE AND HEADLIGHT BUCKETS

The molded plastic front grille features two clear plastic headlight lenses with light buckets and a white LED light installed in each. Behind the grille, under the hood, are two hood mounts with clips. Remove the clips to raise the hood up and gain access to the battery tray.

HOOD RELEASE

Remove the clips hidden on the underside of the tube frame to raise the hood up and gain access to the battery tray.

SERVO HORN WITH METAL INSERT

The servo horn features a 23T press fit metal insert for durability.

BATTERY TRAY

The battery tray is forward mounted, and located under the hood. The tray size is built for shorty packs, at a maximum size of 26mm x 98mm x 47mm.

35T BRUSHED MOTOR

Delivering an even balance of speed and technical crawling, the included 540 size, 35T motor features a hassle-free design with enlarged cooling ports for extended periods of use.

SPEKTRUM™ STX3™ 2.4GHz RADIO SYSTEM

The STX3™ 3-channel radio system offers many features of higher-end 2.4GHz radio systems like throttle/steering reversing, throttle/steering travel adjust & throttle limiting, as well as third channel button controls for dig operation.

Thumb controls allow operation of the dig feature

Built-in 3-position throttle limited

Steering & throttle rate & trim adjustments with throttle and steering reversing

FHSS 2.4GHz protocol offers extended range and interference free performance

SPEKTRUM™ SRX300 RECEIVER, WATER-RESISTANT

The SRX300 is a 3 channel 2.4GHz receiver that operates on the FHSS modulation. It is conformal coated to help prevent damage from water, dust and other elements. Features an extra-long antenna lead for easy and effective antenna placement.

DYNAMITE® AE-5L ESC W/ DRAG BRAKE, WATERPROOF

The Dynamite AE-5L ESC is 3S LiPo capable yet easily switched “in the field” between LiPo and NiMH battery types with a simple jumper – no more complex procedures.

LED light bar and two front mounted LED lights included

Convenient IC3™ plug lead

Jumper 1 provides a simple plug and play choice between LiPo or NiMH

Jumper 2 switches Drag Brake settings

Waterproof design with IC3™ plug / laser etched heat sink NOTE: Requires shorty battery pack with IC3™ connector.

SPEKTRUM™ S614 SERVO, WATERPROOF

The Spektrum S614 metal geared servo offers 201 oz-in of steering torque, a metal case for strength, and it’s waterproof for extra protection against the elements. The axle-mounted servo allows better steering control in full articulation.

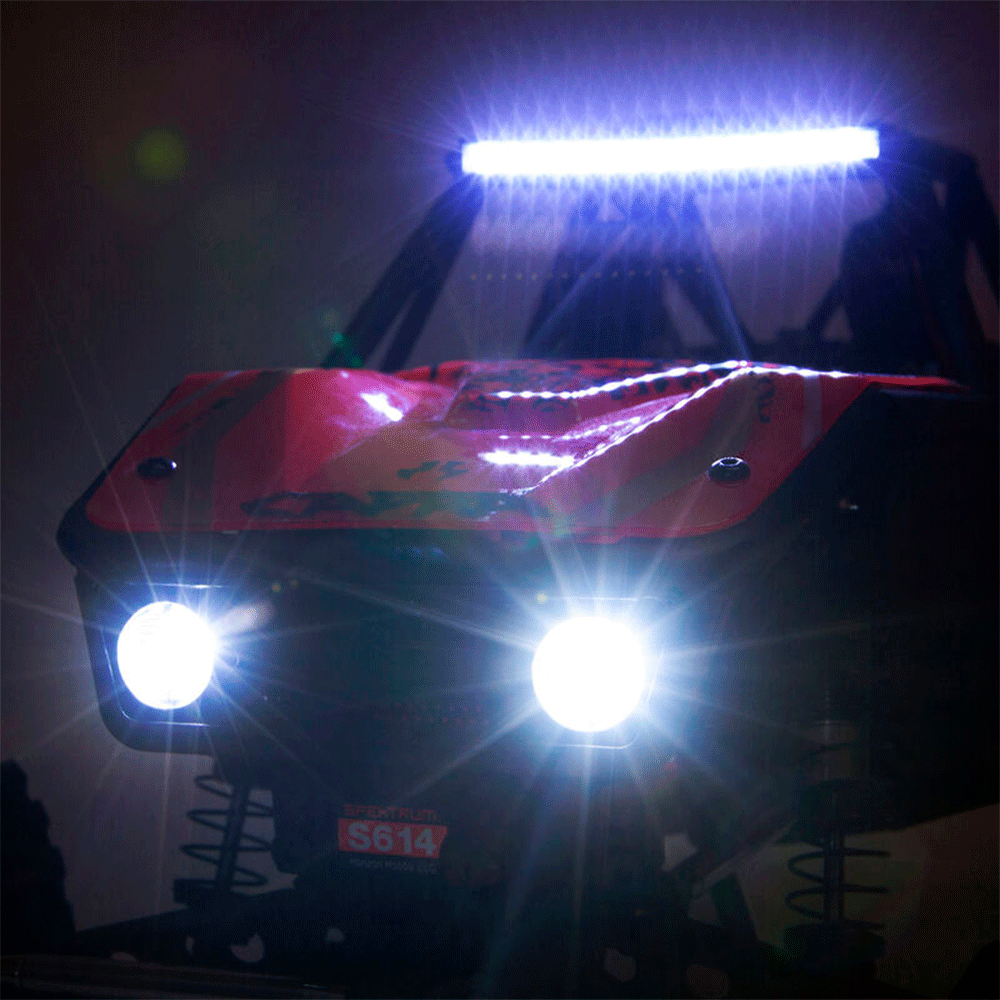

LED LIGHT BAR

A roof mounted LED light bar helps light the way on those late night crawls with your friends. LED Light bar and two front mounted LED lights are included.

Product Weight	4.5lbs (2.04kg)
Tire Tread	Trail Grappler
Vehicle Type	Rock Crawler
Water-Resistant	Yes
Bushing Material	Metal
Charger	Sold Separately
Differential	Locked
Max Battery Dimensions	1.02 x 3.8 x 1.8" (26 x 98 x 47mm)
Receiver	Included
Shock Type	Aluminum body, oil-filled, coil-over spring
Wheel Type	Raceline 3-piece beadlock monster
Battery	Sold Separately
Ground Clearance	3" (76.2mm)
Internal Gear Ratio	5.14:1
Motor Size	540 35T
Product Length	17" (432 mm)
Steering Type	2WS
Suspension	4-link solid axle
Wheel Width	1" (25.4mm)
Front Track	8.75 in (222.2mm)
Outer Diameter	4.7" (119 mm)
Product Width	10.25" (260 mm)
Radio	Included
Final Drive Ratio	37:1
Motor Type	Brushed
Rear Track	8.75 in (222.2mm)
Speed Control	Included
Wheelbase	12.5" (318 mm)
Pinion	14T
Scale	1/10
Approximate Assembly Time	No assembly required
Body	Painted
Brakes	Integral with ESC
Ball Bearings	Full set
Chassis	Injection molded tubular
Completion Level	Ready-To-Run
Drivetrain	4WD
Drive Type	Forward/Brake/Reverse
Product Height	8.25" (210 mm)
Tire Compound	S30
