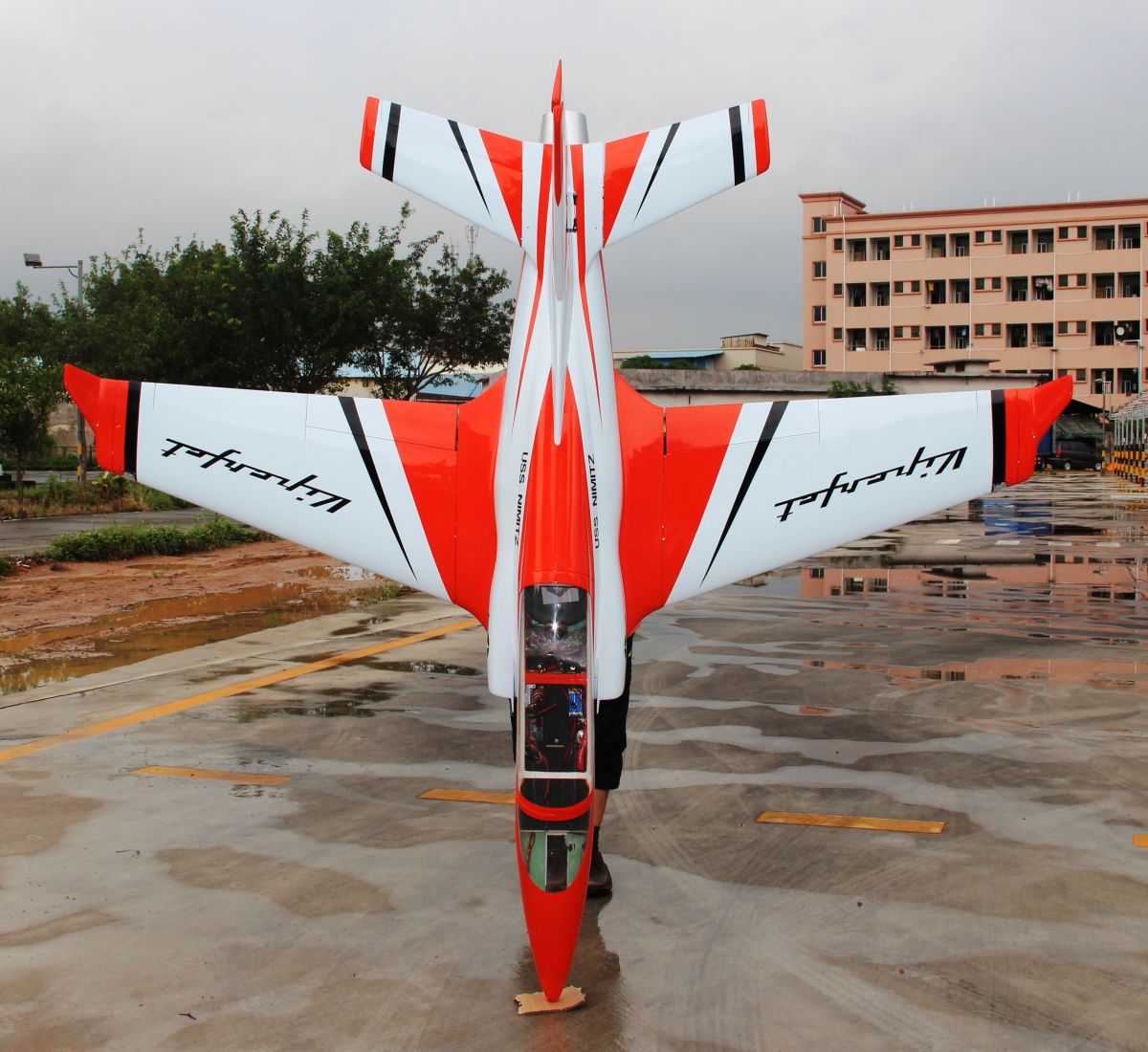

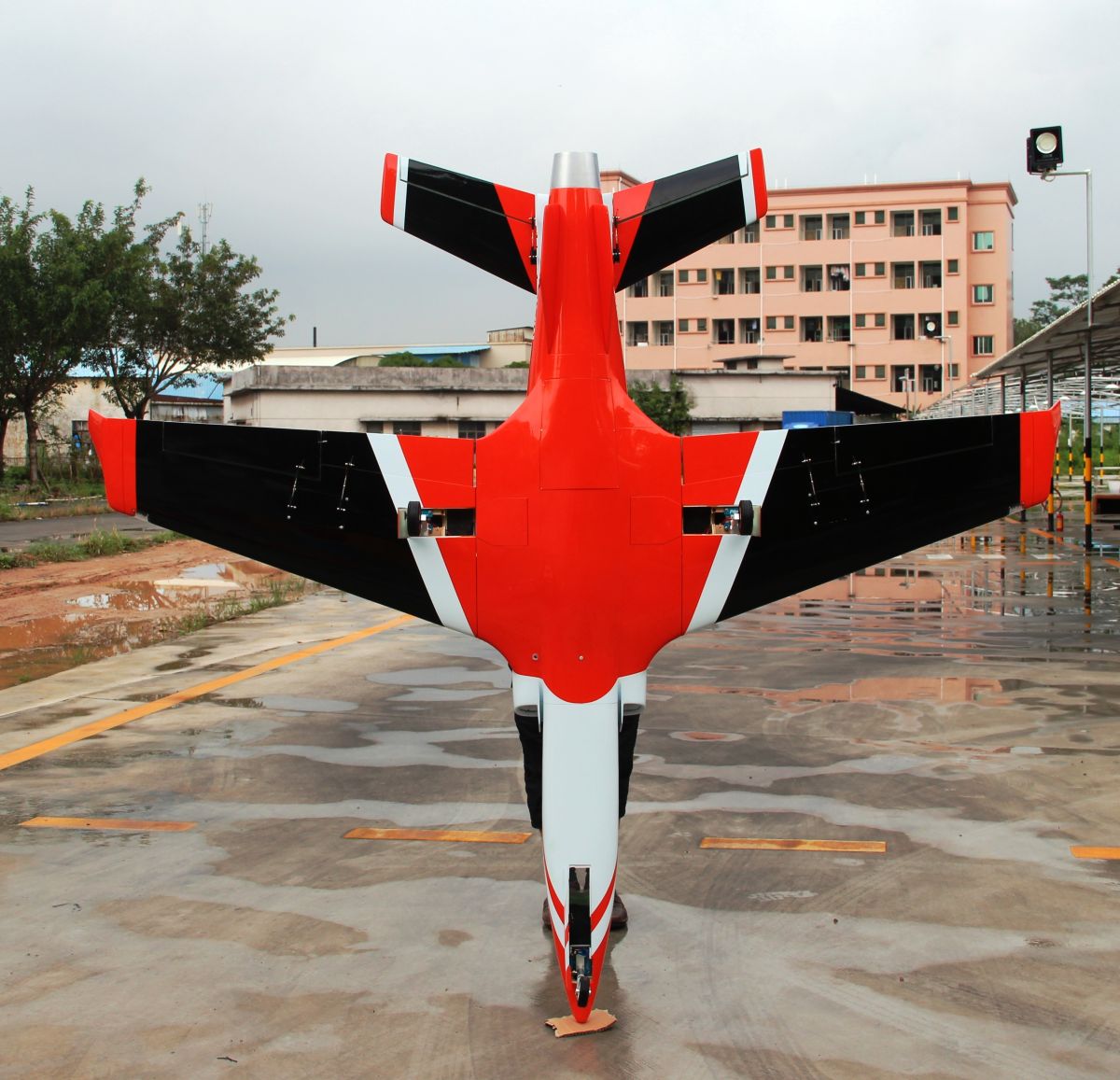

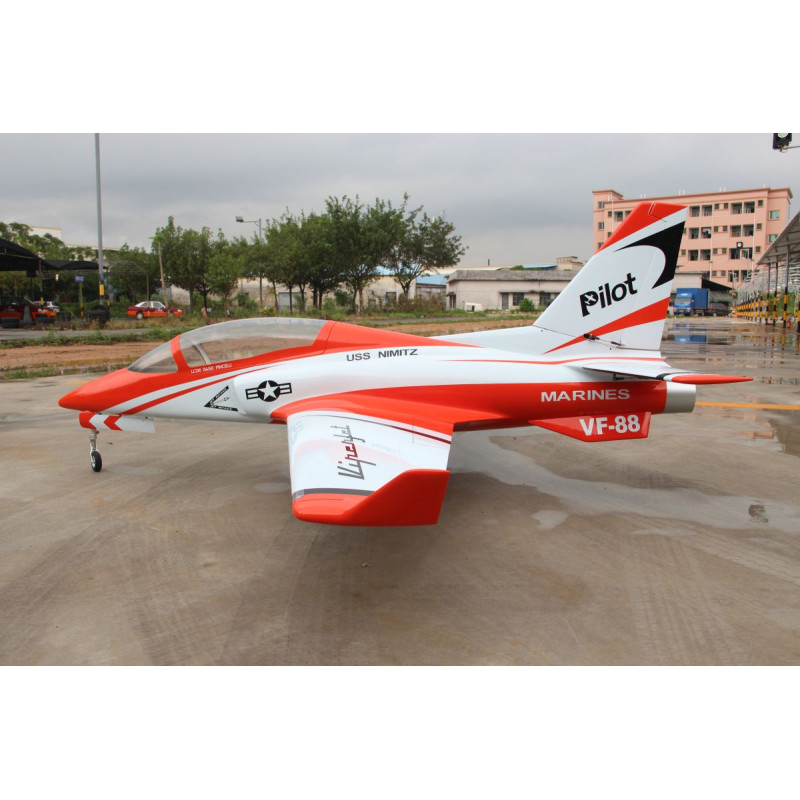

AVIAO PILOT RC VIPER JET 73" (1.8M) 07 ORANGE/BLACK/WHITE

NEW VERSION VIPERJET 1.8M, FEATURES:

• Full composite construction, lightweight and strong
• Two piece wing and two piece stabiliser all for easy transport
• One piece fuselage
• Full composite canopy (not transparent)
• Painted outside the mold so no seam lines
• All live hinging with precision gap sealing

INCLUDED HARDWARE:

• Complete air frame (including aluminium wing-tubes and fibreglass control horns)

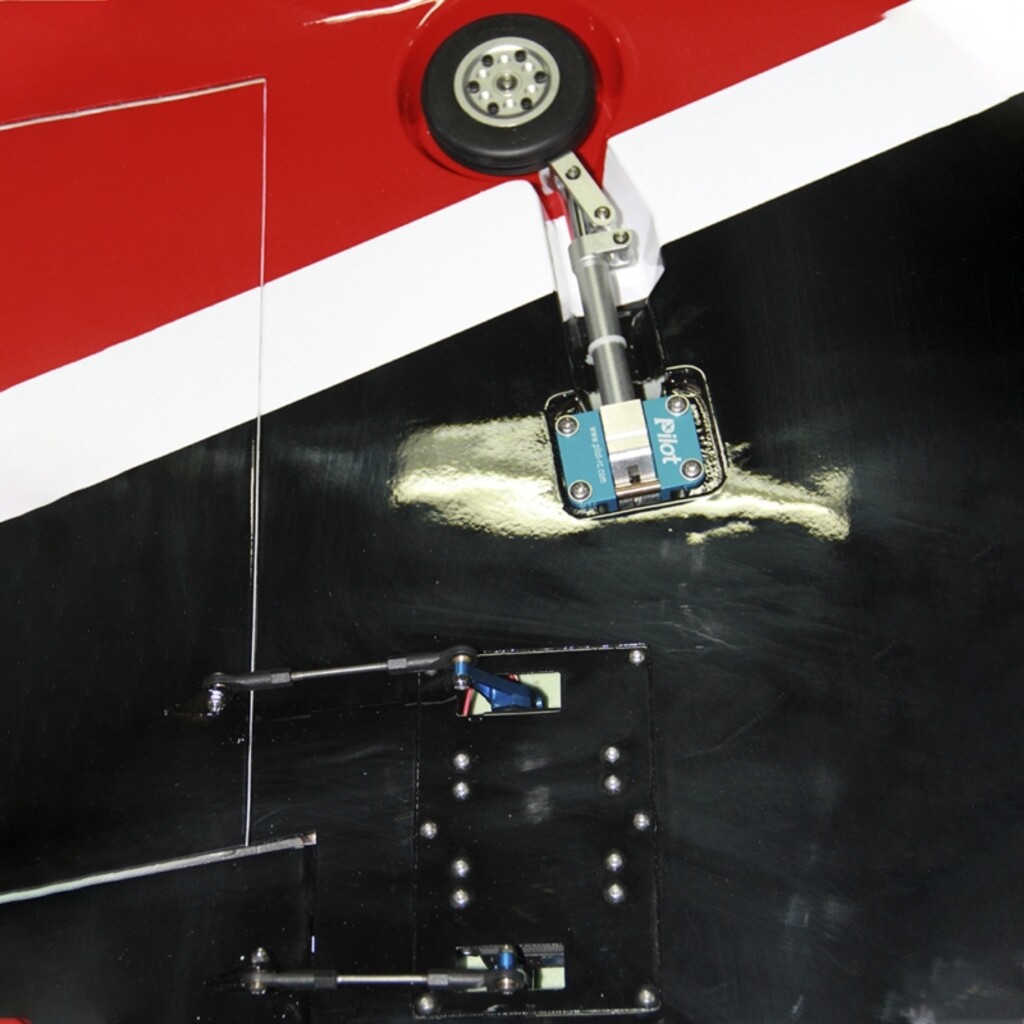

• Pilot-RC electric retracts and electric brakes
• Dual wall tail pipe (for 60-100N turbines)

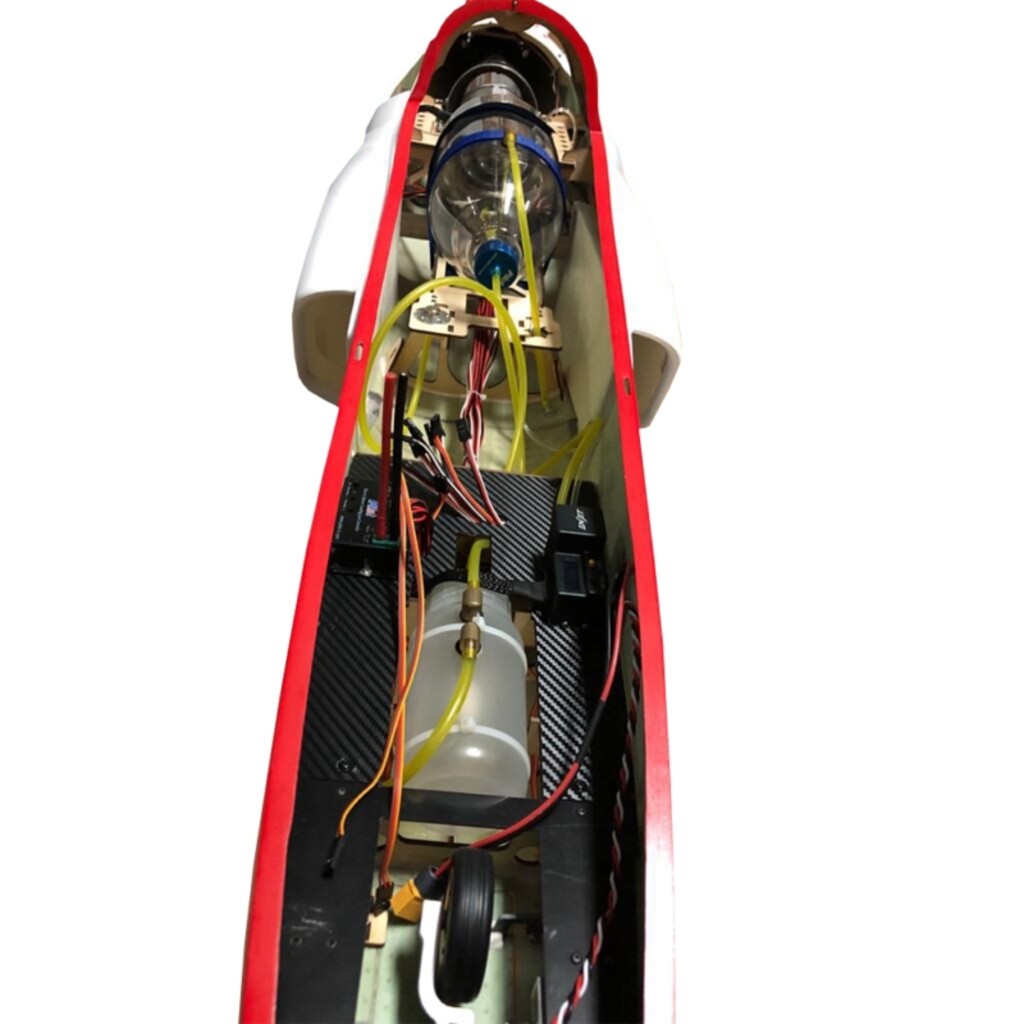

• Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
• Air trap UAT

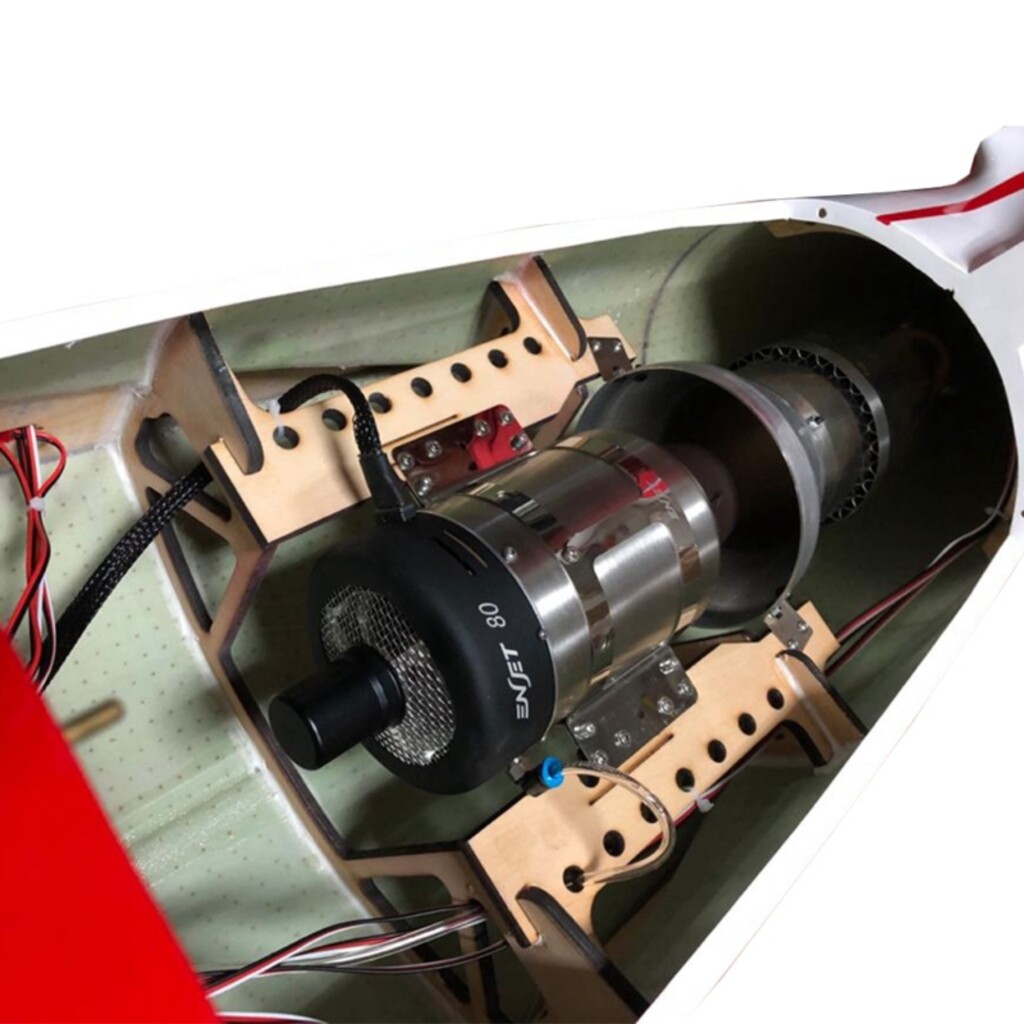

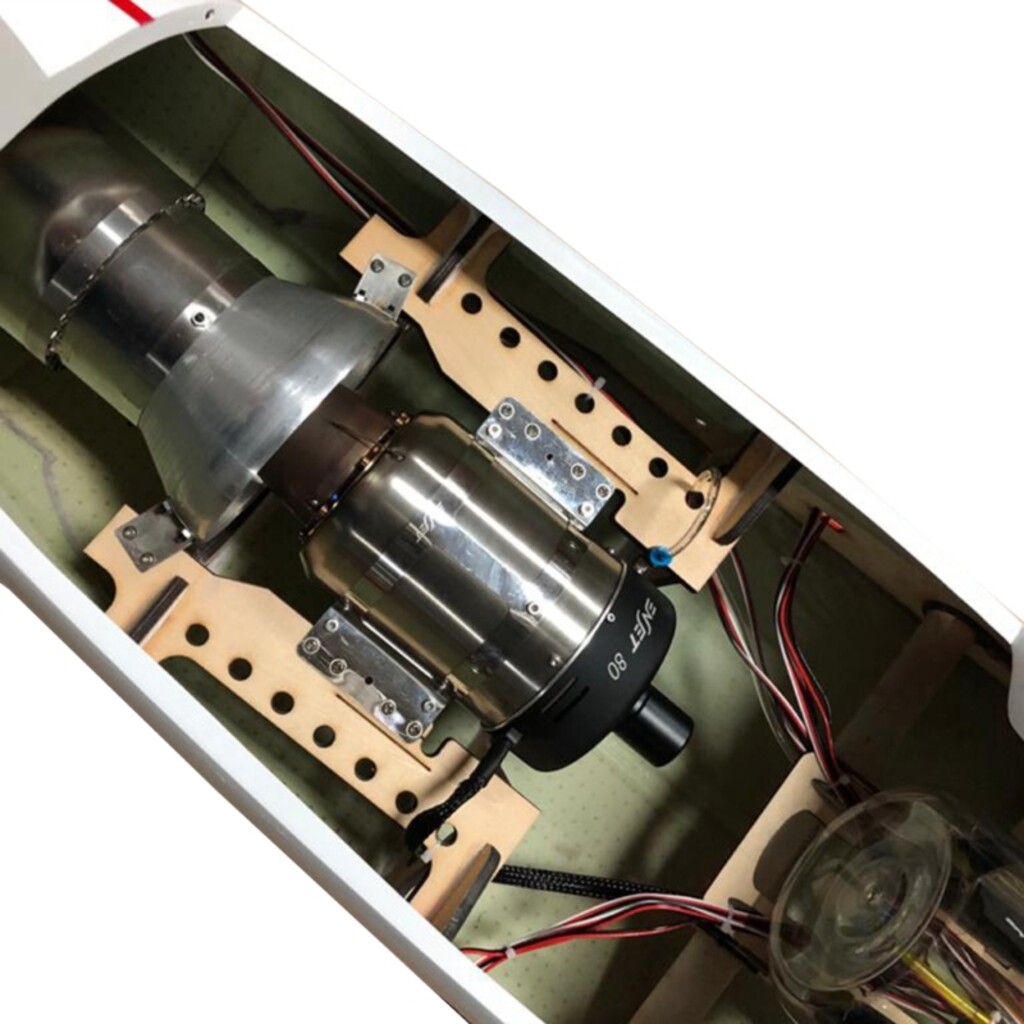

PNP version.  With ENJET E80 turbine in Turbine Ready version, put your receiver and battery, you can fly.

REQUIRED HARDWARE:

Turbine: 60-100N

Servos: Total x8 (x4 standard size + x4 medium size)

x4 standard size high torque (minimum 20kg)
x1 per aileron
x1 per flap.

x4 medium size servo (size: 35x15x30mm, minimum 4kg)
x1 per elevator
x1 on rudder
x1 for steering

Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.

PILOT-RC RECOMMENDED HARDWARE:

• Servos: Pilot-Rc PW28AH (28Kg – 0,056s at 8,4v)
• Servo arms: Pilot-Rc 1,2″ Aluminium arms (included with Pilot-Rc servos)

BUILD INFO:

CENTER OF GRAVITY:
185mm

CONTROL THROWS
Aileron: 9mm
Elevator: 15mm
Rudder:17mm
Flap: 57mm for landing , 25mm for take off
