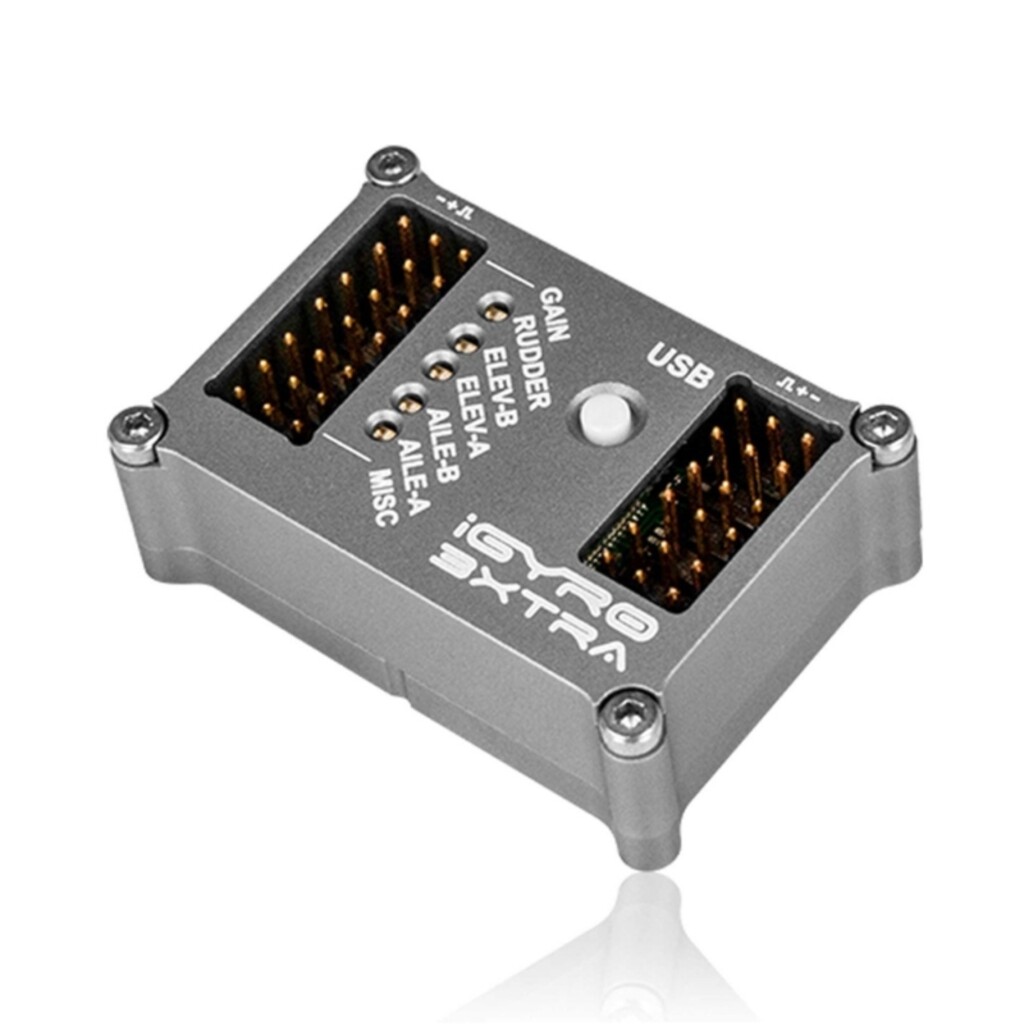

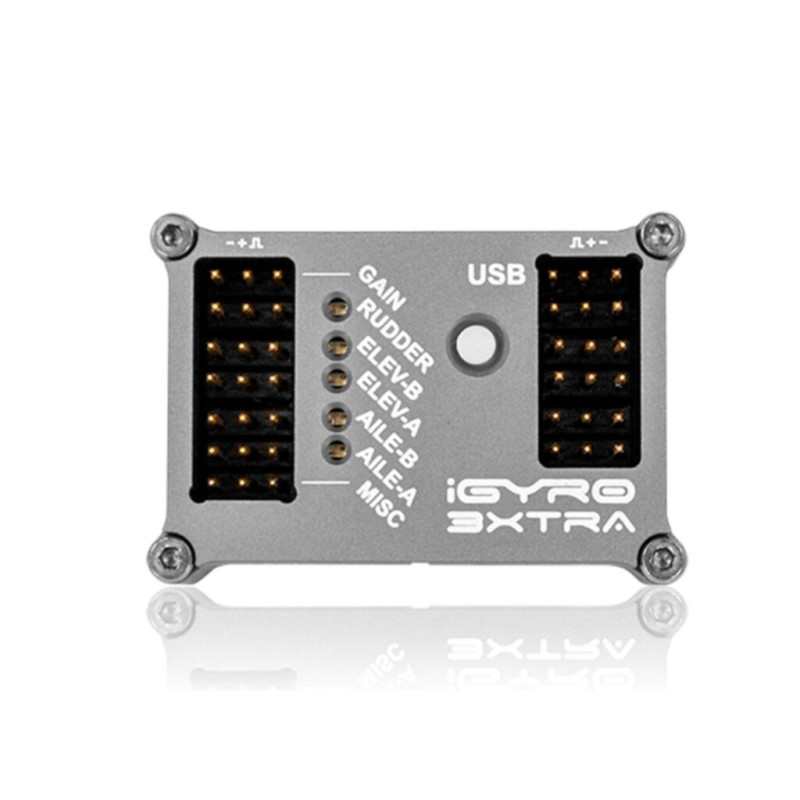

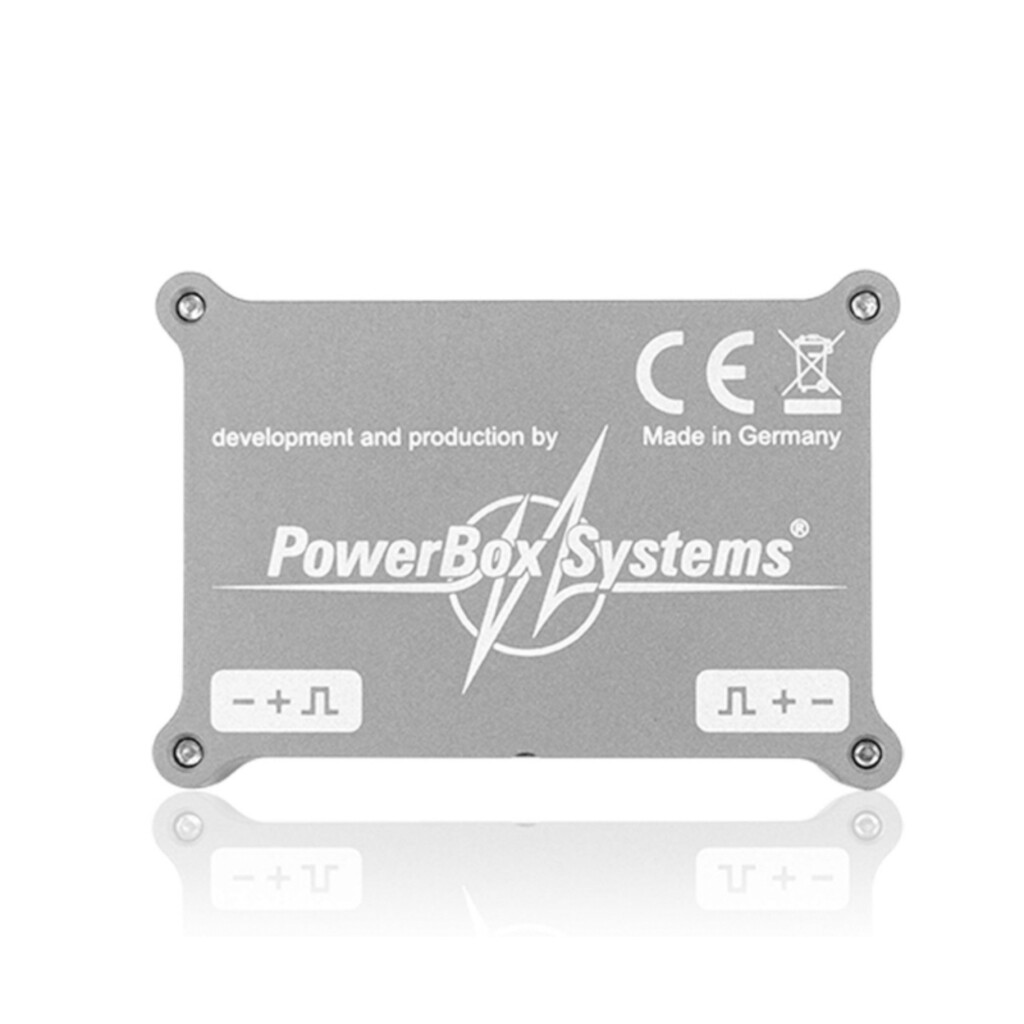

POWERBOX IGYRO 3XTRA PBS3620

Ref: 342292
Estoque: Indisponível
R$ 2.551,42
Comprar

PRODUCT DESCRIPTION:

The iGyro 3xtra ushers in the second generation of the iGyro family. The new iGyro 3xtra boasts a completely revised regulatory algorithm and set-up procedure, expanded features and enormously enhanced performance, making it the new “State of the Art”.

In contrast to its predecessor - the 3e - the new iGyro no longer incorporates delta and V-tail mixers. Instead the iGyro has a new, simple learning process enabling it to detect all servo mixer combinations, which can even include differential and unequal travels. The user simply sets up delta control surfaces, V-tails, flaperons and tailerons at the transmitter in the usual way. A sophisticated three-dimensional algorithm then divides up the control commands again into aileron, elevator and rudder for all five inputs individually. This method ensures accurate suppression of the individual axes when control commands are given, or when the heading function is in use.

Another significant innovation is the learning process for the installed position of the gyro: this simply involves movements of the model itself. At the same time the procedure also defines the directions of effect in the iGyro. In the past many pilots have been unsure whether they have actually set the direction of effect correctly, but this doubt is now eliminated.

If you are at the flying field and don’t have a smartphone with BlueCom Adapter or a laptop with USB Interface Adapter to hand, you can very easily adjust the gyro’s gain for each axis individually and accurately using the transmitter sticks - without any additional equipment at all!

The hardware has also been subtly improved: the unit now features comprehensive ESD protection to provide a complete shield against static charge problems in the model.

Supplementary features such as gyro characteristics, stick priority and lock-in feel also give experts the means to customise the iGyro 3xtra to their exact personal requirements.



FEATURES

Extremely accurate triple-axis MEMS sensor

New regulatory algorithm for fixed-wing model aircraft with improved performance

Optional GPS-controlled speed compensation

Freely selectable orientation in the model

Automatic detection of orientation in the model

Ultra-simple set-up procedure

Adjustment of gain on individual axes without additional devices

Delta and V-tail mixers accurately detected, including differential travels

Exact separation of control inputs when mixed inputs are in use

Flap mixer can be superimposed without affecting gyro performance

Gain adjustment at the transmitter

Selectable Attitude Assist function for precise gyro regulation

Two ranges selectable from the transmitter for different gyro functions

Selectable five-stage gyro characteristics

User-variable stick priority

User-variable lock-in feel

Input and output with PWM signals

Fine-tuning via USB or BlueCom and mobile telephone

Can be updated using the PowerBox USB interface adapter

Robust aluminium case



TECHNICAL DATA

Operating voltage: 4.0V - 9.0V

Current drain Power-on state: 40mA

Maximum load current: 20A

Signal input: PWM

Servo sockets: 5

Servo signal resolution: 0,5µs

Gyro regulation: Heading- and Normalmode

Gyro sensor type: MEMS

Number of sensor axes: 3

Dimensions: 43 x 30 x 15 mm

Weight: 36g, inkl. 6 Patchleads

Temperature range: -30°C to +75°C
