TR FUSELAGE AGUSTA A-109 450 HF4502

Ref: 33930
Estoque: Indisponível
R$ 1.104,80
Comprar



Accessory 1:

Accessory 2:

Length,Width,Height Lateral view:

Illustration 1:Servo assembly for alloy retractable landing gears and linkage rod (suitable for 9g servo as like as DS410)

Illustration 2:Servo assembly for alloy retractable landing gears and linkage rod (suitable for 9g servo as like as DS410)

Illustration 3:Retractable functionality

Package:

Instructions:

Specification:

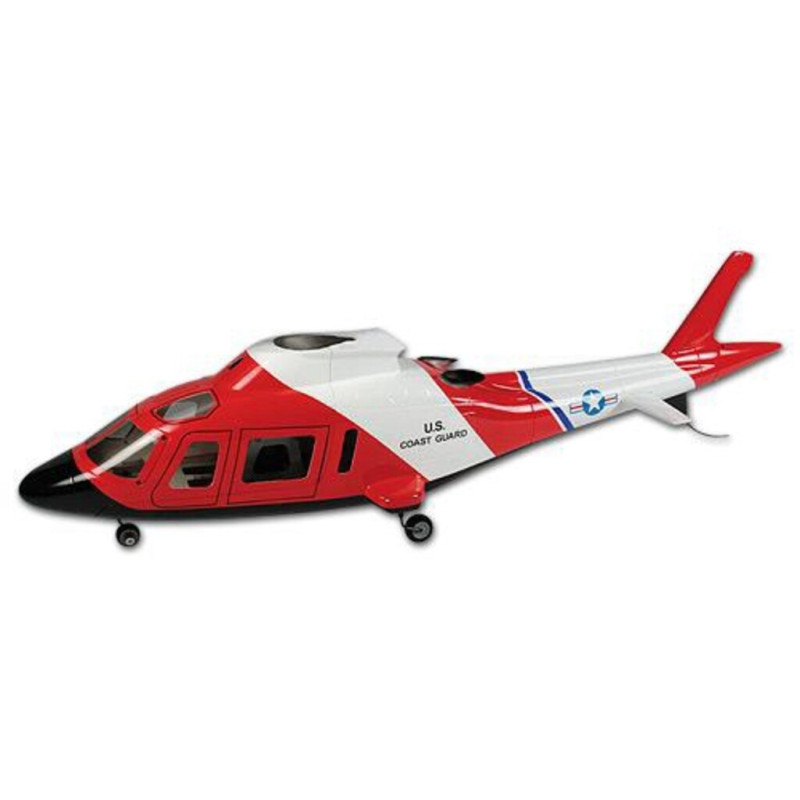

- A-109 450 Fuselage.
Realistic painted GF frame.

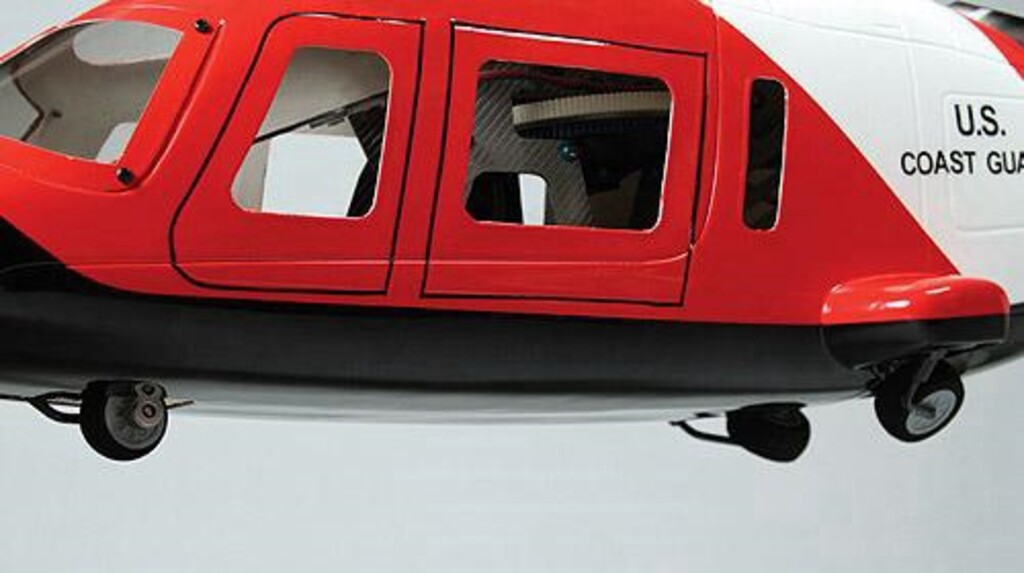

Retractable functionality, the retractable landing gear with smart towbar design, two DS410 servo is enough to tow 3 sets of landing gears.
Non screw canopy cover design which convenient for battery's maintenance.
Use For T-REX 450 SE/V2/SPORT/PRO/PLUS.

- Body length:745mm
Body width:180mm
Body high:240mm
Weight:350g

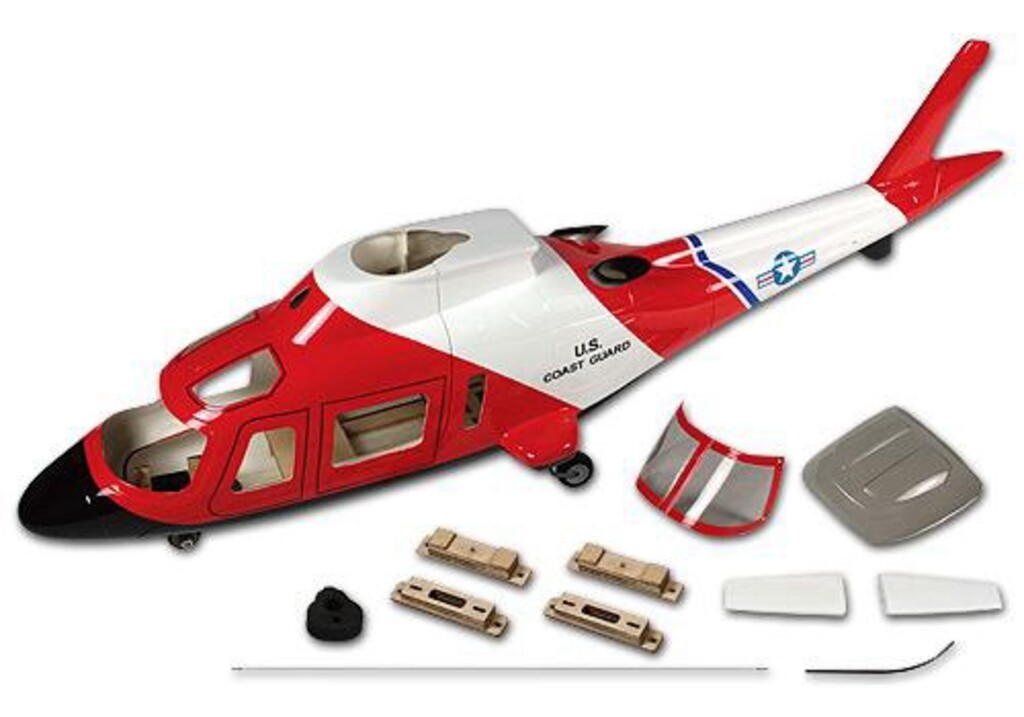

Accessory:

- Fuselage x 1
Canopy cover x 1
Front window x 1
Top window x 2
Tail unit cover x 1
Stabilizer x 2
Pipe mount x 1
Front fuselage Frame (for 450)x 1
Rear fuselage Frame (for 450) x 1
Front fuselage Frame (for 450 PRO)x 1
Rear fuselage Frame (for 450 PRO)x 1
Vertical stabilizer support arms x 1
Rudder servo mount x 2
Linkage rod(M) x 3(Φ1.3x19mm)
Tail rudder control rod x 1(Φ1.3x300mm)
Ball link x 8
Linkage ball A(M2x3.5) x 3(Φ4.75x8.18mm)
Linkage ball E(M2x2.5) x 4(Φ4.75x6.3mm)
M2 nut x 3
Set screw(M3x3mm) x 3
Washer side self tapping screw(T2x5mm) x 4
Washer side self tapping screw(T2x8mm) x 8
Washer side self tapping screw(T2x10mm) x 4
Self-tapping screw(T1.8x5mm) x 7
Screw(T2x8mm) x 8
Socket button head screw(M2x5mm) x 2
Socket button head screw(M2.5x5mm) x 2
Socket button head self tapping screw(T2x8mm) x 2
Washer (Φ2xΦ5x0.6mm) x 2
