SEMI-TRUCK TAMIYA 1/14 MERCEDES AROCS 3363 6X4 CLASSIC/GREY 56359

• Compatible with Tamiya 1/14 Tractor Truck Multi-Function Control Unit or Tamiya 1/14 MFC-03 Multi-Function Control Unit Tractor.
  Note: if using a Tractor Truck Multi-Function Control Unit, add a 4-channel analog radio for best results.
• Ladder frame chassis with aluminum channels and resin cross members.
• Shaft-driven from front-mounted motor to diff-equipped rear axles.
• Cabin with realistic tilt-forward operation.
• RS-540 brushed motor.
• ABS plastic body with distinctive “bucket-tooth” grille.
• Aluminum-bodied friction shocks.
• Three-speed, servo-controlled constant mesh transmission.
• Highly detailed cab with air tanks, mirrors and metal transfers depicting emblems and countless metal-plated parts. Interior details include a seat and dashboard. Photo-etched parts recreate the cab's rear platform.
• Suspension features a diecast metal front axle and reinforced resin rear axles, float-mounted on metal leaf springs and coil spring shocks.
• Included coupler lets modelers connect the kit to any currently available Tamiya 1/14 scale trailers.
• Bellcrank steering
• Ten rubber radial tires.
• Chrome-plated plastic wheels.
• LED light buckets (note: LEDs sold separately).

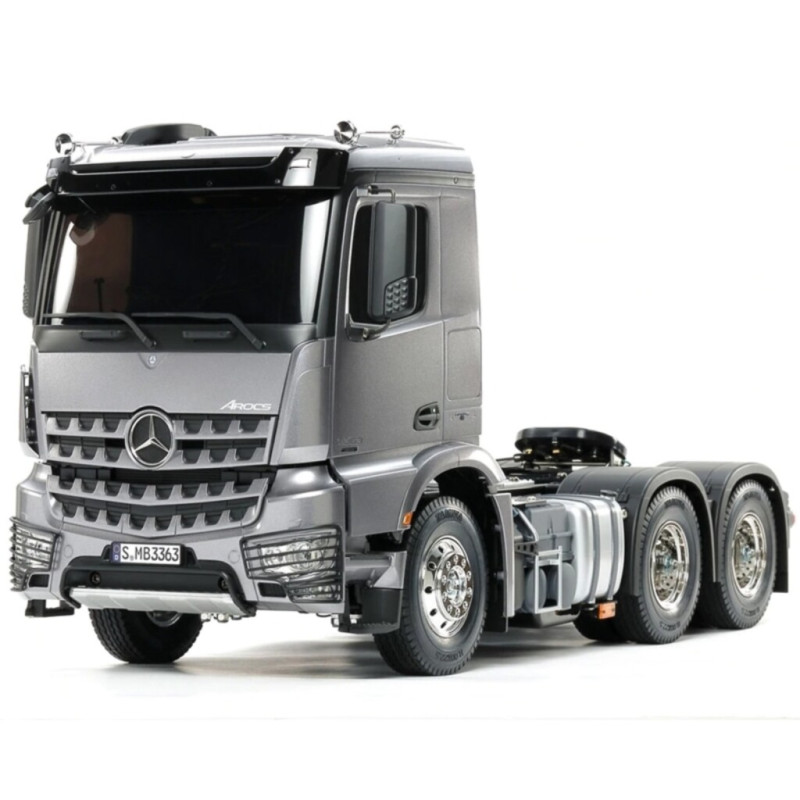

• This is the electric powered, radio controlled, 1/14 scale Tamiya Mercedes-Benz Arocs 3363 6x4 Tractor Truck kit.
• Compatible with the Tamiya Tractor Truck Option Parts for further customization.

FEATURES

• Chassis: Ladder frame with aluminum channels and resin cross members
• Cabin: Tilt forward operation just like full-size truck
• Drive: Shaft driven from front mounted motor to rear axles which are equipped with differentials
• Motor: RS540 brushed
• Transmission: Three speed servo controlled constant mesh
• Suspension: Die cast metal front axle and reinforced resin rear axles float mounted on metal leaf springs and coil spring shocks
• Cab: Highly detailed with air tanks, mirrors and metal transfers depicting emblems and numerous metal plated parts, interior details include seat and dashboard
• Shocks: Aluminum body friction (not oil-filled)
• Body: ABS plastic
• Wheels: Chrome plated plastic
• Tires: Ten, treaded rubber construction

INCLUDES

1/14 scale Tamiya Mercedes-Benz Arocs 3363 6x4 tractor truck kit 540 motor, tires, wheels, decal sheet, 3-speed transmission, instructions and coupler unit for trailer (trailer not included)

REQUIREMENTS

• Radio: 4-channel with 4-channel receiver
• Servos: Two standard size for steering and shifting
• Electronic Speed Control: Tamiya TEU302BK (TAMM3178) recommended, do not use the Tamiya TEU101BK or the TEU104BK
• Battery: 6-cell stick
• Battery Charger: Timed or peak for 6-cell battery
• Paint, building & track equipment

SPECIFICATIONS

• Length: 20.8" (529mm)
• Width: 7.5" (190mm)
• Height: 10.5" (267mm)
• Wheelbase: 10.7" (272mm)
• Gear Ratio: Low Gear 1:32.49
• 2nd Gear 1:17.66
• 3rd Gear 1:10.66

COMMENTS

The Tamiya Multi Function Control Unit (TAMC6511) not included, provides many different truck related sound effects. The Multi Function Control Unit REQUIRES a 2.4Ghz type radio only with analog trims such as the Tamiya 4YWD, TAMJ5252.

jxs 03/16/17
