CARRO AXIAL 1/24 SCX24 DEADBOLT 4WD ROCK CRAWLER RTR RED AXI90081T1

CARRO AXIAL 1/24 SCX24 DEADBOLT 4WD ROCK CRAWLER RTR RED AXI90081T1

Ref: 338165

Estoque: Indisponível

R$ 1.201,11

Comprar

In The Box

(1) SCX24™ Deadbolt™ 1/24 Scale 4WD Truck

(1) Axial AE-6 ESC/receiver combo (installed)

(1) Dynamite® 88T brushed electric motor (installed)

(1) Axial AS-1 steering servo (installed)

(1) Axial® AX-4 2.4GHz 3-channel radio

(4) AA transmitter batteries

(1) 350mAh 2S 7.4V LiPo battery

(1) USB LiPo charger

(1) Product Manual

Needed to Complete

Nothing! Everything you need to begin having fun with the 1/24 scale Deadbolt is included!

Features

Includes 3 channel radio system, ESC and transmitter batteries

Includes motor and on-board LiPo battery

Realistic narrow-stance rock crawler body in olive green or red

Molded roll cage with realistic light bar

Realistic driver figure and many other scale details

Officially licensed KMC XD229 Machete Crawl wheels

Officially licensed Nitto Trail Grappler M/T tires (S30 compound, large block tread)

Full-time 4WD

Splined and sleeved front and rear drive shafts allow for maximum suspension travel while keeping the power to the wheels

Steel front and rear axles, front stub axles and dogbones provide strength and durability

Rugged steel C-channel frame rails with bracing keep everything rigid and aligned

Front and rear axles consist of a two-piece, molded plastic solid axle design

3-Link front and 4-link rear suspension supply optimal handling

Coil-over shocks with simulated reservoir and durable plastic suspension links deliver proven Axial crawling performance

Front and rear differentials each house a worm gear setup to power the axles and create higher ground clearance. Worm gear drive also provides a low gear ratio to reduce torque twist

Two LEDs in the front bumper for night driving

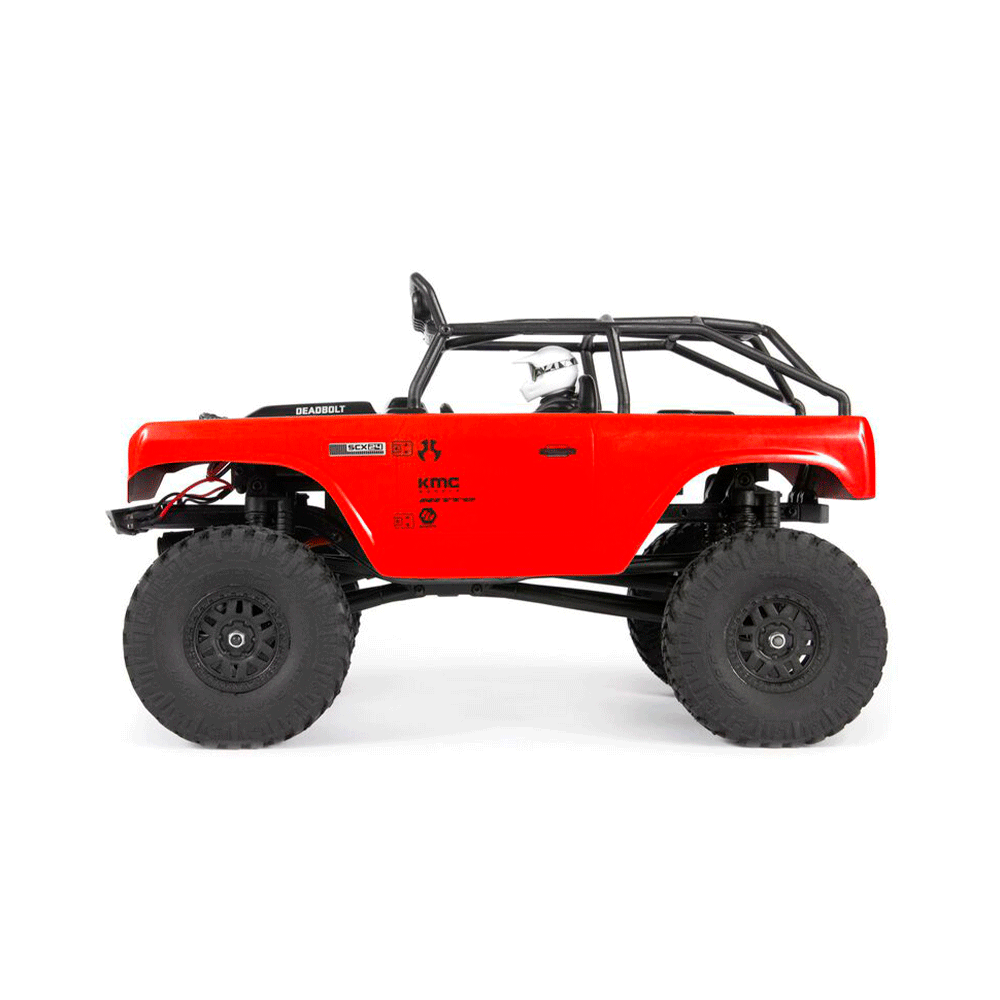

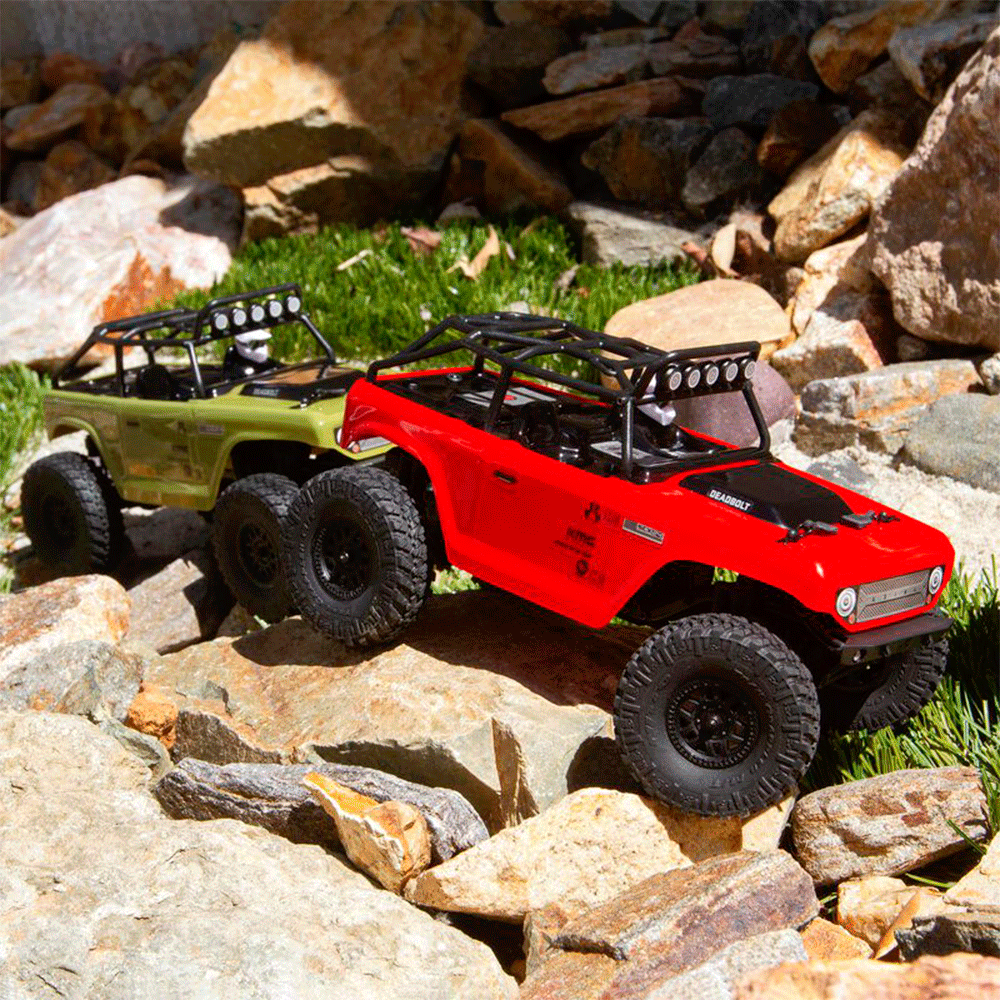

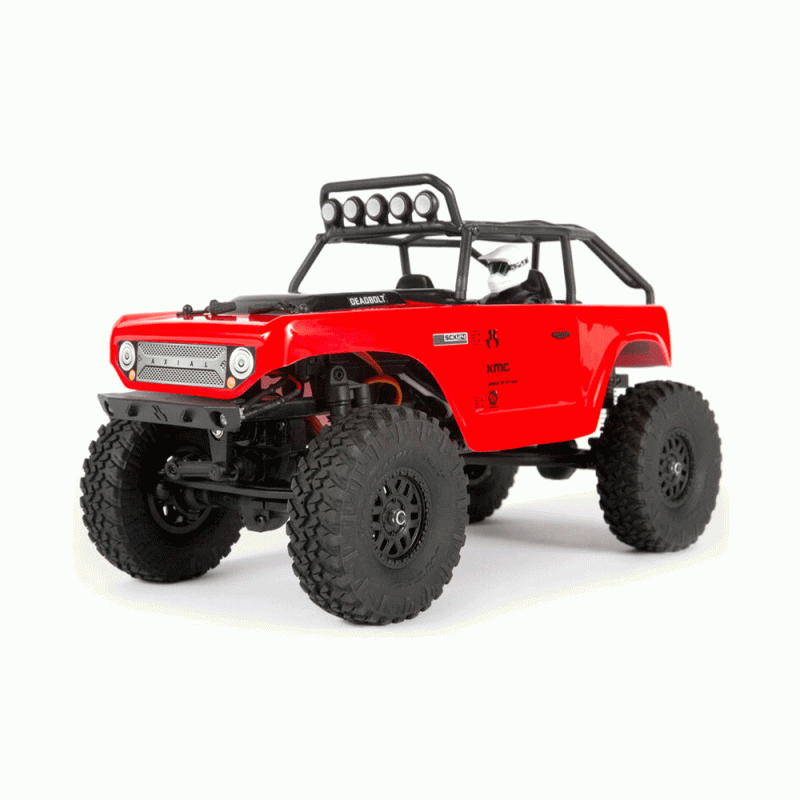

Overview

The SCX24™ Deadbolt™ 4WD is the first Axial^® off-roader in 1/24 scale. At less than 8" long, it's the perfect rig to take along on your hiking, camping, and other outdoor and indoor adventures — offering factory-assembled ease, scale looks, and confident handling on any trail.

Even new modelers driving the SCX24 chassis will be well-equipped to tackle tough climbs and rough trails. Like the larger SCX10™ II chassis, this smaller version uses plenty of steel components — from the C-channel frame rails to the front and rear axles and dogbones. Even over off-road, mountainous, rocky and desert terrain, it has the strength to keep pushing onward and upward.

For the most reliable handling, the SCX24 chassis features a three-link front and four-link rear suspension. The combination of coil-over shocks and durable plastic suspension links delivers Axial-worthy crawling performance even at this small scale. The worm gear drive setup permits a high ground clearance plus a low gear ratio that reduces torque twist.

Powered by an included 030-size motor and LiPo battery, the SCX24 Deadbolt shows off competence and charisma on the trails. Check out that Deadbolt body — with its narrow stance, bulging hood, realistic driver figure, and molded roll cage with realistic light bar. The realism continues right down to the ground, where you'll find licensed KMC XD229 Machete Crawl wheels wrapped in Nitto Trail Grappler tires.

Adding even more to its beginner appeal, the SCX24 Deadbolt comes 100% complete and ready to run. Everything required for action is in the box: assembled and finished vehicle; Axial 3-channel 2.4GHz radio system with servo and ESC/receiver unit; Dynamite^® 88T brushed electric motor and 350mAh 2S 7.4V LiPo battery; USB LiPo charger; and even four AA cells for the transmitter!

Video Overview

Support Video Playlist

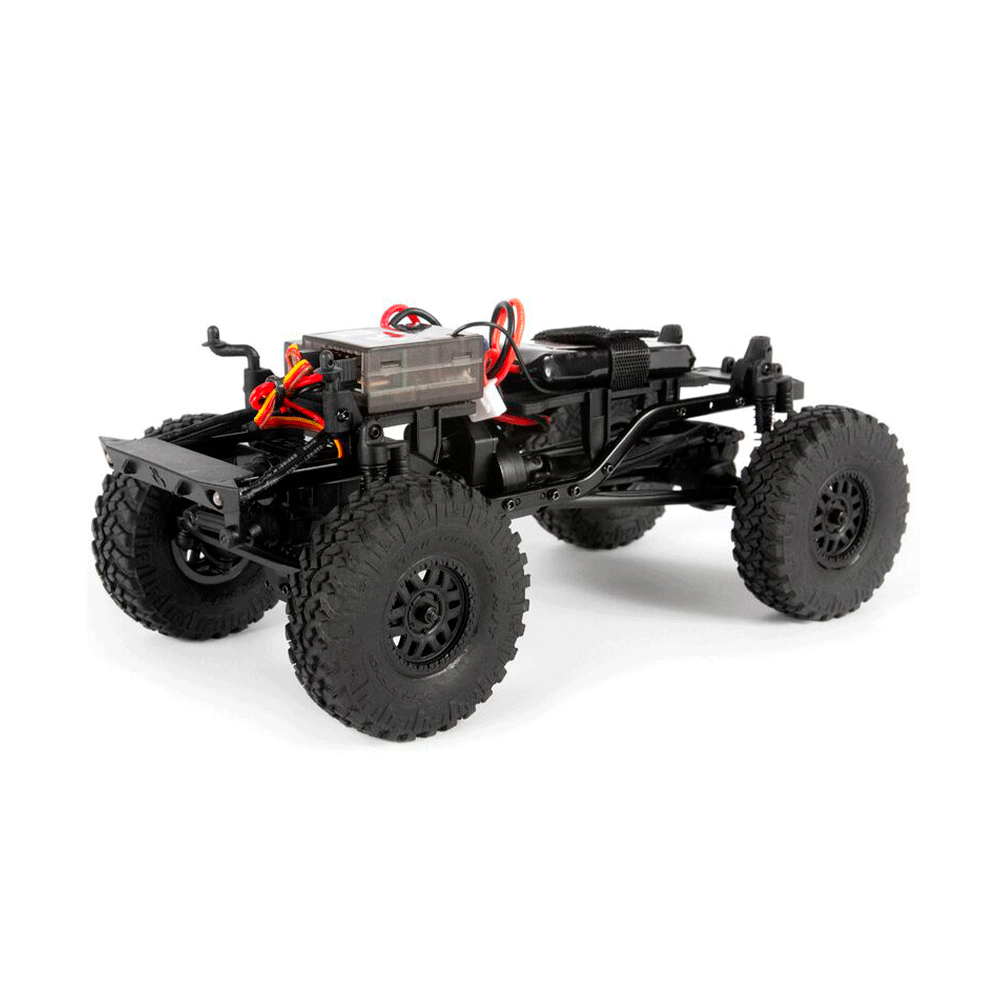

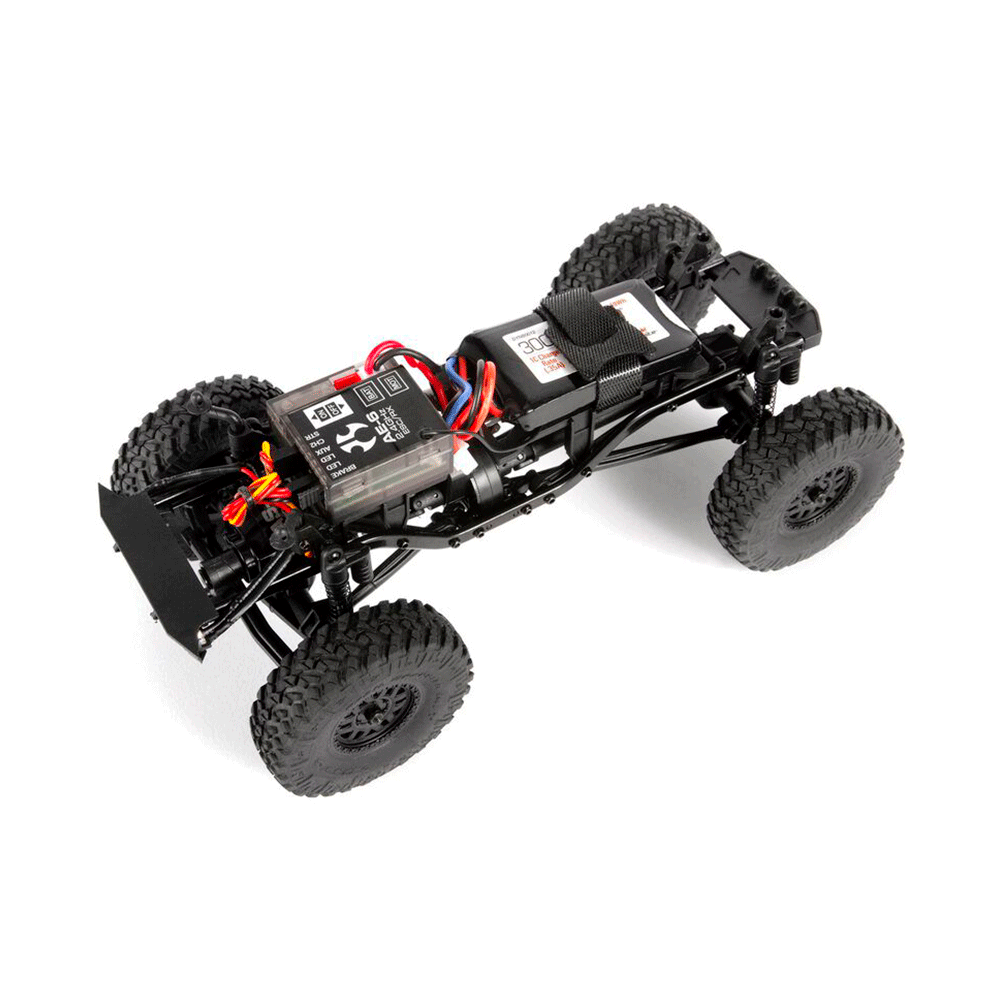

STEEL C-CHANNEL CHASSIS FRAME RAILS

Just like the 1/10th scale SCX10™ II platform, the SCX24™ chassis features rugged and sturdy steel c-channel frame rails with bracing to keep everything intact and aligned.

DYNAMITE^® 88T BRUSHED MOTOR

The Dynamite 88T brushed electric motor provides the right amount of torque to help ascend steep climbs. It's mated to a steel motor mount to keep flex to a minimum, which helps protect the gears.

WORM GEARS

The front and rear differentials each house a worm screw and worm gear setup to get the power to the axles and create higher ground clearance.

DURABLE STEEL AXLES

Steel front and rear axles, front stub axles along with steel dogbones provide strength and durability to keep things running during tough climbs and rough trails.

SPLINED DRIVE SHAFTS

The front and rear drive shafts are splined and sleeved to allow for maximum suspension travel while keeping the power to the wheels.

COILOVER SHOCK ABSORBERS

Even at this small scale, the combination of coilover shocks with simulated reservoirs and durable plastic suspension links delivers the crawling performance you've known and expect from Axial.

FRONT AND REAR SOLID AXLES

The front and rear axles consist of a two piece, molded plastic solid axle design. For optimal handling, the SCX24™ suspension features a three-link front and four-link rear setup.

LED LIGHTS INCLUDED

Two bright LED lights are included and are mounted in the front bumper. An extra LED light port on the ESC allows you to add optional LED lights.

4-LINK REAR SUSPENSION

The suspension geometry utilizes a 4-Link design for the rear which is optimized to reduce axle steer and torque twist. We've also included extra suspension links for adjusting your wheelbase length.

KMC XD229 MACHETE CRAWL WHEELS & NITTO TRAIL GRAPPLER M/T TIRES

Officially licensed KMC XD Machete wheels are legendary in the off-road world. They are molded in black and feature stunning scale details, despite the small scale.

The officially licensed Nitto Trail Grappler M/T Tires offer a fantastic blend of off-road performance while still retaining excellent composure for on-road use.

HINGED BODY SYSTEM

The hinged body system offers easy access to on-board components. You can quickly reach the battery and chassis by removing just two body clips and swinging the body up.

FULL BALL BEARINGS

Just because the SCX24™ is smaller in size doesn't mean the features need to follow suit. No bushings found here, instead the drivetrain is freely spinning on sealed cartridge bearings throughout the entire vehicle.

AXIAL AS-1 SERVO

Mounted just above the front axle is the Axial AS-1 servo, with a servo saver that allows for steering accuracy, while also providing protection for the servo gears in the event of a bind or impact.

Receiver	Included
Product Width	3.9" (99 mm)
Outer Diameter	2" (51 mm)
Radio	Included
Bushing Material	Plastic
Charger	Included
Differential	Worm gear 16T/4T
Gear Pitch	N/A
Servos	Included
Power Type	Electric
Tire Tread	Grappler
Vehicle Type	Rock Crawler
Water-Resistant	No
Pinion	10T
Scale	1/24
Approximate Assembly Time	None
Body	Painted
Ball Bearings	Full Set
Completion Level	Ready-To-Run
Drivetrain	4WD
Drive Type	Forward/Brake/Reverse
Product Height	4.73" (120 mm)
Motor Type	Brushed
Speed Control	Included
Wheelbase	5.25" (133.5mm)
Battery	Included
Connector Type	PH 2.0 (High-Current Ultra Micro)
Motor Size	030 Brushed Electric Motor
Product Length	7.8" (198 mm)
Spur Gear	55T
Steering Type	2WS
