CARRO AXIAL 1/10 CAPRA 1.9 4WD UNLIMITED TRAIL BUGGY KIT AXI03004

CARRO AXIAL 1/10 CAPRA 1.9 4WD UNLIMITED TRAIL BUGGY KIT AXI03004

Ref: 338158

Estoque: Indisponível

R$ 2.316,51

Comprar

In The Box

(1) Axial® Capra™ 1.9 Unlimited Trail Buggy 4WD Kit

(1) Product Manual

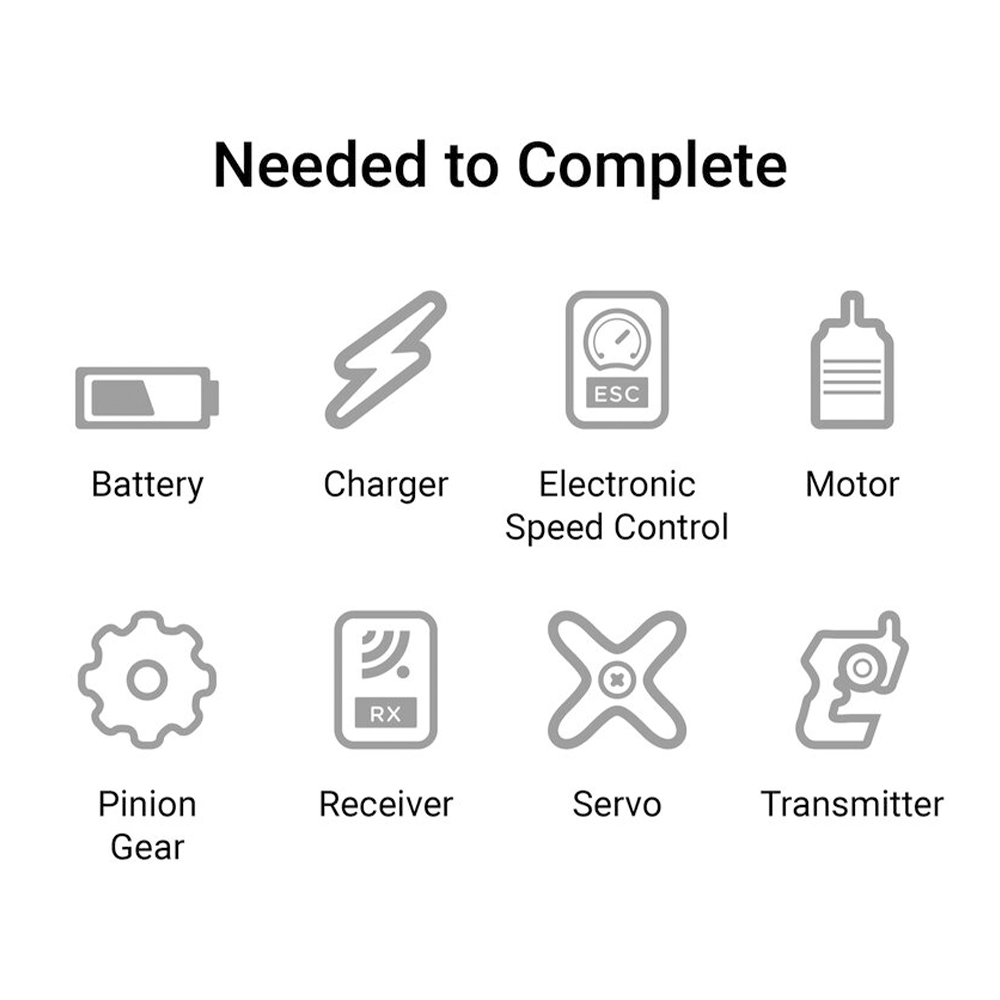

Needed to Complete

(1) 2+ Channel Transmitter with receiver

(1) Metal Gear, Hi-Torque Steering Servo

(1) ESC and Motor

(1) 14T Pinion Gear

(1) Battery

(1) Compatible Battery Charger

(1) Micro Servo (OPTIONAL, for Dig Function)

(1) Paint

(4) Tires

Features

Newly designed transmission with Dig function enables a tighter turning radius by locking the rear axle for FWD power only.

Currie F9 Portal Axles increase ground clearance at the diff pumpkin for the best crawling performance.

Includes all-metal gears, from the center transmission to the lockers and portal axles.

Tube chassis design offers optimum clearance plus realistic scale looks.

All pivot points are on stainless steel balls for a durable, long-lasting suspension point.

Includes injection-molded, 3-piece, licensed Raceline beadlock wheels.

Adjustable oil-filled shocks feature hard anodized, threaded shock bodies, a single coilover spring, and a cap with a bleed port.

All-metal front universal axles provide smooth action and 45 degrees of steering angle for an efficient, high-performance drivetrain.

Durable, machined aluminum universal.

Finely tuned suspension geometry delivers the best crawling capabilities

Overview

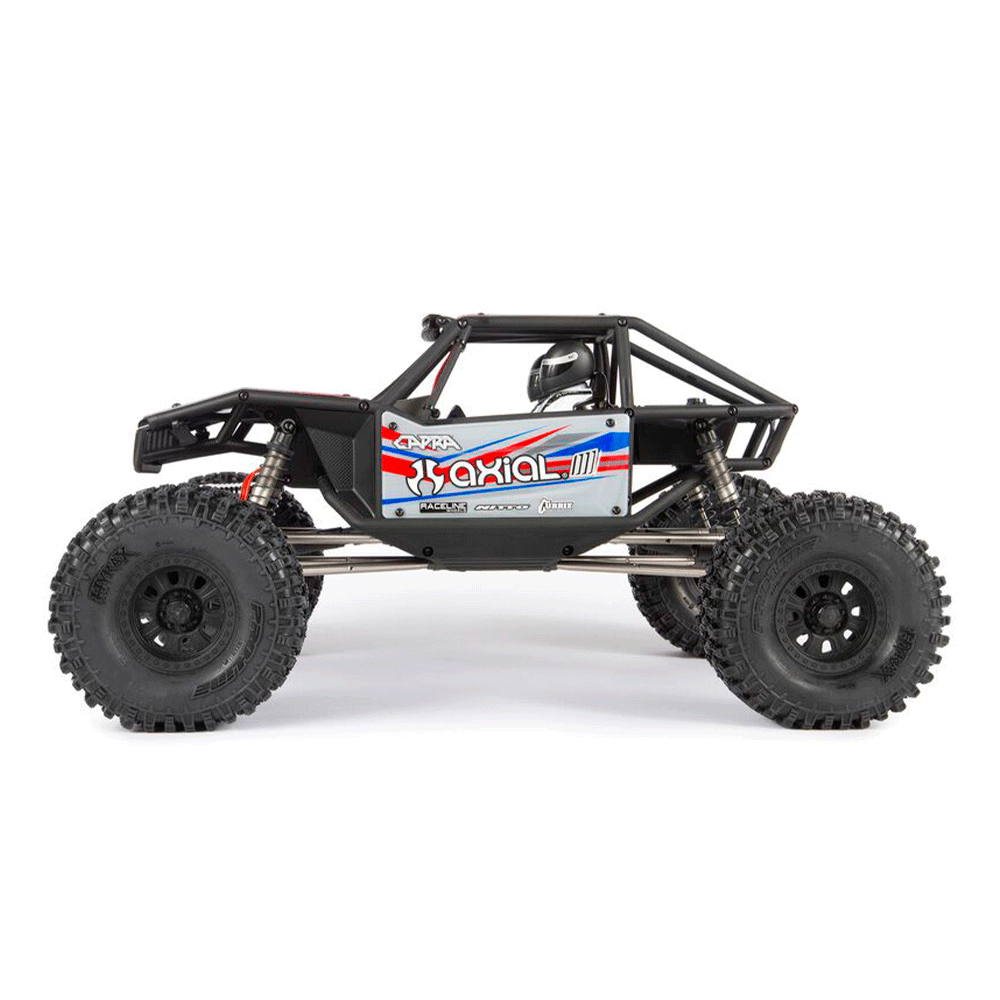

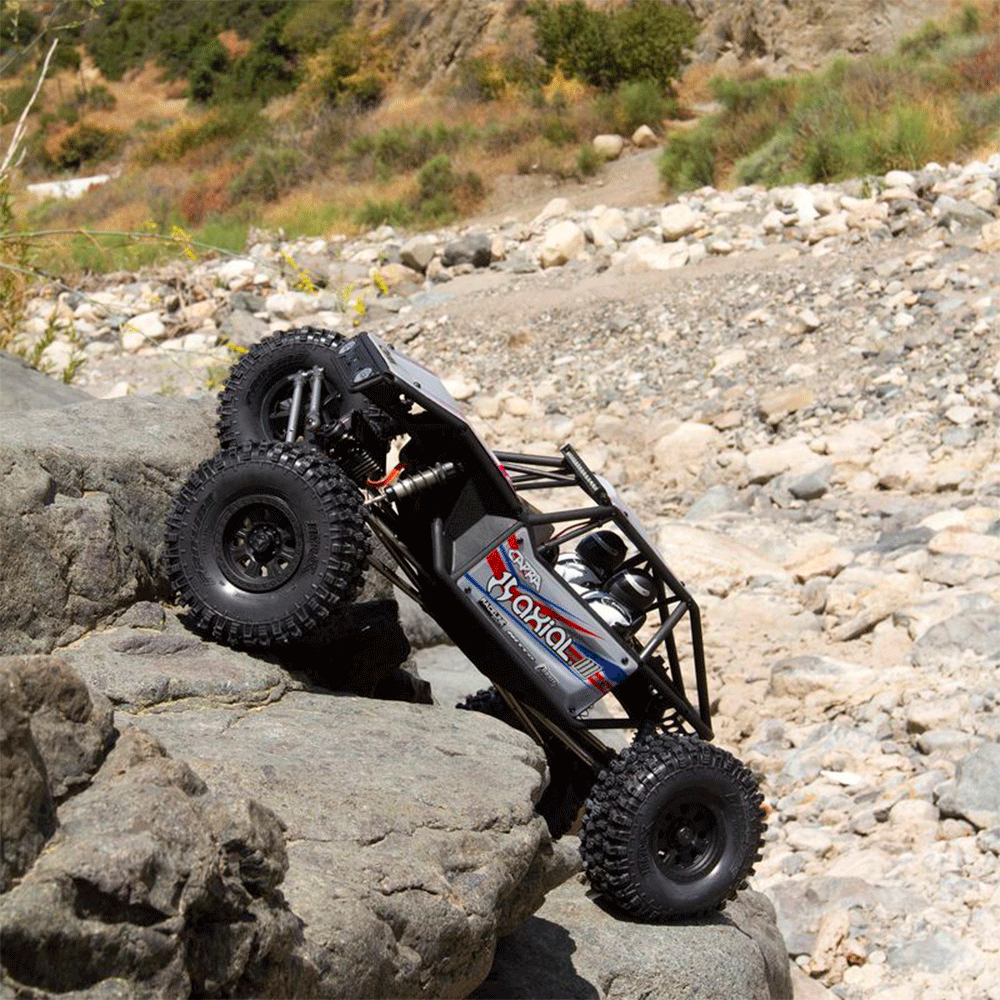

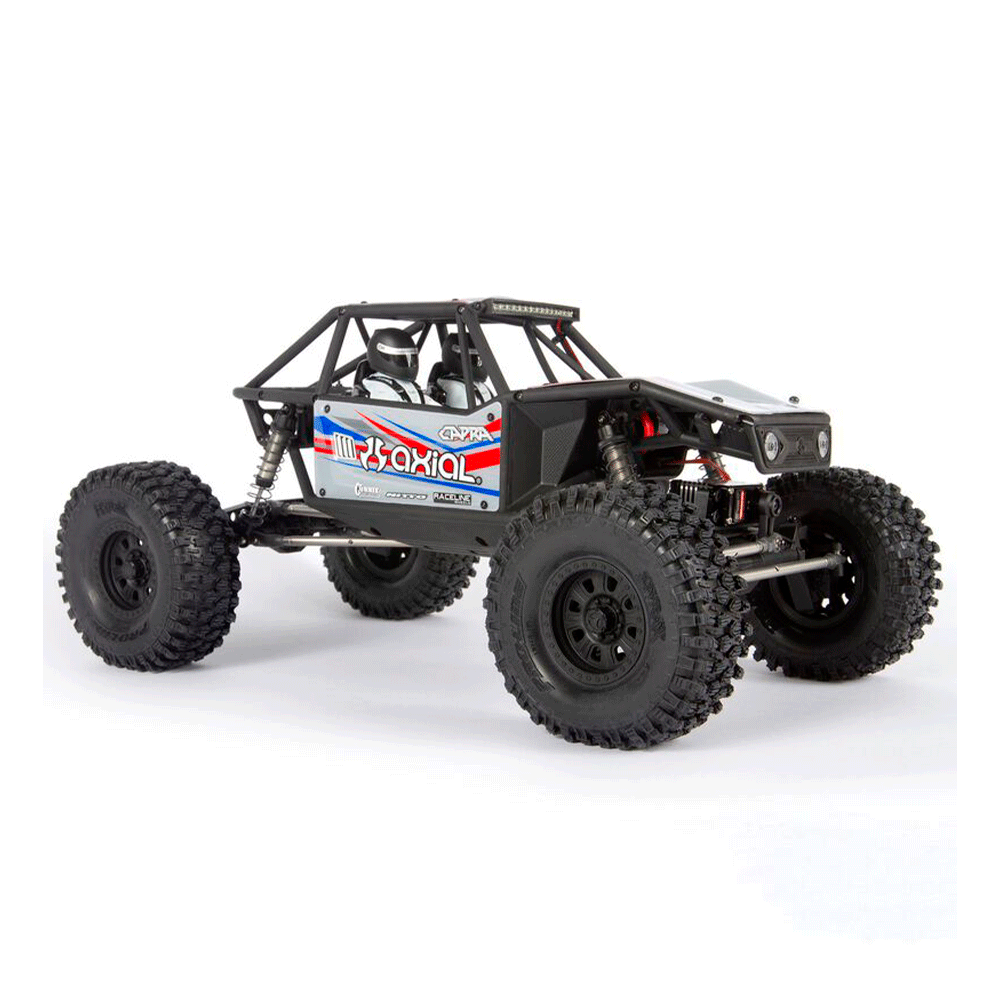

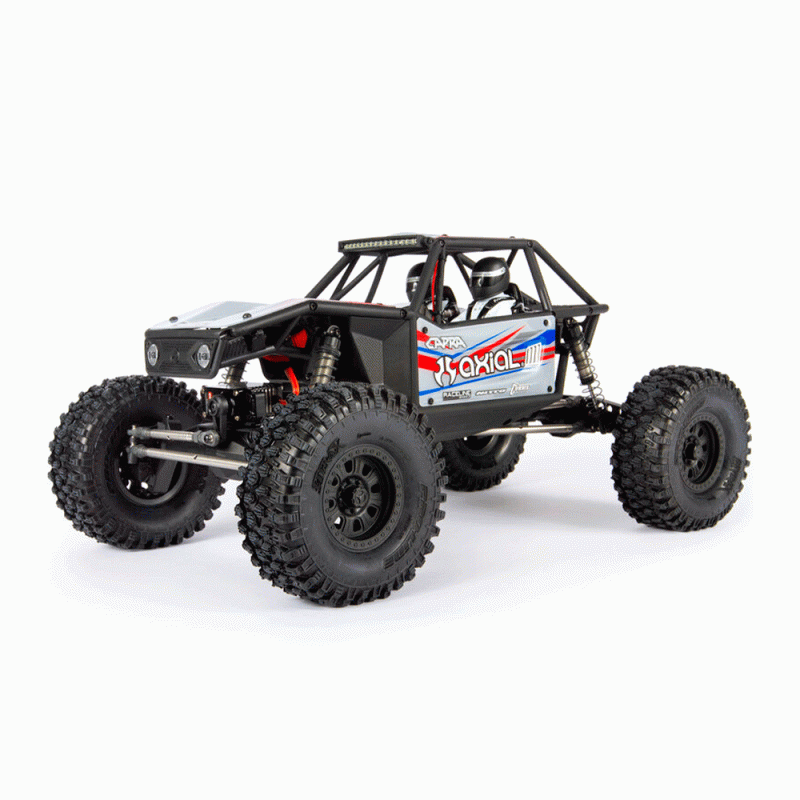

The Axial^® Capra™ 1.9 Unlimited Trail Buggy Builder's Kit is a "new from the ground up" design that any advanced RC enthusiast eager for cutting-edge crawling will appreciate. Its Currie F9 Portal Axles provide extra ground clearance at the diff pumpkin for the best crawling performance. With the included Dig transmission, you can also switch on the fly between 4WD and FWD directly from your 3-channel transmitter — locking the rear axle whenever you need the tighter turning radius of front drive power. The Capra features a realistic tube chassis design and metal gears everywhere, from the center transmission to the lockers and portal axles. It rides on licensed Raceline 3-piece molded beadlock wheels that can be fitted with whatever 1.9 tires you prefer. For pioneering performance in an RC trail buggy kit, choose the Axial Capra.

Video Overview

CURRIE F9 PORTAL AXLES

The Currie F9 Portal Axles add substantially more ground clearance at the diff pumpkin while also providing an excellent 7.39:1 gear ratio. Completely ball bearing driven, and metal gears throughout for durability.

HI-PINION GEARS

The ring and pinion gears are machined steel, including the locker. The design utilizes a six bolt design for durability.

DIG TRANSMISSION

The new transmission has a Dig function that offers the tightest turning radius on a production crawler in the industry. When needed, simply switch from 4WD to front-wheel-drive by locking the rear axle from your transmitter. The transmission also includes a full set of ball bearings and all metal internal gears for strength and durability.

NOTE: Dig functionality requires an additional micro servo, not included. Micro Dig Servo required, SPMSSX107 recommended (for Dig operation)

UNIVERSAL AXLE SET

Universal joint axles allow up to 45 degrees of steering and provide smoother action for a higher performing, efficient drivetrain.

Up to 45 degrees of steering

Smooth action for an efficient drivetrain

Compact yet durable design

Hardened steel construction

WB8 HD WILDBOAR™ DRIVESHAFTS

WB8 HD Wildboar™ front and rear driveshafts feature a larger diameter cross pin (2x11mm) along with an M4 Screw Shaft (2mm hex drive) for greater strength. A center splined slider floats between each end and has added material to reduce flex and fatigue.

6MM STAINLESS STEEL LINKS

Strong 6mm stainless steel links with high grade plastic rod ends for durability. All links are metal including the steering.

STAINLESS STEEL PIVOT BALLS

All pivot points are on stainless steel balls that provide a durable, long-lasting suspension point.

SKIDPLATE WITH BOAT SIDES

The Capra features a small skidplate footprint with boat sides to help maneuver and slide over rough, challenging obstacles.

STAINLESS STEEL STEERING LINKS

The steering links are also made from 6mm stainless steel, offering precise steering and durability.

LARGE BORE ALUMINUM SHOCKS

The oil-filled shocks are an all-new design with hard anodized, threaded shock bodies and a single coilover spring. Their increased bore size creates more fluid volume for better performance. A bleed screw helps to bleed air from the shock during assembly for greater consistency. The shocks are also tunable so you can achieve the best dampening rate.

4-LINK SUSPENSION

We've fine-tuned the suspension geometry with multiple mounting locations for the upper link mounts to provide the best crawling capabilities.

A1.9, 3-PIECE BEADLOCK WHEELS

For striking scale looks and serious trail performance, we've outfitted the Capra™ with officially licensed 3-piece Raceline Monster beadlock wheels.

LED LIGHT BAR

A roof mounted LED light bar helps light the way on those late night crawls with your friends. Additional LED lights can be added to the front headlights (optional LED lights not included).

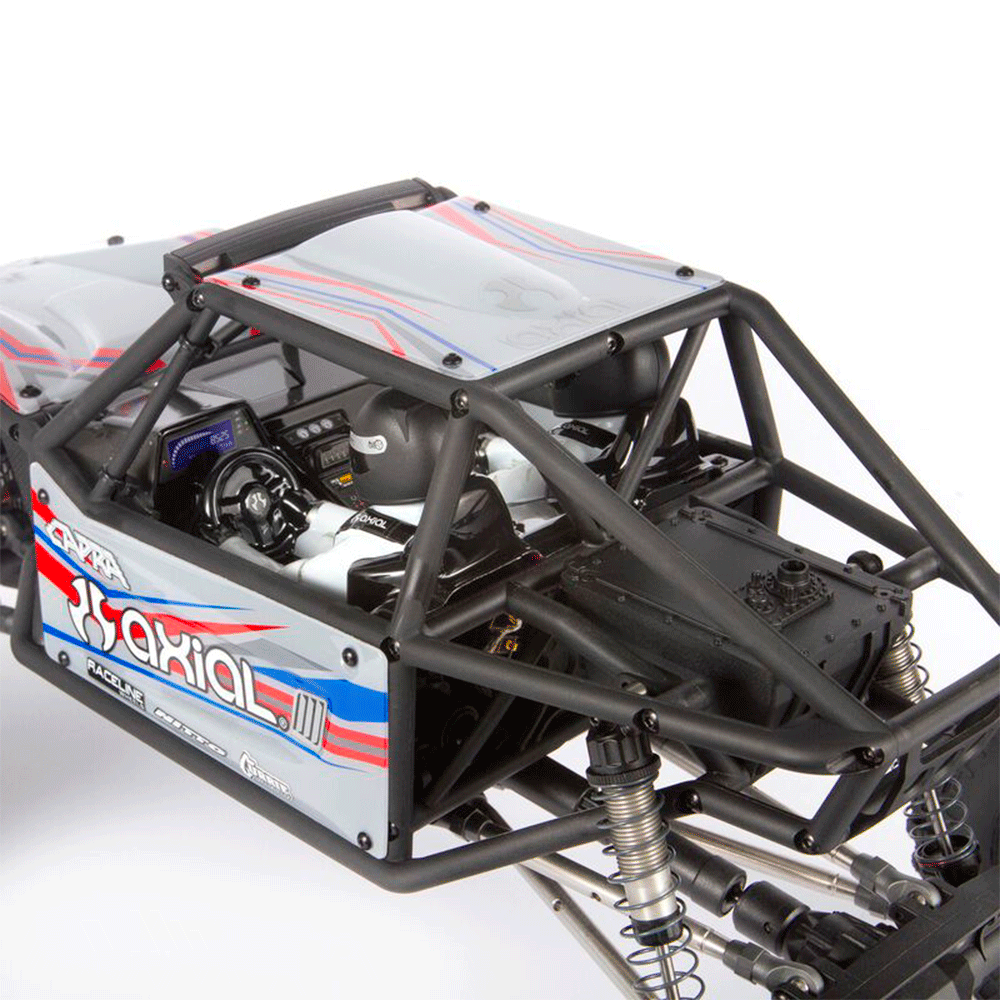

REALISTIC INTERIOR

Realistic scale details include: polycarbonate interior tray with molded driver figures, full color pre-cut decals with simulated carbon fiber panels, mock GPS navigation gauges and switches, two black styrene helmets with visor decals, and more!

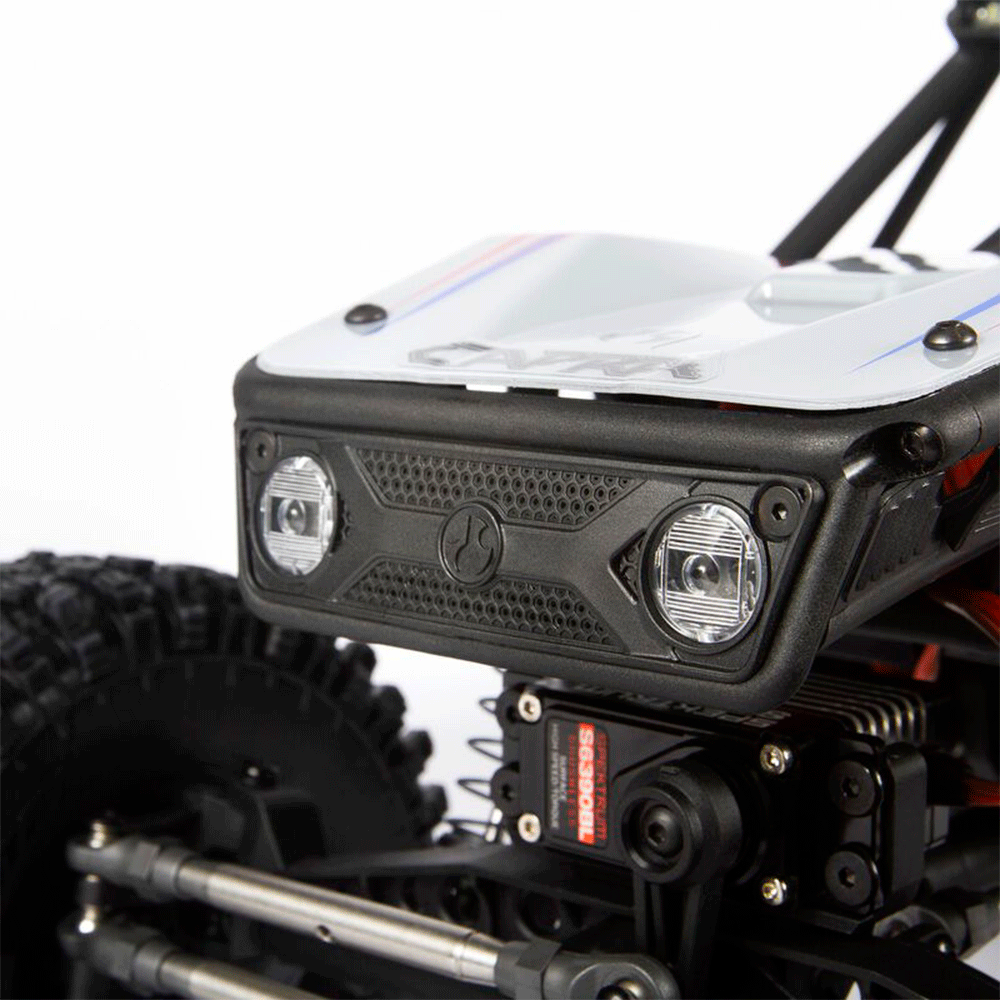

GRILLE AND HEADLIGHT BUCKETS

The molded plastic front grille features two clear plastic headlight lenses with light buckets (optional LED lights not included). Behind the grille, under the hood, are two hood mounts with clips. Remove the clips to raise the hood up and gain access to the battery tray.

Ball Bearings	Full set
Chassis	Injection molded tubular
Completion Level	Kit
Drivetrain	4WD
Product Height	8.25" (210 mm)
Tire Compound	Tires sold separately
Bushing Material	Metal
Charger	Sold Separately
Differential	Locked
Max Battery Dimensions	1.02 x 3.8 x 1.8" (26 x 98 x 47mm)
Receiver	Sold Separately
Speed Control	Sold Separately
Wheelbase	12.5" (318 mm)
Shock Type	Aluminum body, oil-filled, coil-over spring, soft and firm springs included
Approximate Assembly Time	7-10 Hours
Body	Unpainted panels
Brakes	Integral with ESC
Pinion	14T
Scale	1/10
Final Drive Ratio	37:1
Rear Track	8.75 in (222.2mm)
Power Type	Electric
Gear Pitch	32-Pitch
Radio	Sold Separately
Front Track	8.75 in (222.2mm)
Product Width	10.25" (260 mm)
Ground Clearance	3" (76.2mm)
Internal Gear Ratio	5.14:1
Motor Size	540 sold separately
Product Weight	4lbs (1.8kg)
Product Length	17" (432 mm)
Vehicle Type	Rock Crawler
Water-Resistant	Yes
Steering Type	2WS
Suspension	4-link w/stainless steel pivot balls
Wheel Width	1" (25.4mm)
