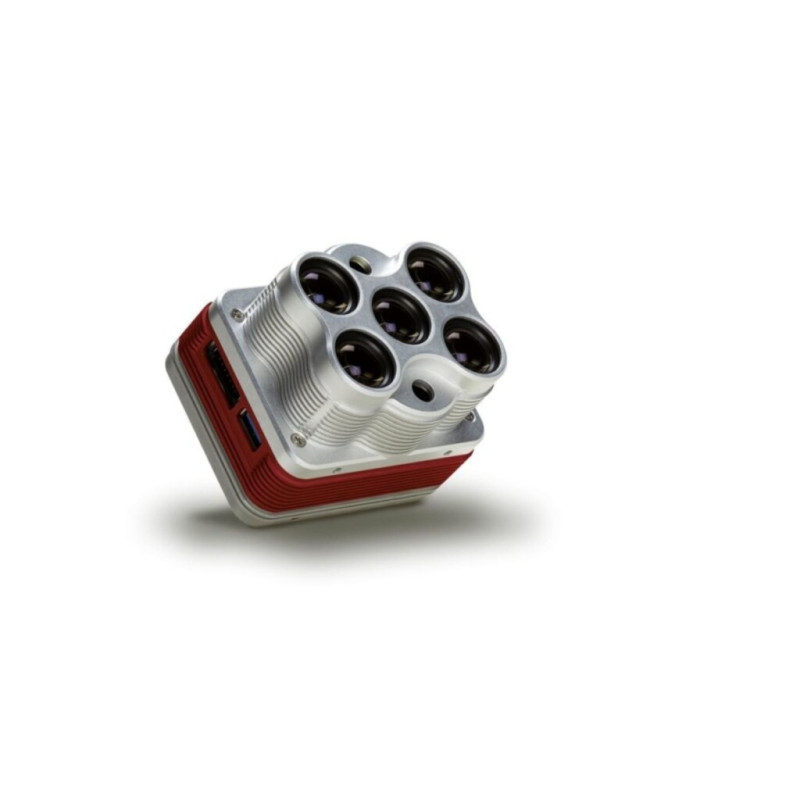

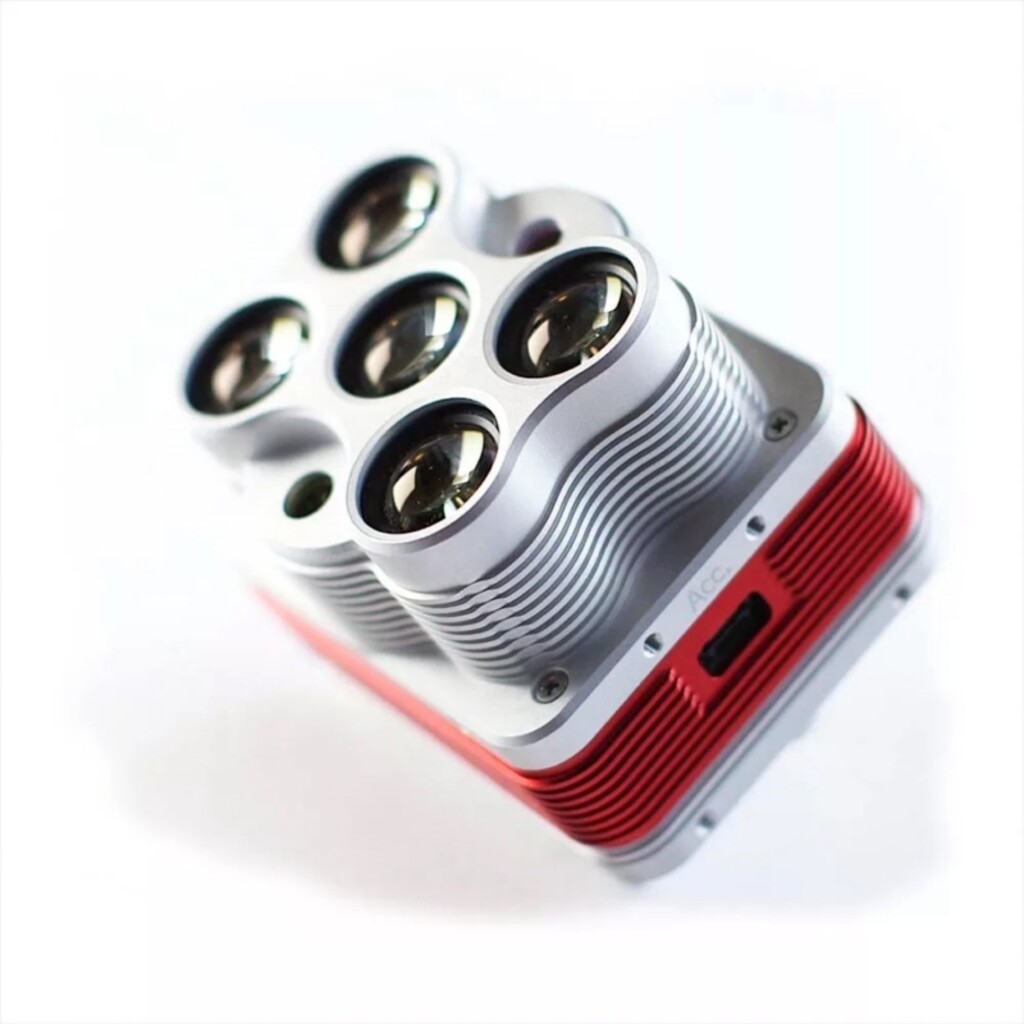

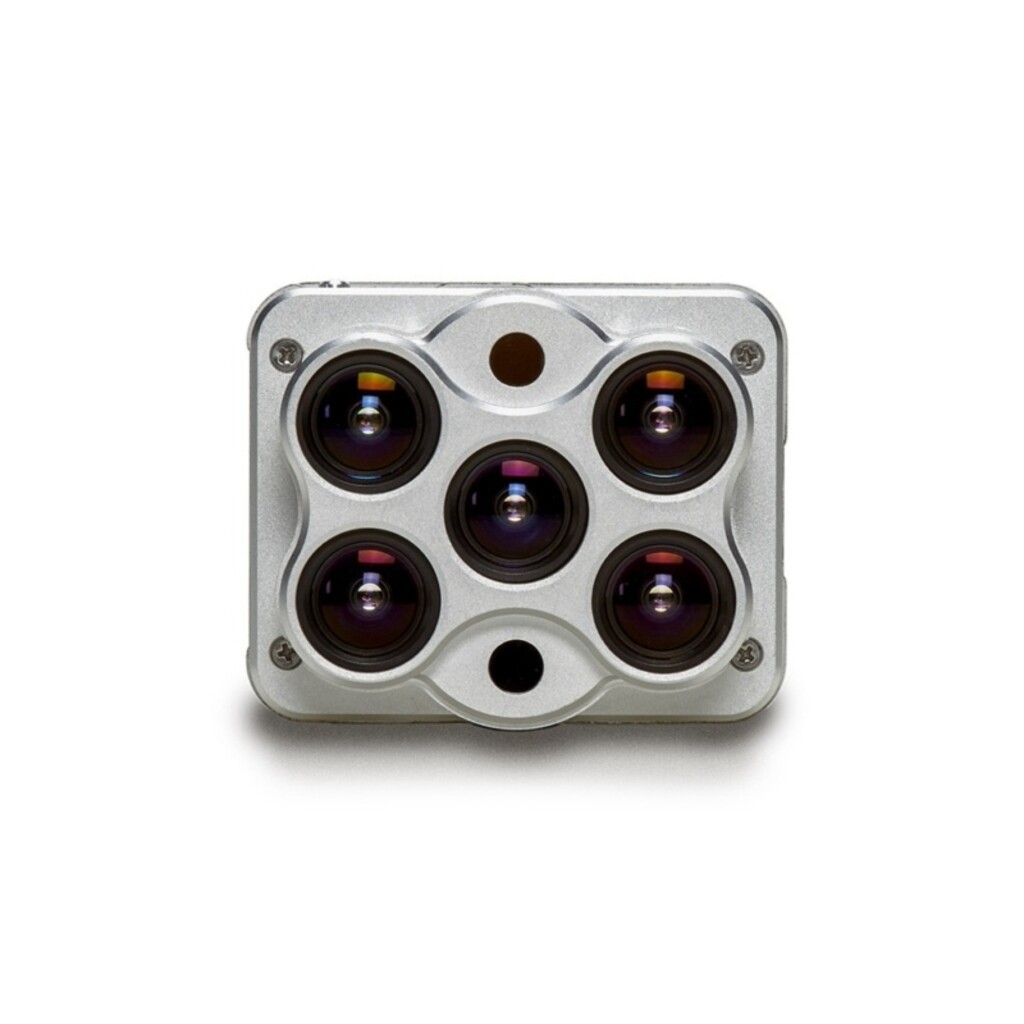

MICASENSE MULTI ESPECTRAL CAMERA ALTUM THERMAL

MICASENSE MULTI ESPECTRAL CAMERA ALTUM THERMAL

Ref: 333443

Estoque: Indisponível

R$ 76.544,92

Comprar

Altum integrates a radiometric thermal camera with five high-resolution narrow bands, producing advanced thermal, multispectral and high-resolution imagery in one flight for advanced analytics.

Altum kit comes with: Altum sensor, lens cover, external storage device (USB 3.0) - 128 GB, calibrated reflectance panel, new DLS 2 light sensor with integrated GPS, cables, mounting screws, hard carrying case.

Altum easily integrates with your workflow

FLY using Atlas Flight or Pix4Dcapture to plan your mission and configure the camera

PROCESS with software like Pix4Dmapper or Agisoft PhotoScan. Or create your own tools using our github tutorials.

ANALYZE calibrated and aligned outputs in whichever software works for you.

Discover the power

of layers

Scroll through the high-res RGB, multispectral, and thermal images below and discover not only pre-existing irrigation leaks, but new leaks in this Washington vineyard.

...but irrigation leaks are causing excess growth.

These leaks are easily visible in the thermal layer...

And in the NDRE layer, the new leaks are easily spotted as they haven't made an impact on vegetation.

Image above shows pumpkins and a standard sized wheelbarrow for context.

More detail from

400 ft.

Five high-resolution lenses mean you get detailed plant health imagery (5.2 cm GSD) and detailed Digital Surface Models all from 400 ft.

Optimized for drones, Altum is ready to integrate.

Ready for Your Drone

Open API’s and multiple interface options mean that Altum can work with a wide variety of drones. To integrate Altum, work with our integration partners or view our available integration kits.

SEE PARTNERS

Altum for DJI SkyPort

A plug and play integration right out of the box, Altum is available with the DJI SkyPort, enabling seamless integration with the DJI Matrice 200 series professional drones.

ALTUM WITH DJI SKYPORT

DLS 2

Altum comes with DLS 2, our next generation light sensor. With cutting-edge technology for irradiance and sun angle measurements, it provides more accurate, reliable data, substantially improves radiometric accuracy, and greatly reduces post-processing time.

And, because it also contains an integrated GPS, setup with any aircraft is streamlined.

Dig deeper into what you can do with Altum

Weight:

Altum + DLS 2: 406.5 g (14.34 oz)
Altum: 357 g (12.6 oz)
DLS2: 49 g (1.73 oz)
Wi-Fi Adapter: 2 g (0.07 oz)
USB stick: 9 g (0.32 oz)

Dimensions:

8.2 cm x 6.7 cm x 6.45 cm
(3.2 in x 2.6 in x 2.5 in)

External Power:

4.9 - 25.2 V

Power Input:

5.5/7.0/10W (standby, average, peak)

Spectral Bands:

Blue, green, red, red edge, near infrared (NIR)

Wavelength (nm):

Blue (475 nm center, 20 nm bandwidth), green (560 nm center, 20 nm bandwidth), red (668 nm center, 10 nm bandwidth), red edge (717 nm center, 10 nm bandwidth), near-IR (840 nm center, 40 nm bandwidth)

RGB Color Output:

High-resolution, global shutter, aligned with all bands

Thermal:

LWIR thermal infrared8-14um. Radiometrically calibrated

Sensor Resolution:

2064 x 1544 (3.2 MP per EO band) at 120m (400ft) AGL 81cm per pixel (thermal) at 120m

Ground Sample Distance (GSD):

5.2 cm per pixel (per EO band) at 120 m (~400 ft) AGL
81 cm per pixel (thermal) at 120 m

Capture Rate:

1 capture per second** (all bands), 12-bit RAW

Interfaces:

Aircraft: Trigger input, top of frame out, 1 PPS out. 3.3V isolated IO
2x USB 3.0 SuperSpeed ports for WiFi or Ethernet and USB 3.0 Storage

Field of View:

48° x 37° (multispectral)
57° x 44° (thermal)

Focal Length:

8 mm (multispectral)
1.77 mm (thermal)

Storage:

USB 3.0 compatible storage devices

**capture rates vary based on write speed of USB storage device

Benefits Recap:

Capture aligned high-resolution, multispectral, and thermal imagery using only one sensor. Generate analytics for phenotyping, irrigation, and plant health from one data set.
Improved resolution means more accurate digital surface models, easier stitching at lower altitudes, and better plant classification and plant counting.
High-capacity USB storage means you can fly longer and cover more acreage. No more changing SD cards!
Fast capture rate enables faster flight speeds and lower flight altitudes.
Communication and triggering options allow for a customized integration; choose the configuration that best suits your project.
Standard 16 bit TIFF file ouputs give you full access to raw data so you can process it on the platform of your choosing.
DLS 2 features enhanced reflectance calibration, and combined GPS and DLS to simplify integration.
