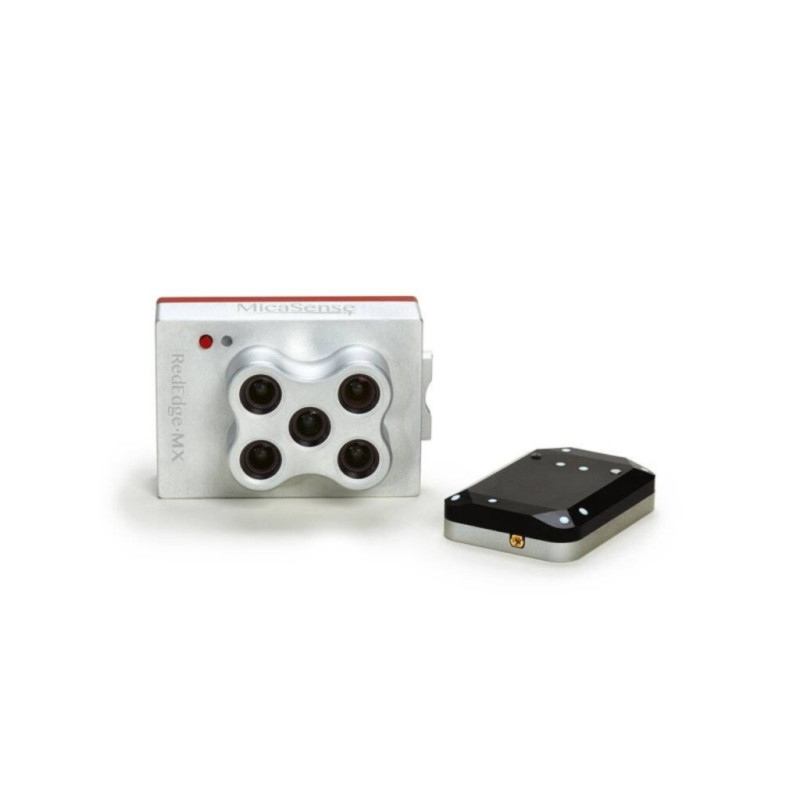

MICASENSE MULTI ESPECTRAL CAMERA REDEDGE-MX

MICASENSE MULTI ESPECTRAL CAMERA REDEDGE-MX

Ref: 333429

Estoque: Indisponível

R$ 51.479,91

Comprar

Specifications

Weight: 231.9 g (8.18 oz.)
(includes DLS 2 and cables)

Dimensions: 8.7cm x 5.9cm x 4.54cm
(3.4in x 2.3in x 1.8in)

External Power: 4.2 V DC - 15.8 V DC
4 W nominal, 8 W peak

Spectral Bands: Blue, green, red, red edge, near-IR
(global shutter, narrowband)

Wavelength (nm): Blue (475 nm center, 20 nm bandwidth), green (560 nm center, 20 nm bandwidth), red (668 nm center, 10 nm bandwidth), red edge (717 nm center, 10 nm bandwidth), near-IR (840 nm center, 40 nm bandwidth)

RGB Color Output: Global shutter, aligned with all bands

Ground Sample Distance (GSD): 8 cm per pixel (per band) at 120 m (~400 ft) AGL

Capture Rate: 1 capture per second (all bands), 12-bit RAW

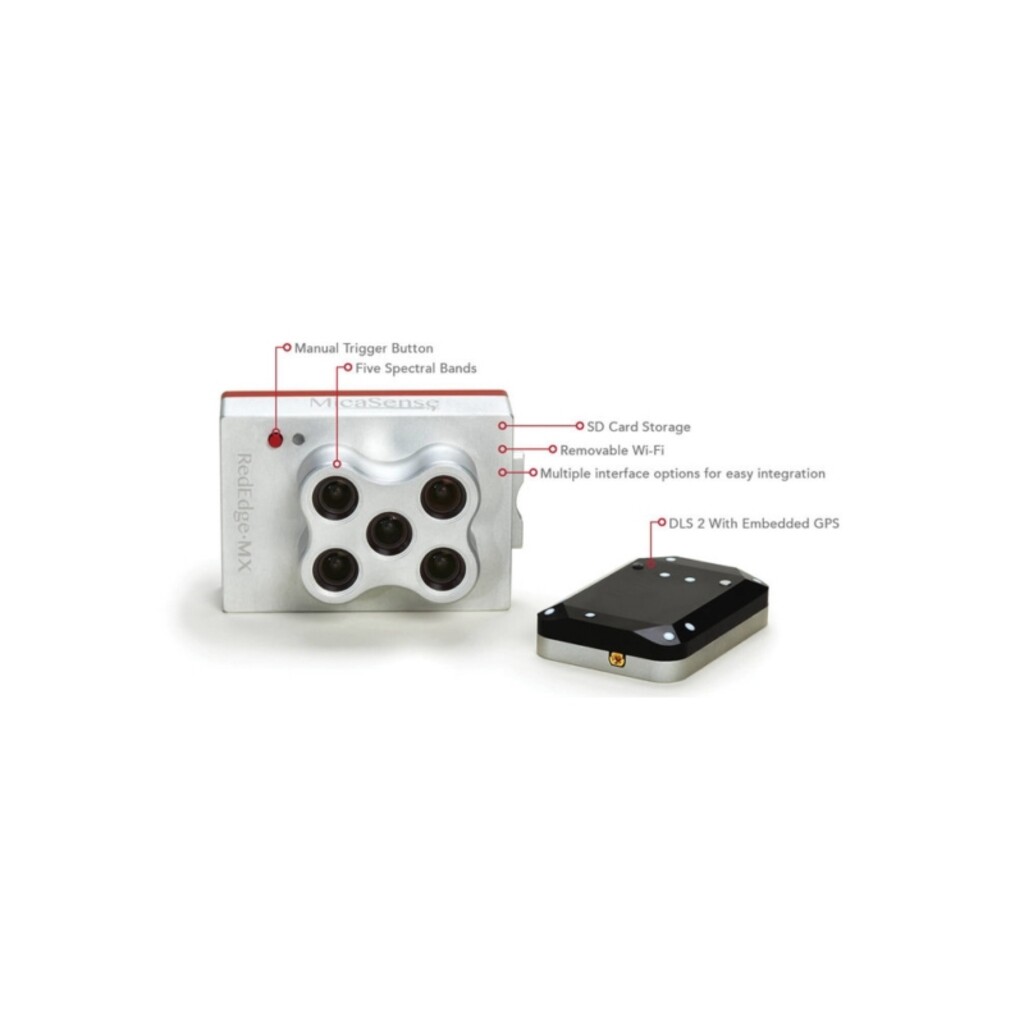

Interfaces: Serial, 10/100/1000 ethernet, removable Wi-Fi, external trigger, GPS, SDHC

Field of View: 47.2° HFOV

Triggering Options: Timer mode, overlap mode, external trigger mode (PWM, GPIO, serial, and Ethernet options), manual capture mode

DATA SHEET

COMPARE SENSORS

KNOWLEDGE BASE

At MicaSense, we believe in delivering more than pretty pictures.

We believe in providing scientific solutions that address real problems.

Atlas layers

" data-lightbox-theme="dark"> Atlas layers

1

Chlorophyll Map: The red edge spectral band is the star here, working in conjunction with the other bands to provide a more accurate measure of not just plant vigor but plant health.

2

NDVI Layer: This commonly known index compares the reflectance of the red band with that of the near-infrared band. However, this index alone provides limited information.

3

Digital Surface Model: A DSM is an astonishingly advantageous tool in any agronomist’s arsenal, primarily because of its use in evaluating surface properties and water flow.

4

RGB Image: RedEdge-MX features global shutters for distortion-free images, including narrowband red, green, and blue bands for RGB color images that when processed are aligned to all visible and non-visible bands and vegetation indices.

Interested in learning more about the power of layers? Read this blog post.

Explore RedEdge-MX data and use cases.

VIEW SAMPLE DATA

READ CASE STUDIES

RedEdge-MX is action-ready, integrating seamlessly no matter the platform.

It has a compact design and is lightweight to work with as many drone models as possible. See integration kits available.

Fixed wing

Multirotor

Looking for a drone and sensor package? Check out our drone integration partners.

MICASENSE PARTNERS

It's simple to plan a successful mission.

Fly

FLY

The RedEdge-MX’s low weight, low power requirement, and ability to capture RGB and narrowband spectral bands simultaneously means you can gather the data you need in fewer flights. Have multiple UAVs? RedEdge-MX quickly integrates with many different drone platforms.

Process

PROCESS

With RedEdge-MX, you own your data. You’re not limited to a particular processing platform. You can choose whichever platform is best for you, your customer, or your project.

Analyze

ANALYZE

RedEdge-MX has five bands—blue, green, red, red edge, and near-infrared—that our research showed were optimal for sensing crop health. It simply shows you more. And with MicaSense Atlas, you can see many different analytical layers in one easy to use interface, and compare these outputs across time.

Anywhere

ANYWHERE

We know you need tools you can rely on. That’s why we built the sensors we wanted in the field—predictable, tough, and reliable—so you can gather the data you need when you need it.
