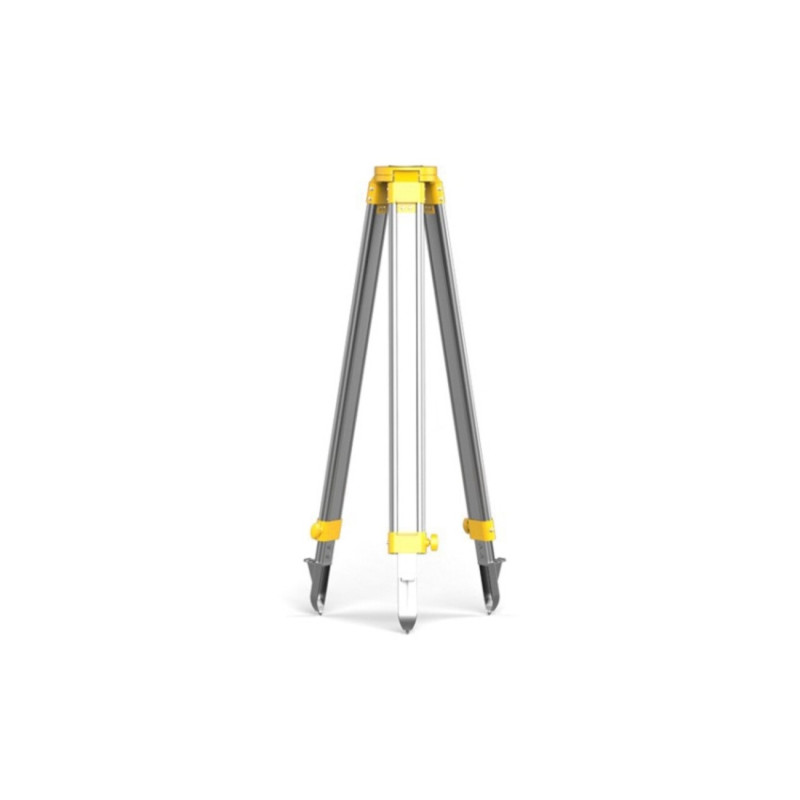

DJI D-RTK BASE STATION TRIPOD

DJI D-RTK BASE STATION TRIPOD

DJI D-RTK BASE STATION TRIPOD

Ref: 328913

Estoque: Indisponível

R$ 2.573,91

Comprar

GNSS RECEVIER

GNSS Frequency	Simultaneously receive: GPS: L1 C/A, L2, L5 BEIDOU: B1, B2, B3 GLONASS: F1, F2 Galileo: E1, E5A, E5B
Positioning Accuracy	Single Point Horizontal:1.5 m(RMS) Vertical:3.0 m(RMS) RTK Horizontal:1 cm+ 1 ppm(RMS) Vertical:2 cm+ 1 ppm(RMS) 1 ppm: For every 1 km increase in distance, the accuracy will be 1 mm less. For example, the horizontal accuracy is 1.1 cm when the receiving end is 1 km away from the base station.
Positioning Update Rate	1 Hz, 2 Hz, 5 Hz, 10 Hz and 20 Hz
Cold Start	<45 s
Hot Start	<10 s
Recapture Time	<1 s
Initialization Reliability	>99.9%
Differential Data Format	RTCM 2.X/3.X

IMU

Features	Built-in high-precision 6-axis accelerometer D-RTK 2 movement monitoring Sloping measurements Electronic bubble level

PHYSICAL CHARACTERISTICS

Dimensions(D-RTK 2 body with extension rod)	168 mm×168 mm×1708 mm
IP Rating	IP65

COMMUNICATION AND DATA STORAGE

Data Link	OcuSync, Wi-Fi, LAN, 4G
Operating Frequency	2.400 GHz to 2.483 GHz (China, United States, Australia, Europe, Japan, Korea) 5.725 GHz to 5.850 GHz (China, United States, Australia)
EIRP	OcuSync 2.4 GHz SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm FCC (United States, Australia) / NCC (Taiwan, China): < 26 dBm 5.8 GHz FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 26 dBm Wi-Fi 2.4 GHz SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm FCC (United States, Australia) / NCC (Taiwan, China): < 22 dBm 5.8 GHz FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 22 dBm
Communication Distance	OcuSync: 2 km (unobstructed and free of interference, when the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m, when the difference in height between the remote controller and D-RTK 2 is less than 2 m, and when the remote controller is 1.2 m from ground level)
Memory Capacity	16 GB

ELECTRICAL CHARACTERISTICS

Power Consumption	12 W
Power Supply	16.5 to 58.8VDC
Battery	Type:Lithium-ion battery Capacity: 4920 mAh Energy: 37.3 WH
Run Time	WB37 battery:>2 h MG-12000P battery:>50 h

OPERATING TEMPERATURE

Operating Temperature	4° to 131° F (-20° to 55° C)
