MAPIR SURVEY 3W ORANGE+CYAN+NIR OCN NDVI S3W_OCN_NDVI

MAPIR SURVEY 3W ORANGE+CYAN+NIR OCN NDVI S3W_OCN_NDVI

Ref: 319720

Estoque: Indisponível

R$ 3.827,17

Comprar

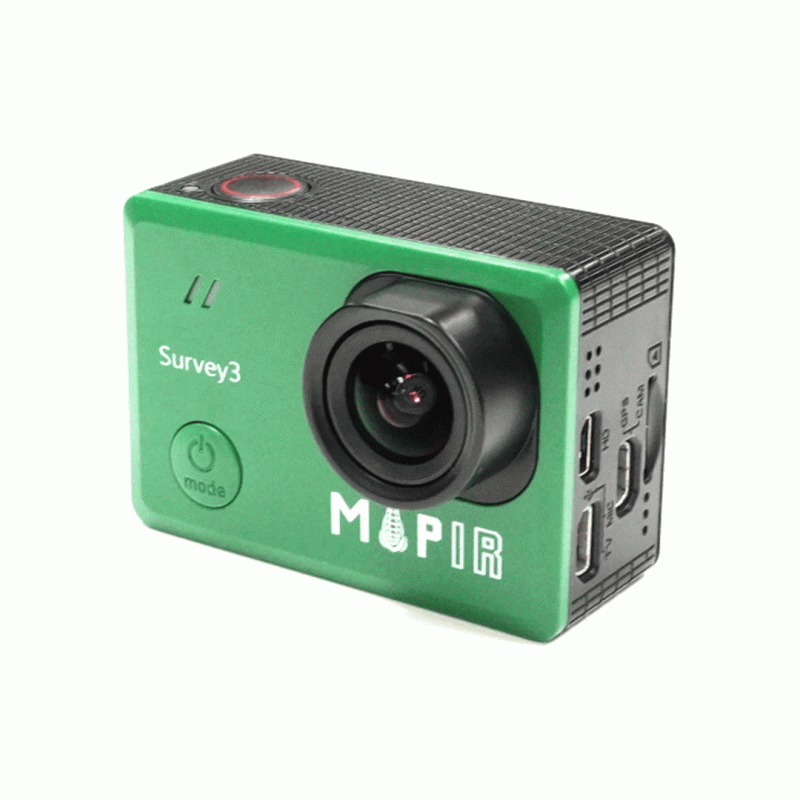

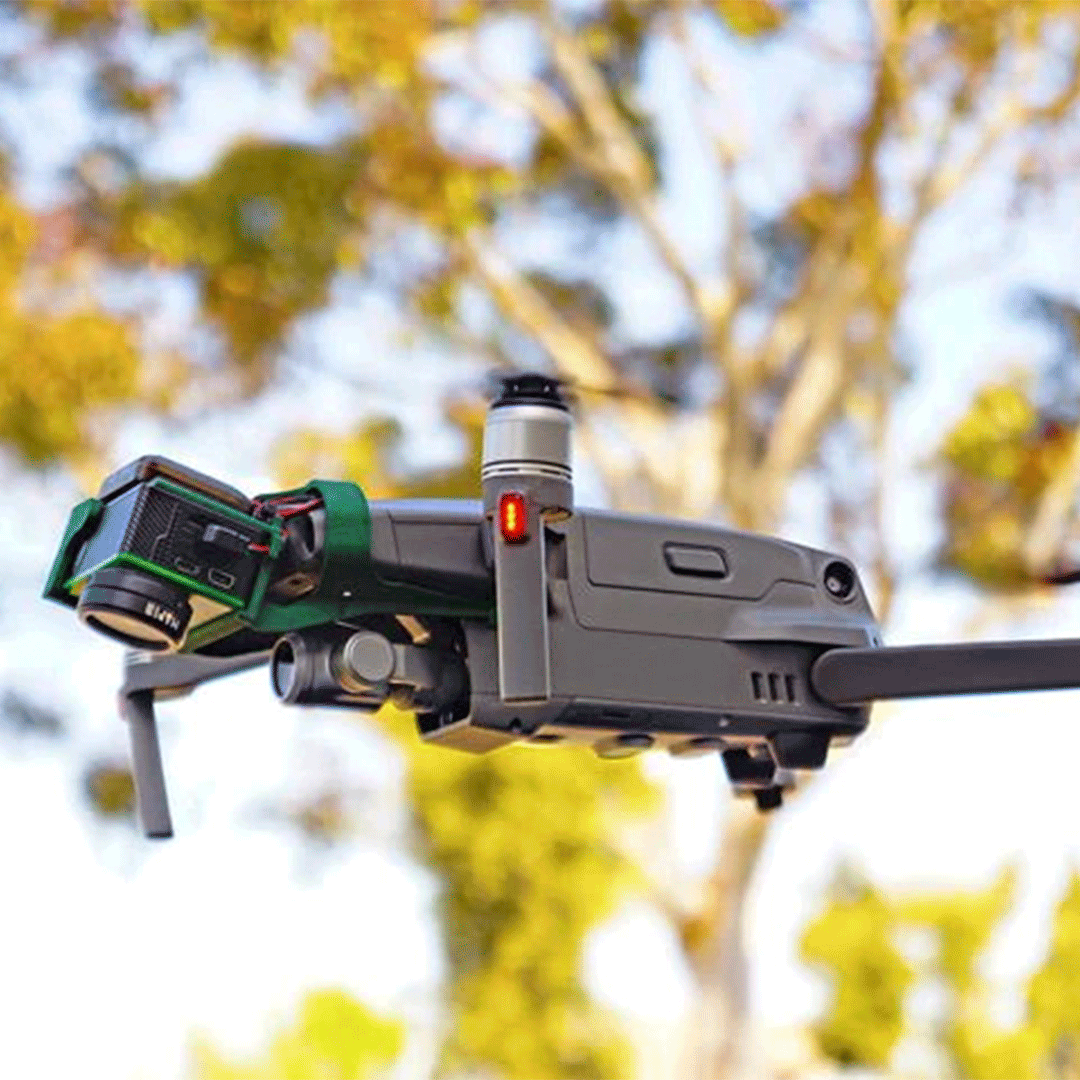

The Survey3 is the newest in our line of simple to use survey cameras. Every Survey3 camera includes an external USB GPS receiver to automatically geo-tag each captured image. Its 12MP sensor and sharp non-fisheye lens allows you to easily capture aerial media. It captures photos on the default timer trigger or can be sent a PWM signal through the HDMI port (see below). If you supply power to the USB port it will power on the camera automatically. Sized similar to a GoPro® Hero these small survey cameras can be attached to your aerial drone platform using our various mounts.

This Orange+Cyan+NIR (OCN, NDVI) model sees Near Infrared 808nm, Orange 615nm, and Cyan 490nm light. The images from this camera are commonly calibrated into an index image and then a colored lut is applied to show contrast between healthy and poor health vegetation. This OCN model typically provides better contrast than the RGN model.

The Survey3 cameras have a faster interval timer: 1.5 seconds for JPG mode and 2.75 seconds for RAW+JPG mode. (Capture speed depends on the speed of the microSD card used). You can also trigger the photo capture using a PWM signal through the HDMI port (see triggering information below).

PWM can also be used to mount the camera's memory card to a computer connected via USB.

Specifications

Image Resolution: 12 MegaPixel (4,000 x 3,000 px), 8MP

Image Format: RAW+JPG, JPG (RAW is 12bit per channel, JPG is 8bit per channel)

Video Resolution: 2160p24, 1440p30, 1080p60, 720p60

Video Format: MP4 (H.264 Codec)

Lens Optics: 87° HFOV (19mm) f/2.8 Aperture, -1% Extreme Low Distortion (Non-Fisheye) Glass Lens

Ground Sample Distance (GSD): 5.5 cm/px (2.17in/px) at 120 m (~400 ft) AGL

Sensor: Sony Exmor R IMX117 12MP (Bayer RGB)

Chipset: Novatek NTK96663

GPS/GNSS (External): ublox UBX-G7020-KT

Capture Speed: RAW+JPG: 2.75 Seconds / Photo. JPG: 1.5 Seconds / Photo

Remote Trigger: PWM via HDMI Port (see below)

Battery: Removable Li-ion (1200mAh) (Not Required When USB Powered)

Power Draw: 5.2V 0.2A (Without Battery), 5.2V 0.4A (With Battery)

Weight: 50g (1.8 oz) (Without Battery), 76g (2.7 oz) (With Battery)

Dimensions: 59 x 41.5 x 36mm (Length x Height x Depth)

Memory Storage: Micro SD (Up To 128GB Card) (64GB Card ≈ 15,000 JPG, 2,200 RAW+JPG)

White Balance: Auto / Daylight / Cloudy / Tungsten / Fluorescent / Blue / Light Blue / Red / Light Red / Custom*

Capture Interval: 0.5sec*, 1sec, 2sec, 5sec, 10sec, 30sec, 1min, 5min, 10min, 30min, 1hour, 2hours, 6hours, 12hours, 24hours

ISO: 50* / 100 / 200 / 400, Auto

Shutter Speed (s): 1/2000, 1/1000, 1/500*, 1/250, 1/125, 1/90, 1/60, 1/30, 1/15, 1/8, 1, 2, 3, 5, 10, 15, 20, 30, 60, Auto

Exposure: +2.0 / +1.67 / +1.33 / +1.0 / +0.67 / +0.33 / +0.0* / -0.33 / -0.67 / -1.0 / -1.33 / -1.67 / -2.0

Metering: Average / Center* / Spot

Color: Normal* / Black and White / Sepia / Vivid

Sharpness: Strong / Medium* / Soft

Capture Mode: Single* / 3 Sequence / 10 Sequence

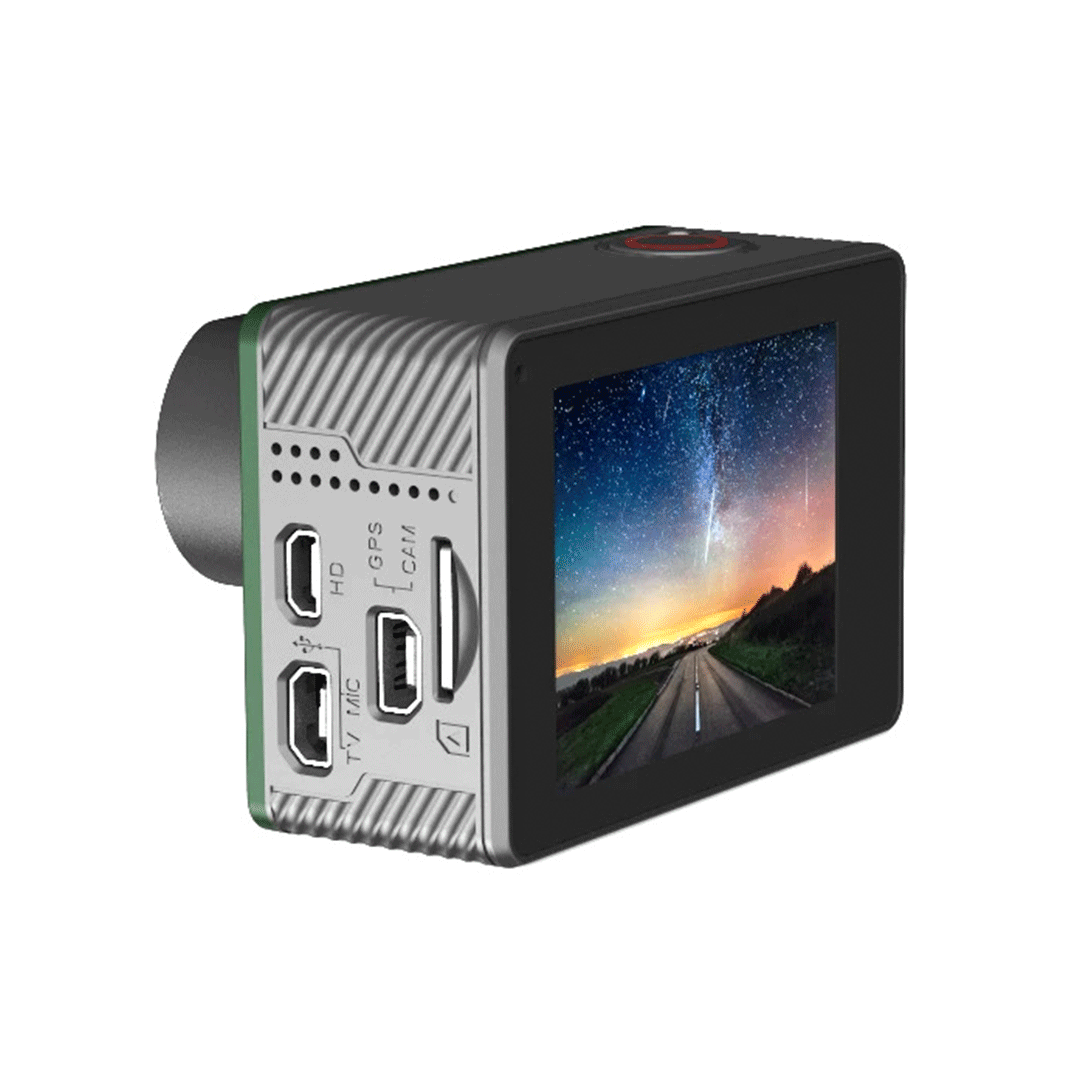

LCD: 2.0” Ultra Bright Color LCD Touch Screen

Video Out: HD 1080p (HDMI Micro), SD 480p (Optional USB FPV Cable)

TV Mode: NTSC* / PAL

Power Input: Battery, USB (Micro-A Cable Included, Optional Micro USB FPV Cable)

Auto Power On (When Power Applied to USB Port): ON* / OFF

OSD Language; English*, French, Spanish, Portuguese Brazil, Dutch, Czech, Polish, German, Italian, Chinese, Russian, Japanese, Korean

Frequency: 60Hz* / 50Hz

OSD Display: ON* / OFF

Date Stamp: ON / OFF*

Sound: ON* / OFF

Quick Capture: ON / OFF*

Auto Power Off: OFF* / 1min / 3min / 5min / 10min / 15min / 30min / 60min

Auto Sleep LCD: 1min* / 3min / 5min / OFF

Vertical Rotate: ON / OFF*

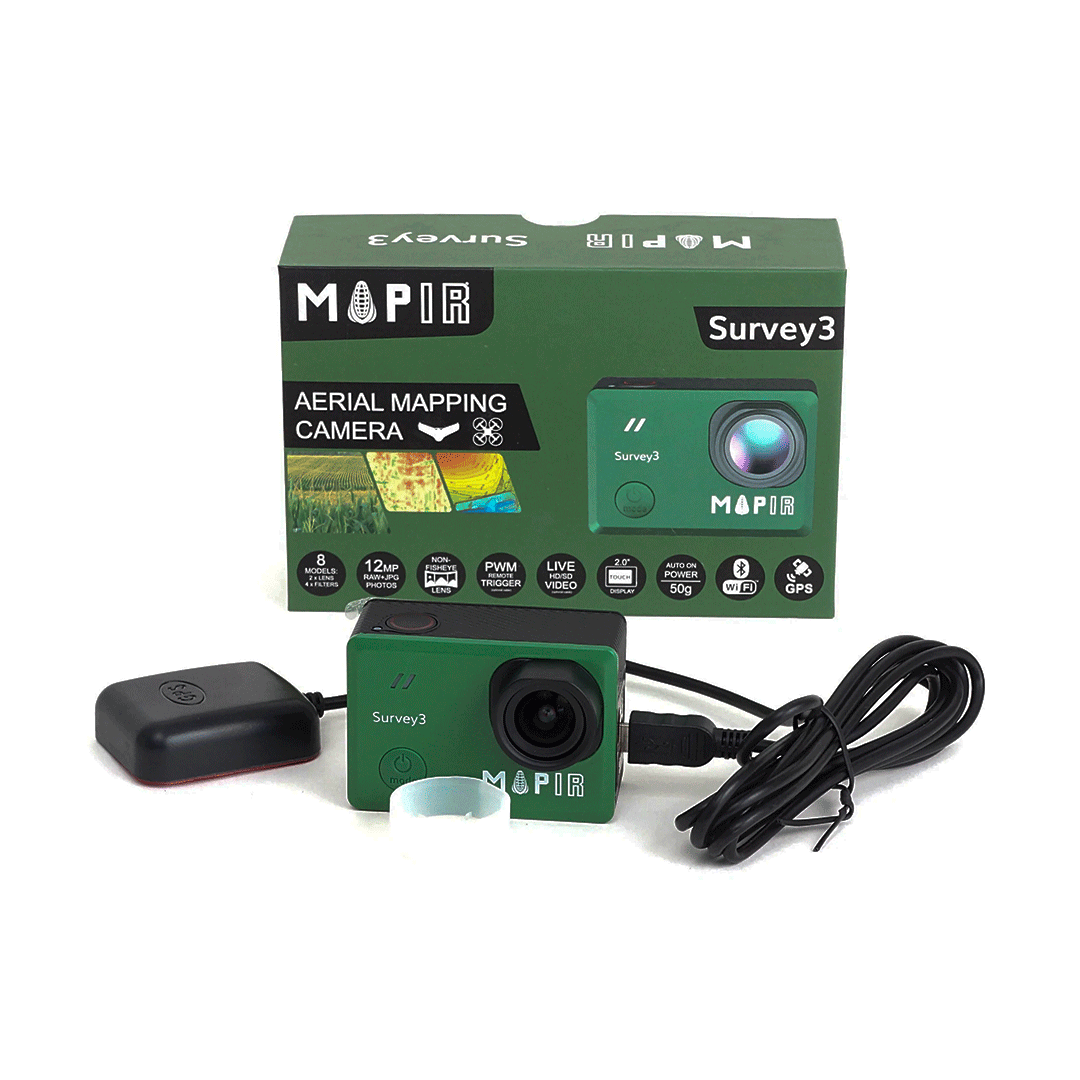

Included Accessories: USB GPS Receiver, Battery, Lens Cap, USB Charge Cable, Manual

Included:

(1) Survey3 Standard GPS Receiver (we recommend upgrading ABOVE to the Advanced GPS for better results)

(1) Survey3 Camera Battery

(1) Protective Silicone Lens Cap

(1) USB Charging Cable

Recommended:

Reflectance Calibration Target - Normalize Your Results

PWM Shutter Trigger Cable

USB FPV Power Cable

Survey3/2 Glass Lens Protector

Memory Card
