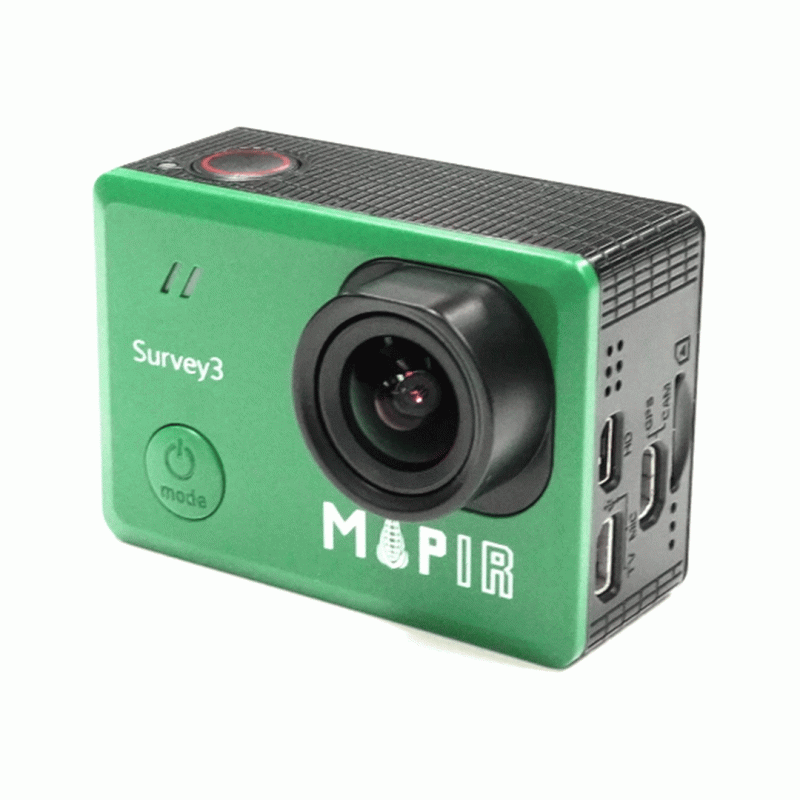

MAPIR SURVEY 3W REDEDGE RE S3W_REDEDGE

• Image Resolution: 12 MegaPixel (4,000 x 3,000 px), 8MP
• Image Format: RAW+JPG, JPG (RAW is 12bit per channel, JPG is 8bit per channel)
• Video Resolution: 2160p24, 1440p30, 1080p60, 720p60
• Video Format: MP4 (H.264 Codec)
• Lens Optics: 87° HFOV (19mm) f/2.8 Aperture, -1% Extreme Low Distortion (Non-Fisheye) Glass Lens

• Ground Sample Distance (GSD): 5.5 cm/px (2.17in/px) at 120 m (~400 ft) AGL

• Sensor: Sony Exmor R IMX117 12MP (Bayer RGB)
• Chipset: Novatek NTK96663
• GPS/GNSS (External): ublox UBX-G7020-KT
• Capture Speed: RAW+JPG: 2.75 Seconds / Photo. JPG: 1.5 Seconds / Photo
• Remote Trigger: PWM via HDMI Port (see below)
• Battery: Removable Li-ion (1200mAh) (Not Required When USB Powered)
• Power Draw: 5.2V 0.2A (Without Battery), 5.2V 0.4A (With Battery)
• Weight: 50g (1.8 oz) (Without Battery), 76g (2.7 oz) (With Battery)
• Dimensions: 59 x 41.5 x 36mm (Length x Height x Depth)
• Memory Storage: Micro SD (Up To 128GB Card) (64GB Card ≈ 15,000 JPG, 2,200 RAW+JPG)
• White Balance: Auto / Daylight / Cloudy / Tungsten / Fluorescent / Blue / Light Blue / Red / Light Red / Custom*
• Capture Interval: 0.5sec*, 1sec, 2sec, 5sec, 10sec, 30sec, 1min, 5min, 10min, 30min, 1hour, 2hours, 6hours, 12hours, 24hours
• ISO: 50* / 100 / 200 / 400, Auto
• Shutter Speed (s): 1/2000, 1/1000, 1/500*, 1/250, 1/125, 1/90, 1/60, 1/30, 1/15, 1/8, 1, 2, 3, 5, 10, 15, 20, 30, 60, Auto
• Exposure: +2.0 / +1.67 / +1.33 / +1.0 / +0.67 / +0.33 / +0.0* / -0.33 / -0.67 / -1.0 / -1.33 / -1.67 / -2.0
• Metering: Average / Center* / Spot
• Color: Normal* / Black and White / Sepia / Vivid
• Sharpness: Strong / Medium* / Soft
• Capture Mode: Single* / 3 Sequence / 10 Sequence
• LCD: 2.0” Ultra Bright Color LCD Touch Screen
• Video Out: HD 1080p (HDMI Micro), SD 480p (Optional USB FPV Cable)
• TV Mode: NTSC* / PAL
• Power Input: Battery, USB (Micro-A Cable Included, Optional Micro USB FPV Cable)
• Auto Power On (When Power Applied to USB Port): ON* / OFF
• OSD Language; English*, French, Spanish, Portuguese Brazil, Dutch, Czech, Polish, German, Italian, Chinese, Russian, Japanese, Korean
• Frequency: 60Hz* / 50Hz
• OSD Display: ON* / OFF
• Date Stamp: ON / OFF*
• Sound: ON* / OFF
• Quick Capture: ON / OFF*
• Auto Power Off: OFF* / 1min / 3min / 5min / 10min / 15min / 30min / 60min
• Auto Sleep LCD: 1min* / 3min / 5min / OFF
• Vertical Rotate: ON / OFF*

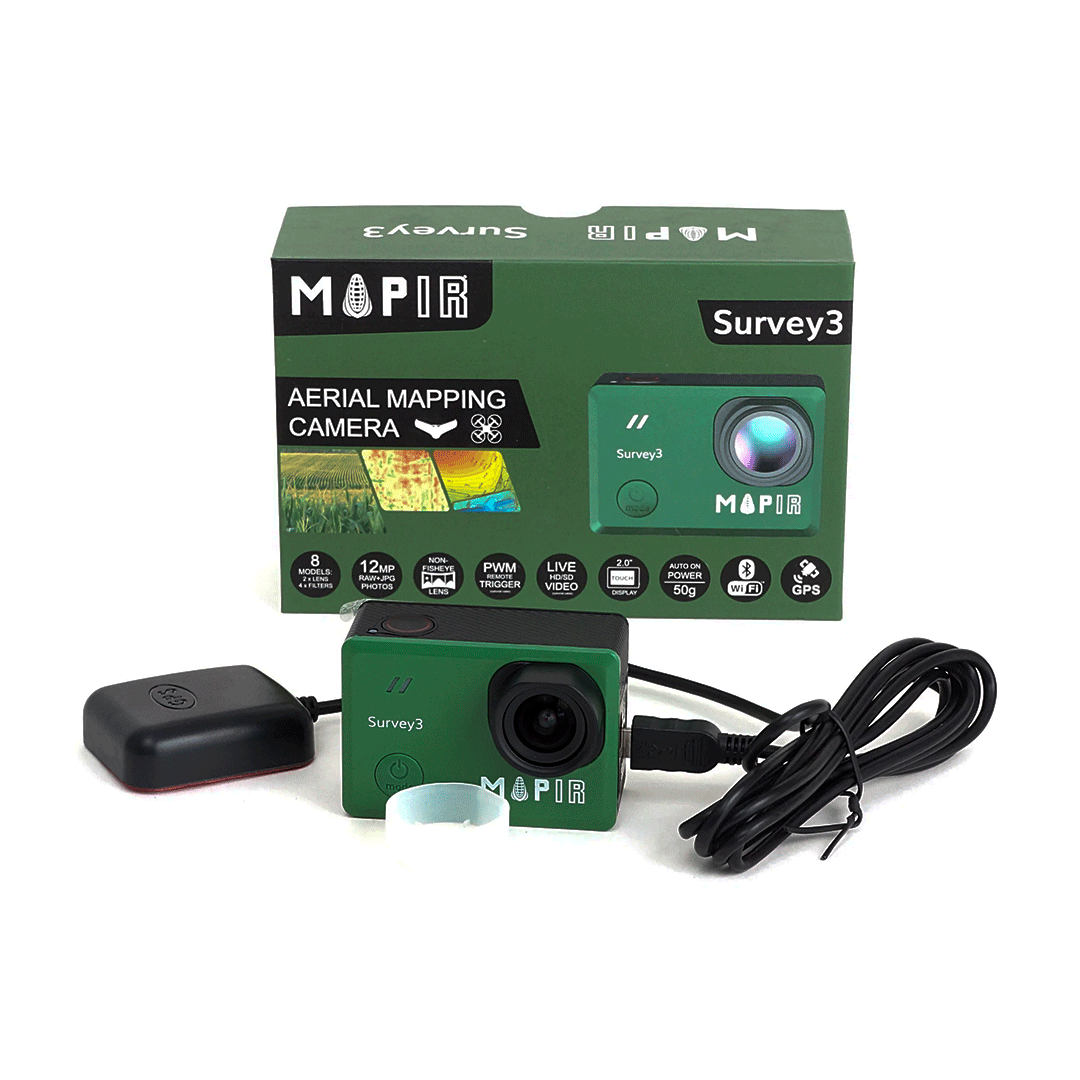

• Included Accessories: USB GPS Receiver, Battery, Lens Cap, USB Charge Cable, Manual

Included:

• (1) Survey3 Standard GPS Receiver (we recommend upgrading ABOVE to the Advanced GPS for better results)
• (1) Survey3 Camera Battery
• (1) Protective Silicone Lens Cap
• (1) USB Charging Cable

Recommended:

• Reflectance Calibration Target - Normalize Your Results
• PWM Shutter Trigger Cable
• USB FPV Power Cable
• Survey3/2 Glass Lens Protector
• Memory Card
