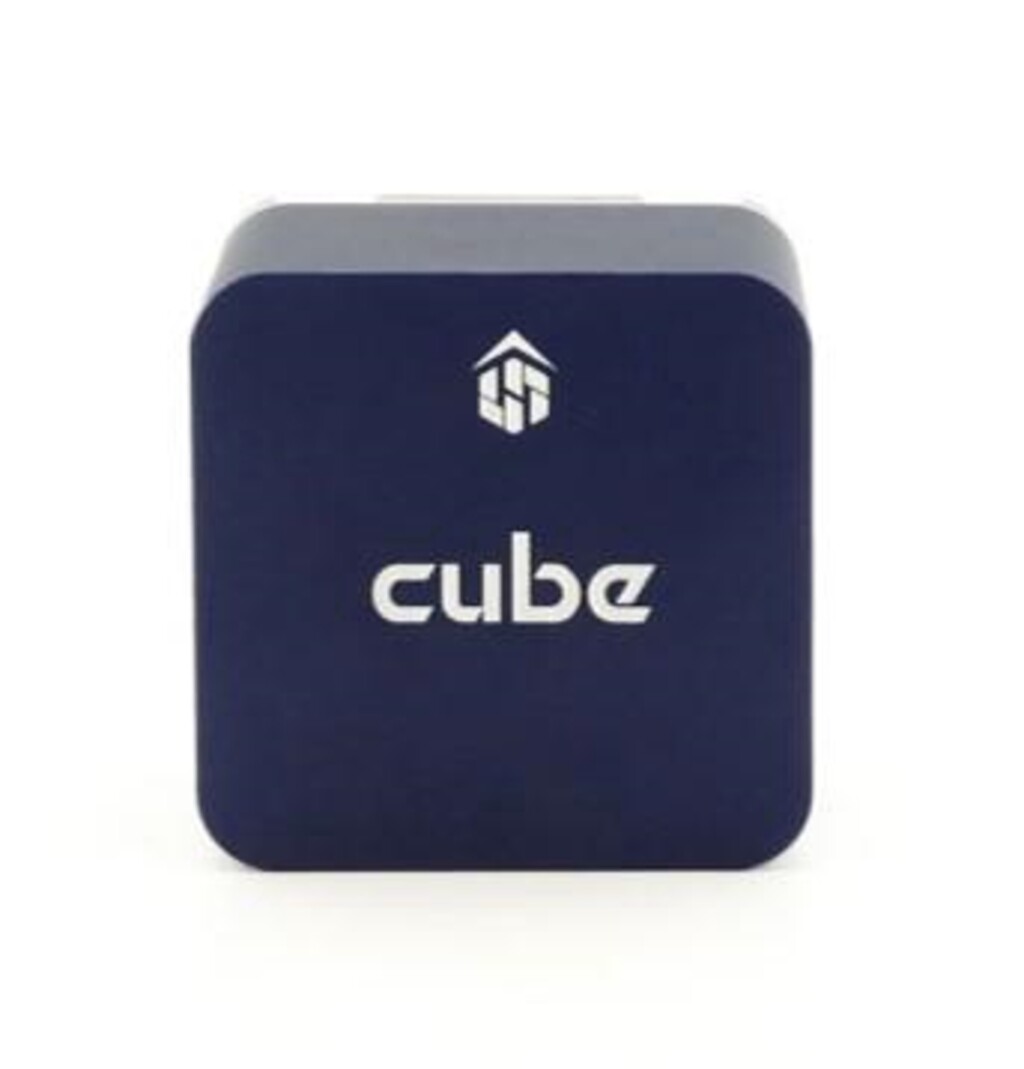

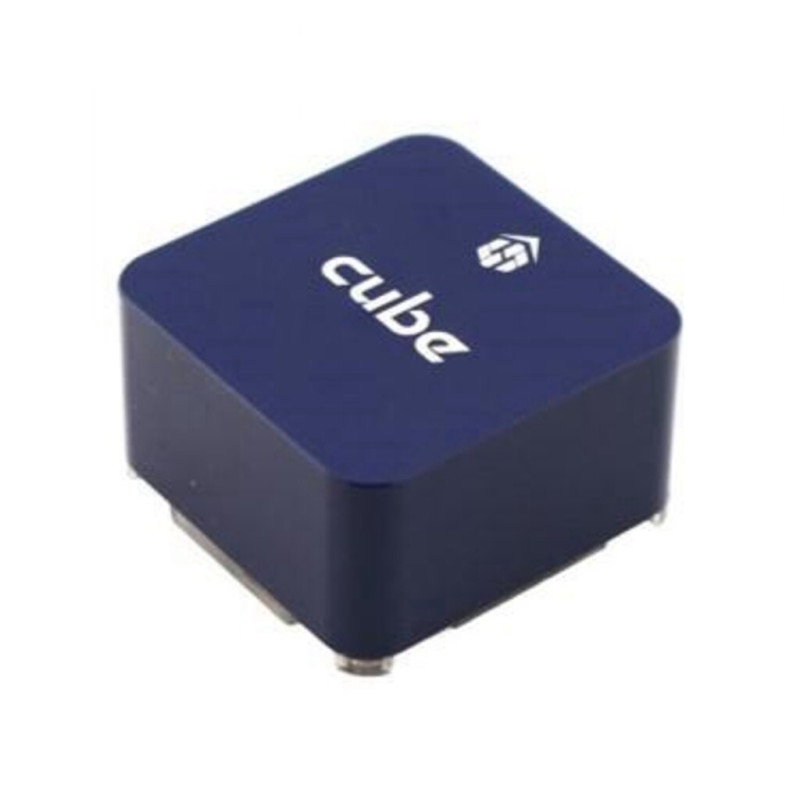

HEX BLUE CUBE MADE IN USA HX4-06065

Ref: 317078
Estoque: Indisponível
R$ 2.402,92
Comprar

INSIDE THE CUBE

  • STM32F427 Rev 3 Flight management unit
  • STM32F100 I/O processor with pass through capabilities for failsafe
  • 3 IMU's
  • 1 Fixed 10 Axis IMU on the main Main board. (MPU9250 3 axis Accell, 3 axis gyro, and 3 axis mag, MS5611 Barometer)
  • 2 Vibration Isolated and heat controlled 9DOF IMU's and an isolated Baro. (MPU9250 3 axis Accell, 3 axis gyro, and 3 axis mag, LSM303D 3 axis Accelerometer, 3Axis Magnatometer, L3GD20 3 Axis GyroMS5611 Barometer)



I/O

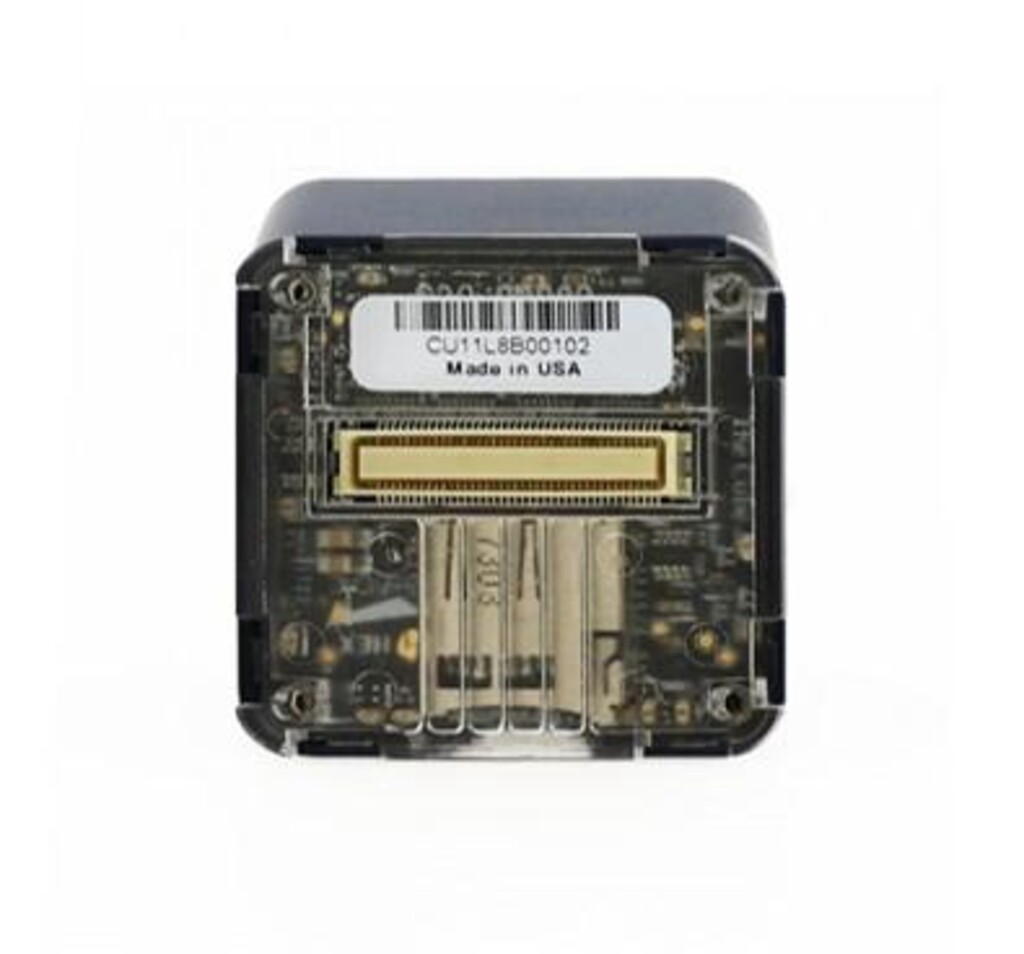

  • All connections are via an 80 pin DF17 connector on the base. the following connections are included.
  • 2x CAN (pins reserved for a 3rd Can bus on next years model)
  • 2x I2C
  • 5x Serial (1 reserved for debug)
  • 2x SWD debug ports
  • 2x Power input V+I
  • 1x Analogue input (one of the power inputs can be used as Analogue if you need)
  • Buzzer raw pwm
  • Safety switch
  • 8 x I/O connected PWM out (Solder option for 3.3 or 5v levels, default 3.3)(opto drive capable 10mA each)
  • 6 x Aux FMU connected I/O (PWM or alternate function)
  • Servo rail I/O backup power (10.5v Max)
  • 2x 5.4v power in pins. All other pins are reserved DNC.
