S9256 GYRO SERVO DIGI BB FUTM0226

S9256 GYRO SERVO DIGI BB FUTM0226

S9256 GYRO SERVO DIGI BB FUTM0226

Ref: 30014

Estoque: Indisponível

R$ 842,00

Comprar

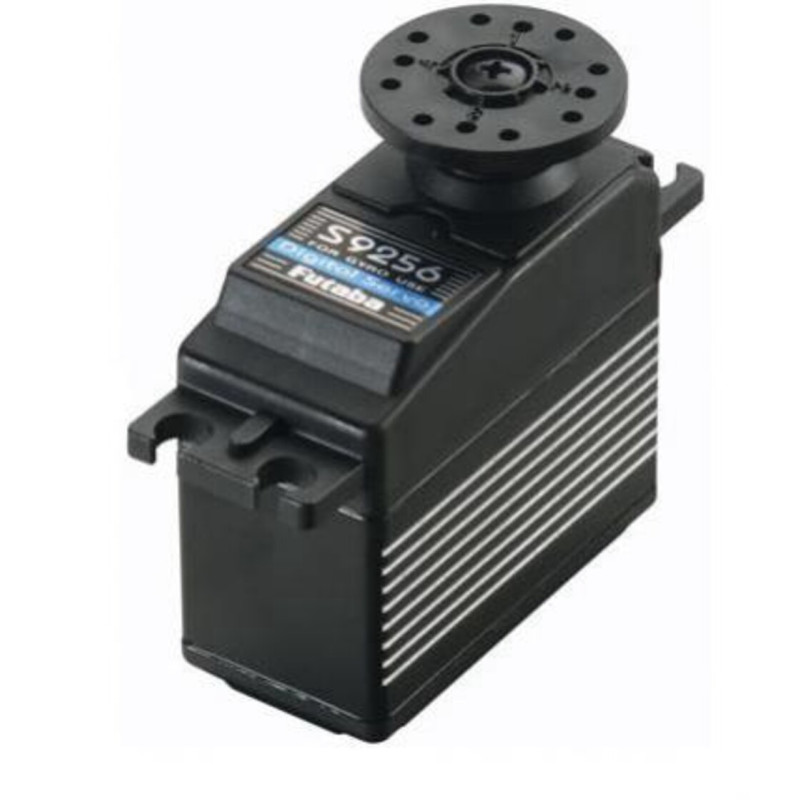

This is the S9256 Digital Servo used with the Futaba GY611 Gyro.

FEATURES:

Aluminum case with heat sink to help cool motor Special servo for the GY611.

Compatible with Super Narrow Pulse of (760µs) drive. Nylon gears One year warranty

INCLUDES:

Four rubber grommets to isolate vibration Four brass eyelets Four phillips head self-tapping mounting screws One large servo wheel 35mm in diameter One star shaped (six arms) servo arm 32mm accross One X-shaped servo arm 39mm across One year limited warranty

REQUIRES:

Radio system using Futaba "J" type connectors

SPECS:

Dimensions: 1.6 x 0.8 x 1.4" (40 x 20 x 37mm)

Weight: 2.0oz (57g)

Speed: 0.06 sec/60° @ 4.8V

Torque: 47 oz-in (3.4 kg/cm) @ 4.8V

COMMENTS:

The following parts are available: Case Set, FUTM3064 FUTM3443 FGS9251 COMPLETE SERVO GEAR SET S9251 (with metal final gear) FUTM3502 FGS9251 1/2/3 GEAR SET (without metal final gear)

Updated JBM 12/14/05 jxs 9/27/05 ir/jxs updated jpg 5/11/07
