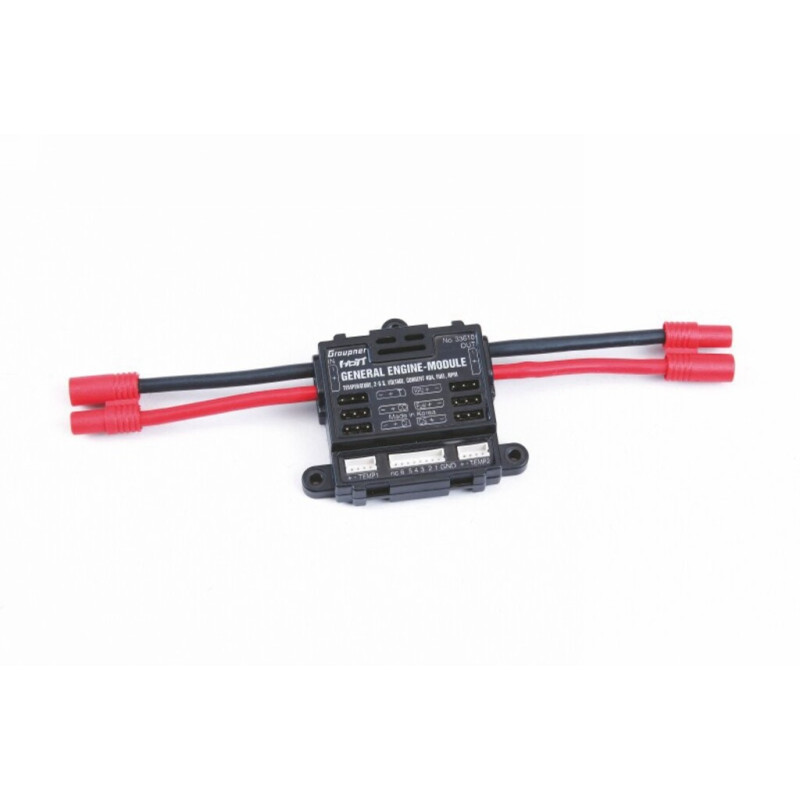

GRAUPNER MODULO HOT ENGINE 2-6S 33610

Ref: 290340
Estoque: Disponível
R$ 425,17
Comprar
Description:
General sensor for Graupner HoTT receivers and models with combustion or electric motor:

Age recommended by manufacturer: 14 years and up
functions:
  • 2x temperature and voltage measurements with warning thresholds for min. and max. voltage and min. and max. temperature
  • Single cell measurement with warning thresholds for min. voltage
  • Voltage, current and capacity measurement with warning thresholds for min. and max. voltage, max. capacity and max. current
  • Programmable current limiting
  • Current limiting with shunt resistors 2x 1 mOhm parallel = 0.5 mOhm
  • Rotational speed measurement and warning thresholds for min. and max. rotational speed
  • Fuel measurement with warning thresholds in 25% increments (after software update).
  • Adjustable warning time: OFF, 5, 10, 15, 20, 25, 30 seconds, always
  • Adjustable warning repetition time: Always, 1, 2, 3, 4, 5 min, once
Important Note when using the modules 33600, 33601, 33610, 33611 and 33620:
  • Do not carry out any programming work on the sensors while the model is flying, otherwise there is a real risk that your model will fly out of control while you are not concentrating on it!
  • If your model is fitted with two or more receivers, it is absolutely essential that you do not carry out programming work during a flight, as this can alter the settings in the receivers to which no telemetry equipment is connected; in the worst case this could result in the model crashing! For this reason always carry out programming on the ground, and check that only the receiver with connected sensor is powered on.

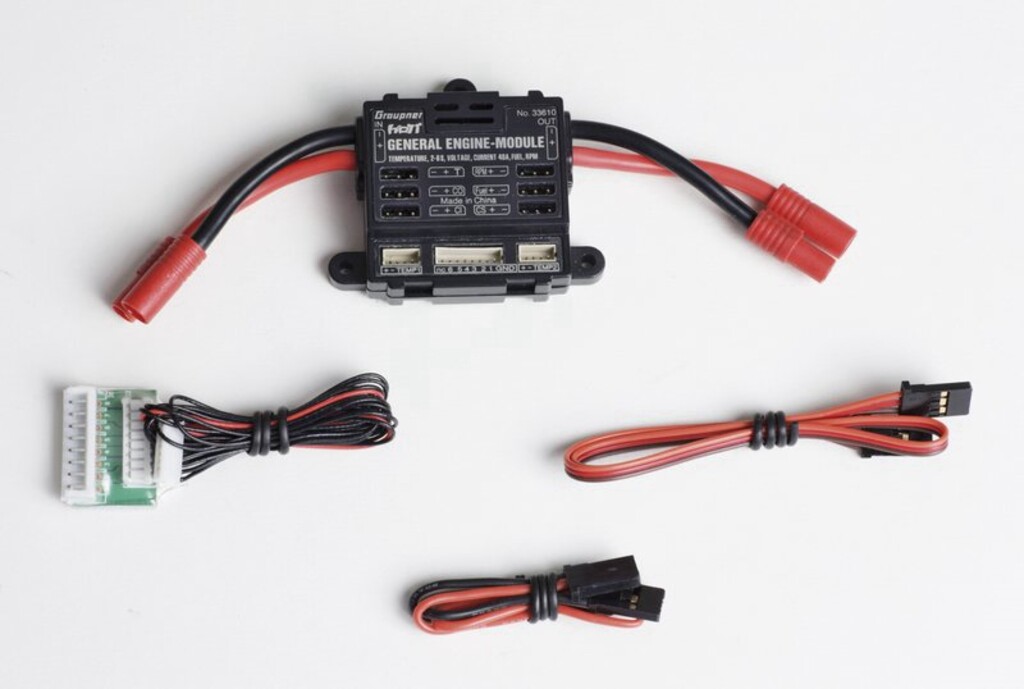

  • The set contains
  • 1 x JST - EH balancer cables
  • 1 x Servo patch cable, telemetry
  • 1 x JR cable
Connections:
  • 2x temperature selectively 0 to 120°C or 200°C and voltage measurement up to 60 V DC
  • 1x rotational speed measurement up to 100,000 rpm with a two-blade propeller
  • 1x speed controller/servo input, 1x rotational speed regulation input, 1x speed controller/servo output for rotational speed regulation
  • 1x current and voltage and capacity measurement up to 40 A (pulse 1 s up to 60 A) and up to 30 V
  • 1x single cell monitoring for 2 - 6S lithium batteries (LiPo, LiIo, LiFe)
  • 1x receiver power supply input and output
  • 1x telemetry connection for receiver
  • 1x fuel sensor 0%/25%/50%/75%/100%
