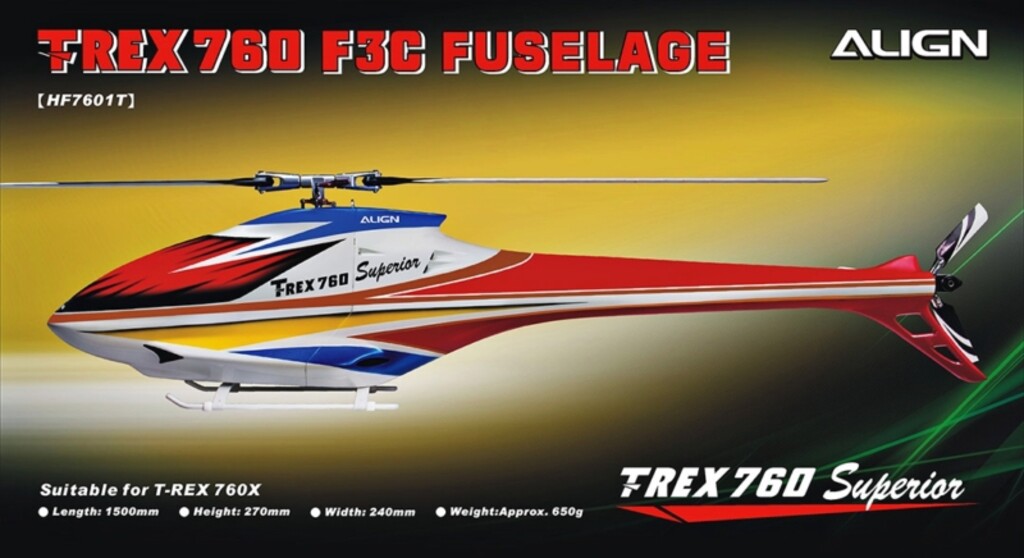

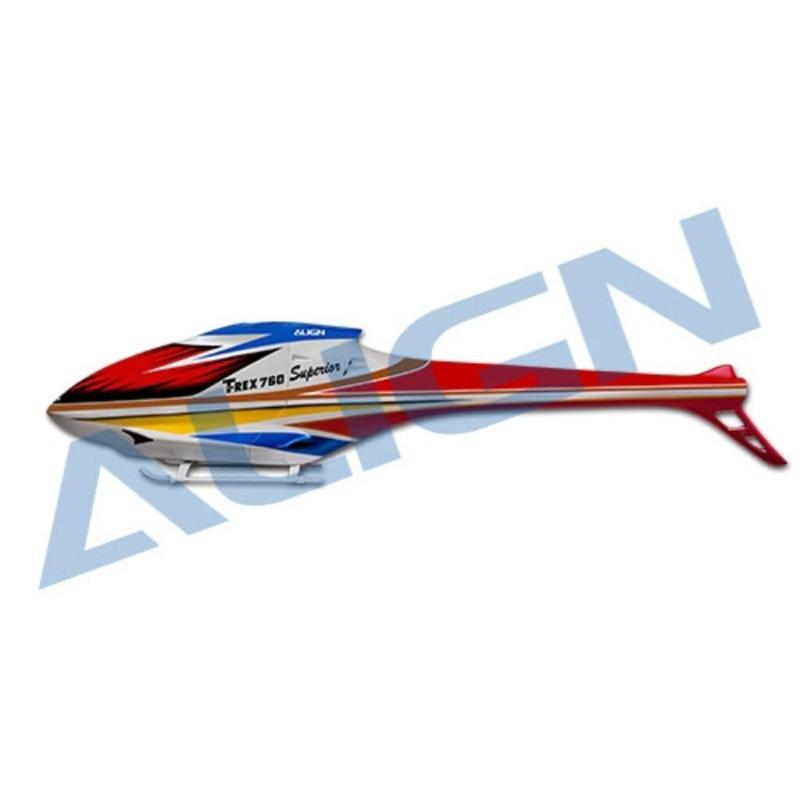

TR760 F3C FUSELAGE RED HF7601T

Instructions:

Use for T-REX 760X.

New 760 F3C Fuselage applies aerospace data operations featuring with the low wind resistance aerodynamic lines, while stabilizing the helicopter during F3C flight routines and advancing the great performance of T-Rex 700E F3C even higher, achieving total dominance in class P and F of F3C. Custom designed floating fuselage mounting system effectively reduce helicopter vibration and minimize resonance effect; The light weight fiberglass and carbon fiber construction weights only 520g, maintaining the optimal power to weight ratio of the helicopter; Colorful paint scheme enhance the streamline profile, in countless ingenuity create a different F3C fuselage which is worthy of unique you.

Features:

Designed specifically for F3C competitions.

Unique shark shape which minimizes wind resistance for F3C flight and stabilize the helicopter, allows contestants to excel in static maneuvers as well as superior tracking performance, achieving total dominance of P and F classes in F3C competitions.

Floating fuselage mounting design to effectively minimize vibration and resonance, achieving even more stable flight.

Fiberglass and carbon fiber construction to bring the weight down to mere 520g. Equipped with complete hardware for ease of assembly.

Dedicated low CG landing gear painted in white color, minimizing wind resistance during flight and stabilizing helicopter landing.

Unique quick release design of the front fuselage for battery access with removal of just 2 screws.

The classic magnetite on the edge of the fuselage can be attracted to each other firmly make the assembly easy.

Colorful paint scheme with 3D elements for optimal visibility during flight.

Specification:

Body length: 1500mm
Body width: 240mm
Body high: 270mm
Weight: Approx. 650g

Accessory:

760 F3C Fuselage × 1
Aluminum collar × 4
Rear(L) Frame mounting block × 1
Rear(R) Frame mounting block × 1
Front Frame mounting block × 1
Rear Frame mounting block × 1
Front brace × 2
Rear brace × 2
Main Blade Holder × 1
Front Frame anti-vibration mount × 1
Rear Frame anti-vibration mount × 1
Landing skid × 2
Skid pipe × 2
Skid pipe end cap × 4
Landing Skid Nut × 4
Tail Torque Tube x 1
Bushing x 1
6701ZZ Bearing x 2(Φ12xΦ18x4)
Magnet × 2(Φ8x3mm)
Tail Boom mount foam × 1
Tail Boom anti-vibration foam × 1
Front frame anti-vibration foam × 2
Rear frame anti-vibration foam × 2
Frame mount foam × 2
Socket screw × 1(M3x14mm)
Socket screw × 10(M3x6mm)
Socket screw × 14(M3x8mm)
Socket collar screw × 4(M3x22mm)
Socket Botton Head Screw x 1(M4x5mm)
M3 washer × 4(Φ3xΦ8x1mm)
M3 Set screw × 4(M3x4mm)
