POWER DIV.EMCOTEC DPSI RV LDO GRANDE

Ref: 27571

Estoque: Indisponível

R$ 3.393,50

Comprar

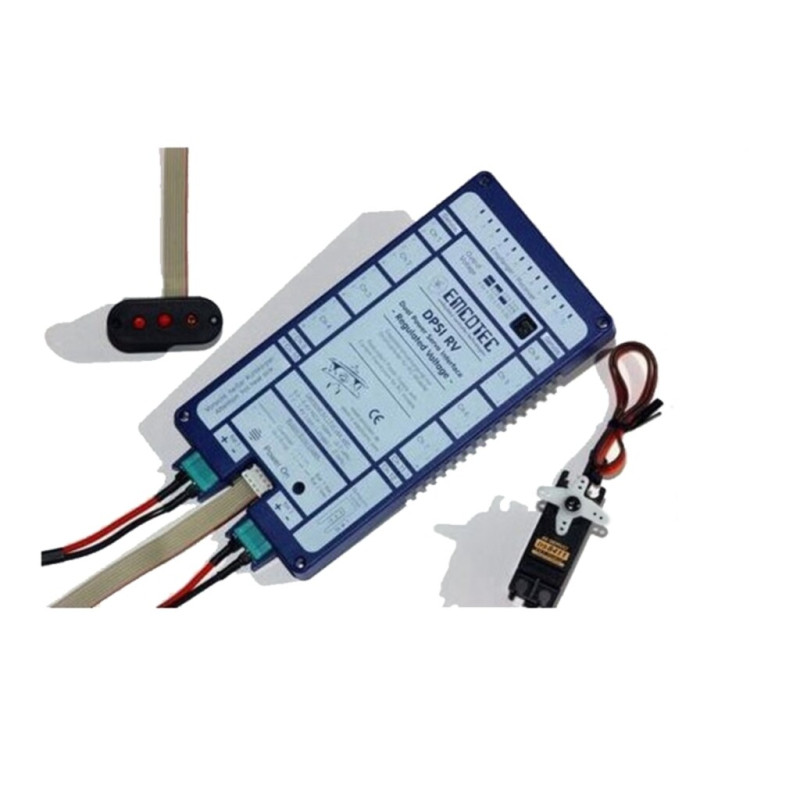

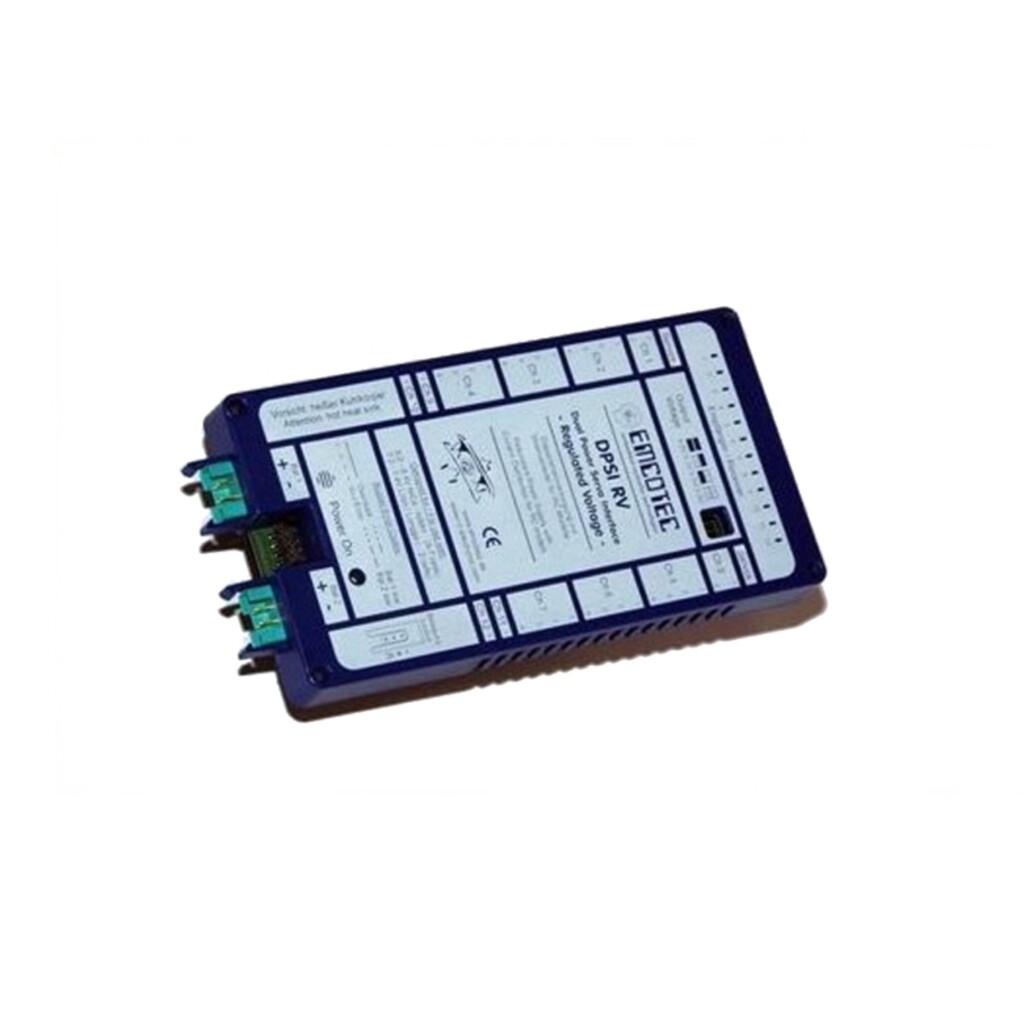

DPSI RV LDO

Battery Switch (Dual Power Supply) for 5/6 cell NiCad/NiMH, as well as LiIon/LiPo batteries (e.g. LONGGO)

Regulated output voltage for receiver and servos (from 5.0 volts up to 5.9 volts, adjustable in 4 steps)

Current distribution of 12 receiver channels to 32 servos (additional servos directly connectable to receiver)

Dual electronically on/off switch, HF interference suppression, servo pulse amplification

Intelligent voltage monitoring including optically and acoustically error indication

Suitable to all battery types due to low drop out technology

The used battery type can easily be programmed (and therefore the correct low voltage detection)

Three auxiliary outputs based on MPX high current connectors for the switched unregulated battery voltage, to supply servos with higher voltage

Enlarged heat sink for better heat dissipation

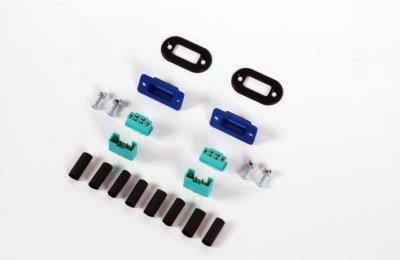

Delivery includes switch actuator, MPX high current connectors, 12 patch cables, operation instructions

For these articles the following documents are available for download (Acrobat PDF):

Operation Instructions English (approx. 967 KB)

Product Description / Flyer (approx. 79 KB)

Test Report (MFI 05/2004) (approx. 212 KB)
