RADIO 16SZH R7008SB 2.4GHZ HELI FUTK9461 01004356-3

RADIO 16SZH R7008SB 2.4GHZ HELI FUTK9461 01004356-3

Ref: 273763

Estoque: Indisponível

R$ 6.005,91

Comprar

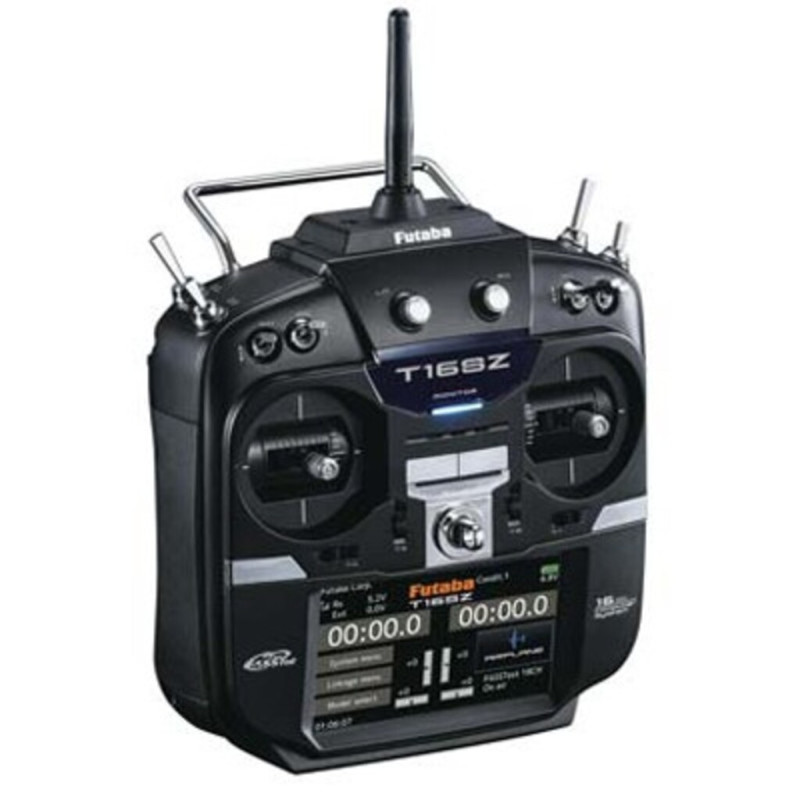

This is the Futaba 16SZA 2.4GHz Heli FASSTest 16 Channel Computer Radio System
with the R7008SB Receiver.
This is the helicopter version which will default to helicopter
settings when powered up.
**Transmitter and Receiver only, servos not included.**

10/17 Updates Include the Following;
Telemetry Display
Timer Alarm
Model Select (FX-32)
Data Converter
Butterfly Elevator
Butterfly Mixing
Butterfly Differential
Failsafe (FASST-7CH)

For all updates check http://www.futabarc.com/software-updates.html

FEATURES

Compatible with FASSTest, FASST, T-FHSS and S-FHSS protocols
Full telemetry compatible
4.3" LCD touch screen
10 programmable mixes
S.Bus servo programmer
3-axis gyro support
30-model memory with 15 character naming
3-axis gyro support
Swash and throttle mixing
V-tail mixing
Adjustable servo speed
8 flight conditions
Voice message/audio earphone jack
Micro memory card slot
Software updateable
Up/down/integral timer
Lap timer memory
EPA
One year limited warranty through Hobby Services beginning at date
of purchase

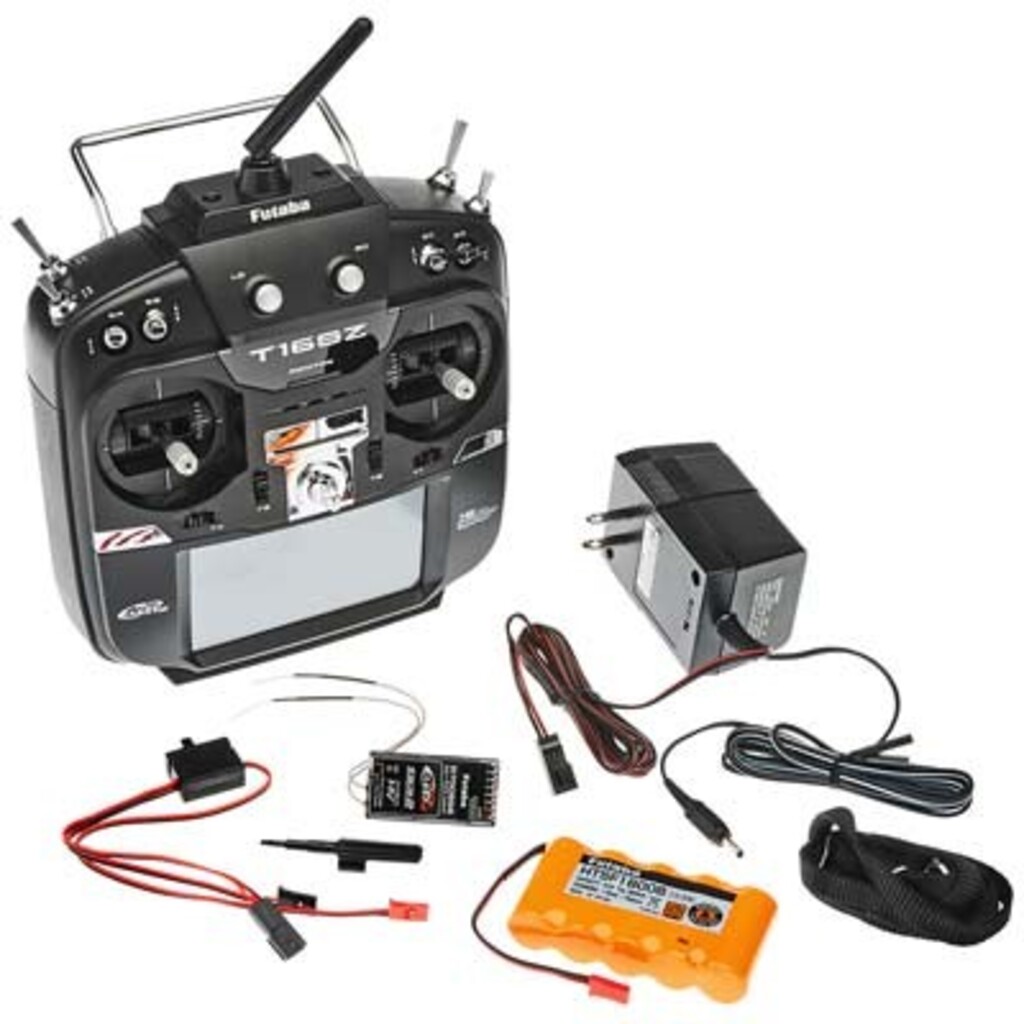

INCLUDES

Futaba 16SZA Transmitter
R7008SB Receiver, FUTL7675
6.0V HT5F1800B NiMH Transmitter Battery, FUTM1482
Instruction Manual

REQUIREMENTS

Servos of modeler's choice

SPECIFICATIONS

Transmitter;
Transmitting Frequency: 2.4GHz band
System: FASSTest18CH. FASSTest12CH, FASST MULT, FASST 7CH,
TFHSS, S-FHSS, switchable
Power Supply: 6.0V HT5F1800B NiMH battery
RF Power Output: 100mW EIRP

Receiver;
Receiving Frequency: 2.4GHz FASSTest system
Power Requirement: 3.7 - 7.4V (voltage range 3.5 - 8.4V)
Current drain: 75mA
External voltage Port: 0 - 70V DC
Size: 0.98 x 1.9 x 0.56" (24.9 x 47.3 x 14.3mm)
Weight: 0.38oz (10.9g)
Antenna Length: 5-3/4" (146mm)

jxs 05/15/17
ir/jxs

16 channels of versatility, with famous Futaba reliability.

If you want a radio system that can handle any challenge, step up to the 16SZ. It’s compatible with all of the popular protocols: FASSTest, FASST, S-FHSS and T-FHSS. It has a large 4.3" LCD touch screen. Programming is easy and intuitive, for airplanes, helis, gliders and multirotor models. All this plus a high-voltage S.Bus2 receiver, the convenience of 30-model memory, and much, much more.

Features:

16 proportional channels, 2 switched
Compatible with:FASSTest, FASST, S-FHSS and T-FHSS protocols,Futaba HV (High-Voltage) receivers,All Futaba telemetry sensors
Free online software upgrades
4.3" LCD touch screen
30-model memory
15-character user and model naming
Sub trims (240 steps)
Servo reversing
Trim settings (adjustable step, rate & mode)
Servo speed adjustment
AFR/DR
AFR curve mode (3)
AFR curve point (17 points)
Idle down
Logic switch
Full flight condition
10 programmable mixes
Throttle cut
S.Bus servo programming editor
High-voltage R7008SB receiver
Swash and throttle mixing
V-tail mixing
End point adjustment
Adjustable servo speed
8 flight conditions
3-axis gyro support
Micro memory card slot
Voice message/audio earphone jack
Up/down integral timer (2)
Throttle timer
Lap timer/memory
Battery fail safe
Stick calibration
Eight toggle switches
Two assignable front dials
Four assignable trim levers
Two assignable side levers
6.0V NiMH rechargeable battery
Trainer S.Bus port
Vibration alert
90° antenna angle adjustment
Multi language (9 languages)

Helicopter Features:

8 swash types
Pitch/throttle curve
Pitch/throttle curve mode (3)
17 point pitch/throttle curve
Acceleration
Throttle hold
Swash mixing
Throttle mixing
Pitch to needle mixing
Pitch to rudder mixing
Gyro sensor (3)
Governor
Condition hold
Hovering pitch
Hovering throttle
Swash AFR
Swash setting
Swash ring
Throttle limiter

Airplane Features:

13 wing types
3 tail types
2 rudder types
Flap setting
Aileron differential
Aileron to camber flap mix
Aileron to brake flap mix
Aileron to rudder mix
Airbrake to elevator mix
Rudder to aileron mix
Rudder to elevator mix
Camber mix
Elevator to camber mix
Snap roll
Airbrake mix
V-tail
Ailevator
Winglet
Motor mix
Multi-engine
Gyro sensor

Glider Features:

13 wing types
3 tail types
2 rudder types
Flap setting
Aileron differential
Aileron to camber flap mix
Aileron to brake flap mix
Aileron to rudder mix
Rudder to aileron mix
Airbrake to elevator mix
Camber mix
Elevator to camber mix
Camber flap to elevator mix
Butterfly mixing
Butterfly to elevator
Trim mix 1
Trim mix 2
V-tail
Ailevator
Winglet
Motor mix

Multicopter Features:

Gyro

Telemetry Functions:

Receiver battery
Temperature
RPM (magnetic and optic)
Altitude
GPS
Voltage
Current
Servo
Voice (English, German, Japanese, French)
Data logging

Futaba 16SZH 16-Channel Heli FASSTest Telemetry Radio - Protocols

The 16SZ offers quick access to all four protocols: FASST, FASSTest, S-FHSS and T-FHSS.

Futaba 16SZH 16-Channel Heli FASSTest Telemetry Radio - Receiver

The high-voltage R7008SB receiver offers you a number of servo and channel choices. Use up to 8 channels with standard PWM outputs, or up to 18 channels (16 proportional + 2 switched) with S.Bus and S.Bus2 outputs.
