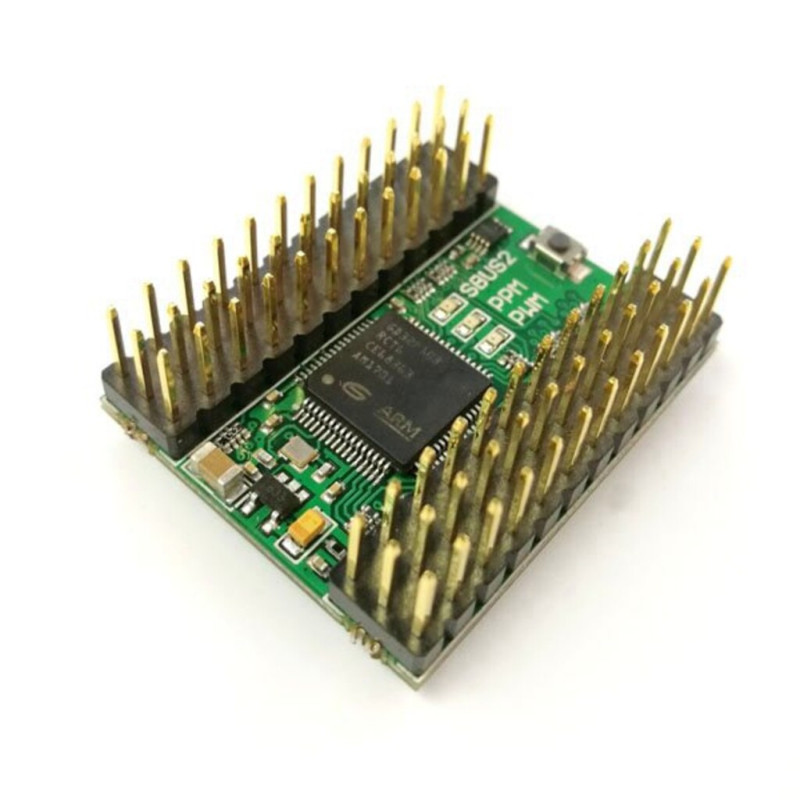

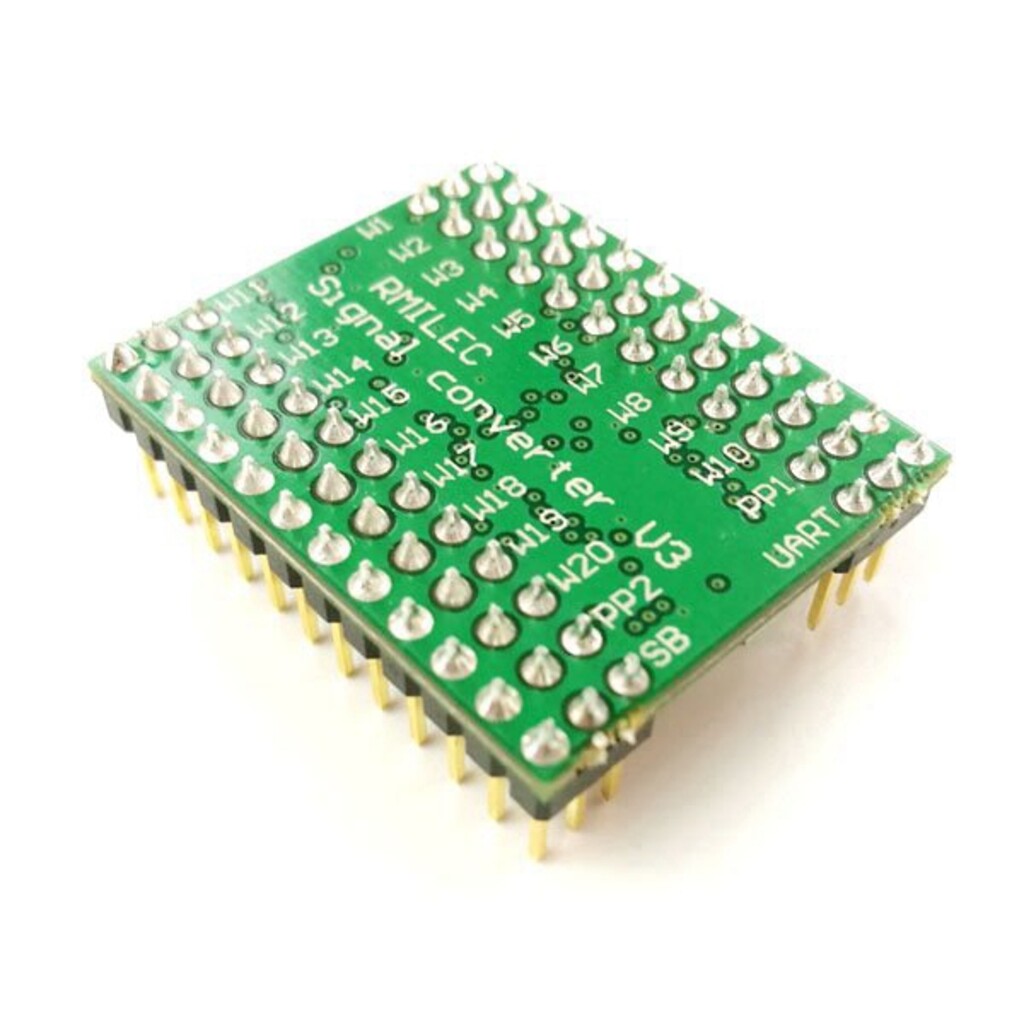

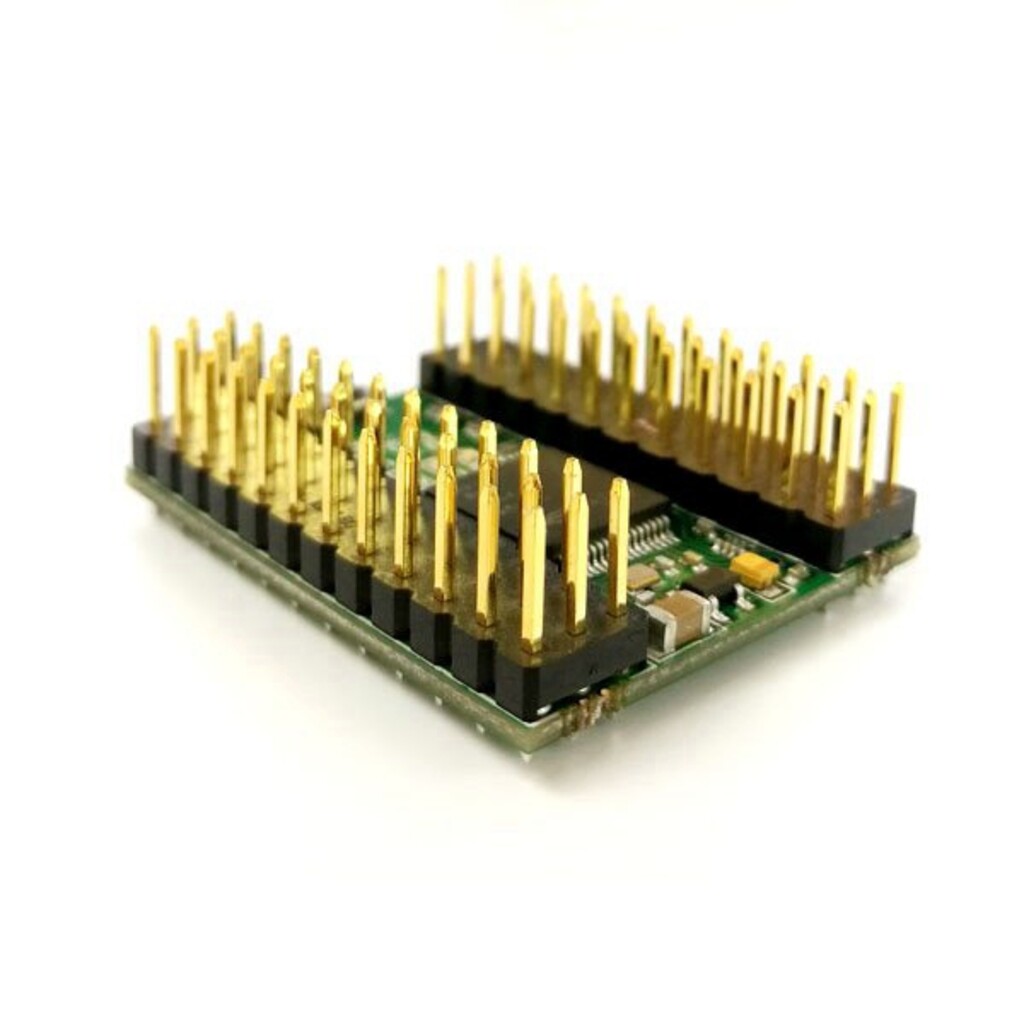

MR SIGNAL CONVERTER PWM PPM SBUS V3-ZHQ

his is the latest generation of RMILEC signal converter V3 which is able to convert PWM signal into PPM signal and SBUS signal\, or convert two-way PPM signal into PWM signals and SBUS signals\, or convert SUBS signal into PWM signal and two-way PPM signal.  It is used to debug UAV\, robot and other equipment\, accurately observes the control data of servos via computer.


Specification:
Item name: PWM/PPM/SBus Signal Converter
Voltage: 3.3-12V Support for reverse protection
Precision: 250 nanoseconds
Voltage: 3.3-12V Support for reverse protection
Conversion speed: Interrupt decoding without waiting after the signal is collected
pin header: 2.95 mm longitudinal spacing receiver pin header
Size: 35.6 * 29 mm
Weight: 8.5 grams

Feature:
Mode 1: PWM signal converted into PPM signal and sbus signal. PWM signal analyzes.
Mode 2: Two-way PPM signals converted into PWM signals and sbus signals. Two-way PPM signal analyzes.
Mode 3: SBUS signal converted into PWM signal and a two-way ppm signal. Sbus signal analyzes

Package Included:
1 X PWM/PPM/SBus Signal Converter
