MAPIR POWER + PWM TRIGGER BOARD

Ref: 268158
Estoque: Disponível
R$ 501,80
Comprar

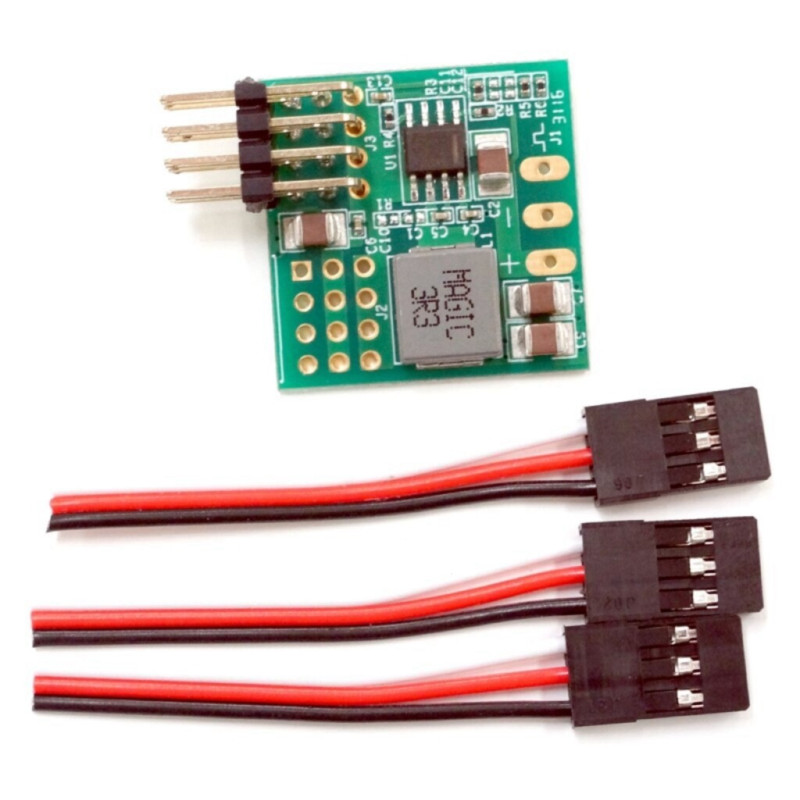

Use this small board to convert your drone's battery voltage (5-18 volts) to 5 volts (6A max), and also to split a single PWM signal into 4 synced/linked signals. Perfect to use with our PWM Trigger Cables and Power Cables and the MAPIR Survey2 cameras. Can also be used for any other device and will work on nearly any compatible power and PWM source.

You can use this board to only convert to 5V without also having to also use the signal (PWM) pins.

You can use this board to only split a signal (PWM) and do not need to connect power to properly function.

Dimensions: 34 x 26 x 11 mm (L x W x H)

Weight: 5.6g (board), 0.83g (each cable)

Includes the board and 4 servo cables to solder to the power outputs if desired.
