MAPIR SURVEY 3W NEAR INFRARED NIR S3W_NIR

MAPIR SURVEY 3W NEAR INFRARED NIR S3W_NIR

Ref: 265560

Estoque: Indisponível

R$ 3.827,17

Comprar

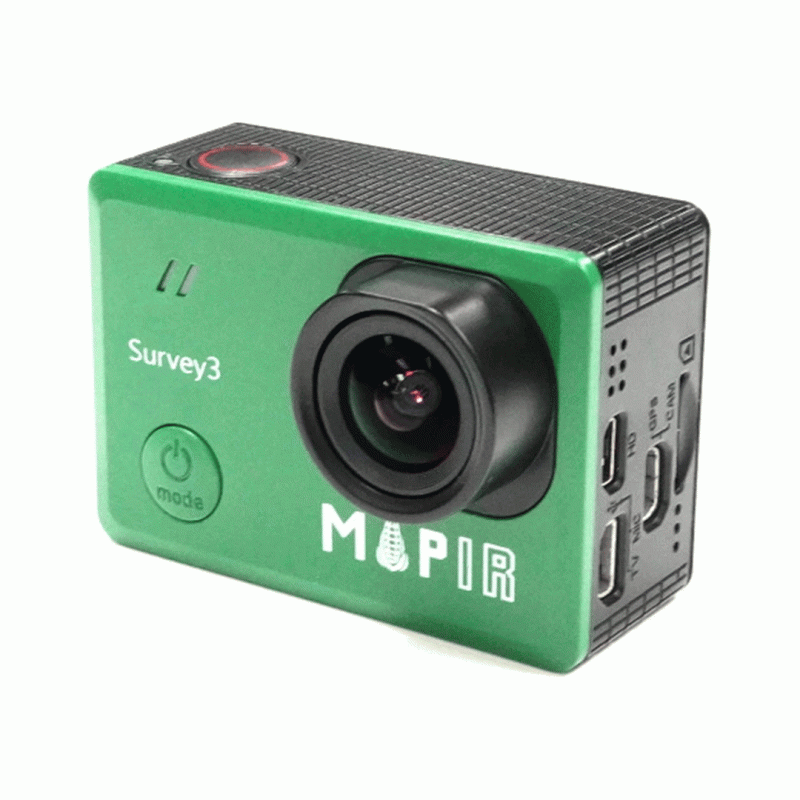

The Survey3 is the newest in our line of simple to use survey cameras. Every Survey3 camera includes an external USB GPS receiver to automatically geo-tag each captured image. Its 12MP sensor and sharp non-fisheye lens allows you to easily capture aerial media. It captures photos on the default timer trigger or can be sent a PWM signal through the HDMI port (see below). If you supply power to the USB port it will power on the camera automatically. Sized similar to a GoPro® Hero these small survey cameras can be attached to your aerial drone platform using our various mounts.

This model captures Near Infrdaared 850nm light. It is useful for capturing highly NIR reflective objects such as vegetation to compare with less reflective objects like bare soil. You can also use this camera with common security CCTV system infrared 850nm LED lights for night-time media capture.

The Survey3 cameras have a faster interval timer: 1.5 seconds for JPG mode and 2.75 seconds for RAW+JPG mode. (Capture speed depends on the speed of the microSD card used). You can also trigger the photo capture using a PWM signal through the HDMI port (see triggering information below).

PWM can also be used to mount the camera's memory card to a computer connected via USB.

Specifications

Image Resolution: 12 MegaPixel (4,000 x 3,000 px), 8MP

Image Format: RAW+JPG, JPG (RAW is 12bit per channel, JPG is 8bit per channel)

Video Resolution: 2160p24, 1440p30, 1080p60, 720p60

Video Format: MP4 (H.264 Codec)

Lens Optics: 87° HFOV (19mm) f/2.8 Aperture, -1% Extreme Low Distortion (Non-Fisheye) Glass Lens

Ground Sample Distance (GSD): 5.5 cm/px (2.17in/px) at 120 m (~400 ft) AGL

Sensor: Sony Exmor R IMX117 12MP (Bayer RGB)

Chipset: Novatek NTK96663

GPS/GNSS (External): ublox UBX-G7020-KT

Capture Speed: RAW+JPG: 2.75 Seconds / Photo. JPG: 1.5 Seconds / Photo

Remote Trigger: PWM via HDMI Port (see below)

Battery: Removable Li-ion (1200mAh) (Not Required When USB Powered)

Power Draw: 5.2V 0.2A (Without Battery), 5.2V 0.4A (With Battery)

Weight: 50g (1.8 oz) (Without Battery), 76g (2.7 oz) (With Battery)

Dimensions: 59 x 41.5 x 36mm (Length x Height x Depth)

Memory Storage: Micro SD (Up To 128GB Card) (64GB Card ≈ 15,000 JPG, 2,200 RAW+JPG)

White Balance: Auto / Daylight / Cloudy / Tungsten / Fluorescent / Blue / Light Blue / Red / Light Red / Custom*

Capture Interval: 0.5sec*, 1sec, 2sec, 5sec, 10sec, 30sec, 1min, 5min, 10min, 30min, 1hour, 2hours, 6hours, 12hours, 24hours

ISO: 50* / 100 / 200 / 400, Auto

Shutter Speed (s): 1/2000, 1/1000, 1/500*, 1/250, 1/125, 1/90, 1/60, 1/30, 1/15, 1/8, 1, 2, 3, 5, 10, 15, 20, 30, 60, Auto

Exposure: +2.0 / +1.67 / +1.33 / +1.0 / +0.67 / +0.33 / +0.0* / -0.33 / -0.67 / -1.0 / -1.33 / -1.67 / -2.0

Metering: Average / Center* / Spot

Color: Normal* / Black and White / Sepia / Vivid

Sharpness: Strong / Medium* / Soft

Capture Mode: Single* / 3 Sequence / 10 Sequence

LCD: 2.0” Ultra Bright Color LCD Touch Screen

Video Out: HD 1080p (HDMI Micro), SD 480p (Optional USB FPV Cable)

TV Mode: NTSC* / PAL

Power Input: Battery, USB (Micro-A Cable Included, Optional Micro USB FPV Cable)

Auto Power On (When Power Applied to USB Port): ON* / OFF

OSD Language; English*, French, Spanish, Portuguese Brazil, Dutch, Czech, Polish, German, Italian, Chinese, Russian, Japanese, Korean

Frequency: 60Hz* / 50Hz

OSD Display: ON* / OFF

Date Stamp: ON / OFF*

Sound: ON* / OFF

Quick Capture: ON / OFF*

Auto Power Off: OFF* / 1min / 3min / 5min / 10min / 15min / 30min / 60min

Auto Sleep LCD: 1min* / 3min / 5min / OFF

Vertical Rotate: ON / OFF*

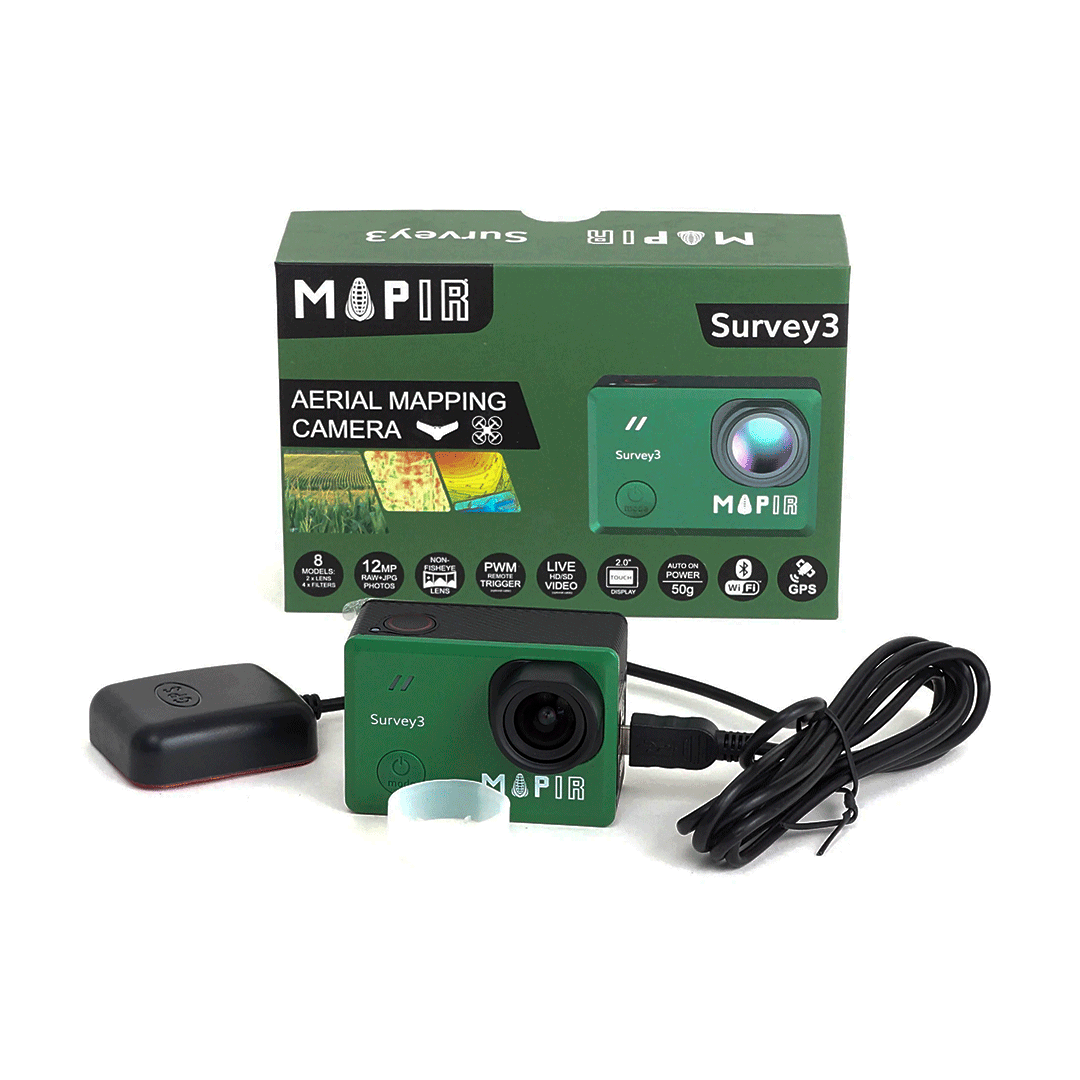

Included Accessories: USB GPS Receiver, Battery, Lens Cap, USB Charge Cable, Manual

Included:

(1) Survey3 Standard GPS Receiver (we recommend upgrading ABOVE to the Advanced GPS for better results)

(1) Survey3 Camera Battery

(1) Protective Silicone Lens Cap

(1) USB Charging Cable

Recommended:

Reflectance Calibration Target - Normalize Your Results

PWM Shutter Trigger Cable

USB FPV Power Cable

Survey3/2 Glass Lens Protector

Memory Card
