RECEPTOR JETI 10CH DUPLEX REX 10 US JDEX-RR10-US

Ref: 264914
Estoque: Indisponível
R$ 1.105,57
Comprar

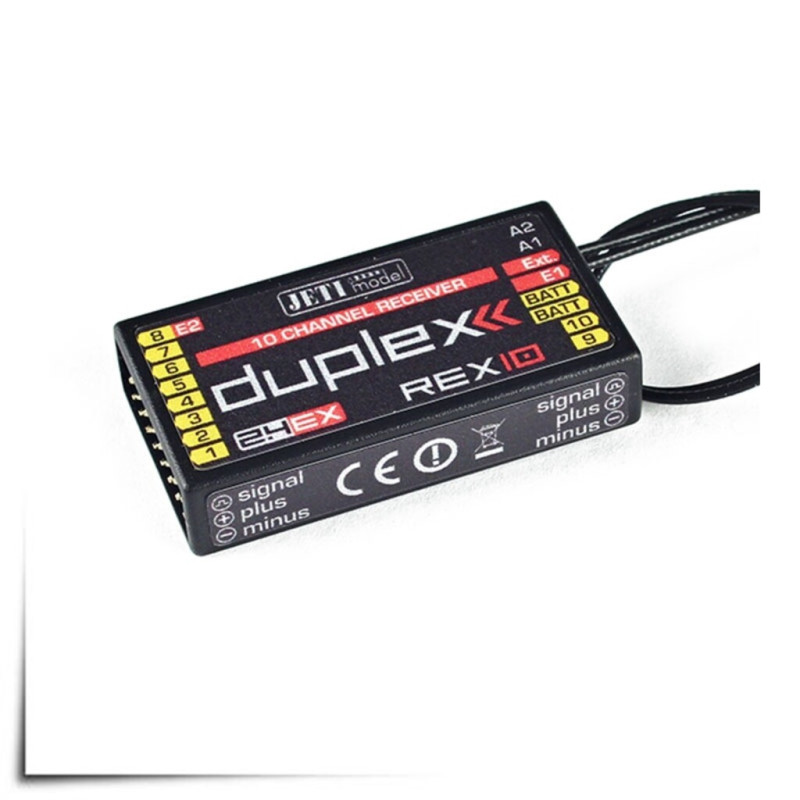

Receiver Duplex EX R10 REX
Manufacturer Jeti Model
Special Features Spread-Spectrum/Frequency Hopping
Modulation 2.4GHz w/Telemetry Data
Upgradeable Via USB or JetiBox
Satellite Rx Support Yes/2 (E1, E2)
Channels 10
Range Full Range
Voltage 3.2-8.4V (2S Li-poly)
Dimensions 51mm x 28mm x 11mm
Weight 16g

Duplex revolutionary, fully digital 2.4GHz, frequency hopping radio system is fully designed and manufactured by Jeti Model in the Czech Republic. We are excited to introduce two brand new lines of REX and REX Assist Jeti Duplex 2.4GHz Receivers with built-in revolutionary features: Internal Data Telemetry Logging (Black Box), Integrated Multi (3) Input/Output Telemetry & EX Bus Expander, and New 32 Bit Microprocessors (No limits for Future Firmware Upgrades). All Jeti receiver features wirelessly programmable failsafe and integrated digital telemetry (Rx Voltage, Signal Quality).

New Jeti REX line of programmable receivers has been developed to take full advantage of multi-port (Ext, E1, E2), multi communication protocol (EX Bus, UDI 12/16, PPM) configuration and fully implement Duplex EX Bus (Device Manager) or third party devices that use EX Bus for telemetry and programming integration.

One of the most attractive features of the Duplex 2.4GHz line of products is the full integration with all Duplex telemetry sensors. You can easily observe up to 40 different parameters in real-time directly on the transmitter. Or, by using the JetiBox Profi (sold separately) you can see your data in parallel mode giving you and your copilot valuable real time information (see video).

With any of the Duplex 2.4GHz receiver you can simultaneously monitor all of your sensor data using the Duplex JetiBox Profi or any of the Jeti 2.4GHz Transmitters.

More information (links):
* Instruction Manual (.pdf)
* Instruction Flow Chart (.pdf)
* Click Here for Firmware Updates

Port Configurations (Rx Firmware REX 1.00):
Standard: 1-10 Servo, E1 Telemetry/Satellite, Ext Telemetry/USB Programming
PPM/Servo: 1-10 Servo, 8/E2 Servo/Satellite/PPM, E1 Satellite/PPM, Ext Telemetry/USB Programming
EX Bus/Servo: 1-10 Servo, 8/E2 Servo/Satellite/EX Bus, E1 Satellite/EX Bus, Ext Telemetry/USB Programming
UDI/Servo: 1-10 Servo, 8/E2 Servo/Satellite/UDI, E1 Satellite/UDI, Ext Telemetry/USB Programming
