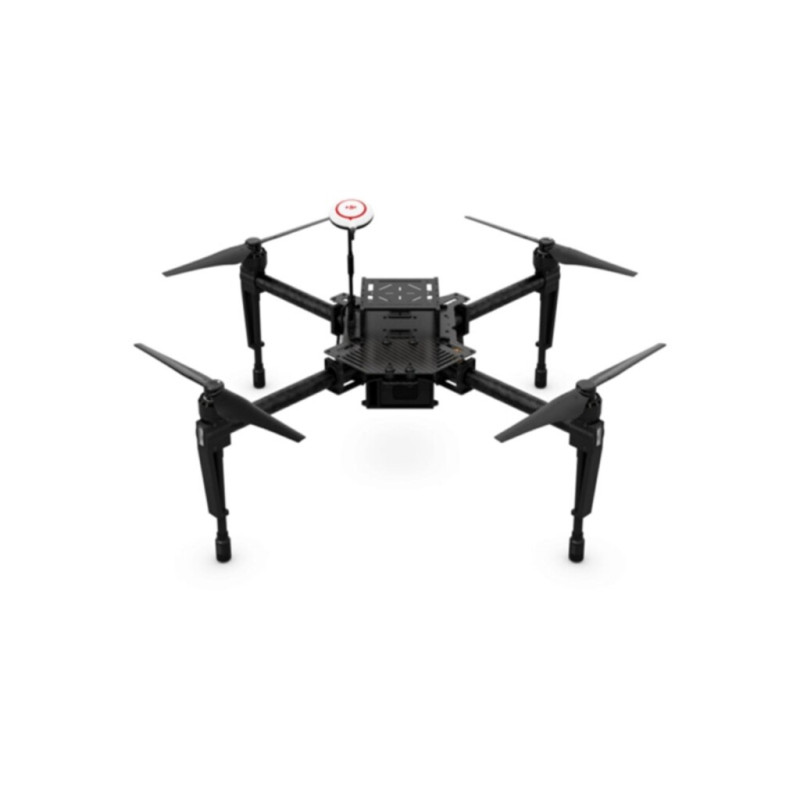

DRONE DJI MATRICE 100 FARM (COM MALETA)

Ref: 255813
Estoque: Disponível
R$ 16.011,99
Comprar

MATRICE 100 Specs


Structure

  • Diagonal Wheelbase 650 mm
  • Weight (with TB47D battery) 2355 g
  • Weight (with TB48D battery) 2431 g
  • Max. Takeoff Weight 3600 g
  • Expansion Bay Weight 45 g
  • Battery Compartment Weight 160 g
  • Zenmuse X3 Gimbal with Camera Weight 247 g


Propulsion System

  • Motor Model DJI 3510
  • Propeller Model DJI 1345s
  • ESC Model DJI E SERIES 620D


Other

Operating Temperature -10°C to 40°C


Charger

  • Model A14-100P1A
  • Voltage Output 26.3 V
  • Power Rating 100 W


Battery (Optional)

  • Name Intelligent Flight Battery
  • Model TB48D
  • Capacity 5700 mAh
  • Voltage 22.8 V
  • Type LiPo 6S
  • Energy 129.96 Wh
  • Net Weight 676 g
  • Operating Temperature -10°C to 40°C
  • Storage Temperature
    • <3 months: -20° to 45°C
    • >3 months: 22° to 28°C
  • Charging Temperature 0°C to 40°C
  • Max. Charging Power 180 W


Performance

  • Hovering Accuracy (P-Mode With GPS) Vertical: 0.5 m, Horizontal: 2.5 m
  • Max. Angular Velocity Pitch: 300°/s, Yaw: 150°/s
  • Max. Tilt Angle 35°
  • Max. Speed of Ascent 5 m/s
  • Max. Speed of Descent 4 m/s
  • Max. Wind Resistance 10 m/s
  • Max. Speed
    • 22 m/s (ATTI mode, no payload, no wind)
    • 17 m/s (GPS mode, no payload, no wind)
  • Hovering Time (with TB47D battery) No payload: 22 min; 500g payload: 17 min;1kg payload: 13 min
  • Hovering Time (with TB48D battery) No payload: 28 min; 500g payload: 20 min;1kg payload: 16 min
  • Hovering Time (with two TB47D batteries) No payload: 33 min
  • Hovering Time (with two TB48D battery) No payload: 40 min
  • Hovering Time (with TB47D battery and Zenmuse X3) No payload: 19 min
  • Hovering Time (with TB48D battery and Zenmuse X3) No payload: 23 min


Flight Control System

Model N1


Remote Controller

  • Name C1
  • Operating Frequency
    • 5.725~5.825 GHz
    • 922.7MHz~927.7 MHz (Japan)
    • 2.400~2.483 GHz (Lightbridge)
  • Transmission Distance (unobstructed, free of interference)
    • CE: 3.5 km
    • FCC: 5 km
  • EIRP
  • Video Output USB, Mini-HDMI
  • Power Supply Built-in battery
  • Charger DJI approved charger
  • Dual Users Capability Master-and-Slave control
  • Mobile Device Holder Supports smartphones and tablets
  • Output Power 9 W
  • Operating Temperature -10°C to 40°C
  • Storage Temperature
    • <3 months: -20°C to 45°C
    • >3 months: 22°C to 28°C
  • Charging Temperature 0°C to 40°C
  • Battery 6000 mAh LiPo 2S
  • Max Mobile Device Width 170mm


Battery (Standard)

  • Name Intelligent Flight Battery
  • Model TB47D
  • Capacity 4500 mAh
  • Voltage 22.2 V
  • Type LiPo 6S
  • Energy 99.9 Wh
  • Net Weight 600 g
  • Operating Temperature -10°C to 40°C
  • Storage Temperature
    • <3 months: -20°C to 45°C
    • >3 months: 22°C to 28°C
  • Charging Temperature 0°C to 40°C
  • Max. Charging Power 180 W
