AVIAO GP ZERO SPORT FIGHTER .46 GPMA1209

"In the Fight" Realism

Full-scale Zeros were intricately-constructed and incredibly agile aircraft that required months of training to fly. This Sport-Fighter version gets you to the flight line faster than with any kit and, once there, is an easy flier for anyone transitioning from a high wing trainer AND a plane that can "tear up the sky" doing aerobatics. Soar in a piece of history today with the Sport Fighter Zero ARF.

Fast, easy assembly

Excellent sport flier

Realistic trim scheme

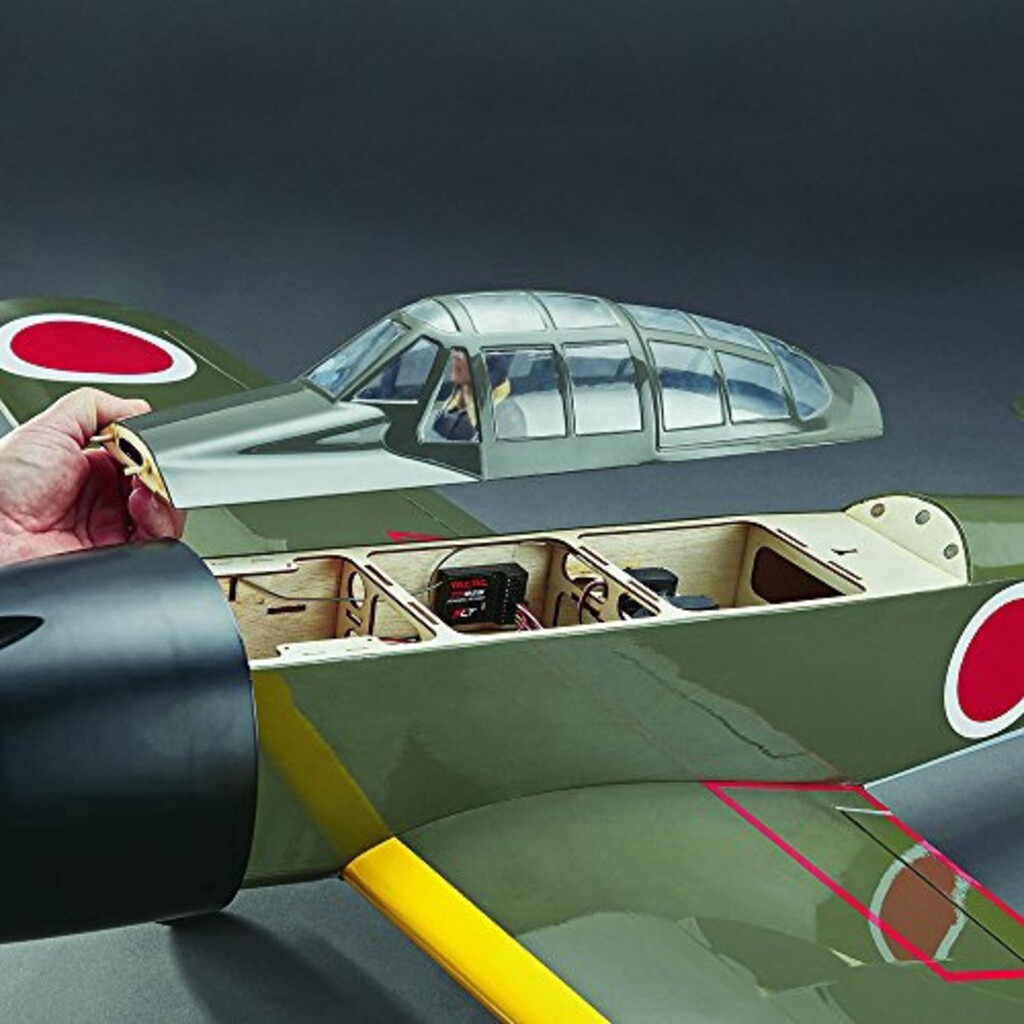

A large, magnetically-attached hatch makes accessing onboard gear and LiPo batteries quick and easy.

The ailerons are operated by individual servos. This allows fine tuning of the ailerons and flaperon mixing.

Includes parts for brushless and glow power setups.

FEATURES

Construction: Balsa and ply

Wing: One-piece, plywood wing joiner

Aileron Control: Dual servo

Landing Gear: Main, prebent wire with 3" (76mm) diameter wheels tail gear, prebent wire with 1" (25.4mm) diameter wheel

Cowl: Painted fiberglass

Motor Mount: Plywood

Engine Mount: Two-piece composite plastic

Fuel Tank: Approximately 8oz (240cc)

Spinner: Black plastic construction 2.5" (63mm) diameter

Warranty: Great Planes Model Manufacturing Company guarantees this kit to be free from defects in both materials and workmanship at the date of purchase. This warranty does not cover any component parts damaged by use or modification.

INCLUDES

ARF Zero Sport Fighter, Cowl, Canopy, Landing Gear, Wheels, Decals, Fuel Tank, Motor Mount, Engine Mount and Instruction Manual

REQUIREMENTS

Radio: 4-5 channel

Servos: Four mini, five if using glow engine

6" (150mm) Extensions: Four for aileron servos

Receiver Battery: 4-cell at least 2000mAh if using glow engine

Electric Power;

Brushless Motor: Great Planes RimFire .32 42-50-800 recommended

ESC: 60A

Battery: 4S LiPo, 3300-4000mAh

Charger: Compatible with selected battery

Propeller: 13x8E

Glow Power;

Engine: .46-.55 2-stroke OR .70 4-stroke

Muffler: Pitts style

Propeller: Compatible with selected engine

Servo: Mini, for throttle Glow fuel, glow starter, building and field equipment

SPECIFICATIONS

Wingspan: 56.6" (1435mm)

Length: 46" (1170mm)

Wing Area: 537 sq in (34.6 sq dm)

Wing Loading: 21-25 oz/sq ft (64-76 g/sq dm)

Center of Gravity (CG): 3-4" (75-100mm) back from leading edge of wing measured at the fuselage side

Control Throws: Low High

Elevator (up & down): 3/8" (10mm) 11° 5/8" (16mm) 19°

Aileron (up & down): 1/4" (6mm) 11° 1/2" (13mm) 21°

Rudder (right & left): 1" (25mm) 12° 1-3/4" (44mm) 21°
