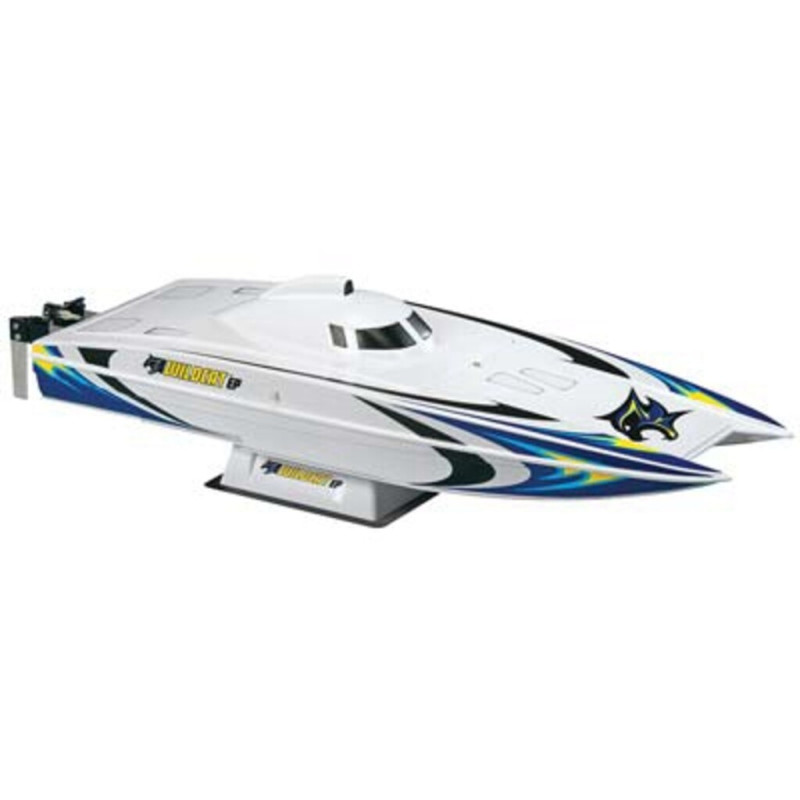

LANCHA WILDCAT BL CATAMARAN RTR AQUB1811

FEATURES

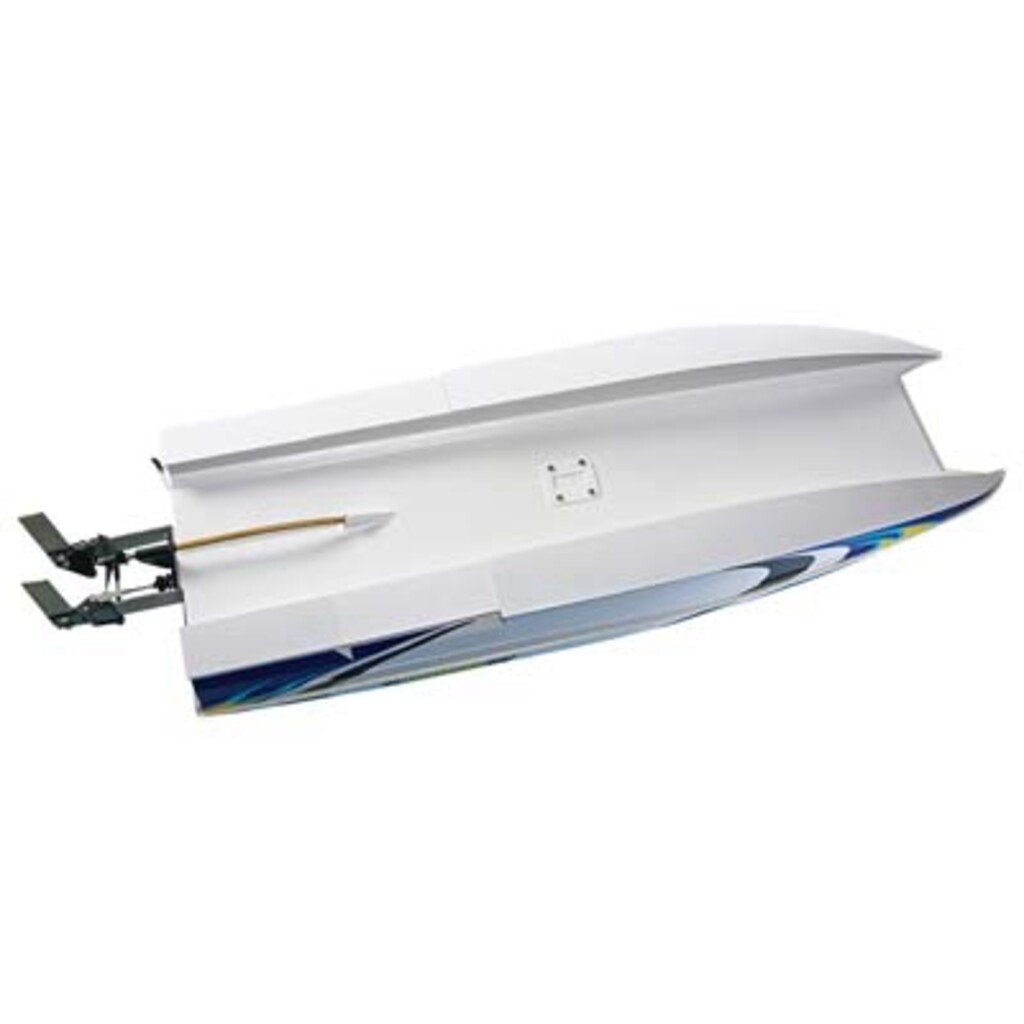

• Hull: Molded ABS plastic with transom drain plug and preapplied graphics
• Motor: 35-36-1800Kv brushless outrunner
• Motor Mount: Water cooled aluminum with transom mounted water pickup
• Drive System: Surface drive propeller system with 1/8" (3.2mm) shaft
• Radio: Tactic SLT 2.4GHz TTX300 3-channel with fail safe, steering & throttle trim, servo reversing and steering rate adjustment, TR325 receiver
• Electronic Speed Control: 50A water coooled, LiPo compatible, low voltage compatible and star plug
• Propeller: Two blade 42mm diameter FRP (fiber reinforced plastic)
• Rudders: Two aluminum construction with breakaway shear bolt design
• Warranty: AquaCraft will warrant your model for 90 days after the purchase from defects in materials or workmanship of original manufacture. AquaCraft, at their option, will repair or replace at no charge, the incorrectly made part. This warranty does not cover damage caused by crash, abuse, misuse, alteration or accident.

INCLUDES

• RTR Wildcat Catamaran with Motor, Radio, Steering Servo, ESC, Stand and Instruction Manual

REQUIREMENTS

• AA Batteries: Four for transmitter
• LiPo Battery: 3S 11.1V at least 2000mAh
• Battery Charger: Compatible with selected battery LiPo Charging Sack and Shore Equipment

SPECIFICATIONS

• Catamaran;
• Length: 26.5" (673mm)
• Overall: 29" (737mm)
• Beam: 9" (229mm)
• Height: 5.5" (140mm)
• Weight: 32oz (89grams) RTR w/o batteries Motor;

• KV Rating: 1800kv
• Operating Current: 3.8A, 8V/DC (without loading, 8V/DC)
• Input: 3-S LiPo battery
• Max Current: 55A/15S
• Shaft Diameter: 4mm
• Motor Resistance: 37 miliohms
• Dimension: 1.4x1.42" (35mmx36mm)
• Weight: 3.77oz (107g) ±.35oz (10g)
• Plugs: 4mm ESC;

• Amps: 50 amp continuous
• Max Amps: 65A 10 sec
• Voltage Range: 9V-12.6V
• BEC: 5V 2A
• Motor Connectors: 4mm bullet (3)
• Battery Connector: Star
• Stutter Voltage: 9.7 volts
• LVC: 9 volts
• Wire Gauge: #14
• Max Output Power: 500 watts
• On-Resistance: 0.0015 ohms
• Operating Frequency: 8KHZ PWM, 16MHZ MCU
• Timing Angle: Auto
